3-1) Check if your network voltage is the same as the one shown on the furnace
labelPic1–item(1).
3-2) Install the furnace into an exclusive electrical network using 6mm wiring to a
110voltsnetwork,or4mmwiringtoa220voltsnetwork.
3-3) Never connect the furnace to the same network in which other furnaces,
compressors, electrical taps or any other high electricity consumption devices are
alreadyconnected.
3-4)Checkiftheoutletinwhichthefurnacewill bepluggedin isinperfectcondition
andofgoodqualitytobearatleast20amperes.
3-5) Connect the grounding end (round pin) to a grounding rod and never to the
electricalnetworkneutral.
NOTE: Not checking the procedures above will interfere on the equipment correct
working,onitsguaranteeandalsoontheoperatorsafety.
3-6)Ifyourelectricalnetworkisveryinstable(thelightsflashalot),itisadvisableto
use a voltage regulator such as a saturated autotransformer with at least 2kw
capacity.Neveruse,byanymeans,regulatorsusedincomputers.

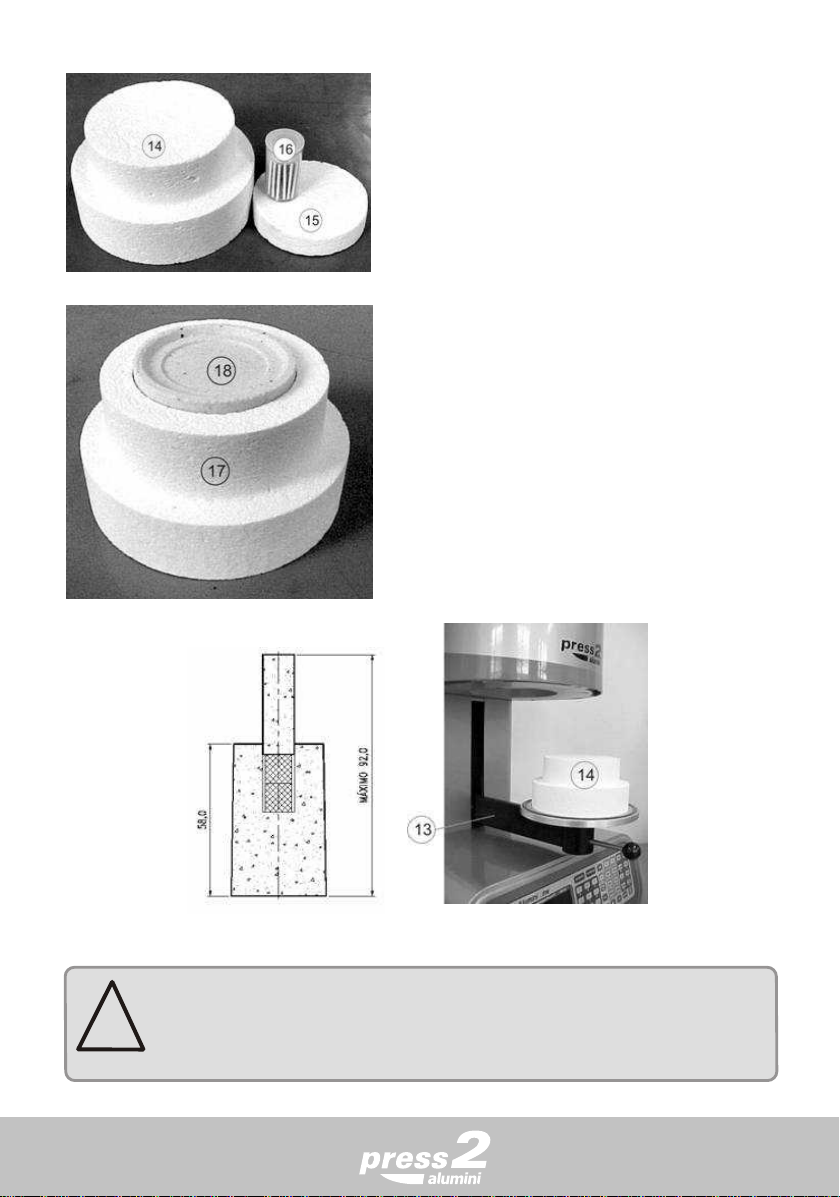

3-7)ConnectthevacuumhosetothefurnacePic-1item(5)Plugthevacuumpump
powercabletotheoutletwhichisatthebacksideofthefurnacePic-1item(6)
3-8) Connect the compressed air hose to the furnace. Pic-1 item (10). The air
should be supplied dried by the compressor at minimum pressure of 2 kg/cm²
(30lbf/pol²).Thispressureshouldbekeptwhilethefurnaceisworkingwithpressed
ceramic. The lack of pressure during this process will cause the process
interruptionandamessagewillbeshownonthecontroldisplay.
3-9) Connect the argon hose to the furnace and to the cylinder outflow regulator
Pic-1item (7).Theargonusedis thecommercialone.The cylinderandthe outflow
regulatorarenotsuppliedwiththeequipment,werecommendyoutocontactagas
supplier in your city. The maximum argon outflow should be adjusted at 10 L/m
(litersperminute).Note.:Weremindyouthatwhenusingargon,bothtranslucence
and opacity are enhanced, but its use can be dispensed. To do so, just disconnect
the correspondent hose and do not program its function. Check the hoses
connectionsiftheyareverytighttoavoidundesirableleaks.
