Rev. 3/06 - BC/mc

Catalog #R09430, #R09431

Brochure #63-0490

Page 1 of 2

Front Brake Hose Kit

for 2004-2006 Yamaha Rhino

Catalog #R09430, #R09431

INSTALLATION INSTRUCTIONS

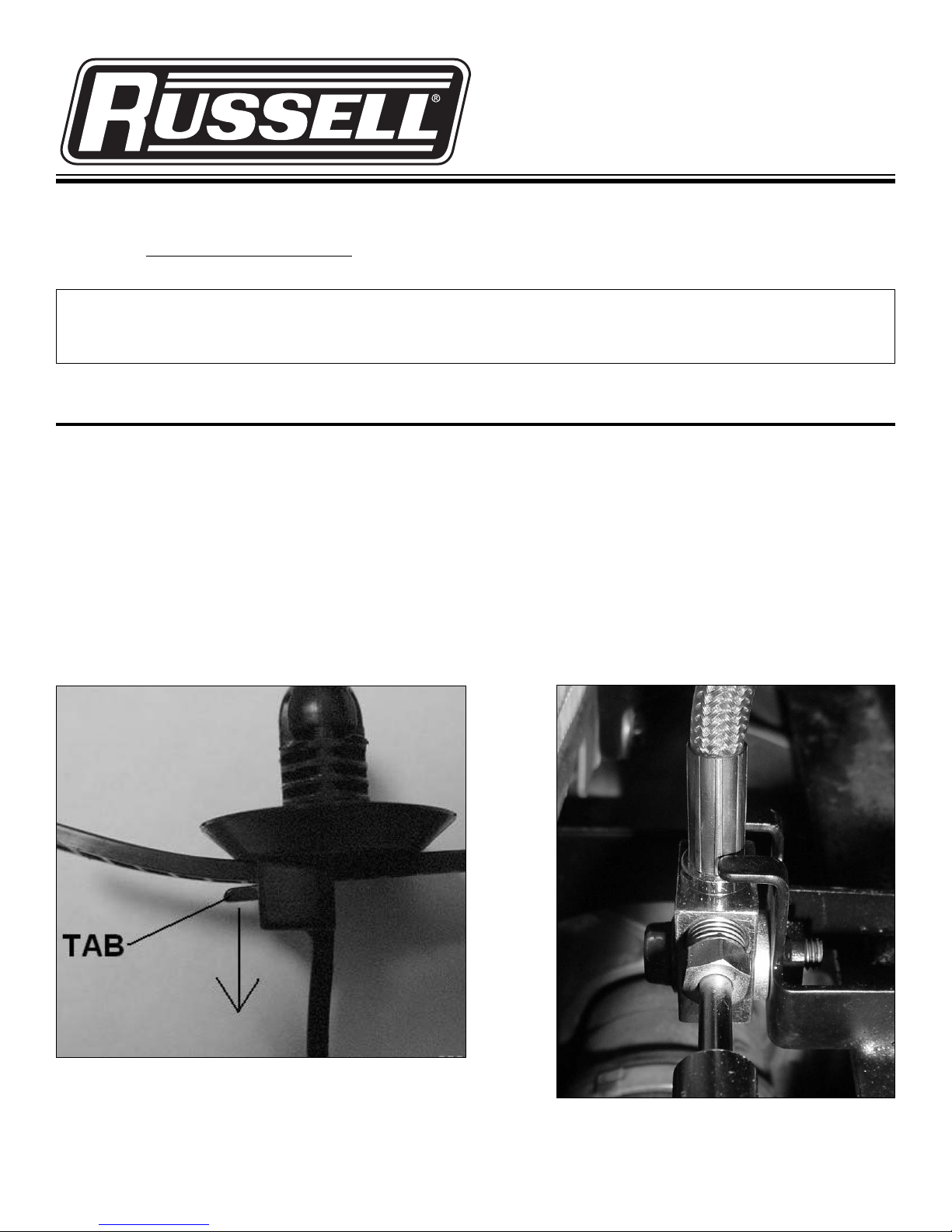

1. Remove factory brake hoses, noting routing. NOTE: Factory cable tie-style hose retainers are re-usable - pull tab

on locking end of tie away from strap to release

(See Fig. 1)

2. Route Russell upper hose similar to factory. Mount T-block end onto chassis in factory location. (NOTE: Do not

install banjo onto master cylinder until lower hoses are installed). Insert supplied bushing into T-block so that

flange is between mounting surface and T-block

(See Fig. 2).

Please study these instructions carefully before installing your new Brake Hose Kit. If you have any questions, please call

our Technical Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday or

e-mail us at [email protected]. Please fill out and mail your warranty card.

INSTALLATION INSTRUCTIONS

IMPORTANT NOTE: Do not allow the master cylinder to completely drain of brake fluid at any time during this process.

Also, use care when handling brake fluid, as it can quickly damage finished surfaces (paint, plating, etc.).

Fig. 1

Fig. 2

IMPORTANT NOTE:

Proper installation is the responsibility of the installer. Improper installation will void warranty and may

result in poor performance and engine or vehicle damage.

Rev. 3/06 - BC/mc

Catalog #R09430, #R09431

Brochure #63-0490

Page 2 of 2

A Division of Edelbrock Corporation

2700 California Street

Torrance, CA 90503

Toll-Free Tech Line: 1-800-416-8628

Tech E-Mail: [email protected]

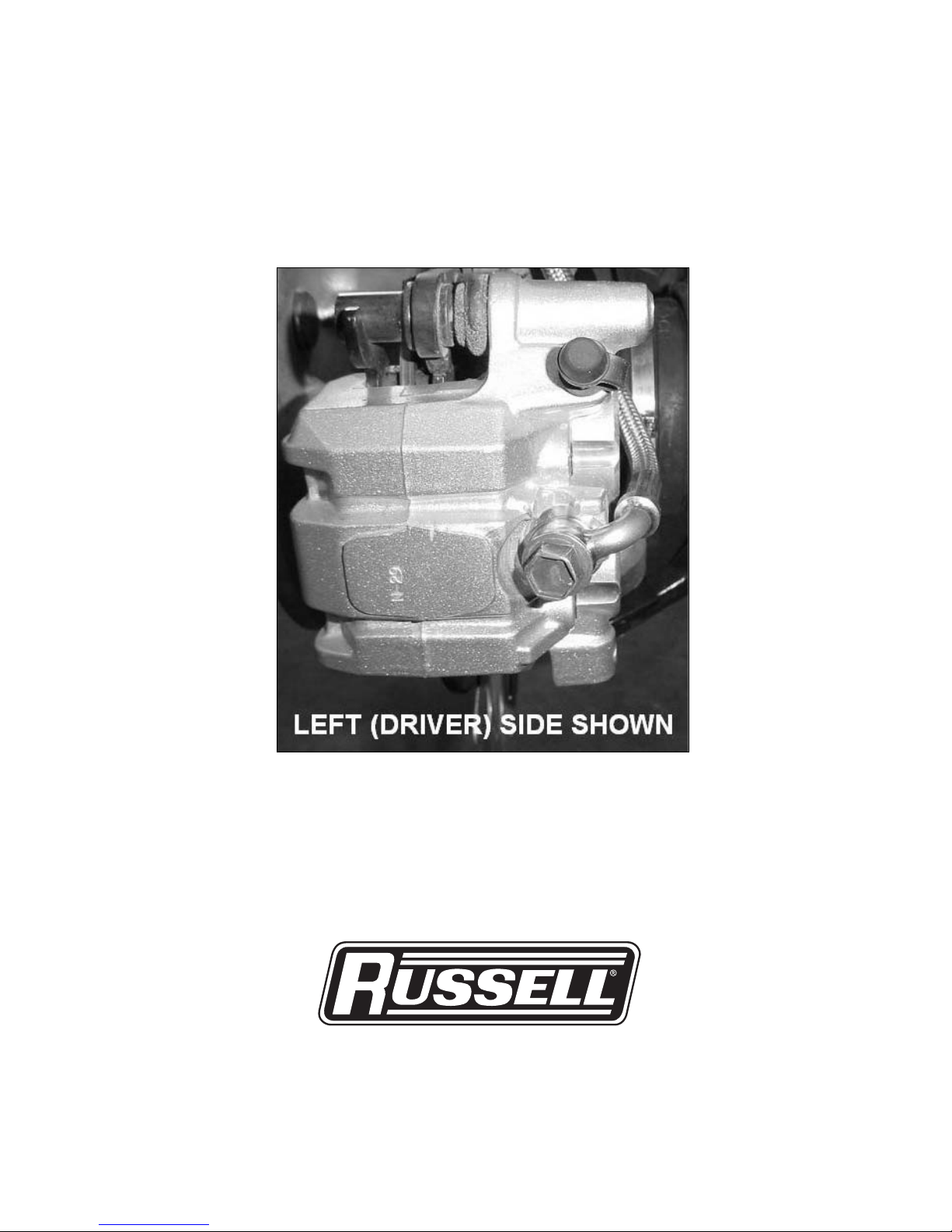

Fig. 3

3. Install banjo end of Russell lower hose (Left or Right) onto caliper so that hose runs behind caliper

(See Fig. 3)

Mount hose using factory routing and hardware. Insert male threaded hose end into upper hose T-block. Repeat

for other side.

4. Install banjo end of upper hose onto master cylinder.

5. Check hose clearance throughout entire steering and suspension travel range.

6. Bleed the system and check for leaks while applying pressure.
