Brochure #63-1565Page 1 of 1

Edelbrock Snout Support and Pulley Kit

Rev. 11/07 - AJ/mc

EDELBROCK/BILLET SPECIALTIES TRU TRAC PULLEY SYSTEM

for use with Edelbrock Superchargers

Catalog #1565 & #1566

INSTALLATION INSTRUCTIONS

Please study these instructions carefully before installing your new Tru Trac Pulley System. If you have any questions or problems, do not

hesitate to contact our Technical Hotline at: (800) 416-8628 from 7:00 am to 5:00 pm, Monday through Friday, Pacific Standard Time or e-

mail us at: [email protected].

DESCRIPTION: The Edelbrock Tru Trac Pulley System is a complete front end accessory kit that is designed specifically for use with Edelbrock

Superchargers offered as part #15611, #15621, #15631, #15641, and the Edelbrock supercharged crate engine #46700. Kit #1565 includes a

power steering pump while kit #1566 does not. Please consult the Billet Specialties instructions included with this kit before beginning

installation.

Edelbrock Corporation • 2700 California St. • Torrance, CA 90503

Tech-Line: (800) 416-8628 • E-Mail: [email protected]

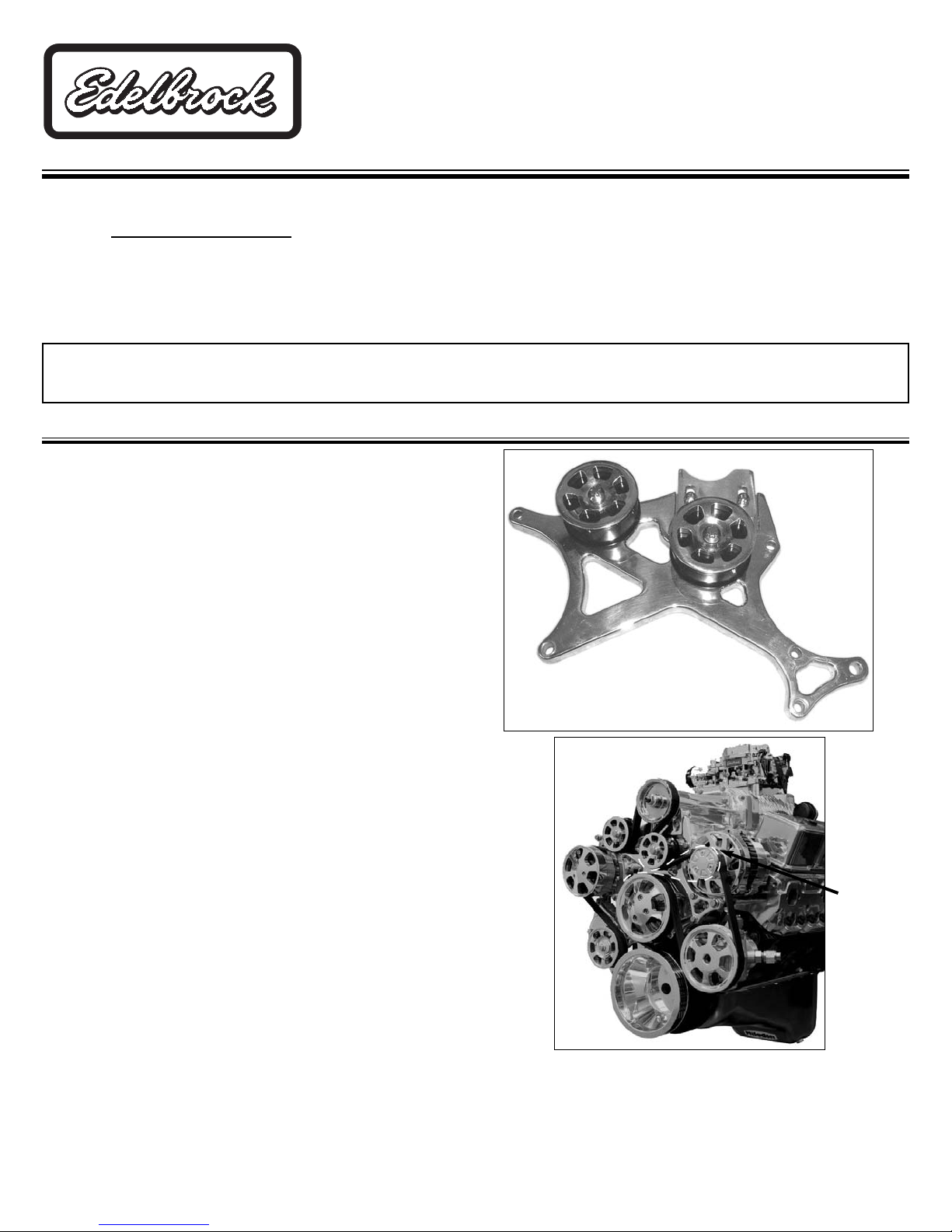

Figure 1

Figure 2

NOTE:

The Edelbrock/Billet Specialties Tru Trac Pulley System is

intended for use with Edelbrock Superchargers only. The use of these

parts in any other application is not recommended or supported. The

following instructions should be used in place of steps #10 & #11 of the

supercharger installation instructions.

1. Assemble the snout support, bridge bracket, and idler pulleys.

Attach the snout support to the bracket using the supplied M8

x 1.25 x 16mm long bolts. Attach the idler pulleys to the

bracket using the supplied M10 x 1.0 x 45mm long bolts.

Tighten the idler pulley bolts, but do not fully tighten the snout

support bolts at this time

(See Figure 1)

2. Install the Tru Trac Pulley System according to the

instructions provided by Billet Specialties using the hardware

supplied as specified. Refer to

Figure 2

, and the

instructions supplied by Billet Specialties for the proper

bridge bracket installation procedure. Please note that the

bridge bracket in this kit has been modified to accomodate

the supercharger but the installation procedure remains

unchanged.

3. Continue installing your Tru Trac Pulley System. When

finished, adjust the snout support so that it contacts the

supercharger snout, and tighten the snout support bolts.

INSTALLATION INSTRUCTIONS

Belt routing for Edelbrock/Billet Specialties Tru Trac Pulley System #1565

(w/ power steering pump)

NOTE:

For Kit

#1566 route

the belt as

pictured to

the left;

following

the white

dotted line.

IMPORTANT NOTE:

Proper installation is the responsibility of the installer. Improper installation will void warranty and may result in poor

performance and engine or vehicle damage.
