EDEC ECLIPSE Manuel utilisateur

Version!1.2!User!Manual!

Software Version 1.2 | User Manual Version 04.01.13

User Manual

1. Introduction

1.1Eclipse Overview…...…..……...………....……...………...………...………...……………3

2. Requirements

2.1System Requirements…….…...……..……...………...………...…….…...………...…….3

2.2 Software Requirements…...…….…...……...………..…....……...………...………...…..3

2.3 Power Requirements…...………...……….......…..….………...………...………......…...3

2.4 Environment Requirements..………………….……...………...………...……….......…..3

3. Hardware Version Guide

3.1 Hardware Guide…...…….…...……...………..…....……...………...………...…………..4

3.2 Compatibility Guide…...…….…...……...………..…....……...………...………...………4

4. Eclipse Specifications

4.1 Eclipse Screen Capture Tool Specifications…….....…………………………………….5

5. Software and Hardware Setup

5.1License and Support…...……...………...………...………...………....……………..……6

5.2Software Download and Installation.....………..…...………...………...………….…..7-8

6. Examination Process

6.1Adding New Case...………...…...……...…...…...……...………...………...………....…..9

6.2Adding New Device…............………...………...………...…...……….....……...………..9

6.3Capturing Evidence.....……...………...………...………...…...…….....………..…...10-13

7. Warranty and Updates

7.1Eclipse Hardware……………...……………………………………………………………14

7.2Eclipse Software………….………………………………………………………………...14

Support Inquiries

Email: support@edecdf.com

Tel: +1 (805) 962-3080

Fax: +1 (805) 962-3086

www.edecdf.com

1. Introduction

1.1 Eclipse Overview

The Eclipse screen capture tool is designed for efficiency and ease-of-use when conducting manual

examinations. Eclipse hardware offers a sturdy base for placement of devices. The base includes a high

resolution camera with focus and aperture adjustements, as well as field of view modifications. The intuitive

software allows the user to efficiently take screen shots of cell phones, tablets, computers, televisions, or to

capture images and video of physical evidence such as contraband. Evidence can be annotated with notes and

categories and custom reports can be quickly generated for professional evidence presentation and

management. Eclipse reports can be burned onto a CD or saved on a thumbdrive and passed to other

examiners or the district attorney.

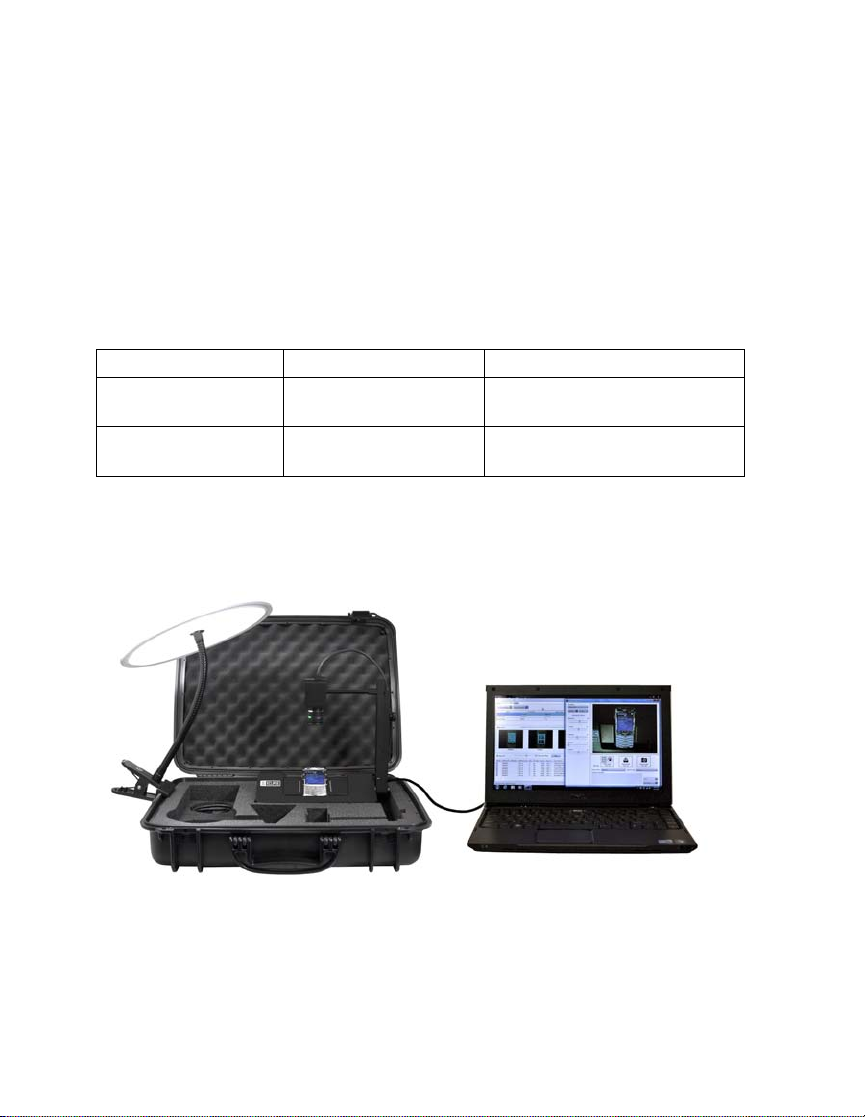

The Eclipse Package

Includes:

Eclipse Hardware Base & Camera

Glare Shield

USB Power Cable

Standard Size Black Hole Faraday Bag

Software Dongle

User Manual

Ruggedized Case

2. Requirements

2.1 System Requirements:

1 Ghz 32-bit (x86 or x64) processor

512 MB of system memory

USB 2.0 interface (preferably on board) High-Speed

Windows XP, SP3 or above, Windows 7 (32-bit and 64-bit)

2.2 Software Requirements:

Microsoft .net framework

Eclipse Camera Driver

2.3 Power Requirements:

USB 2.0 High-Speed Powered 480Mbps

2.4 Environment Requirements:

Ambient temperature: 32°F - 120°F

Storage temperature: 0°F - 120°F

Do not subject Eclipse hardware to excessive shock or vibration

Kit includes (1)

Standard Black

Hole Window

Faraday Bag

Outer hardshell case

with custom interior to

hold all of the Eclipse

components and allow

for in-field use

Camera mount with 3.0

megapixel lense for high

quality photos and

audio/video recording

Eclipse shade arm for

glare shield attaches

to case and table/desk

edges

Glare shield reflector

eliminates screen glare

on mobile devices from

overhead lights

Camera base equipped

with adjustable clamps

for small devices and a

swiveling arm that can

be raised and lowered to

your desired height

USB power supply &

data cable permits use

in the lab as well as in

the field

3. Hardware Version Guide

3.1 Hardware Guide

Two different Eclipse hardware versions have been released. Hardware identification and software compatibility

information is listed below.

The Version 1 hardware Serials begin with 11…, whereas Version 2 hardware Serials begin 12...

For those with the Version 1 hardware looking to update their device we are offering a discounted price for the

Version 2 hardware. Call +1 (805) 962-3080 or email [email protected] and someone will assist you.

3.2 Compatibility Guide

Supported OS

Software Download

Version 1 Hardware

Win XP, 7 32bit

V1.1 – Gen 1 Cam 32bit

Version 2 Hardware

Win XP, 7 32 & 64bit

V1.2 Gen 2 Cam 64 & 32bit

4. Eclipse Specifications

Hardware base securely holds mobile devices 













About the Kit





Hardware Weight 5.1 lbs

Camera Height 



 

 

 10.25” x 5.75” x 2.5”

 







 20” x 15” x 5.5”

 13.25 lbs



 Computar M0814-

MP2

 8mm

 1:1.4

 F1.4 - F16C

 67.1 Degrees

 

12.0mm

 

 -0.1%

 44.5mm x 45.5mm

Specifications Overview







Eclipse Screen Capture Tool Specifications

 

 2048 x 1536 Max

Max Frame Rates 











Data Rate 



repeater

 

 43dB

 61dB

 

 





 

 

Max Power 1.5W

 



 

 



Media Capture 

Audio Capture 

vcapture

 





Report Output 

 

 

hotkeys

 













Cage Code: 1QKY4













5. Software and Hardware Setup

5.1 License and Support

License Period

Eclipse ships with a dongle that works with our current version of software and the subsequent updates for that

version. For example, v1.0, v1.1 and v1.2 are all considered part of the same full version. V2.0, however, is a

new full version, and will incur an upgrade charge. We typically offer upgrades for 12-14 months, after which

point a new full version will be released. Eclipse will continue to function perpetually on the current full version.

If Eclipse is purchased within 4 months of a new version release, the new full version will be provided free of

charge. If Eclipse is purchased within 6 months of a new version release, a prorated upgrade fee is available.

The license includes the following:

●Software updates available for dowload on our website

●Customer support via email or phone

License end date and hardware warranty end date can be viewed in the our customer portal. After receiving

your shipment, register or login to edecdf.com and register your license. Your license will be pulled from our

database with the corresponding information, and matched to your profile. Please see the Software Download

section below for further info.

Updates

To receive the latest software updates, please login to the edec website at edecdf.com and enter your account

username and password. Software updates will be available for the licenses registered to your profile.

Eclipse software and hardware will continue to function after your license period ends, but updates will be

discontinued until a license update is purchased. If you would like to bundle future versions into your Eclipse

purchase, please contact sales@edecdigitalforensics.com.

Dongle

Eclipse uses a dongle for software security. The dongle is configured for the purchased license period before

shipment. To accommodate for shipping and setup time, EDEC typically configures each dongle with an extra

month of license, for a total 13 month initial license period. If the customer chooses to extend an annual license

beyond the first year, EDEC will send an update file to the user that will update the dongle license period.

Support Resources

For product download, usage, service, or other customer requests, please send an email to

[email protected]. We try to respond to all support inquiries within 48 hours or less.

Online Support Inquiry

http://edecdf.com/contact.php

Email Support

support@edecdf.com

Phone Support

+1 (805) 962-3080

License Expiration Info

www.edecdf.com, login to your profile

5.2 Software Download and Installation

Software Download

To download Eclipse software, you will need to create a profile in our customer portal and register your license.

To Create a new profile:

1. Go to edecdf.com, hover over login and click

“Register Here” (see figure 1.0)

2. Enter your information including shipping address

for hardware updates and create a password.

3. An email will be sent to your inbox, click the link in

the email to confirm your registration (if you don’t

receive it, check your spam). Use this email as your

User Name for future use.

4. Inside the customer portal, click “Register My

Device” and select your Product, next enter your

Serial & Device ID (see figure 1.1)

-Serial number can be found underneath your

Eclipse hardware unit, the Serial is written on a

yellow sticker with barcode

-Device ID is listed on the insert inside of your

Eclipse package provided in the case at the

time of shipment as well as in the Product

License Registration Information email. If you

have any issues registering, contact us at

[email protected] or call +1 805-962-3080 and

we will register your license manually.

5. Your product will appear under “My Devices” with

your license and hardware warranty period.

6. To download software for that product, select the

circle next to your device and choose your software

download from the downloads dropdown below.

(see figure 1.2)

Fig 1.1

Fig. 1.0

Fig. 1.2

Software Installation

(Note: Do not plug the Eclipse hardware into your computer before you begin Eclipse software

installation). Now open the Eclipse Setup - Version 1.21 installer file from your recent download and

follow all prompts as directed.

If any of the prerequisite components are missing please download them by following the Eclipse setup

instructions. Eclipse will recognize missing components that you are required to download so leave all of

the default selections as they appear to ensure a proper installation.

(Note: some components may require you to restart your computer)

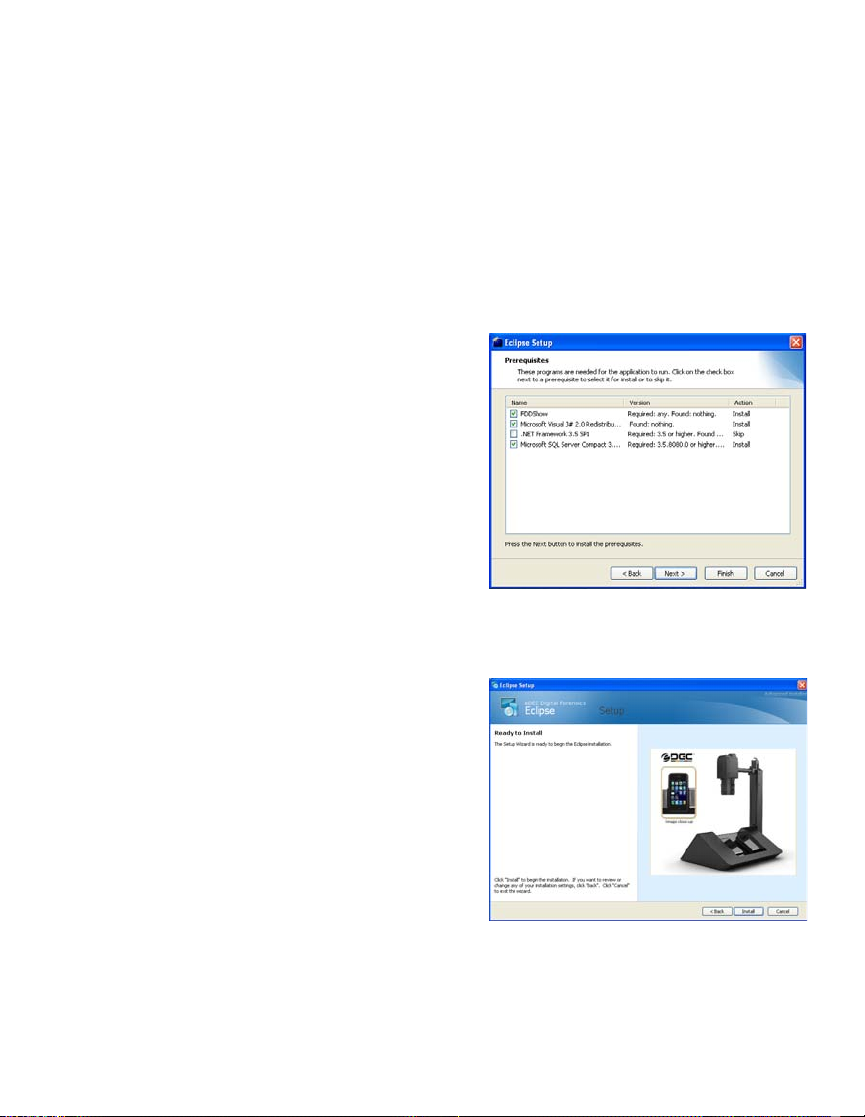

Eclipse Setup

(Note: Do not plug in your Eclipse hardware and

close all other programs before you begin

installation)

> Eclipse setup begins with the

FDDShow prerequisite installation, as

with all the other components, please

make sure to follow all of the prompts

and leave all default settings and

selections as is.

> Once finished with all components

installations follow the steps below

Now plug in your Eclipse Hardware

> Click Install to begin the installation

> Click Next to begin the Device Driver

Installation Wizard of the RZ-Image

Driver (if prompted with any security

warnings select Run or Continue

Anyway)

> Click Finish, your software and driver

installation is now complete

6. Examination Process

6.1 Adding New Case

Insert your red Eclipse software dongle into your

USB port and wait until the device has been been

recognized.

> Open Eclipse Software with the shortcut on

your desktop to begin the process of

creating a case

> Click Add New Case (multiple devices can

be input under a single case)

Input case information in the preset fields or add

your own custom fields

> If you check the Report box, the custom

field will show on the final report

> Leave unchecked if you wish for this field to

remain as an internal case note

> Once you have created your case click

Done and continue by selecting the Open

button to begin your case in the next

window

6.2 Adding New Devices

> Click Open to enter the Device & Evidence

tab where you will add information about a

device

> Click Add New Device (Eclipse evidence

capture is categorized by device, multiple

devices can be added in this window)

> Select from a range of Device Type options

> Click the pencil icon to create your own

device type

Table des matières

Manuels Outils populaires d'autres marques

Martor

Martor SECUNORM 175 Manuel utilisateur

ERKCO

ERKCO 1000 Manuel utilisateur

jbc

jbc N4473 Manuel utilisateur

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuel utilisateur

Worx Professional

Worx Professional Sonicrafter WU676 Manuel utilisateur

Gage Bilt

Gage Bilt GB713SH Manuel utilisateur

Hilti

Hilti DX 9-ENP Manuel utilisateur

norbar

norbar NORTRONIC 34399 Manuel utilisateur

BGS technic

BGS technic 8578 Manuel utilisateur

Makita

Makita DHR241 Manuel utilisateur

Motor Guard

Motor Guard JMB-1250 Manuel utilisateur

Power Adhesives

Power Adhesives 805-12 Manuel utilisateur

Clemco

Clemco 24189 Manuel utilisateur

VVG

VVG VNG 903 Series Manuel utilisateur

Hilti

Hilti FX 3-A Manuel utilisateur

Grizzly

Grizzly H6472 Manuel utilisateur

axing

axing BWZ 5-02 Manuel utilisateur

Dh-Robotics

Dh-Robotics RGI-100 Comment utiliser
