ECOVACS WINBOT 880 Manuel utilisateur

Instruction Manual

Bedienungsanleitung

Manual de instrucciones

Manuel d'instructions

Manuale d'uso

Руководство по эксплуатации

Congratulations on the purchase of your ECOVACS ROBOTICS WINBOT! We hope it brings you many years of satisfaction. We trust the purchase

of your new robot will help keep your home clean and provide you more quality time to do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center

where a technician can address your specific problem or question.

For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Thank you for choosing WINBOT!

Instruction Manual .............................................................................................................3

Bedienungsanleitung.......................................................................................................22

Manual de instrucciones.................................................................................................43

Manuel d'instructions......................................................................................................65

Manuale d'uso...................................................................................................................87

Руководство по эксплуатации........................................................................109

3EN

1. Important Safety Instructions...................................................................................................................................4

2. Package Contents ...................................................................................................................................................8

3. Operating WINBOT ...............................................................................................................................................10

4. Maintenance ..........................................................................................................................................................15

5. Status Indicator Light and Sounds ........................................................................................................................18

6. Troubleshooting.....................................................................................................................................................19

7. Technical Specifications .........................................................................................................................................21

Contents

1. Important Safety Instructions

1. This appliance can be used by persons with

reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Children

shall not play with the appliance. The appliance

is not to be used if it has been dropped, if there

are visible signs of damage or if it is leaking.

Keep the appliance out of reach of children

when it is energized.

2. Do not use the Appliance in extremely hot or

cold environments (below 0˚C/32˚F or above

40˚C/104˚F, above 65% humidity). The Appliance

can be used to clean outside windows if it is

properly tethered to the Safety Pod, winds are

calm, and it is not raining or snowing.

3. Please ensure the Appliance is plugged in

while it is cleaning. The Appliance has a Back-

Up Battery that charges during use. The Back-

Up Battery powers the Appliance if it becomes

unplugged or the electricity fails.

4. Do not leave the Appliance unattended when

it is plugged in.

5. For household use ONLY. Do not use

the Appliance in commercial or industrial

environments.

6. Do not use the Appliance on cracked glass.

7. Only use accessories recommended or

supplied by the manufacturer. Only use the

Power Adapter supplied by the manufacturer.

8. Please make sure your power supply voltage

matches the power voltage marked on the

Power Adapter.

9. Do not use the Appliance on a framed window

with a frame smaller than 5mm (0.2 inches).

10. Do not use the Appliance on wet or greasy

windows.

11. Store the Appliance away from heat and

flammable materials.

When using an electrical appliance, basic

precautions should always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE.

SAVE THESE INSTRUCTIONS

5EN

1. Important Safety Instructions

12. Do not use the Appliance if it does not firmly

attach to the glass or has visible signs of

damage.

13. To reduce the risk of electrical shock, do not

put the Appliance in water or other liquid. Do

not place or store Appliance where it can fall

or be pulled into a tub or sink.

14. Do not touch power plug or the Appliance

with wet hands.

15. Do not charge the Appliance in extremely hot

or cold environments, or it may affect battery

life span.

16. When charging the Appliance, do not place

it on other electrical appliances and keep it

away from fire and liquid.

17. Take care not to damage the power cord.

Do not pull on or carry the Appliance by the

power cord, use the power cord as a handle,

close a window on the power cord, or put

heavy weights on the power cord. Keep

power cord away from hot surfaces.

18. Do not use with a damaged power cord or

receptacle. Do not use the Appliance if it is

not working properly, has been dropped,

damaged, or come in contact with water. It

must be repaired by the manufacturer or its

service agent in order to avoid a hazard.

19. If the supply cord is damaged, it must be

replaced by the manufacturer or its service

agent in order to avoid a hazard.

20. The plug must be removed from the

receptacle before cleaning or maintaining the

Appliance. Do not unplug the Power Adapter

by pulling on the power cord.

21. The Back-Up Battery must be replaced by the

manufacturer or its service agent in order to

avoid a hazard.

22. The Back-Up Battery must be removed

and discarded according to local laws and

regulations before disposal of the Appliance.

23. The Appliance must be disconnected from

the receptacle before removing the battery

for disposal of the Appliance.

24. Please dispose of used batteries according to

local laws and regulations.

25. Do not incinerate the Appliance even if it is

severely damaged. The battery can explode

in a fire.

26. The Appliance must be used in accordance

with the directions in this Instruction Manual.

The company cannot be held liable or

responsible for any damages or injuries

caused by improper use.

27.WARNING: For the purposes of recharging

the battery, only use the detachable supply unit

EA10952 provided with this Appliance.

28. The robot contains batteries that are only

replaceable by skilled persons.

29. The Remote Control requires two non-

rechargeable AAA R03 batteries. To replace

the battery of the Remote Control, please turn

over the Remote Control, press and remove

its Battery Cover. Remove the batteries, and

insert the new batteries with the correct

polarity. Reassemble the Battery Cover.

30. Non-rechargeable batteries are not to be

recharged.

31. Different types of batteries or new and used

batteries are not to be mixed.

32. Batteries of the Remote Control are to be

inserted with the correct polarity.

33. Exhausted batteries are to be removed from

the Appliance and safely disposed of.

34. If the Remote Control is to be stored unused

for a long period, the batteries should be

removed.

35. The supply terminals are not to be short-

circuited.

36. The plug and the Power Adapter must be

used indoor.

1. Important Safety Instructions

7EN

To satisfy RF exposure requirements, a separation

distance of 20 cm or more should be maintained

between this device and persons during device

operation.

To ensure compliance, operations at closer

than this distance is not recommended. The

antenna used for this transmitter must not be co-

located in conjunction with any other antenna or

transmitter.

Class II

Short-circuit-proof safety isolating

transformer

Switch mode power supply

For indoor use only

Direct current

~Alternating current

Correct Disposal of this Product

This marking indicates that this product should

not be disposed of with other household

waste throughout the EU. To prevent possible

harm to the environment or human health

from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of

material resources. To recycle your used device,

please use the return and collection systems

or contact the retailer where the product was

purchased. They can safely recycle this product.

For EU Countries

For EU Declaration of Conformity information,

visit https://www.ecovacs.com/global/compliance

1. Important Safety Instructions

2.1 Package Contents

WINBOT Power Adapter Remote Control +

Batteries

Instruction Manual +

Quick Start Guide

Cleaning Pads

WINBOT Cleaning

Solution Finishing Cloth

2. Package Contents and Technical Specifications

Note: Figures and illustrations are for reference only and may differ from actual product appearance.

Product design and speciﬁcations are subject to change without notice.

9EN

2.2 Product Diagram

WINBOT

2. Package Contents and Technical Specifications

Bumper Rail

Edge Detection

Sensors

Power Switch

Bottom Status

Indicator Light

Suction Sensor

Edge Detection

Sensors

Status Indicator Light/

START/PAUSE Button

Squeegee

Fan

Driving Treads

Note:

To change batteries in Remote Control, pull off the battery cover of

Remote Control, take out the old batteries, insert batteries with correct

polarity, and slide the battery cover on the back, ensuring it clicks

closed.

Remote Control

Direction Control

Buttons

Deep Cleaning Mode

Button

Spot Cleaning

Mode Button

START/PAUSE Button

Remote Control

Pairing Button

3.1 Notes Before Cleaning

3. Operating WINBOT

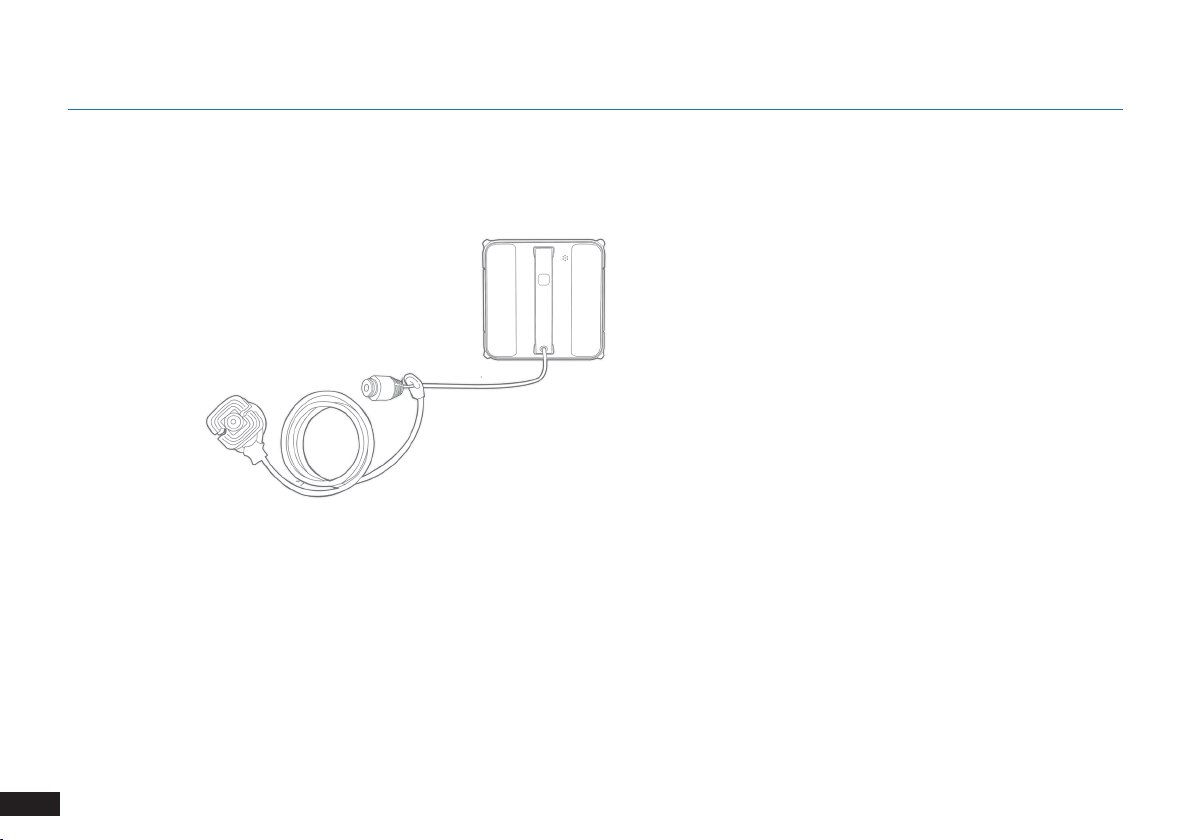

Make sure Safety Pod and tether have been connected with WINBOT before using. (Connected by default. Do not take

them down at random.)

Note: Do not use WINBOT on a framed window with a frame narrower than 3 mm(0.1”).
