ECOVACS DEEBOT T9 AIVI Manuel utilisateur

Instruction Manual

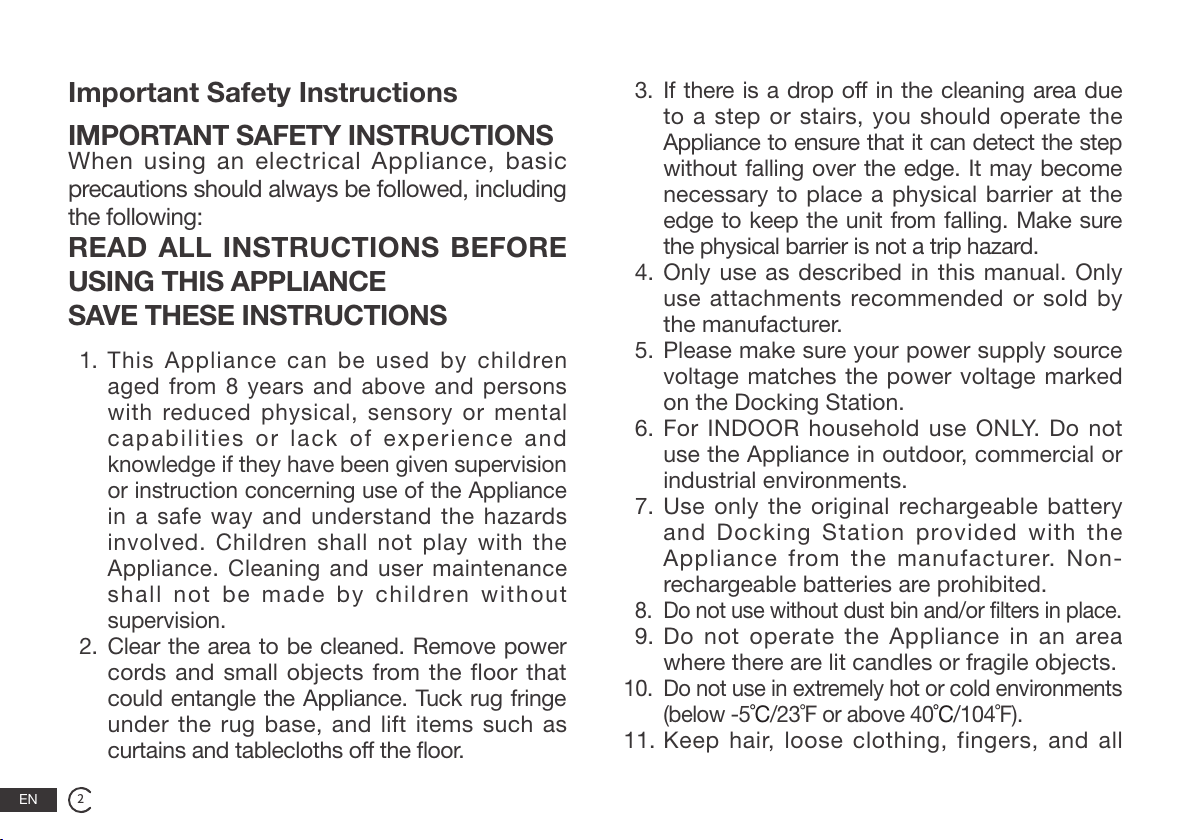

Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic

precautions should always be followed, including

the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given supervision

or instruction concerning use of the Appliance

in a safe way and understand the hazards

involved. Children shall not play with the

Appliance. Cleaning and user maintenance

shall not be made by children without

supervision.

2. Clear the area to be cleaned. Remove power

cords and small objects from the floor that

could entangle the Appliance. Tuck rug fringe

under the rug base, and lift items such as

curtains and tablecloths off the floor.

3. If there is a drop off in the cleaning area due

to a step or stairs, you should operate the

Appliance to ensure that it can detect the step

without falling over the edge. It may become

necessary to place a physical barrier at the

edge to keep the unit from falling. Make sure

the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only

use attachments recommended or sold by

the manufacturer.

5. Please make sure your power supply source

voltage matches the power voltage marked

on the Docking Station.

6. For INDOOR household use ONLY. Do not

use the Appliance in outdoor, commercial or

industrial environments.

7. Use only the original rechargeable battery

and Docking Station provided with the

Appliance from the manufacturer. Non-

rechargeable batteries are prohibited.

8. Do not use without dust bin and/or filters in place.

9. Do not operate the Appliance in an area

where there are lit candles or fragile objects.

10. Do not use in extremely hot or cold environments

(below -5˚C/23˚F or above 40˚C/104˚F).

11. Keep hair, loose clothing, fingers, and all

3EN

parts of body away from any openings and

moving parts.

12. Do not operate the Appliance in a room

where an infant or child is sleeping.

13. Do not use Appliance on wet surfaces or

surfaces with standing water.

14. Do not allow the Appliance to pick up large

objects like stones, large pieces of paper or

any item that may clog the Appliance.

15. Do not use Appliance to pick up flammable

or combustible materials such as gasoline,

printer or copier toner, or use in areas where

they may be present.

16. Do not use Appliance to pick up anything that

is burning or smoking, such as cigarettes,

matches, hot ashes, or anything that could

cause a fire.

17. Do not put objects into the suction intake.

Do not use if the suction intake is blocked.

Keep the intake clear of dust, lint, hair, or

anything that may reduce air flow.

18. Take care not to damage the power cord. Do

not pull on or carry the Appliance or Docking

Station by the power cord, use the power

cord as a handle, close a door on the power

cord, or pull power cord around sharp edges

or corners. Do not run Appliance over the

power cord. Keep power cord away from hot

surfaces.

19. If the power cord is damaged, it must be

replaced by the manufacturer or its service

agent in order to avoid a hazard.

20. Do not use the Docking Station if it is

damaged. The power supply is not to be

repaired and not to be used any longer if it is

damaged or defective.

21. Do not use with a damaged power cord or

receptacle. Do not use the Appliance or

Docking Station if it is not working properly,

has been dropped, damaged, left outdoors,

or come in contact with water. It must be

repaired by the manufacturer or its service

agent in order to avoid a hazard.

22. Turn OFF the power switch before cleaning

or maintaining the Appliance.

23. The plug must be removed from the

receptacle before cleaning or maintaining

the Docking Station.

24. Remove the Appliance from the Docking

Station, and turn OFF the power switch to

the Appliance before removing the battery

for disposal of the Appliance.

To satisfy RF exposure requirements, a separation

distance of 20 cm or more should be maintained

between this device and persons during device

operation.

To ensure compliance, operations at closer than

this distance is not recommended. The antenna

used for this transmitter must not be co-located in

conjunction with any other antenna or transmitter.

25. The battery must be removed and discarded

according to local laws and regulations before

disposal of the Appliance.

26. Please dispose of used batteries according

to local laws and regulations.

27. Do not incinerate the Appliance even if it

is severely damaged. The batteries can

explode in a fire.

28. When not using the Docking Station for a

long period of time, please unplug it.

29. The Appliance must be used in accordance

with the directions in this Instruction Manual.

ECOVACS ROBOTICS cannot be held liable

or responsible for any damages or injuries

caused by improper use.

30. The robot contains batteries that are only

replaceable by skilled persons. To replace

the robot’s battery, please contact Customer

Service.

31. If the robot will not be used for a long time,

power OFF the robot for storage and unplug

the Docking Station.

32. WARNING: For the purposes of recharging

the battery, only use the detachable supply

unit CH1822 provided with the Appliance, or

CH1918 sold separately as an accessory.

5EN

Correct Disposal of this Product

This marking indicates that this product should

not be disposed of with other household waste

throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled

waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To

recycle your used device, please use the return and

collection systems or contact the retailer where the

product was purchased. They can safely recycle this

product.

The remote surveillance is for the absolute private use

of non-public, private owned places for the pure self-

protection and single control intended only. Please be

aware of the local data protection based legal obligations

in case of use. No surveillance of public places, especially

with clandestine intent and/or on the part of the employer

without justified reasons. Such not justified use is in the

risk and responsibility of the user only.

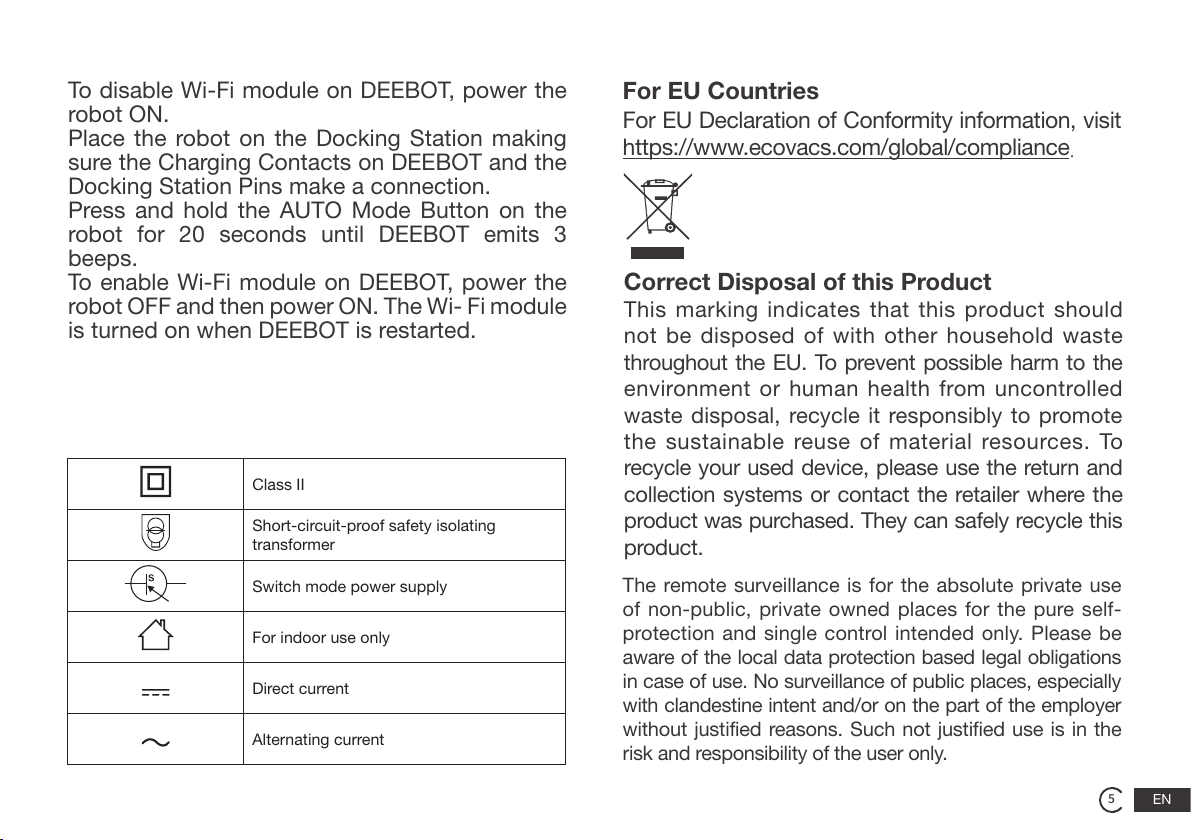

For EU Countries

Class II

Short-circuit-proof safety isolating

transformer

Switch mode power supply

For indoor use only

Direct current

Alternating current

For EU Declaration of Conformity information, visit

https://www.ecovacs.com/global/compliance.

To disable Wi-Fi module on DEEBOT, power the

robot ON.

Place the robot on the Docking Station making

sure the Charging Contacts on DEEBOT and the

Docking Station Pins make a connection.

Press and hold the AUTO Mode Button on the

robot for 20 seconds until DEEBOT emits 3

beeps.

To enable Wi-Fi module on DEEBOT, power the

robot OFF and then power ON. The Wi- Fi module

is turned on when DEEBOT is restarted.

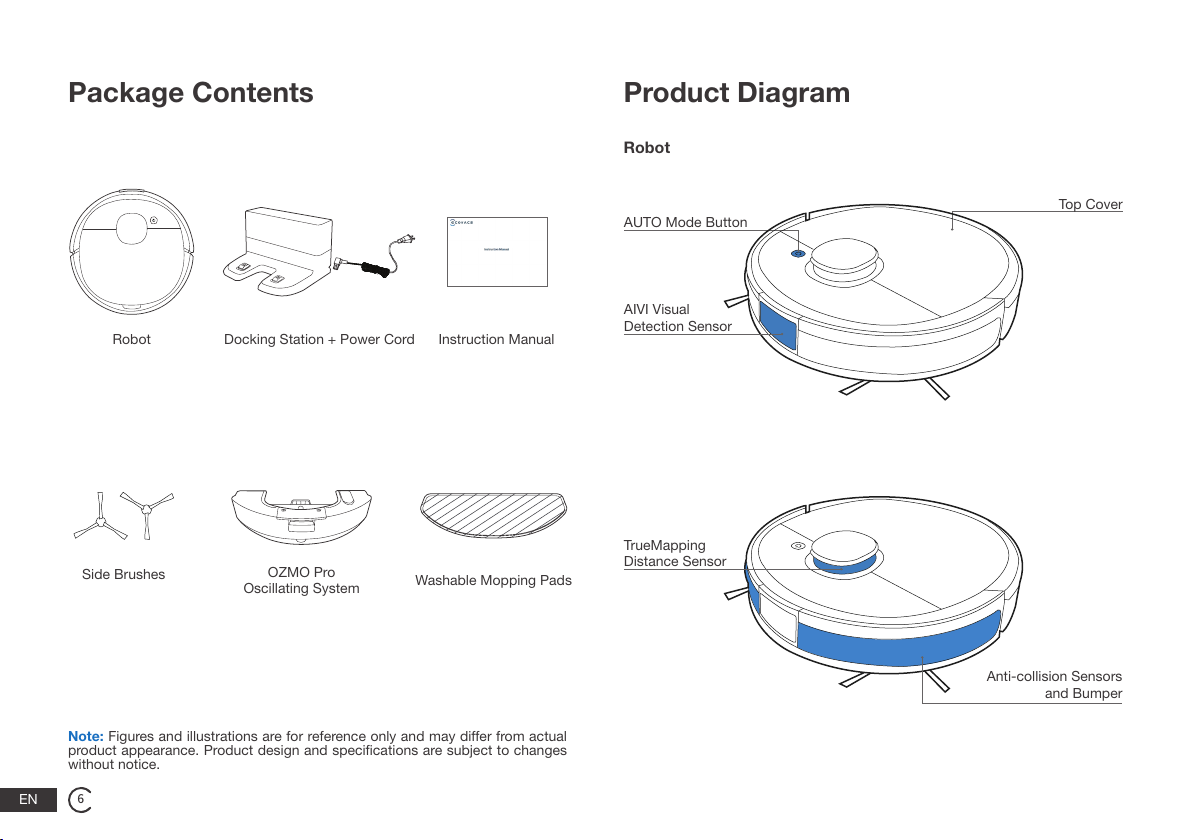

Package Contents

Robot Instruction ManualDocking Station + Power Cord

Side Brushes Washable Mopping Pads

Note: Figures and illustrations are for reference only and may differ from actual

product appearance. Product design and specications are subject to changes

without notice.

OZMO Pro

Oscillating System

Product Diagram

Robot

AUTO Mode Button

AIVI Visual

Detection Sensor

Top Cover

TrueMapping

Distance Sensor

Anti-collision Sensors

and Bumper

7EN

Wi-Fi Status

Indicator

RESET Button

Dust Bin Handle

Release Button

Filter Net

Power Switch

Sponge Filter

High Efciency Filter

Multi-function

Cleaning Tool

Charging Contacts

Anti-drop Sensors

Substitute Module

(Pre-installed)

Main Brush

Release Button

Universal Wheel

Side Brushes

Anti-drop Sensors

Driving Wheels

Main Brush

Carpet Detection

Sensor

Bottom View

Docking Station

Docking Station Pins

Power Cord

Reservoir Water Inlet

Reservoir

Release Button

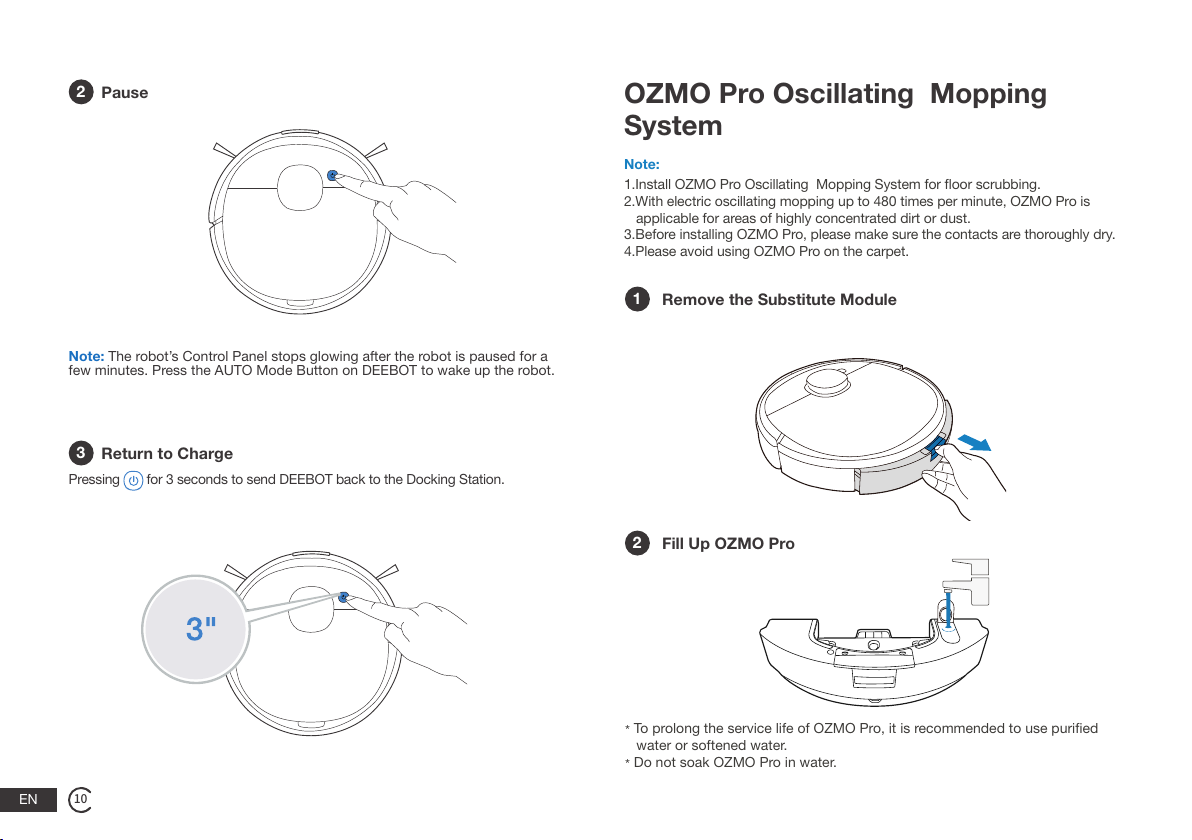

OZMO Pro Oscillating Mopping System

Notes Before Cleaning

Tidy up the area to be cleaned by putting

furniture, such as chairs, in their proper

place.

During the rst use, make sure each room door

is open to help DEEBOT fully explore your

house.

It may be necessary to place a physical

barrier at the edge of a drop to stop the unit

from falling over the edge.

Put away objects including cables, cloths and slippers, etc. on

the oor to improve the cleaning efciency.

Before using the product on a rug with tasseled edges, please

fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and

make sure not to block the Detection Sensor.

Clean the AIVI Visual Detection Sensor and TrueMapping

Distance Sensor with a clean cloth, and avoid using any

detergent or cleaning spray.

Make sure areas to be cleaned are well

illuminated so Visual Detection works

properly. Remove power cords and small

objects from the oor to ensure cleaning

efciency.

9EN

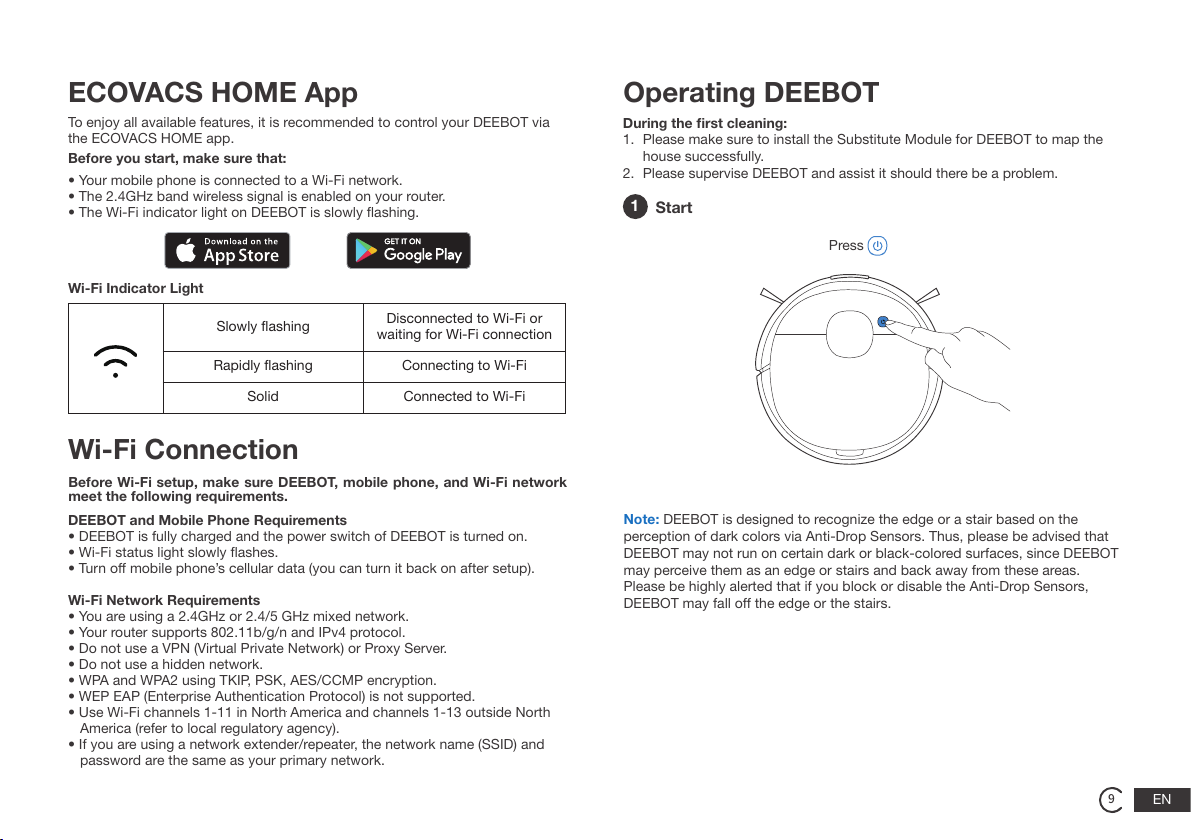

ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via

the ECOVACS HOME app.

Wi-Fi Indicator Light

Before you start, make sure that:

• Your mobile phone is connected to a Wi-Fi network.

• The 2.4GHz band wireless signal is enabled on your router.

• The Wi-Fi indicator light on DEEBOT is slowly ashing.

Slowly flashing Disconnected to Wi-Fi or

waiting for Wi-Fi connection

Rapidly flashing Connecting to Wi-Fi

Solid Connected to Wi-Fi

Wi-Fi Connection

Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network

meet the following requirements.

DEEBOT and Mobile Phone Requirements

• DEEBOT is fully charged and the power switch of DEEBOT is turned on.

• Wi-Fi status light slowly ashes.

• Turn off mobile phone’s cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.

• Your router supports 802.11b/g/n and IPv4 protocol.

• Do not use a VPN (Virtual Private Network) or Proxy Server.

• Do not use a hidden network.

• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.

• WEP EAP (Enterprise Authentication Protocol) is not supported.

• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North

America (refer to local regulatory agency).

• If you are using a network extender/repeater, the network name (SSID) and

password are the same as your primary network.

Operating DEEBOT

During the ﬁrst cleaning:

1. Please make sure to install the Substitute Module for DEEBOT to map the

house successfully.

2. Please supervise DEEBOT and assist it should there be a problem.

Note: DEEBOT is designed to recognize the edge or a stair based on the

perception of dark colors via Anti-Drop Sensors. Thus, please be advised that

DEEBOT may not run on certain dark or black-colored surfaces, since DEEBOT

may perceive them as an edge or stairs and back away from these areas.

Please be highly alerted that if you block or disable the Anti-Drop Sensors,

DEEBOT may fall off the edge or the stairs.

Start

Press

Pressing for 3 seconds to send DEEBOT back to the Docking Station.

Return to Charge

OZMO Pro Oscillating Mopping

System

Fill Up OZMO Pro

Remove the Substitute Module

Note:

1.Install OZMO Pro Oscillating Mopping System for oor scrubbing.

2.With electric oscillating mopping up to 480 times per minute, OZMO Pro is

applicable for areas of highly concentrated dirt or dust.

3.Before installing OZMO Pro, please make sure the contacts are thoroughly dry.

4.Please avoid using OZMO Pro on the carpet.

*To prolong the service life of OZMO Pro, it is recommended to use puried

water or softened water.

*Do not soak OZMO Pro in water.

2Pause

Note: The robot’s Control Panel stops glowing after the robot is paused for a

few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ECOVACS Aspirateur

ECOVACS

ECOVACS DEEBOT U2 Series Manuel utilisateur

ECOVACS

ECOVACS DEEBOT N79S Manuel utilisateur

ECOVACS

ECOVACS DEEBOT8 Manuel utilisateur

ECOVACS

ECOVACS Deebot N8 Pro+ Manuel utilisateur

ECOVACS

ECOVACS DEEBOT 710 Manuel utilisateur

ECOVACS

ECOVACS DEEBOT R98 Manuel utilisateur

ECOVACS

ECOVACS Deebot D58 Manuel utilisateur

ECOVACS

ECOVACS deebot m88 Manuel utilisateur

ECOVACS

ECOVACS Deebot Slim Manuel utilisateur

ECOVACS

ECOVACS 7 Series Manuel utilisateur

ECOVACS

ECOVACS DEEBOT M81Pro Manuel utilisateur

ECOVACS

ECOVACS Deebot M8 Manuel utilisateur

ECOVACS

ECOVACS DEEBOT SLIM2 DA5G Manuel utilisateur

ECOVACS

ECOVACS Deebot D56 Manuel utilisateur

ECOVACS

ECOVACS WINBOT X Manuel utilisateur

ECOVACS

ECOVACS DEEBOT T10 TURBO Manuel utilisateur

ECOVACS

ECOVACS Deebot X1 OMNI Manuel utilisateur

ECOVACS

ECOVACS DEEBOT OZMO 610 Manuel utilisateur

ECOVACS

ECOVACS winbot 8 Manuel utilisateur

ECOVACS

ECOVACS WINBOT WA30 Manuel utilisateur

ECOVACS

ECOVACS Winbot 9 Manuel utilisateur

ECOVACS

ECOVACS Deebot N8 Pro+ Manuel utilisateur

ECOVACS

ECOVACS DEEBOT 500 Series Manuel utilisateur

ECOVACS

ECOVACS ECO D77 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
