ECOVACS DEEBOT OZMO 930 Manuel utilisateur

1. Important Safety Instructions.......................................................................2

........................................6

2.1 Package Contents.....................................................................................6

2.3 Product Diagram........................................................................................8

3. Operating and Programming......................................................................10

3.1 Notes Before Cleaning.............................................................................10

3.2 Quick Start...............................................................................................12

3.3 Cleaning Mode Selection.........................................................................15

3.4 Programming the Robot...........................................................................15

3.5 Additional Settings...................................................................................15

3.6 Optional OZMO Mopping System............................................................16

3.7 Choosing a Suction Option......................................................................17

4. Maintenance................................................................................................19

4.1 OZMO Mopping System..........................................................................19

4.2 Dust Bin and Filters.................................................................................20

4.3 Main Brush, Direct Suction Option and Side Brushes..............................21

4.4 Other Components..................................................................................22

4.5 Regular Maintenance..............................................................................24

5. Troubleshooting..........................................................................................25

Contents

2EN

1. Important Safety Instructions

When using an electrical appliance, basic precautions should

always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS

APPLIANCE.

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use

of the Appliance in a safe way and understand the hazards

involved. Children shall not play with the Appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

2. Clear the area to be cleaned. Remove power cords and small

rug fringe under the rug base, and lift items such as curtains

3. If there is a drop off in the cleaning area due to a step or

stairs, you should operate the Appliance to ensure that it can

detect the step without falling over the edge. It may become

necessary to place a physical barrier at the edge to keep the

unit from falling. Make sure the physical barrier is not a trip

hazard.

4. Only use as described in this manual. Only use attachments

recommended or sold by the manufacturer.

5. Please make sure your power source voltage matches the

power voltage marked on the Docking Station.

6. For INDOOR household use ONLY. Do not use the Appliance

in outdoor, commercial or industrial environments.

7. Use only the original rechargeable battery and Docking Station

provided with the Appliance from the manufacturer. Non-

rechargeable batteries are prohibited. For battery information,

1. Important Safety Instructions

9. Do not operate the Appliance in an area where there are lit

candles or fragile objects.

10. Do not use in extremely hot or cold environments (below

11. Keep hair, loose clothing, fingers, and all parts of body away

from any openings and moving parts.

12. Do not operate the Appliance in a room where an infant or child

is sleeping.

13. Do not use Appliance on wet surfaces or surfaces with standing

water.

14. Do not allow the Appliance to pick up large objects like stones,

large pieces of paper or any item that may clog the Appliance.

15. Do not use Appliance to pick up flammable or combustible

materials such as gasoline, printer or copier toner, or use in

areas where they may be present.

16. Do not use Appliance to pick up anything that is burning or

smoking, such as cigarettes, matches, hot ashes, or anything

17. Do not put objects into the suction intake. Do not use if the

suction intake is blocked. Keep the intake clear of dust, lint, hair,

18. Take care not to damage the power cord. Do not pull on or

carry the Appliance or Docking Station by the power cord, use

the power cord as a handle, close a door on the power cord,

or pull power cord around sharp edges or corners. Do not run

Appliance over the power cord. Keep power cord away from hot

surfaces.

19. If the power cord is damaged, it must be replaced by the

manufacturer or its service agent in order to avoid a hazard.

20. The power supply is not to be repaired and not to be used any

longer if it is damaged or defective.

21. Do not use with a damaged power cord or receptacle. Do not

use the Appliance or Docking Station if it is not working properly,

has been dropped, damaged, left outdoors, or come in contact

with water. It must be repaired by the manufacturer or its service

agent in order to avoid a hazard.

4EN

22. Turn OFF the power switch before cleaning or maintaining the

Appliance.

23. The plug must be removed from the receptacle before cleaning

or maintaining the Docking Station.

24. Remove the Appliance from the Docking Station, and turn OFF

the power switch to the Appliance before removing the battery

for disposal of the Appliance.

25. The battery must be removed and discarded according to local

laws and regulations before disposal of the Appliance.

26. Please dispose of used batteries according to local laws and

regulations.

27. Do not incinerate the Appliance even if it is severely damaged.

28. When not using the Docking Station for a long period of time,

please unplug it.

29. The Appliance must be used in accordance with the directions

in this Instruction Manual. ECOVACS ROBOTICS cannot be

held liable or responsible for any damages or injuries caused by

improper use.

30. The robot contains batteries that are only replaceable by skilled

persons. To replace the robot’s battery, please contact Customer

Service.

31. If the robot will not be used for a long time, power OFF the robot

for storage and unplug the Docking Station.

32. WARNING: For the purposes of recharging the battery, only

use the detachable supply unit CH1630A provided with the

appliance.

1. Important Safety Instructions

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with

other household waste throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material resources. To recycle

your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can safely recycle this product.

For EU Countries

1. Important Safety Instructions

Class II

Short-circuit-proof safety isolating transformer

Switch mode power supply

For indoor use only

6EN

2.1 Package Contents

Robot

Main Brush Option

Docking Station

Direct Suction Option

Cleaning Cloth Plate Sponge Filter and

Reservoir

Cleaning Cloths

Instruction Manual

Output power of the WIFI module is less than 100mW.

Model DG3G

Working Voltage 14.8V DC

Docking Station Model CH1630A

Input 100-240V AC , 50/60Hz, 25W Output 20V DC, 0.8A

Battery S01-LI-148-3200, Lithium 3200mAh, 14.8V

Laser

max. power: 2.5mW

Frequency: 1.8KHz

Rotate Speed: 300±5 circle/min

Frequency bands 2412-2472MHz

8EN

1. Status Indicator Light

2. Wi-Fi Indicator Light

3. AUTO Mode Button

1. Infrared Signal Generators

2. Docking Station Pins

Control Panel

2.3 Product Diagram

Robot

1. Top Cover

2. Control Panel

3. Anti-Collision Sensors and Bumper

5. LDS Bumper

6. Anti-Drop Sensors

7. Charging Contacts

8. Main Brush Option

9. Driving Wheels

10. Reservoir Slots

11. Roller Wheel

12. Universal Wheel

13. Side Brushes

14. Battery Pack

15. Reservoir

16. Carpet Detection Sensor

17. Water Outlets

18. Power Switch

19. Upgrade Port

20. Multi-Function Cleaning Tool

21. RESET Button

Docking Station

Dust Bin

2. Sponge Filter

3. Dust Bin Lock

4. Dust Bin Cover

5. Dust Bin Handle

1. Water Inlet Cover

2. Water Inlet

3. Reservoir Release Button

4. Cleaning Cloth Plate

Cleaning Cloth

6. Magnet

Advanced OZMO Mopping System

4 5

12 3

10 EN

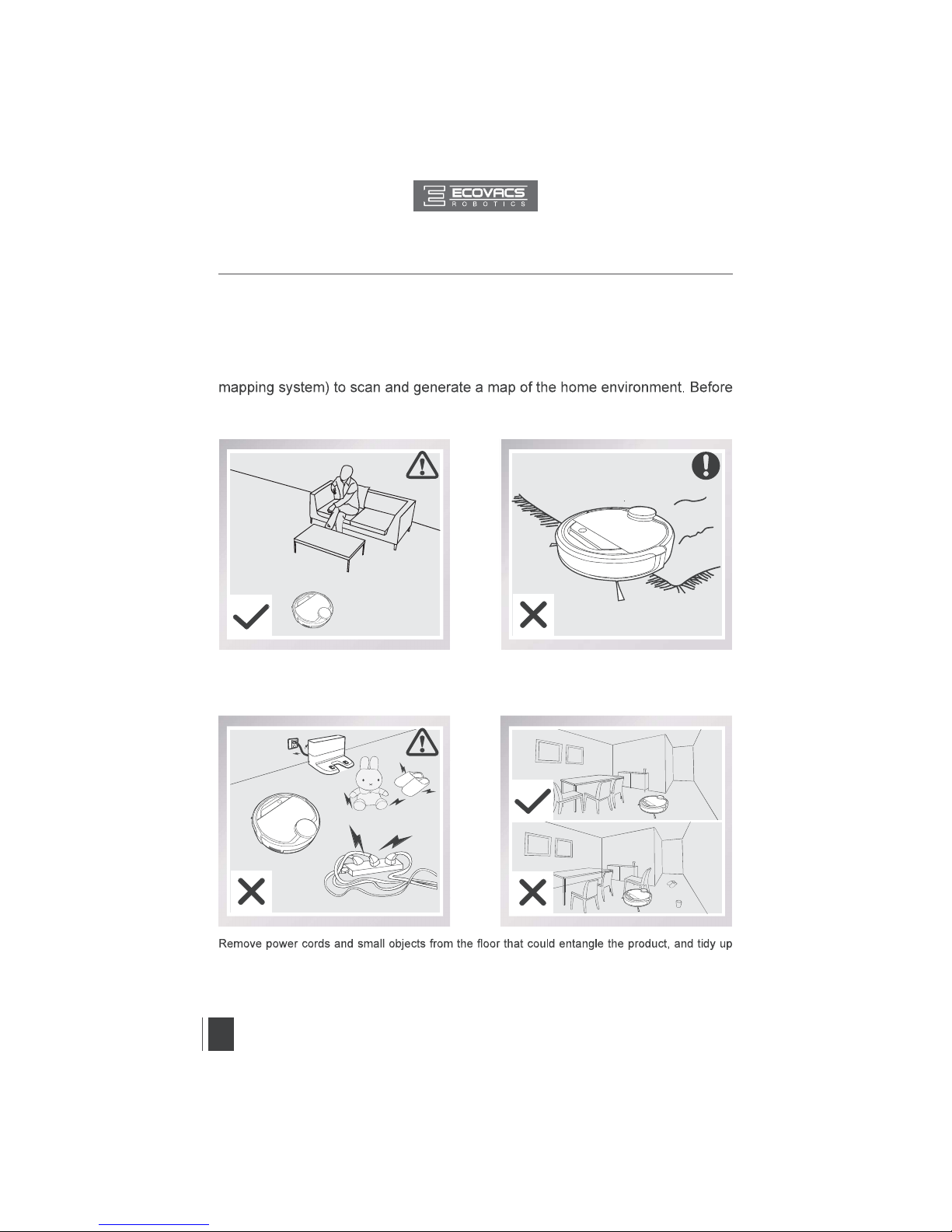

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing

water.

DEEBOT uses SMART NAVI technology (a proprietary laser scanning and

operating DEEBOT, take a few moments to survey the area to be cleaned and

remove any obstacles.

Before using the product on an area rug with

tasseled edges, please fold area rug edges

under themselves.

Please supervise DEEBOT during its first

cleaning and assist should there be a

problem.

the cleaning area to put furniture like chairs in their proper place.

3. Operating and Programming
