Ecoplus 3170 Manuel utilisateur
User Guide
Fixed Flow Pumps
FOR PUMP MODELS
FOR SUBMERSIBLE OR INLINE USE
3170
#728335 4950
#728485 7400
#728340
CONTENTS
SAFETY INFORMATION .................................................................1- 2
USER GUIDE
Introduction ..........................................................................................................3
Operating Instructions
Horizontal or Vertical Discharge...................................................................3
Submersible Applications............................................................................4
Inline Applications.......................................................................................5
Cleaning & Maintenance.......................................................................................6
Replacement Parts ................................................................................................6
PUMP SPECIFICATIONS
Eco-3170..............................................................................................................7
Eco-4950..............................................................................................................8
Eco-7400..............................................................................................................9
WARRANTY INFORMATION .............................................. Back Cover
Fixed Flow Pumps
FOR SUBMERSIBLE OR INLINE USE
SAFETY INFORMATION
CAUTION:
1. Thermally protected enclosure: Type 3 for indoor and outdoor use.
Electrical Warning: Risk of electric shock
1. This pump has not been evaluated for use in swimming pools or marine areas.
2. This pump is supplied with a grounding conductor, grounding type attachment plug.
Be certain that it is connected only to a properly grounded, grounding type receptacle.
To reduce risk of electric shock:
1. Install only on a circuit protected by a ground-fault circuit interrupter (GFCI).
2. See “User Guide” section for proper installation.
3. Use only on portable self-contained tanks, reservoirs, ponds and fountains no
larger than 5 feet in any dimension.
Warning:
1. Keep children away from this appliance and do not let them play with the product.
2. DO NOT operate unit if people are in water.
3. A high-voltage connector is in the unit. Be sure to turn off the main power supply
prior to cleaning or performing any maintenance on the unit.
4. Never cut the power plug and replace it yourself. This may lead to serious injury or death.
5. Never open the pump housing or its components unless specified in this User Guide.
6. Unplug unit from power source immediately if it shows any sign of abnormal water leakage.
7. This appliance should not be used if the plug or receptacle is wet.
8. Do not operate if the power supply cord, plug or any other parts are damaged.
9. Close supervision is necessary when used by or near children. This appliance is not a toy.
Keep away from children.
10. To avoid injury, do not contact moving parts.
11. Never yank on the cord to pull plug from the outlet.
12. Do not use this pump for other than intended use. The use of certain attachments
not recommended or sold by EcoPlus®may cause unsafe conditions and void
product warranty.
13. Make sure pump is mounted securely to tank, reservoir or pond.
THIS APPLIANCE HAS LIMITED USER SERVICEABLE PARTS
The following restrictions apply to this unit:
• NEVER use this unit to pump fluids other than water.
• NEVER run this unit without water.
• DO NOT use for commercial or industrial purposes.
• DO NOT use in conjunction with chemicals, foodstuffs, easily flammable or
explosive substances.
Before operating this pump, please read this User Guide
carefully and keep it stored in safe place for future reference.
– IMPORTANT –
PLEASE READ ALL SAFETY INFORMATION PRESENTED IN THIS USER GUIDE
1
USAGE CAUTIONS:
A. Before operating pump:
1. Check that the power voltage and frequency conforms to the power ratings on the nameplate.
2. Don’t lift, lower or carry pump by the power cable.
3. Always unplug the pump when not in use. Do not place hands in water where the pump is
installed or before performing any maintenance and cleaning.
4. Do not add any lubricants to the pump.
5. Do not operate the pump without water as this will cause severe damage.
5. This pump is not self-priming. Make sure the water lines and pump(s) are filled with water
prior to turning on.
6. Do not install or store the pump where it will be exposed to weather or temperatures
below freezing.
7. Do not operate pump in water temperatures higher than 86º F.
B. The pump should not be used if:
1. Do not operate pump if the power supply cord, plug or any other parts have any damage.
2. If cord is damaged, pump should not be used and disposed of properly.
3. Pump has a wet plug or a wet receptacle.
4. Water discharge from pump is reduced.
5. A part is broken and water leaks in.
6. Anything abnormal occurs.
7. If people or body parts are in the water.
C. During pump operation:
1. Shut off power immediately to prevent motor from burning out when overloaded due
to clogging from foreign materials.
2. Please consult store where you purchased the pump or EcoPlususa.com if the pump
is not working properly. DO NOT disassemble or assemble the pump, as this may result
in severe damage.

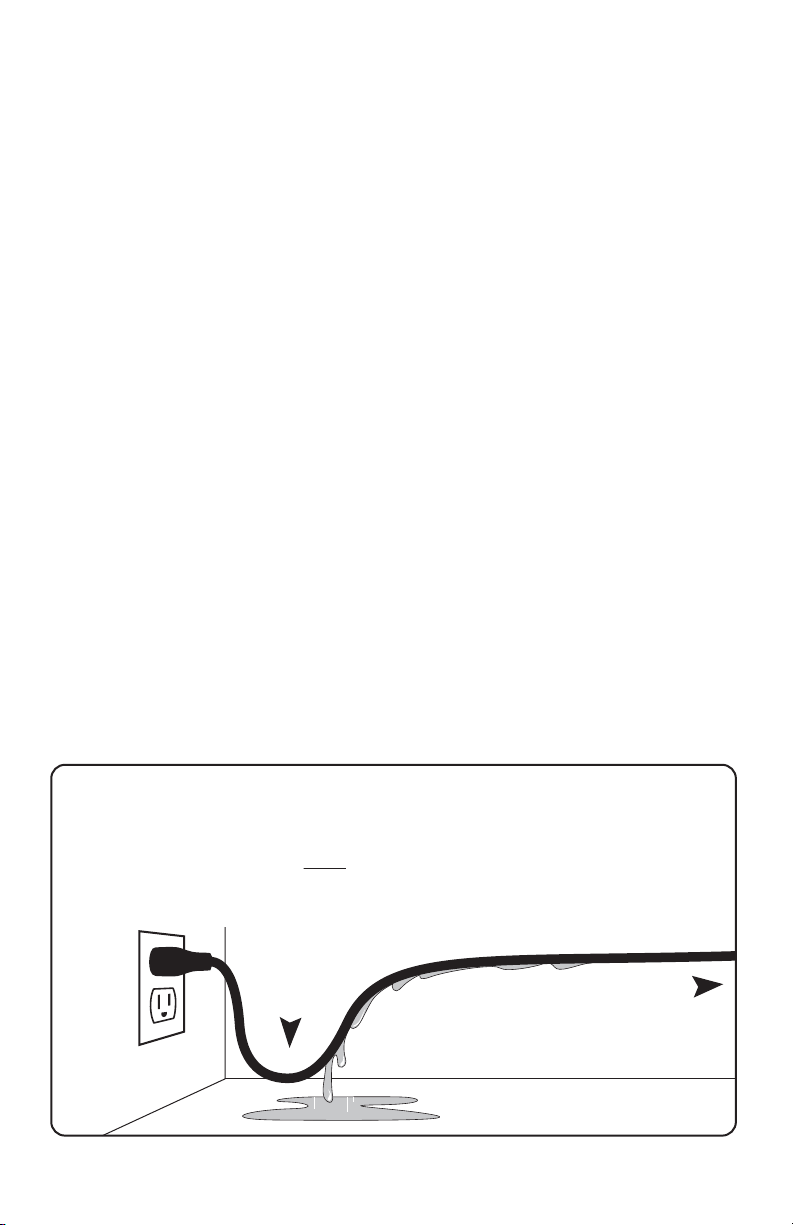

A “Drip Loop” prevents the plug or electrical outlet from getting wet and should be set up
for each cord connecting the pump to an electrical outlet (see diagram below). The Drip
Loop itself is the part of the cord below the level of the outlet (or connector if an extension
cord is used). This prevents any water from traveling along the cord and coming into
contact with the outlet!
Outlet
Power cord to pump
Plug
DRIP
LOOP
ALWAYS SET UP A DRIP LOOP
2
Introduction
USER GUIDE
EcoPlus®Fixed Flow Rate Submersible or Inline Pumps are quality products that are designed
using the very latest pump technology. These pumps are suitable for use in hydroponic systems,
ponds, aquariums, fountains and filter systems. The pumps are designed with “synchronous
technology,” where electrical parts are fully encapsulated in epoxy resin. This unit is constructed
with high quality, fully tested and rated components to ensure the best performance possible.
Features include:
• Driven by a high power rare earth
rotor magnet.
• Only 1 moving part for trouble-free
operation.
• Suitable for indoor or outdoor use
with freshwater only.
• Never let the pump run dry. Doing so will damage pump and could void the warranty.
• Place pump in minimum of 6 inches and a maximum of 3 feet below water surface.
• Always place on stable surfaces that are free from sludge, sand and other debris.
Operating Instructions
HELPFUL HINTS
HORIZONTAL OR VERTICAL DISCHARGE:
The base mounting bracket can be placed on the bottom or either side of the pump
for a choice of 3 discharge positions.
To change pump discharge orientation, simply slide the base mounting bracket off the bottom of
the pump and replace it on either side (the ridges on the sides of the pump are the “rails” that the
mounting bracket slides onto).
Base Mounting Bracket
1 2 3
3
• Can be used in fully submersible or
inline applications.
• Diverse selection of fittings are
included with every pump.
• Quiet oil-free motor.
• 1 year warranty (see back cover).
Base Mounting Bracket Base Mounting Bracket
SUBMERSIBLE APPLICATIONS:
This pump is designed to operate when completely submerged in water.
CAUTION: Do not put plug and pump into water together. If plug drops into water, power supply
should be turned off to avoid electric shock. Pump can be used indoors or outdoors. Supply cord
cannot be changed or replaced. It cannot be bent or used to carry the pump. If cord is damaged, do
not use pump. Do not reach for pump while it is submerged and connected to a power supply.
Basic Setup:
1. Make sure your pump is sized correctly for the volume of water to be moved and that it can
safely and effectively operate in your system.
2. Install outflow or inflow fittings onto the pump that are appropriate for your application and that
correctly fit any tubing connected to them.
3. Connect tubing, making sure the inner diameter of the tubing matches the outside diameter
of the fittings installed.
4. Double check to make sure all fittings are secure and that the Cover is installed correctly.
6. Fill your system with water.
6. Connect the pump’s grounded power plug to a grounded electrical outlet.
To 120V AC Outflow Tubing
Outflow Fitting
Outflow Fitting Adapter
OUTFLOW
INFLOW
Cover
Power
Cord
EXAMPLE 1: Typical Submersible Application
Pump fully submerged between 6 inches to 3 feet below water surface and secured to bottom or
side of reservoir or tank. Pump operates with the cover installed.
NOTE: Never let water
level drop below the
top of the pump.
4
To 120V AC Outflow Tubing
Outflow Fitting
Inflow Fitting
Outflow Fitting Adapter
OUTFLOW
INFLOW
Power
Cord
INLINE APPLICATIONS:
This pump is designed to operate in a system without being submerged in water.
CAUTION: This pump is not self-priming, which requires it to be filled with water and slightly
lower than the water level in a reservoir, tank, pond or aquarium. If plug drops into water, power
supply should be turned off to avoid electric shock. Pump can be used indoors or outdoors.
Supply cord cannot be changed or replaced. It cannot be bent or used to carry the pump.
If cord is damaged, do not use pump.
Basic Setup:
1. Make sure your pump is sized correctly for the volume of water to be moved and that it can
safely and effectively operate in your system.
2. Place pump in desired location, ensuring that the pump will operate at a slightly lower level
than your water source.
3. Install inflow and outflow fittings onto the pump that are appropriate for your application and
that correctly fit any tubing connected to them.
4. Install a connection on your water source using appropriately sized fittings.
5. Install tubing on all connections, making sure the inner diameter of the tubing matches the
outside diameter of the fittings installed.
6. Double check to make sure that all connections are secure.
7. Fill your system with water.
8. Connect the pump’s grounded power plug to a grounded electrical outlet.
Inflow Tubing
EXAMPLE 2: Typical Inline Application
Secured pump NOT submerged in water (note that the cover is not installed).
NOTE: Make sure pump
is placed at a slightly
lower level than your
water source.
5
Cleaning & Maintenance
EcoPlus®Fixed Flow Submersible or Inline Pumps do not require lubrication or any special
maintenance. The following general maintenance and cleaning steps will improve the pump’s
performance and life.
1. Turn off the power supply, move the pump to a dry location.
2. Loosen the screws from the impeller cover; remove the impeller cover from the pump body
by lightly shaking the unit.
3. Pull the rotor assembly away from the pump body.
4. Wash parts with fresh water carefully.
5. Reattach the rotor to the pump body carefully after cleaning; make sure the 2 holes on the
impeller base and the 2 dowels on the pump body fit together for proper assembly.
6. Turn the rotor by hand, the rotor should move freely.
7. Check the “O” ring of the pump body.
8. Replace the impeller cover on the pump body and tighten the stainless steel screws.
Replacement Parts
MODEL PART # DESCRIPTION
Eco-3170 728336 EcoPlus Eco-3170 Replacement Shaft & Impeller
Eco-4950 728486 EcoPlus Eco-4950 Replacement Shaft & Impeller
748494 EcoPlus Eco-3170/4950 Submersible Pump Replacement Impeller Cap for 728335/728485
For EcoPlus Eco-7400 parts please contact us at ecoplususa.com
6
PUMP SPECIFICATIONS
Eco-3170
Power Amps Watts GPH/ LPH H-Max (FT/M) PSI Dimensions (inch / mm)
120 V / 60Hz
728335 2.0 160 3175 / 12,018 12.4 / 3.7 5.48 10.5 x 5.1 x 6.9 / 268 x 130 x 174
Product #
All pumps listed on the following pages can be used indoors or outdoors with freshwater only.
Maxiumum operating water temperature is 86° F (30° C).
Head capacities may vary depending on actual operating conditions.
Head Capacities
7
NOTE: All fitting sizes shown in diagrams are Outside Diameter (O.D.)
2 barbed fttings above also fit
inflow when using pump inline.
1
3
/
4
"
1
3
/
8
"
1
3
/
4
"
Outflow
Adapter
0 158 317 475 634 792 951 1109 1268 1426 1585 1743 1902 2060 2219 2377 2536 2694 2853 3011 3175
0 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 6600 7200 7800 8400 9000 9600 10200 10800 11400 12018
GPH
L/H
Head Height
13.1 /
4.0
9.8 /
3.0
6.5 /
2.0
3.2 /
1.0
(
FT / M)
8
Eco-4950
Power Amps Watts GPH/ LPH H-Max (FT/M) PSI Dimensions (inch / mm)
120 V / 60Hz
728485 2.5 280 4490 / 16,996 18.5 / 5.6 8.22 10.5 x 5.1 x 6.9 / 268 x 130 x 174
Product #
Head Capacities
2 barbed fttings above also fit
inflow when using pump inline.
1
3
/
4
"
1
3
/
8
"
1
3
/
4
"
Outflow
Adapter
Head Height
0 317 634 951 1268 1585 1902 2219 2536 2853 3170 3487 3804 4121 4438 4755
0 1200 2400 3600 4800 6000 7200 8400 9600 10800 12000 13200 14400 15600 16800 18000
GPH
L/H
19.6 / 6.0
16.4 / 5.0
13.1 / 4.0
9.8 / 3.0
6.5 / 2.0
3.2 / 1.0
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Ecoplus Pompe à eau
Manuels Pompe à eau populaires d'autres marques
Sykes AmeriPumps
Sykes AmeriPumps GP100M Guide de dépannage
DUROMAX
DUROMAX XP WX Series Manuel utilisateur
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 Manuel utilisateur
Franklin Electric
Franklin Electric IPS Manuel utilisateur
Xylem
Xylem e-1532 Series Manuel utilisateur
Milton Roy
Milton Roy PRIMEROYAL Manuel utilisateur
