EcoFlow EF-Fold-P60-04 Manuel utilisateur
60W Portable Solar Panel
Contact Us:
www.ecoow.com
MC4 Output Controller
Solar Panel EcoFlow RIVER
(Sold Separately)
EcoFlow RIVER
(Sold Separately)
EcoFlow DELTA
(Sold Separately)
XT60 to solar
charging cable XT60
INPUT PORT
Solar Panel
EcoFlow DELTA
(Sold Separately)
Solar Panel
Solar Panel
Protective Case
XT60 to Solar
Charging Cable
Safety Instructions,
Quick Start Guide &
Warranty Card

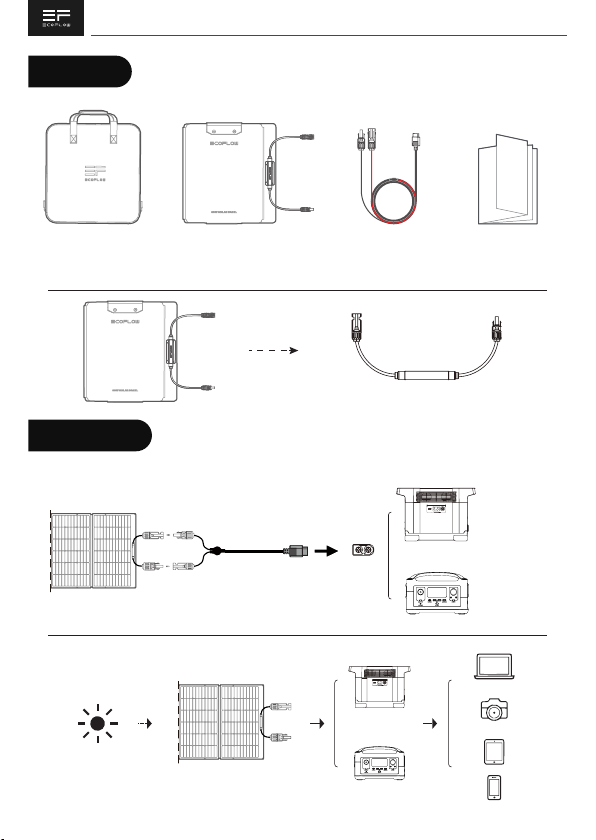

In The Box
How It Works
2
1
3

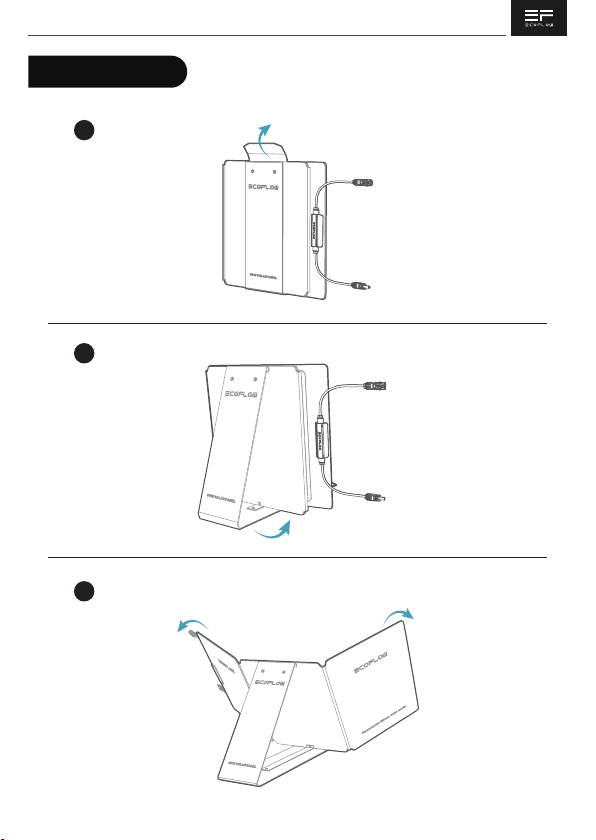

Your Solar Setup
4
90°
In order to increase the efciency
of the EcoFlow 60W portable solar
panel, use it in direct sunlight,
position it perpendicular to the
sunlight, and make sure the solar
panels are unobstructed.
5

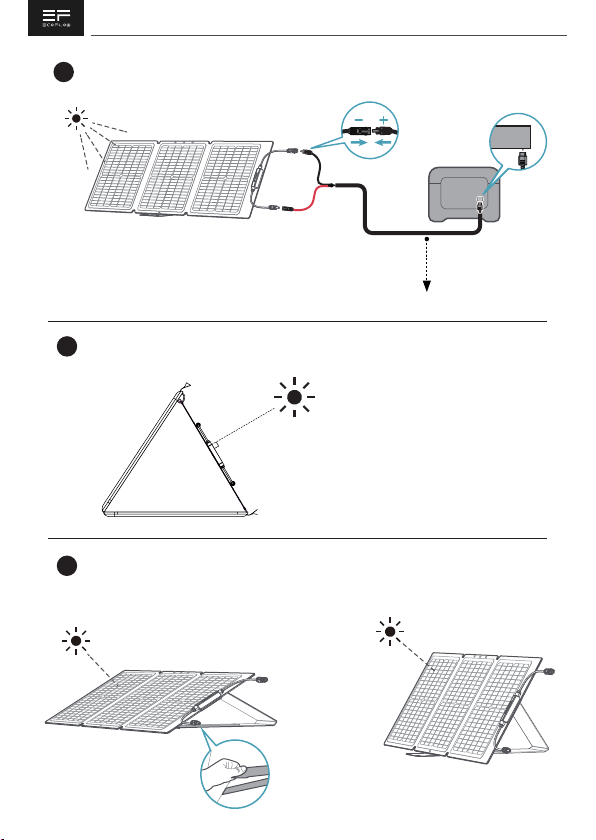

6Adjust the angle
You can adjust the tilt angle of the solar panel (range: 30° to 80°), and secure the unit by using the
velcro fasteners at the bottom, to improve charging efciency.
This cable can only be used for connection between solar panels and energy storage. It is prohibited to be
used for interconnection between solar panels or other connection purposes.
7
The kickstand on the back of the solar panel
should only be used before 10:00 am or after
2:00 pm. To use the solar panel during the
midday sun, simply place it at on the ground.
sw

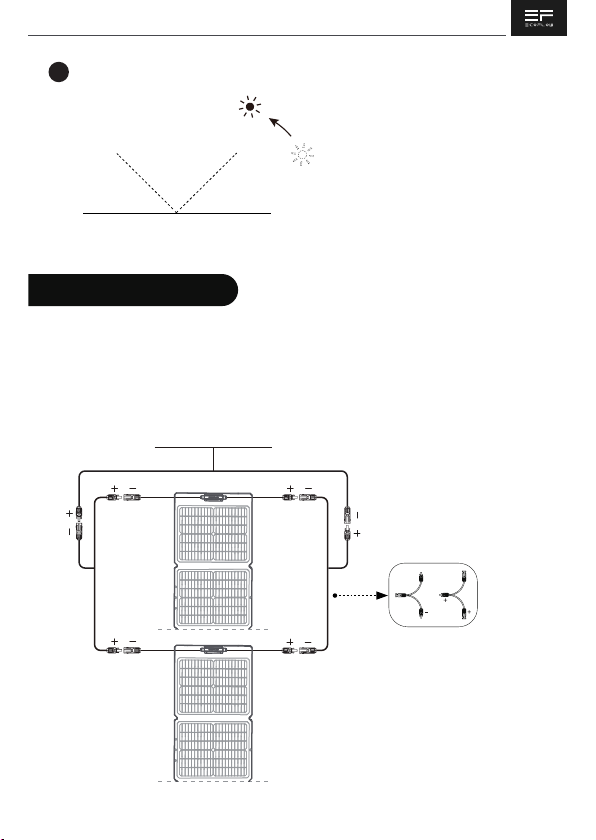

1. Connect the positive poles of the two solar panels with the MC4 parallel
cable and repeat the step for the negative poles.
2. Connect the MC4 parallel cable connectors (output side) with the XT60 to
solar charging cable respectively.
3. Connect to the XT60 port on the portable power station with the XT60 to
solar charging cable to recharge the unit.
(refer to the gure below)
Wire solar panels in parallel
Solar panel parallel connection cable
* Users have to buy the solar panels and other
parallel connection accessories seperately.
*For more information and methods about solar
charging,please refer to the user manual of the specic
portable power station.
Solar Panel A
Solar Panel B
Speed Up Solar Charging
Afternoon
Noon
Morning
(refer to the gure below)
1. Snap the MC4 male connector of one solar panel into the female connector
of the other respectively to wire the two solar panels in series.
2. After wiring in series, connect the remaining MC4 male and female
connectors with the XT60 to solar charging cable respectively.
3. Connect to the XT60 port on the portable power station with the XT60 to
solar charging cable to recharge the unit.
Wire solar panels in series
*For more information and methods about solar charging, please refer to the user manual of the specic
portable power station.
Solar Panel A Solar Panel B
60W Solar Panel
General
Tested And Certied
Model: EF-Fold-P60-04
Rated Power: 60W(+/-3W)*
Open Circuit Voltage: 24.5V
Running Voltage: 20.2V
Short Circuit Current: 3.3A
Running Current: 3.0A
Efciency: ≥23%
Cell Type: Monocrystalline silicon
Connector type: MC4
Net Weight: Approximately 2.9 kg
Unfolded Dimensions: 402*1030*25 mm (15.8*40.6*1.0 in)
Folded Dimensions: 402*380*25 mm (15.8*15.0*1.0 in)
Warranty: 12 months
IP68
Temperature Coefcient of Rated Power: -(0.39+/-0.02)%/°C
Temperature Coefcient of Open CircuitVoltage: -(0.33+/-0.03)%/°C
Temperature Coefcient of Short Circuit Current: +(0.06+/-0.015)%/°C
Technical Specications
Temperature Coefcient Specications
Mobiles 60-W-Solarpanel
Kontakt:
www.ecoow.com
MC4-Ausgangsregler
Solarpanel EcoFlow RIVER
(separat erhältlich)
EcoFlow RIVER
(separat erhältlich)
EcoFlow DELTA
(separat erhältlich)
XT60-zu-Solar-
Ladekabel XT60
EINGANG
Solarpanel
EcoFlow DELTA
(separat erhältlich)
Solarpanel
Schutzhülle für
das Solarpanel
XT60-
zu-Solar-
Ladekabel
Sicherheitshinweise,
Schnellstartanleitung
und Garantiekarte
Im Lieferumfang enthalten
Funktionsweise
2
1
3

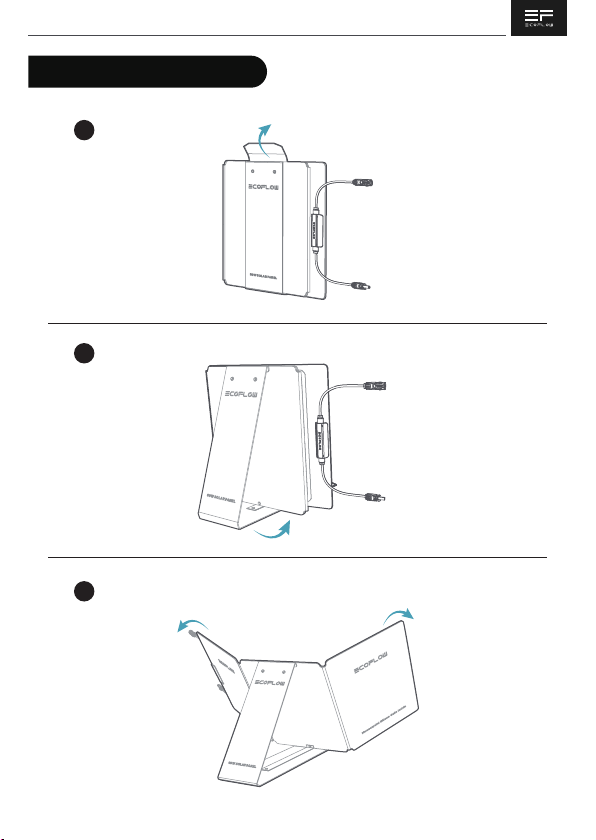

Aufstellung des Solarpanels
