EcoFasten Clickfit Manuel utilisateur

RAPID

INSTALLATION,

HIGH-QUALITY SOLAR

MOUNTING SYSTEM

FOR SHINGLE AND

TILE ROOFS

REV DATE: 07/16/2020VERSION: 2.0

Subject Page #

Introduction 3

Product Description 4

Ratings 5

System Components 6

Required Tools 7

Array Layout 8

Installing ClickFit 9

Flashing and L feet 10

Installing Tile Hooks 11

Tile Hook Sub-Flashing 12

Installing the Rail 13

Module Installation 14 - 17

Bonding and Grounding 18 - 19

MLPE Clip Intallation 20

UL2703 Certied Modules 21-29

Clamp Tables 30

TABLE OF CONTENTS

REV DATE: 07/16/2020VERSION: 2.0

1.0 Introduction

This manual describes the installation of the ClickFit mounting system for photovoltaic modules on steep-

slope roofs. Described within are details for composition shingle and tile, attachments for ClickFit for other

roof types are available at www.EcoFastenSolar.com.

All installation manuals are available for download at www.EcoFastenSolar.com.

2.0 General Installation Conditions

2.1 General

Failure to observe the requirements in this document can lead to the exclusion of all guarantees and

product liability. EcoFasten Solar reserves the right to amend this document without prior notice.

2.2 Stability and Condition of the Roof

The roof must be in good condition and strong enough to support the weight of the modules, including the

additional equipment, wind and snow loads. When in doubt, consult with the engineer of record, and/or the

local building inspector.

2.3 Application Range of ClickFit

• Refer to Compatibility module list on page 21.

• Please refer to the Ecofasten ClickFit span tables for system structural certication

and allowable spans.

2.4 Warranty

Guarantee according to the warranty conditions and general terms and conditions of EcoFasten Solar. These

conditions can be found on the website at www.EcoFastenSolar.com.

2.5 Liability

EcoFasten Solar cannot accept any liability whatsoever for damage or injury caused by not taking adequate

safety precautions or (accurately) following the instructions given, or resulting from negligence during the

installation of the product and any corresponding accessories specied in this document.

*Printing errors reserved

INTRODUCTION

REV DATE: 07/16/2020VERSION: 2.0

The ClickFit mounting system consists of patented adjustable tile hooks and L feet, rails,

and the installation materials required for the mounting of photovoltaic modules on

composition shingle or tile roofs. For simplicity, tile hooks and L feet will be referred to as

“attachments”.

3.1 Attaching to the Roof

The attachments are fastened to the rafters. Attachments are height-adjustable to level

the system on uneven roof surfaces.

3.2 Attaching the Rail

The rail assembles to the attachments with a click-connector, or Clicker. The rail simply

clicks into place without the use of any tools.

3.3 Attaching the modules

The modules are attached to the rails by means of mid clamps and end clamps.

Installer must review the module manufacturer’s installation manual to conrm

compliance to the warranty terms and conditions.

PRODUCT DESCRIPTION

REV DATE: 07/16/2020VERSION: 2.0

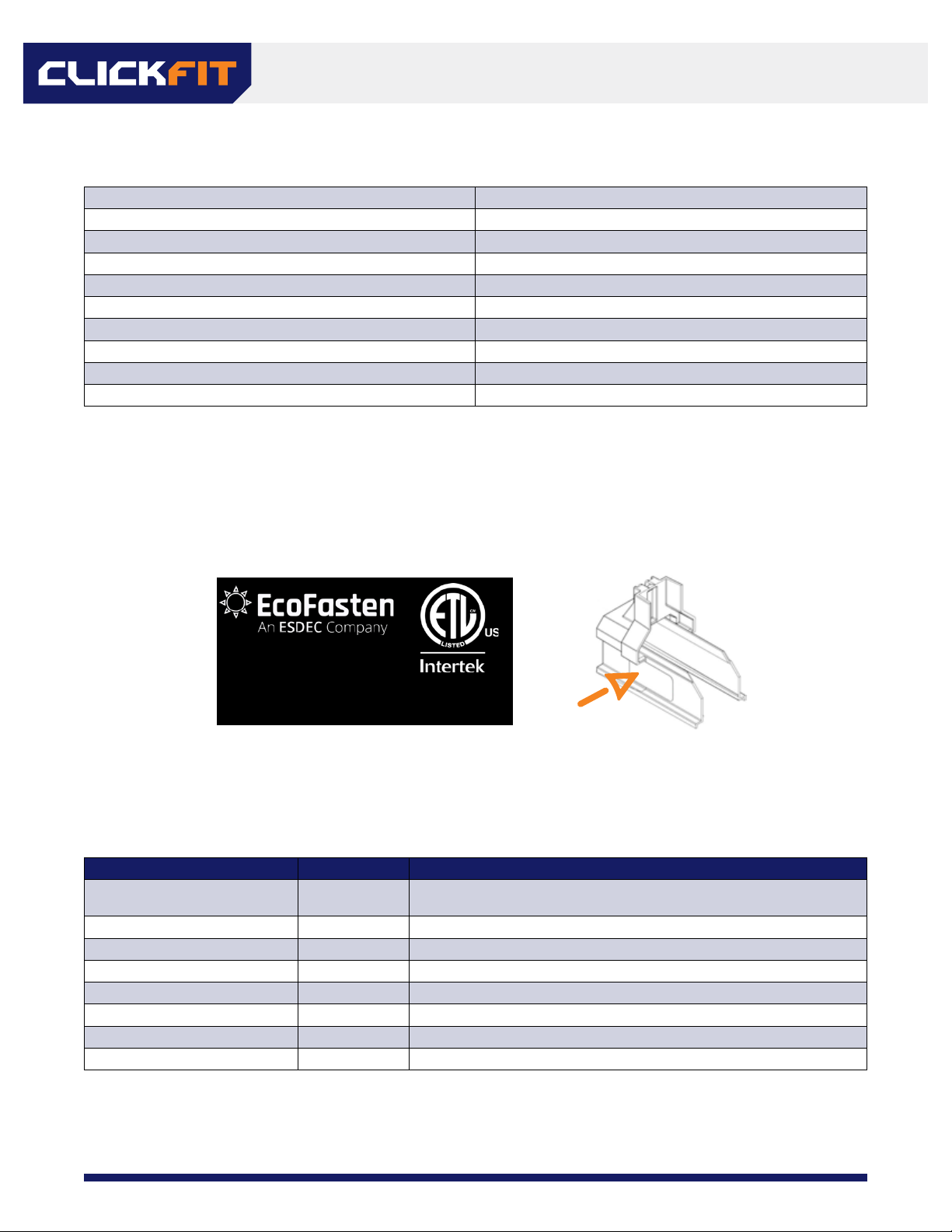

Torque Specications

UL 2703 Marking Example:

Fire Rating** Class A System Fire Rating

Max System Voltage 1500 VDC

Max Fuse Rating 30A

Certication Conforms to UL STD 2703

Warranty 20 Year Material and Workmanship

UL 2703 Markings Product listing label is located on the rail end-caps

Roof Pitch 2:12 – 12:12

UL 2703 Allowable Design Load Rating 10 psf downward, 5 psf upward, and 5 psf lateral

Max Module Size 24 sqft

Module Orientation: Portrait or Landscape

Component Torque (in-lb) Notes

Lag Screw N/A Fully Seat. Use visual indicator of the black EPDM ring around the bonded

washer for torquing.

Mid-Clamp 144

End-Clamp 96

Rail Clicker Leveling Bolt 142 Pre-torqued upon delivery. Applies to Tile Hook and L-Foot/Clicker

Hook Height Bolt N/A Lightly clamp hook to ush with top of next tile row

Ground Lug N/A Refer to specic ground lug manufacturer’s installation manual

MLPE Clip 144

MLPE Mount 144

CLICKFIT

SYSTEM

MFG ID CODE: XXX-MM-YYYY

Conforms to UL STD 2703

1234567

**Class A System re rating with Type 1 & 2 PV modules. Any module-to-roof gap is permitted, with no skirt required. This

rating is applicable with any roof attachment.

NOTE: Mid Clamp, MLPE Clip, and MLPE Bracket have been evaluated for multiple use, position independent.

RATINGS

REV DATE: 07/16/2020VERSION: 2.0

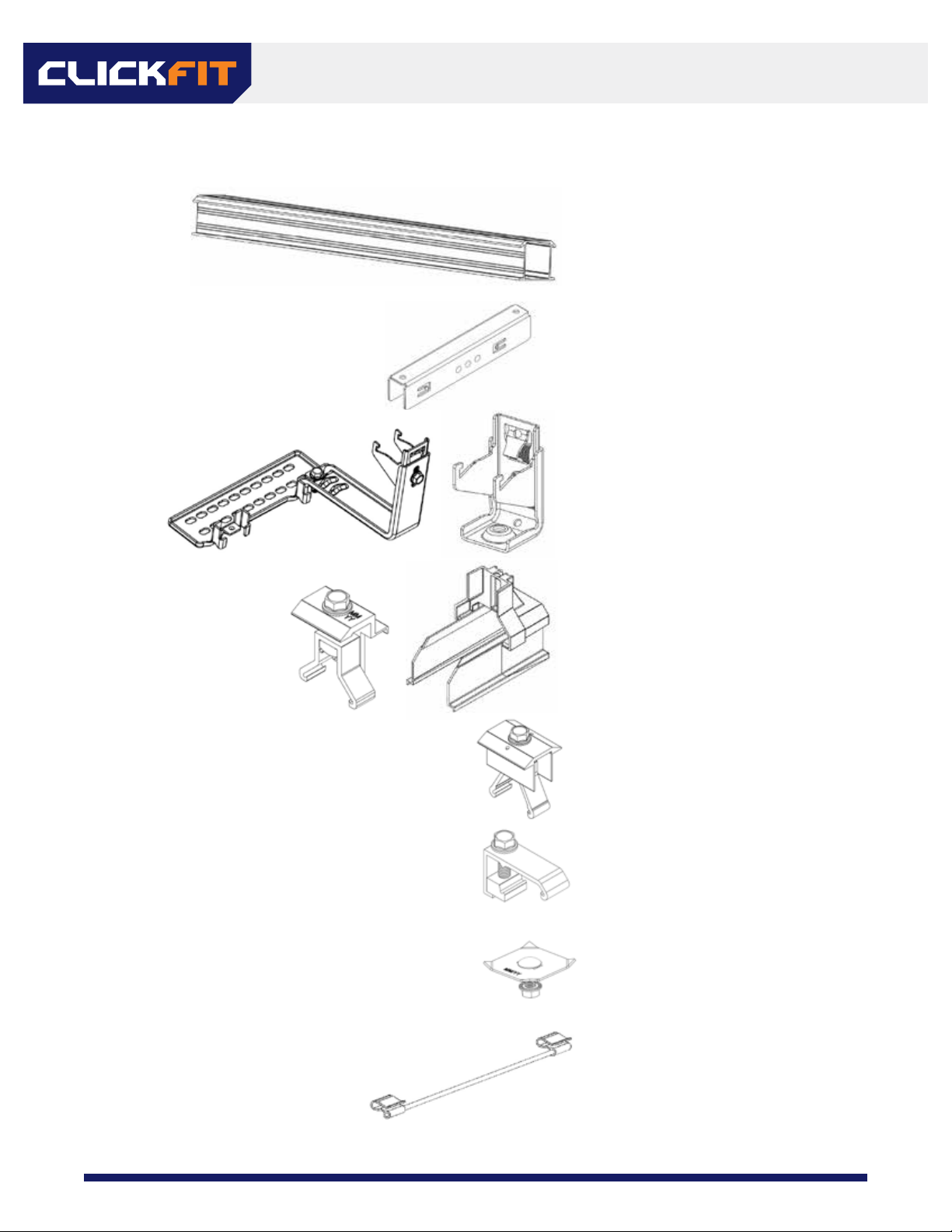

1) ClickFit Rail

1500033 (2130mm)

1500034 (3166mm)

1500035 (4202mm)

8) MLPE Clip (RockIt Clip 2.0)

9) Module Jumper

1500028

7) MLPE Mount

1510057

2) Rail Splice

1008061

4) CF End Clamp

See Section 10

5) CF End Cap

1510041 (Black)

1510042 (Grey)

3) CF Tile Hook and L foot

1500005 - Tile Hook

1500004 - L foot

6) CF Mid Clamp

See Section 10

SYSTEM COMPONENTS

REV DATE: 07/16/2020VERSION: 2.0

Checklist of tools and accessories

Note: *Proper PPE shall be worn at all times*

Tape measure

Roof crayon or chalk (a chalk line can be helpful as well)

Cordless drill with torque adjustment and the following bits:

• 1/2” Hex socket

• 1/4” diameter drill bit. (Drilling length no less than lag bolt depth)

Brush for clearing debris from roof surface. Hint: Leaf blowers

work well to remove any leftover moisture prior to installation.

Torque wrench capable of 0-150 in-lbs

REQUIRED TOOLS

REV DATE: 07/16/2020VERSION: 2.0

• Refer to span tables, local jurisdiction, or engineer of record specications when determining setbacks

from roof edges, attachment spans, etc.

• Mark the perimeter and corners of the array on the roof surface.

*Add 3/4” to account for the gap between modules in each direction*

• Draw or snap chalk lines where the rails will be installed,(refer to module manufacturer specs to

determine allowable mounting locations).

• Locate rafters within the area of the array. It may be necessary to shift the array East or West on the roof

in order to fall within the rail cantilever specs (l/3) of span).

• Stagger rafters every row if required by the local jurisdiction, engineer of record, or company policy.

ARRAY LAYOUT

REV DATE: 07/16/2020VERSION: 2.0

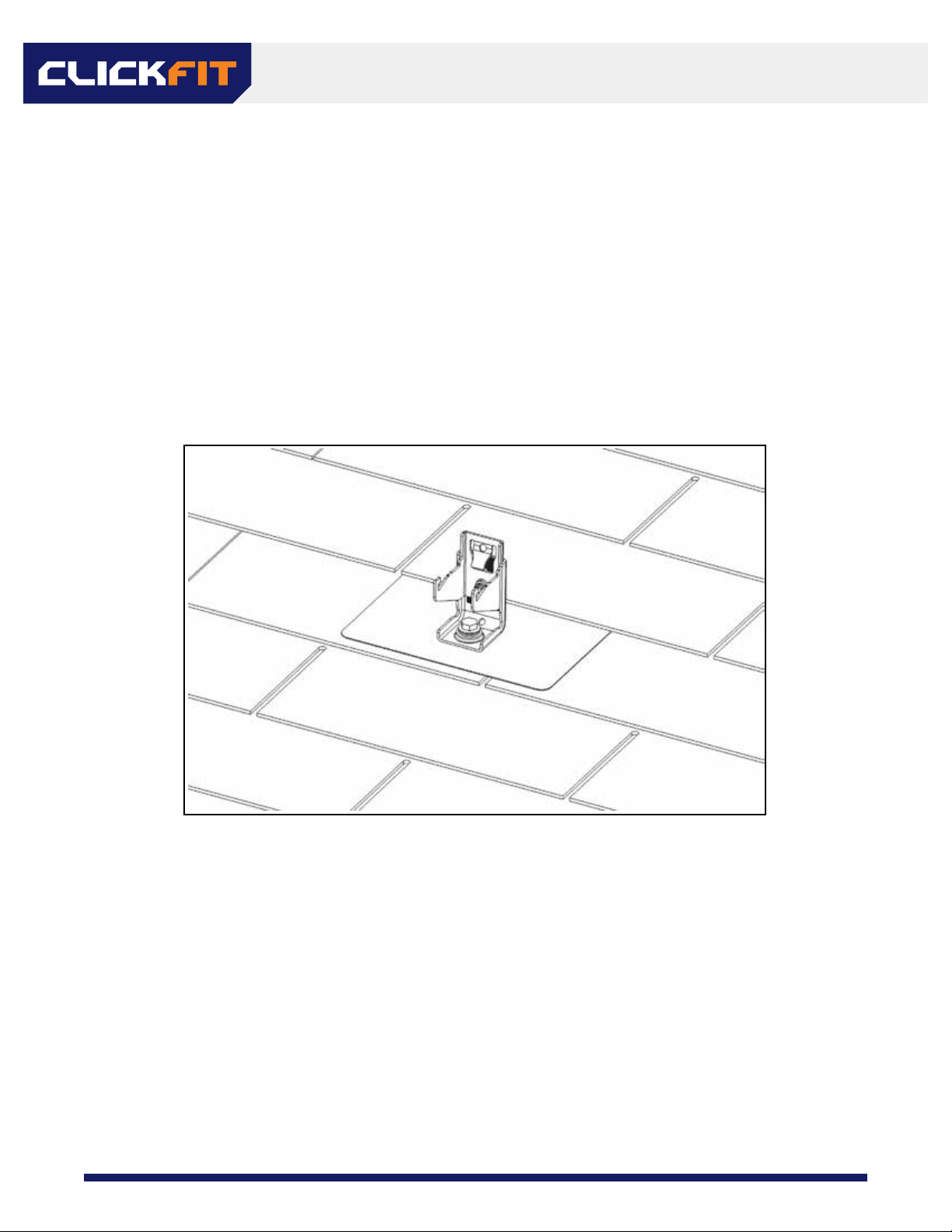

Pre-installing rail splices

1. Determine the number of rails required per row of modules.

2. Insert a rail splice into one rail. *Do not push it past the center bump.*

3. Slide the next rail onto the rail splice until the two rail ends meet.

4. Repeat steps 2 and 3 until the desired length is achieved. *This is usually easiest to do from the

ground.*

INSTALLING CLICKFIT

REV DATE: 07/16/2020VERSION: 2.0

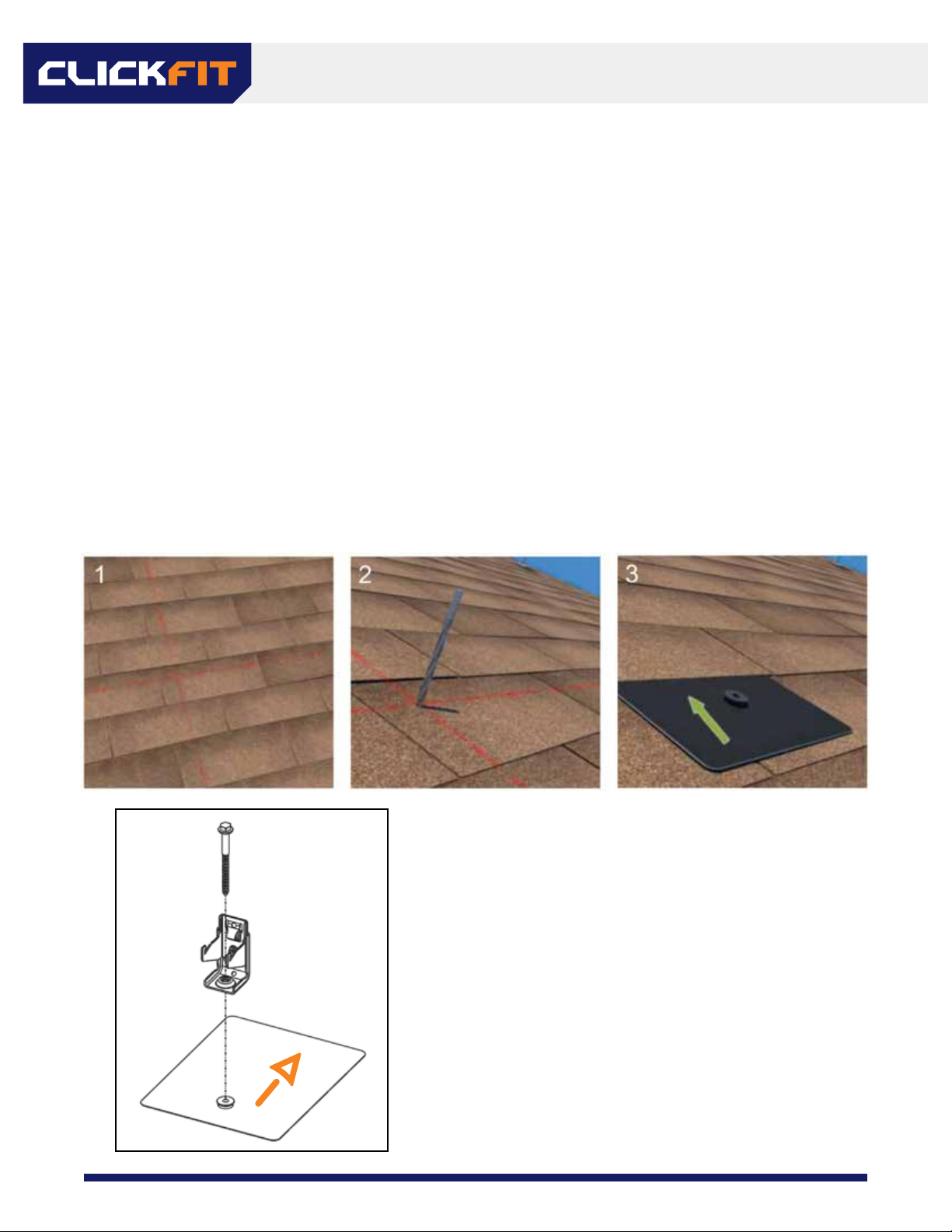

Installation of flashing and L feet

• ClickFit for comp shingle roofs uses EcoFasten Solar’s GFl watertight ashing system

• Other roof types may use dierent EcoFasten Solar attachments, see www.EcoFastenSolar.com for more

information.

Installation Steps:

1. Locate rafter lines from section 5.2.

2. Drill l/4” pilot holes at all attachment points and back ll using roof-compatible sealant.

3. Separate shingles where ashing is to be installed. Insert the ashing so the top portion is under the

next row of shingles North. Ensure the ashing is pushed to the third-course of shingle to prevent water

inltration through the vertical joints between shingles.

4. Align GFl ashing hole with pilot hole. Insert the lag bolt with pre-installed bonded washer through the L

foot and EPDM grommet. Tighten the lag bolt until a ring of EPDM is visible around the circumference of

the bonded washer.

Tighten the lag until fully seated. The EPDM Ring visual indicator is the most eective way to ensure a watertight seal.

*Note the orientation of the L foot and Clicker. The two

Clicker “arms” should be facing downslope*

FLASHING AND L FEET
