3 oven oil fired Cooker

For use in Great Britain and Eire (GB & IE)

Instructions for Use, Installation and

Servicing

This appliance must be installed in accordance with the regulations in force and only used in

an adequately ventilated space. Please read these instructions before installation and use and

retain for future reference.

1. Introduction

Thank you for choosing to purchase the 3 oven oil, balanced flue or conventional flued, Eco

Range cooker. Each cooker is manufactured and assembled by hand in our factory. This

appliance is designed to be capable of operating for long periods of time. With correct

installation and use your Eco Range cooker will provide many years of satisfactory service

and cooking enjoyment.

The appliance consists of two hotplates, 2 top ovens and a bottom oven or warming

compartment. The left sided hotplate is designed for more rapid heating suitable for frying

and boiling, whereas the right sided hotplate is more suitable for slower cooking and

simmering. Hotplate covers are provided to prevent heat losses when not cooking. The two

top ovens operate to provide a consistent temperature controlled environment for all your

cooking and baking needs. The bottom oven operates at lower temperatures and is suitable

for slow cooking or merely as a warming compartment, depending on the control setting.

These instructions detail how to get the most from your cooker, as well as fundamental

information on how the cooker shall be installed, maintained and used in a safe and practical

manner. It is important that some time is taken to read these instructions carefully

before installation and use of the appliance.

In order for the warranty to remain valid it is imperative that the appliance be installed in

compliance with all relevant national and regional regulations.

A competent heating and plumbing engineer must check/install the oil line for the cooker.

The warranty of your Eco Range Cooker applies to products sold in the UK and Eire

only. For products sold outside of these areas please contact the manufacturer for

details warranty authorisation.

2. Safety Instructions

Safety First:

This is a heating appliance; therefore it can become very hot when in service.

Young children and pets should be kept a safe distance from the cooker.

Ceiling mounted clothes dryers are strongly unadvised as they can present a fire hazard, this

also includes leaving towels on the handrail of the cooker.

Pans, especially chip pans, should not be left unattended on the Eco Range cooker.

Read and understand this booklet before installing and operating this appliance.



This appliance must be installed in accordance with the rules in force and used only in a

well ventilated space.



The appliance must only be installed and serviced by a suitably qualified and registered

technician.



The appliance shall not be altered in any way and only approved spare parts shall be

used. Failure to do so will invalidate any warranty or guarantee.



This appliance is very heavy and every care should be taken when trying to manoeuvre

it. Do not attempt to move or lift the appliance by the door handles, this could cause

damage to the doors and handles. It must be sited on a solid, level floor constructed in

accordance with any Building Regulations which may apply to the site.



It is important for the correct operation of this appliance that the installation space and

clearances around the appliance are in line with the specifications detailed in these

instructions.



Sufficient space should be available to allow the doors to be fully opened in excess of

120°from the closed position.



Ventilation openings on the side rear and front of the appliance should never be blocked

or restricted. see ventilation requirements



This appliance is capable of being operational at all times. Parts of the appliance will

become very hot, and remain hot for long periods. Only adults should operate this

appliance and only in accordance with the user instructions. Care should be taken when

using the cooker and the use of oven gloves is recommended when applicable. Children

should be supervised at all times if in the vicinity of the cooker.



In the interest of hygiene and safety the cooker should be kept clean at all times.



The cooker is designed for cooking foods only and must not be used for any other

purpose.



Always allow to cool before cleaning and carrying out maintenance work.



Do not use unstable or unsuitable saucepans and position handles away from the edge of

the hot plate. Thick, flat based saucepans are recommended for best results.



Do not place combustible materials onto the hot plate surfaces even when the cooker is

off.



Your Eco Range Cooker should be serviced at least once every twelve months. It is

impossible to service your cooker while it is hot, therefore DO NOT use your appliance

12 hours before a service is required.

Important:

The installer is responsible to ensure that all persons involved in the installation be provided

with the correct health and safety clothing when handling materials which are known to

cause potential harm.



Ceramic materials: Facemask and gloves must be worn, Contact with eyes, skin and

throat must also be avoided.



Fuels: Wear gloves –avoid ignition sources –Waste fuel should be disposed of

correctly, not via domestic waste water courses.



Fire cement: Wear gloves –wash hands.

Safety Notices and Regulations



The Building Regulations –Part J England and Wales –Part F section III Scotland –

Part L Northern Ireland –Part J Ireland.



BS5440 Parts 1 and 2 Installation of Flues and Ventilation.



D.M.2. Installation of Timber Framed Buildings.



Safety Document 635 The Electricity at Works Regulations.



BS7671 Requirements for Electrical Regulations.



REC Rules regarding PME Earthing (where applicable)

Warning:

Correct earthing must be provided for this appliance.

If in doubt seek advice from a qualified electrical engineer. Prior to carrying out any

work on the appliance switch off at the mains and remove the fuses from the fused spur

outlet and from the user control panel. Replace when works are complete. Always ensure

appliance is ‘electrically dead’ prior to working on the electrics.

3. Technical Specification

Appliance type - Cooker and Space heater

Cooker Burner System - Eco Flame Major

Fuel - 28 sec Kerosene

Country of Designation I.E & U.K

Mains supply - 230 Vac @ 50HZ from a dedicated fused spur.

Fuse rating - 5A

I.P Protection - 20

Load (Running) - 130W(Nominal)

Oil Pump working pressure - 115 psi/ 8 bar (Nominal)

Flue - Balance only or conventional flue.

Appliance max energy input - 14KW burn, 5kW hrs. as thermostatically controlled

Installation requirements - Must be installed in accordance with good practise

and as laid down by all relevant codes of practise

bysuitably qualified installers.

NB: See Installation Instructions within this manual

Balanced flue only - No further ventilation required.

4. Appliance Details

Overall Size -

Height (to hob)

910mm

Width (standard models)

1000mm

Hotplates –

Depth (to towel rail)

340mm diameter x 2

730mm

Ovens 3 of each –

Height

270mm

Depth

500mm

Width

345mm

Your cooker is fitted with a thermostatic control device. This operating system provides the

exact heat requirements selected (by the user) for cooking and reduces the overall oil

consumption. The user selects the desired cooking temperature and when the cooker

approaches the selected operating temperature the thermostatic control operates to turn off

the burner flame to maintain a steady temperature. The control knob on the device is marked

which relates to a particular temperature setting of the top oven.

4.1

Using your hotplates

Your appliance has two hotplates, with a joint hotplate in the middle, protected with two

insulated lids which should remain in a closed position when not using the hotplate. The lids

can be raised independently if only using one hot plate. The hot plate temperature is

dependent on the setting of oven temperature. The higher the temperature in the ovens, the

hotter the hotplate will become.

The design of the hot plates is such that the left hand side will become the hottest, making

this suitable for deep fat frying, shallow frying and boiling.

The surfaces of the hotplates are ground flat and it is therefore recommended that all

utensils used have a solid, flat base to come in complete contact with the hot plate for

efficient results.

4.2

Using your Ovens

Your appliance has 2 ovens. The thermostatic dial in the top oven door provides an

indication to the top oven temperatures. This thermometer reading will reduce quite

dramatically when the door is opened and only recover slowly when the door is closed. This

occurrence does not mean that the oven temperature has reduced. The bottom oven is

warmed by the underside of the oven above. Depending on the control device setting and

operational time, this oven will generally operate some 85 –90°C below the top ovens. It

may be used for small food cooking, biscuits, cakes etc but it is best used as a warming

compartment.

4.3

Overheatthermostat

The cooker is protected by an overheat thermostat designed to shut down the burner if a

fault occurs leading to excessive oven temperatures. The overheat thermostat is located

below the control device, inside the lower left compartment. To reset, unscrew the

protective cap and press the button.

NOTE: If overheat reset occurs more than once contact your service technician.

4.4

Cleaning your cooker

CAUTION: Cleaning of the Eco Range Cooker should only be carried out when the

appliance has cooled down.

The Eco Range cooker should be wiped over daily with a damp soapy cloth. The enamel

should then be dried and polished with a soft dry cloth to avoid streaking. Any spillages

should be wiped up immediately to prevent hardening of deposits which would make

removal difficult at a later stage.

The hot plates can be kept clean by using a light suede wire brush and gently scrubbing the

plates, taking care not to damage the surrounding enamel. Spillages inside the ovens can

become carbonized at high temperatures, therefore the ovens should be cleaned at regular

intervals with a stiff brush. The surfaces of the oven are natural, therefore to prevent

oxidation dry all surfaces after cleaning.

4.5

Routine servicing / maintenance

All oil appliances require regular servicing by a qualified technician. It is recommended that

your cooker is serviced at least once a year. This will ensure your cooker remains fully

functional and in a safe condition.

5.1 Delivery and Transport

Your Eco Range Cooker is an extremely heavy and solid appliance. When attempting to

move or transport your cooker please take into consideration these points:

External –In Vehicle –Ensure unit is securely held by ropes and handled carefully by

qualifiedpersonnel.

Internal

Remove all objects from your path, including rugs and breakables.

It is often easiest to unhinge a door in the case that it is too narrow, it also stops damage

being applied to the cooker, the property and injuring people.

The plinth on the cooker is strong and sturdy enough to withhold the unit being moved on

rollers, byremoving the oven doors you can also create useful handholds.

IMPORTANT:



The top plate is unable to manage the weight of the cooker so should never be moved

or lifted in this way.



Damage can be caused to the cooker and to persons by using inadequate objects to

lever or move the object.



Difficult terrain, including steps, should not be attempted without adequate

manpower and proper precautions.

The supplier of your new ECO Range Cooker can provide you with an authorised engineer

to attend site, strip the appliance and rebuild in the correct location.

The warranty will become invalid if you strip and rebuild the cooker yourself.

5.1

SiteConsiderations

Sufficient space for appliance, so that access for service and maintenance purposes

can be easily attained.

Provision of a satisfactory flue/chimney/cowl.

A sold non-combustible hearth capable of supporting the appliance.

Adjacent to the cooker then should be no combustible walls or surfaces.

The cooker must stand against an outside wall so that there is a supply of unrestricted

air to the burner.

If the cooker is to be placed within an inglenook, allow a minimum of 1.5 meters

height clearance for comfortable operation.

Units and other work tops should be given enough space, allow 25mm for kitchen

units and 10mm for worktops, 3mm should be given for granite and composite stone.

The cooker must not be built in, especially the top plate and front plate which must

be removed for maintenance.

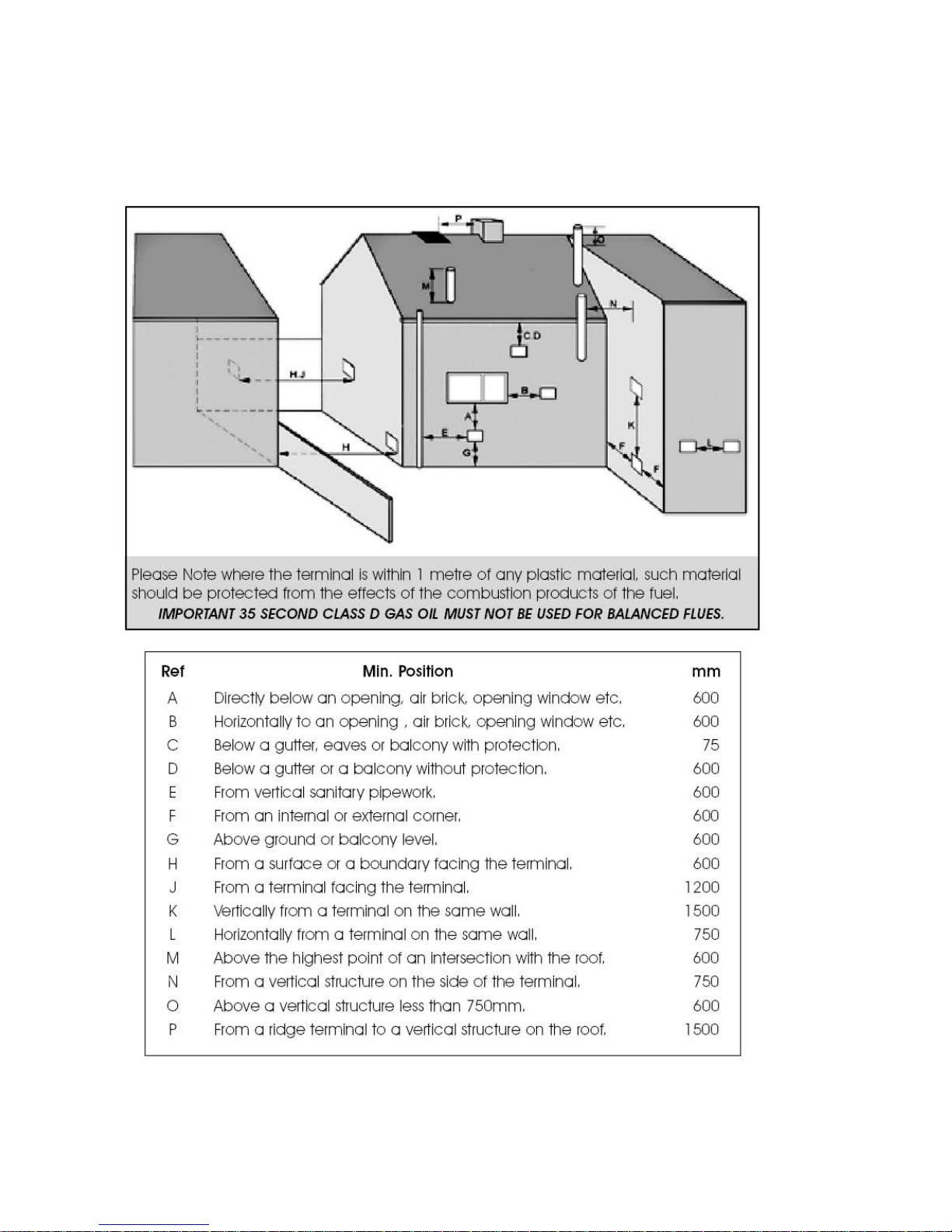

6.0 Balanced Flue

A balanced flue allows the cooker to be placed against an outside wall, with either rear or

top outlet concentric flue.

Maximum length of rear flue: 500mm

Maximum length of top outlet flue: 300mmvertical

500mmhorizontal

The surrounding area must be taken into consideration, as strong winds may affect flue

performance.

Balanced flue units are supplied with the following components:

1 no. Outer flue pipe 5” (exhaust outlet)

1 no. Air pipe 3” (air intake)

1 no. Flue terminal

1 no. Heatproof silicon

4 no. Stainless steel self-trapping screws

1 no. Oven vent pipe with tee

Instructions for installation:

A suitable position for the range must be taken into consideration before attempting

to install or move the appliance. See section 5.1 for site considerations.

Mark the positions for the flue and oven vent, it is important to confirm all

measurements byphysically measuring the appliance.

Push oven vent through hole and manoeuvre cooker into position. After the cooker

has been moved to the correct position, tighten the compression fitting so that there is

a 3/5º drop from appliance to outside termination.

Cut the pipes to the correct length.

With the supplied tape and silicon make a seal on the inner and outer pipes. Push into

the cooker, whilst making sure no excess sealant has leaked that may block the

cooker

spigots. Ensure minimum of 3º drop.

With suitable material make a good flue hole.

Fit the terminal to the pipes whilst ensuring the inner pipe has adequate clearance

between terminal end and outlet (min. 50 mm). Secure terminal with supplied screws

and heatproof silicon.

The oven vent must then be cut to the correct length, solder tee to pipe with outlets

top and bottom. It is vital that there are no bends in the oven vent.

Warranty on the Cooker structure & castings: 5 Years (Excludes labour)

Warranty on Burner and Controls: 2 Years

CONDITIONS OF WARRANTY:

1. Boiler MUST BE installed by a representative of the company or OFTEC registered engineer, if not

permission will be required by building control.

2. Burner MUST BE commissioned after installation by an OFTEC registered engineer.

3. Burner MUST BE serviced every 24 months after installation by an OFTEC registered engineer.

IMPORTANT CHANGES TO BOILER MANAGEMENT:

Annual Service –This is very important in order to keep the flue ways clean and ensure the boiler is

correctly set.

SWITCHING THE COOOKER OFF

The burner can be switched off at anytime using one of the following:

-Turn the oven control thermostat to the OFF position

-Switch the mains (electrical supply) to OFF

-Set the control system to OFF (e.g. Time Clock)

PLEASE NOTE: For longer periods of shutdown e.g. while away on holiday, switch OFF the mains

(electrical supply) and turn OFF the OIL supply.

BURNER LOCKOUT

The burner has an independent control system (Burner Control Box); this includes a flame detector

(Photocell), which senses the presence of a flame. In the event of a flame failure, the burner control box

activates a second re-ignition sequence. Should the photocell not detect a flame presence within 15 seconds

the burner goes to LOCKOUT and shuts down.

Continued LOCKOUTS are a result of a fault in the operation of the boiler and can be attributed to

following examples:

-An interruption of the fuel supply.

-Electrical Supply Fault e.g. Extreme low voltage.

-Failure of a burner component.

-Burner combustion not being correct.

The Burner Reset button on the Control Box illuminates to indicate that a lockout has occurred.

In the event of the Burner locking out, do not attempt to restart the Burner by pressing the Reset Button on

the Burner Control Box for at least 2 minutes. A Bi-metallic timer within the Control Box has a minimum

cooling time of 45 seconds thus the 2 minute interval will ensure that this Bi-metallic timer has cooled and is

therefore in a position where it may be reset.

RESTARTING AFTER LOCKOUT

When lockout has occurred, inspect for any obvious causes e.g. oil leaks. Also check the fuel line from the

tank to the boiler and that any oil shut off valve has not been inadvertently closed.

RESTART

-Check there is adequate oil in the storage tank.

-Check oil supply valves are open

-Switch on heating system (e.g. Time Clock)

-Press the Burner Reset Button on the burner Control Box, which will be illuminated. The Burner Reset

Button (illuminated)(Fig 1) will go out and the burner will commence the ignition start sequence. After

15 seconds the Burner should fire normally.

PLEASE NOTE: Should the Burner not start, the lockout indicator, on the Control Box/Burner Reset

Button will illuminate again.

- Wait at least 3 minutes and press the Burner Reset Button again.

Failure to start a second time indicates a fault requiring attention.

In the event of a second failure to start:

-Switch off electrical supply

-Call service engineer.

REGULATIONS

The installation of oil-fired cooker should comply with the following standards and codes of practice:

-BS5410-Part 1Oil installations up to 45kw

-BS7671 Electrical Regulations

- Building Regulations Part 1L and J 2002 England and Wales, Part F Scottish Regulations and

Technical Booklet L Northern Ireland.

- OFTEC Codes of Practice Published or Recommended.

COOKER LOCATION

Sound levels should be discussed with the householder, as some people may be sensitive to low noise levels

in a small room, as is may appear more annoying than in larger rooms. Please Note installation should take

into account of flue position (see diagram).

RECOMMENDED FLUE POSITION

Table des matières

Autres manuels Eco Range Appareils de cuisine

Eco Range

Eco Range Range cooker Manuel

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
