Ecler essentials ePHS30Ti Manuel utilisateur
ePHS30Ti
SPECIALIZED LOUDSPEAKERS
Public Address Loudspeaker
USER MANUAL
2
INDEX
1. IMPORTANT REMARK.................................................................................... 3
2. IMPORTANT SAFETY INSTRUCTIONS .............................................................. 4
3. IMPORTANT NOTE......................................................................................... 6
4. INTRODUCTION ............................................................................................. 6
5. MAIN SPECIFICATIONS...................................................................................6
6. CONNECTING................................................................................................. 7
7. LOCATION AND INSTALLATION ......................................................................8
8. TECHNICAL SPECIFICATIONS .......................................................................... 8
9. CONTENTS OF THE PACKAGE .........................................................................8
3
1. IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING: An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
4
2. IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long
periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
14. Disconnecting from mains: Switching off the POWER switch all the
functions and light indicators of the amplifier will be stopped, but fully
disconnecting the device from mains is done unplugging the power cord
from the mains input socket. For this reason, it always shall remain readily
operable.
15. Equipment is connected to a socket-outlet with earthing connection by
means of a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on apparatus.
5
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
WARNING: This product must not be discarded, under any
circumstance, as unsorted urban waste. Take to the nearest electrical
and electronic waste treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be
caused to people, animal or objects due to failure to comply with the warnings
above.
6
3. IMPORTANT NOTE
Congratulations. You now possess the result of careful design and meticulous
manufacturing. We are very grateful for your trust in purchasing our horn
loudspeaker ePHS30Ti.
In order to obtain maximum effectiveness and performance, it is VERY
IMPORTANT, prior to connection, to carefully read and to take into account the
instructions given in this manual. To guarantee optimum operation, we
recommend that all maintenance be carried out by our authorised Technical.
4. INTRODUCTION
ePHS30Ti is a 30W horn loudspeaker, carefully selected for the most widespread
70/100V applications: paging and background Music. They offer durability and an
optimal voice and music reproduction. Made of reinforced ABS and IP66 certified,
ideal for high performance outdoors.
5. MAIN SPECIFICATIONS
Water-resistant ABS horn loudspeaker
30 W RMS @ 8 Ω
Power selector:
o100V: 30W / 20W / 10W / 5W
o70V: 15W / 10W / 5W / 2,5W
OFF (turn off) and 8 Ω positions
IP66 certification
Connection by bare wire
Finished in white (RAL9013)
7
6. CONNECTING
ePHS30Ti operates into high or low impedance. For this reason, it incorporates a
power selector located on the rear panel. As supplied, this connector can be used
pre-configured for operation with a 70/100V 30 W line.

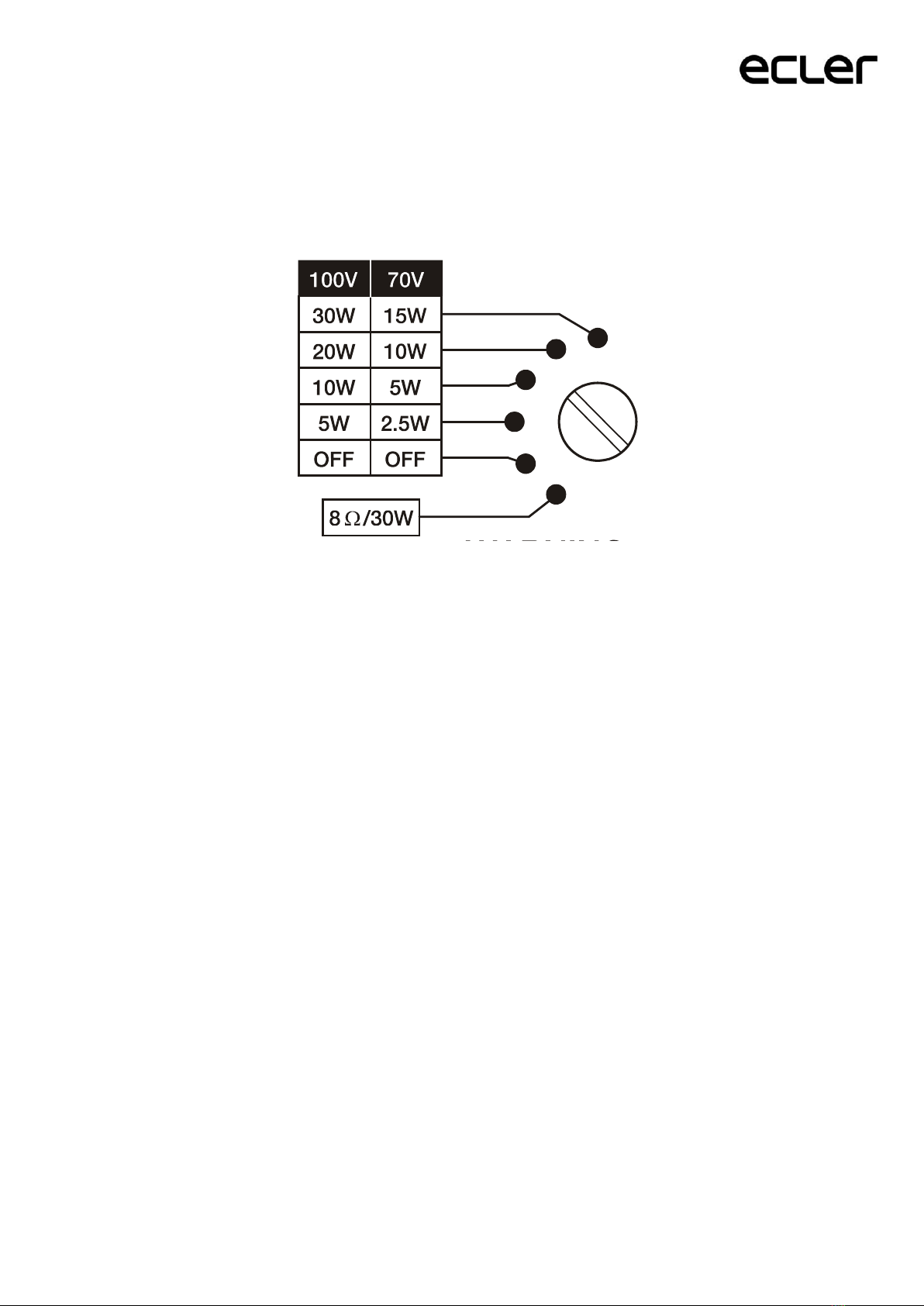

Figure 1: rear panel’s power selector
Note: If the loudspeaker is used in 70V installations, the corresponding powers for
the 100V position will be reduced to half those indicated on the switch. To one
quarter for 50V installations.
The low-impedance connection will allow the loudspeakers to be configured for
operating under these conditions with a maximum power of 250 W. If this setup is
adopted, consideration must be given to amplifier limits when several
loudspeakers are connected to its output, especially if the overall impedance is
below 4 . Furthermore, it is important that the cable connecting the amplifier
outputs to the loudspeakers is of good quality and as short as possible; this is of
special significance when long distances have to be covered and loudspeaker
impedance is low.
Note: The loudspeaker distribution along a 70/100V line historically arises from
the technical requirement to mix loudspeakers of different impedances and/or
powers on the same amplification line or channel, but without any need to worry
about the total impedance of the full assembly. Moreover, this solution enables
long cable runs with significantly smaller sections that those usually employed in
low-impedance installations, but with minimum power losses.
WARNING! If the system is accidentally connected with the switch in the 100 V/60
W position to a low-impedance amplifier, no damage will be caused to the
loudspeaker, but its performance will be well below its specifications. If the
loudspeaker is accidentally connected to a 70/100 V line, in the 8 Ω, it will be
seriously damaged.
8
7. LOCATION AND INSTALLATION
In general, the following rules will be followed:
The unit must always be installed on firm, solid surfaces.
Ensure that the surface on which the loudspeaker is to be installed can
withstand its weight.
Always use a safety cable to secure the loudspeaker installation.
For good sound reproduction, there must not be any obstacles between the
loudspeaker and the audience.
High frequencies, unlike bass frequencies, are extremely directional and any
obstacle will involve attenuation in their response.
8. TECHNICAL SPECIFICATIONS
ePHS30Ti
Nominal impedance
8Ω
RMS/Peak power
30WRMS/60W
Power options @100V
30W / 20W / 10W / 5W / OFF / 8 ohm
Power options @70V
15W / 10W / 5W / 2,5W / OFF / 8 ohm
Frequency response (-3dB)
400 Hz ÷ 10 kHz
Sensitivity 1W/1m
108dB
IP rating
IP66
Finished color
White (RAL9013)
Material
ABS
Dimensions (Ø x L)
Ø 240 x 303mm
Weight
2,6 kg. (including accessories)
9. CONTENTS OF THE PACKAGE
ePHS30Ti
User’s quick guide
Warranty card
1/4
9
All product characteristics are subject to variation due to production tolerances.
NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or
manufacturing that may affect these product specifications.
Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 infor[email protected] www.ecler.com
