eMCONTROL1

REMOTE CONTROLS AND INTERFACES

Digital wall control

USER MANUAL

CONTENTS

1. IMPORTANT WARNING ................................................................................. 3

2. IMPORTANT SAFETY INSTRUCTIONS .............................................................. 4

3. IMPORTANT NOTE.........................................................................................5

4. INTRODUCTION ............................................................................................. 5

5. INSTALLATION............................................................................................... 6

6. OPERATING THE UNIT.................................................................................... 8

6.1 Controls........................................................................................................... 8

6.2 Equalization screen ......................................................................................... 9

6.3 Information messages .................................................................................. 10

7. NOTES ......................................................................................................... 12

8. FRONT PANEL.............................................................................................. 13

9. BACK PANEL ................................................................................................ 13

10. BLOCK DIAGRAM......................................................................................... 14

11. TECHNICAL SPECIFICATIONS ........................................................................ 14

12. MOUNTING DRAWINGS............................................................................... 15

13. PACKAGE CONTENTS ................................................................................... 16

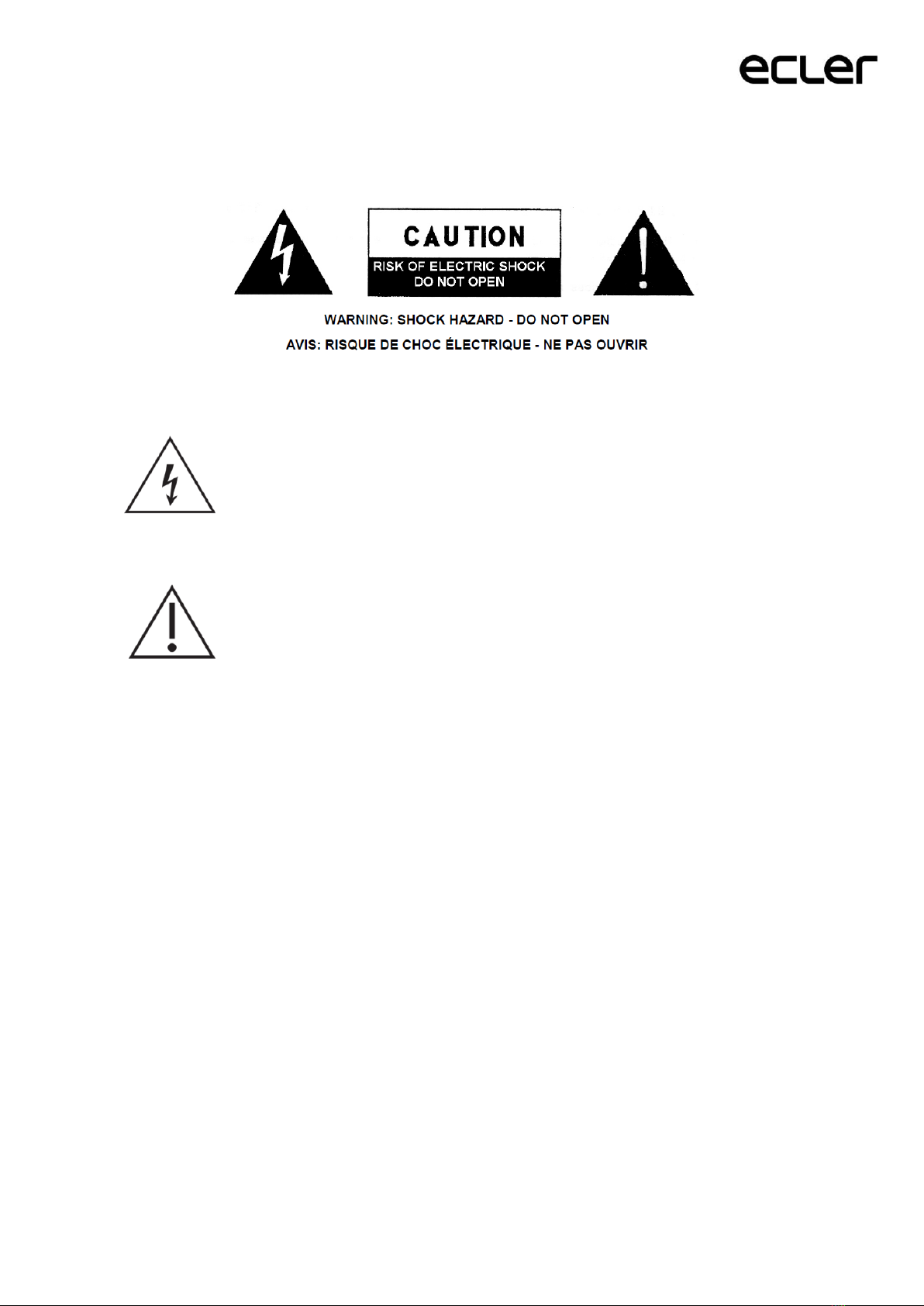

1. IMPORTANT WARNING

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

WARNING: to prevent electric shock or fire hazard, do not expose this equipment to

rain or moisture.

WARNING: apparatus with Class I construction must be connected to a mains

socket outlet with a protective earthing connection.

2. IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, stoves or other

apparatus that produce heat, including amplifiers.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or

the third prong are provided for your safety. If the provided plug does not

fit into your outlet, consult an electrician for replacement of the obsolete

outlet.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long

periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

14. Mains disconnection: turning off the POWER switch stops all the device

functions and indicators from operating, but complete disconnection is

achieved by disconnecting the mains power cable from its connector. For

this reason, it shall remain readily operable.

15. The unit is connected to a protective earthing plug via the power cord.

16. Part of the product labelling is located at the base of the product.

17. This apparatus should not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, should be placed on the apparatus.

WARNING: this product must not be disposed of as unsorted household

waste under any circumstances. Go to the nearest electrical and electronic

waste recycling facility.

NEEC AUDIO BARCELONA, S.L declines any responsibility for damages caused to

people, animals or objects due to non-compliance with the above warnings.

3. IMPORTANT NOTE

Thank you for choosing our eMCONTROL1 digital wall control. It is VERY

IMPORTANT to carefully read this manual and to fully understand its contents

before any connection to maximize your use and get the best performance.

To guarantee the optimum operation of this device, we strongly recommend that it

be maintained by our Authorized Technical Services.

4. INTRODUCTION

eMCONTROL1 is a digital wall control, compatible with HUB Series, configurable

through the web application embedded in the HUB. It allows you to

configure source selection, volume control and equalization for a given

zone, including all or some of the functions.

It can be combined with a WPa series wall panel, connecting both with a single

CAT5 cable or better to the HUB, transmitting the mono and balanced audio

signal (line level) along with the necessary control data and DC power

supply.

The main features of the eMCONTROL1 digital control are:

Digital control panel compatible with HUB

Volume adjustment, source selection and EQ (programmable)

Compatible with WPa series panels with audio connector, for sending audio

and control signals over a single CAT5 cable or better

Styling designed in collaboration with Italdesign Giugiaro

5. INSTALLATION

To install an eMCONTROL1 unit, follow these steps:

Installation of a single unit recessed or surface mounted:

1. Remove the front panel cover held by magnets. You can use the magnet

provided as a tool to make contact in the upper right-hand corner of the

cover and gently pull on it.

2. Connect the RJ-45 connector of the CAT5 cable or better to one of the

REMOTE inputs of the HUB. If necessary (see note below), connect an

external power supply.

3. Screw the device to the surface mount box or flush mount box.

4. Put the front panel back in place and secure the rotary encoder knob.

Installation of an eMCONTROL1 unit next to a WPaMIX-T wall panel, recessed or

surface mounted:

Note: a WPa2FMBOX double installation box is required to flush mount the two

devices side by side. Otherwise, for surface mounting, a WPa2SMBOX dual box is

required. Both WPa2FMBOX and WPa2SMBOX are sold separately.

1. Remove the front panel covers held by magnets on both devices

(eMCONTROL1 and WPaMIX-T). You can use the magnet provided as a

tool to make contact in the upper right-hand corner of the cover and

gently pull on it.

2. Mount both devices in the WPa2SMBOX or WPa2FMBOX frame.

WPaMIX-T is mounted ON the frame, while eMCONTROL1 is mounted

BEHIND the frame.

3. Connect the RJ-45 connector of the CAT5 cable or better to one of the

REMOTE inputs of the HUB. If necessary (see note below), connect an

external power supply.

4. Interconnect both devices (eMCONTROL1 and WPaMIX-T) with the

supplied cable. See Figure 1.

5. Screw the device to the surface mount box or flush mount box.

6. Put the front panels back in place and secure the rotary encoder knob.

Figure 1: eMCONTROL1 + WPaMIX-T connection diagram

Note: the maximum lengths for CAT5 cable or better connecting an

eMCONTROL1 to an HUB unit depend on the AWG category of the cable used.

Examples:

AWG24 Cable

AWG23 Cable

AWG22 Cable

eMCONTROL1

Max. length

270 meters

Max. length

340 meters

Max. length

425 meters

eMCONTROL1 +

WPaMIX-T

Max. length

85 meters

Max. length

105 meters

Max. length

130 meters

If the cable is too long, eMCONTROL1 may work properly but noise will be

superimposed on the signal entering the WPaMIX-T. The solution to this possible

problem is to supply the eMCONTROL1 digital control with an external

24VDC power supply. The digital data exchange between the HUB unit and the

eMCONTROL1 unit, using external power supply and good quality CAT5E cable,

has been successfully tested with a wiring distance of 600 meters.

eMCONTROL1

1. Bal Audio Input: + Terminal

3. Bal Audio Input: − Terminal

4. Power Supply Input: − Terminal

5. Power Supply Input: + Terminal

WPaMIX-T

Euroblock

connector

6. OPERATING THE UNIT

6.1 Controls

eMCONTROL1 has 2 controls on its front panel:

Rotating Encoder

Selection key

Figure 2: Front panel controls

The main screen displays the label or name of the controlled zone, the source

selection in that zone, and its volume control.

Figure 3: main screen

Zone name

Selected source

Zone volume

Using the selection key (short press), you can navigate between the source

selection and the volume control. The editable option is displayed on a white

background. On the other hand, the VOL or SEL indicator will be framed and

blinking when this option is selected.

Volume control (VOL): turn the rotary encoder to change the volume of the

zone indicated on the control. Changes are applied in real time.

MUTE: press and hold the encoder for 2 seconds to enable/disable the

MUTE function in this zone.

Source selection (SEL): turn the encoder to scroll through the different

available sources*. No changes are made during scrolling. The name

corresponding to each source will start flashing. Press the encoder to select

the desired source and apply the change. After a few seconds without

selecting a source, the previous state is restored without any change being

applied.

* The HANGAR application determines available sources (see the HUB web

application manual for more information).

6.2 Equalization screen

The equalization screen is accessed by holding down the select key for 2seconds.

Once on this screen, press the selection key (short press) to navigate between the

different tone controls, and adjust them as desired using the rotary encoder.

Figure 4: equalization screen

You can return to the main screen by pressing the selection key for 2 seconds.

After a few seconds without activity in this screen, the main screen returns

automatically.

Treble Control

Middle Control

Bass Control

6.3 Information messages

INFORMATION: press and hold the 2 control keys for a few seconds to

access the information screen. It shows the name or label of eMCONTROL1

(it can be different from the name or label of the main screen area –it is

programmed using the HANGAR web application) and the firmware

version*.

Figure 5: information screen

*The firmware version is automatically updated when connecting to an

eMIMO1616, ensuring you have the latest compatible version. Therefore,

eMCONTROL1 does not require manual firmware updates. See chapter 7 for more

information.

DISABLED: displayed when the device is disabled (Unit global enable

-HUB web application).

Figure 6: Disabled screen

OFFLINE: displayed when the device is not connected to an eMIMO1616

unit, or there is a problem with the connection.

Figure 7: Offline screen

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ecler essentials Panneau de contrôle

Ecler essentials

Ecler essentials eMCONTROL1 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques

Ecler essentials eMCTROL1 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques
