Echomaster MM-70-UNI Manuel utilisateur

User Manual

7.0” Factory Mount Mirror Monitor

MM-70-UNI

User Manual MONITORS I MM-70-UNI

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

Introduction

Thank you for purchasing your EchoMaster Automotive Monitor.

EchoMaster mirror monitors are designed to improve safety by providing

high quality images from camera inputs. This may help to improve vehicle

maneuvering capabilities by displaying blind spots or areas not normally

visible to the driver.

Please ensure you read and understand all aspects of this manual before

tting or using your EchoMaster mirror monitor.

Box Contents Key Features

uDual Video Inputs

uReverse Trigger Input

uRemote Control included

uAuto-Dimming Display

uMirror Monitor

uMain Harness

uRemote Control

uCable Management

uUniversal Vehicle Mount

MONITORS I MM-70-UNI User Manual

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

MONITORS I MM-70-UNI

Fitting Instructions

The MM-70-UNI will replace your factory tted rearview mirror.

Remove the original mirror from the vehicle and replace with the MM-70-UNI.

Once the unit is in place, run the connections cable across the headliner of

the vehicle and down the A pillar.

Please ensure that you do not impede the operation of any airbags that may

be located in the A pillar of the vehicle. Any cable passing these airbags

should be run behind the airbag and not in front of it.

Once the cable has been routed down to the dashboard, connect the camera

inputs and power connections as shown in the wiring diagram section of this

manual.

Operating Instructions

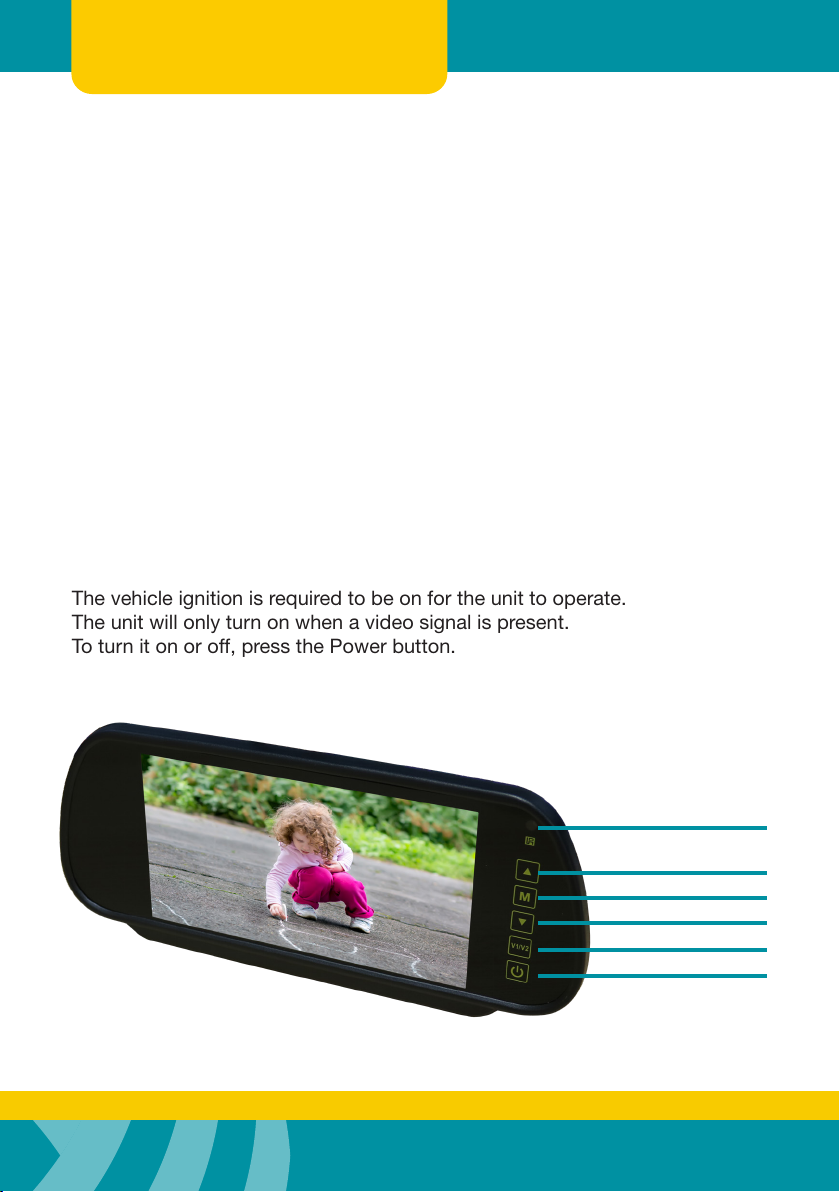

The vehicle ignition is required to be on for the unit to operate.

The unit will only turn on when a video signal is present.

To turn it on or off, press the Power button.

IR Sensor for remote

DOWN

Switch between AV1 / AV2

Power On/Off

User Manual MONITORS I MM-70-UNI

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

Operating Instructions (continued)

Power On/Off

Switch Video Sources AV1/AV2

Increase Brightness, Contrast, Colour, etc

Mode Select

Decrease Brightness, Contrast, Colour, etc

Menu Options

Wiring Diagram

+12V Ignition

GND

V 2

Reverse Camera Input

Video Input

(Black)

Reverse Trigger (Green)

(Red)

Filter &

Fuse Box

OUT

MONITORS I MM-70-UNI User Manual

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

MONITORS I MM-70-UNI

Dimensions

250

108.4

23.4

User Manual MONITORS I MM-70-UNI

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

Screen Size 7.0"

Aspect Ratio Wide Angle

Power Supply 9-15V DC

Resolution (RGB) 800 x 480

Luminance 400

Contrast 350:1

TV Format NTSC/PAL

OSD Languages Multi

Video Inputs 2

Audio Inputs 0

Triggers 1

Current Draw 254mA

Operating Temperature 20°C - 65°C

IP Rating N/A

Dimensions (mm) (L) 250.20 x (W) 108.30 x (D) 30.20

Connection Type Power/RCA

Specication

MONITORS I MM-70-UNI User Manual

E: [email protected]

W: EchomasterEurope.co.uk

T: +44(0)1420 487110

MONITORS I MM-70-UNI

T: +44(0)1420 487110

E: [email protected]

W: EchomasterEurope.co.uk

EchoMaster is a brand of AAMP Global

Woolmer Way, Bordon, Hampshire, GU35 9QE

aampglobal-eu.com
