E22-900M30S User Manual

SX1262 868/915MHz 1W SPI LoRa Module

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

Contents

1. Overview.............................................................................................................................................................................1

1.1 Introduction...............................................................................................................................................................2

1.2 Features.....................................................................................................................................................................2

1.3 Application................................................................................................................................................................3

2. Specification and parameter............................................................................................................................................... 3

2.1 Limit parameter........................................................................................................................................................ 3

2.2 Operating parameter................................................................................................................................................. 3

3. Size and pin definition........................................................................................................................................................ 5

4. Basic Operation.................................................................................................................................................................. 6

4.1 Hardware Design...................................................................................................................................................... 6

4.2 Software Programming.............................................................................................................................................8

5. FAQ.....................................................................................................................................................................................8

5.1 Communication range is too short............................................................................................................................ 8

5.2 Module is easy to damage.........................................................................................................................................8

5.3 High bit error rate..................................................................................................................................................... 9

6. Welding operation guidance............................................................................................................................................... 9

6.1 Reflow Soldering Temperature................................................................................................................................. 9

6.2 Reflow Soldering Curve......................................................................................................................................... 10

7. Related Model...................................................................................................................................................................10

8. Batch packaging............................................................................................................................................................... 11

Revision history....................................................................................................................................................................11

About us................................................................................................................................................................................11

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

Disclaimer

EBYTE reserves all rights to this document and the information contained herein.

Products, names, logos and designs described herein may in whole or in part be

subject to intellectual property rights. Reproduction, use, modification or disclosure to

third parties of this document or any part thereof without the express permission of

EBYTE is strictly prohibited.

The information contained herein is provided “as is” and EBYTE assumes no

liability for the use of the information. No warranty, either express or implied, is given,

including but not limited, with respect to the accuracy, correctness, reliability and

fitness for a particular purpose of the information. This document may be revised by

EBYTE at any time. For most recent documents, visit www.ebyte.com.

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

1. Overview

1.1 Introduction

The E22-900M30S is based on the SX1262, a new generation of

LoRaTM RF chip manufactured by Semtech, USA. It is an ultra-small

and self-developed 868MHz、915MHz SMD LoRaTM wireless module.

Because it adopted the original SX1262 as main core, the PA and

LNA is built-in also based on the previous one, which makes the

maximum transmission power to 1W, at the same time, the receive

sensitivity is also further improved. The overall communication stability

is greatly improved compared to the products without power amplifiers and low noise amplifiers. The anti-interference

performance and communication distance have been further improved compared to the previous generation LoRaTM

transceiver, and far superior to the current FSK and GFSK modulation products. This products obtained FCC, CE and

RoHS certification already so users do not need to worry about the performance. Adopted industrial grade high precision

32MHz crystal, the product can cover an ultra-wide frequency range of 850~930MHz and is backward compatible with

SX1278 and SX1276.

Since the module is a RF transceiver module only, users need to use the MCU driver or use a dedicated SPI debug tool.

1.2 Features

Communication distance tested is up to 12km；

Maximum transmission power of 1W, software multi-level adjustable；

Support the global license-free ISM 868/915MHz band；

Support air date rate of 0.018-62.5kbps in the LoRaTM mode；

Support 300kpbs in the FSK mode;

Compatible with the transceiver of SX1278/SX1276;

With large capacity, FIFO supports 256Byte data cache.;

New SF5 spreading factor to support dense networks;

Support 2.5V~5.5V power supply, more than 5.0V power supply can guarantee the best performance;

Industrial grade standard design, support -40 ~ 85 °C for working over a long time；

IPEX and stamp hole are optional, which is convenient for secondary development and integration.

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

1.3 Application

Home security alarm and remote keyless entry；

Smart home and industrial sensors；

Wireless alarm security system；

Building automation solutions；

Wireless industrial-grade remote control；

Health care products；

Advanced Meter Reading Architecture(AMI)；

Automotive industry applications.

2. Specification and parameter

2.1 Limit parameter

Main parameter

Performance

Remark

Min.

Max.

Power supply（V）

5.5

Voltage over 5.5V will cause permanent

damage to module

Blocking power（dBm）

Chances of burn is slim when modules

are used in short distance

Operating temperature（℃）

-40

2.2 Operating parameter

Main parameter

Performance

Remark

Min.

Typ.

Max.

Operating voltage（V）

2.5

5.0

5.5

It’s recommended to use 5.0V

Communication level（V）

3.3

For 5V TTL, It is recommended to add level

conversion

Operating temperature（℃）

-40

Industrial design

Operating frequency（MHz）

850

868/915

930

Support ISM band

Power

consumption

TX current（mA）

650

Instant power consumption

RX current（mA）

Sleep current（μA）

Software is shut down

Max Tx power（dBm）

29.5

30.0

Receiving sensitivity（dBm）

-149

-150

-151

Air data rate is 0.3kbps

Air data rate（bps）

0.6k

300k

Controlled via user’s programming

0.018k

62.5k

Controlled via user’s programming

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

Main parameter

Description

Remark

Distance for reference

12000m

Test condition：clear and open area, antenna gain: 5dBi，antenna

height: 2.5m，air data rate: 0.3kbps

FIFO

256Byte

Maximum length of single transmission

Crystal frequency

32MHz

Modulation

LoRa(recommended)

Package

SMD

Connector

2.54mm

Stamp hole

Communication interface

SPI

0-10Mbps

Size

38.5* 24*3.6 mm

Antenna

IPEX/IPEX

50 ohm impedance

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

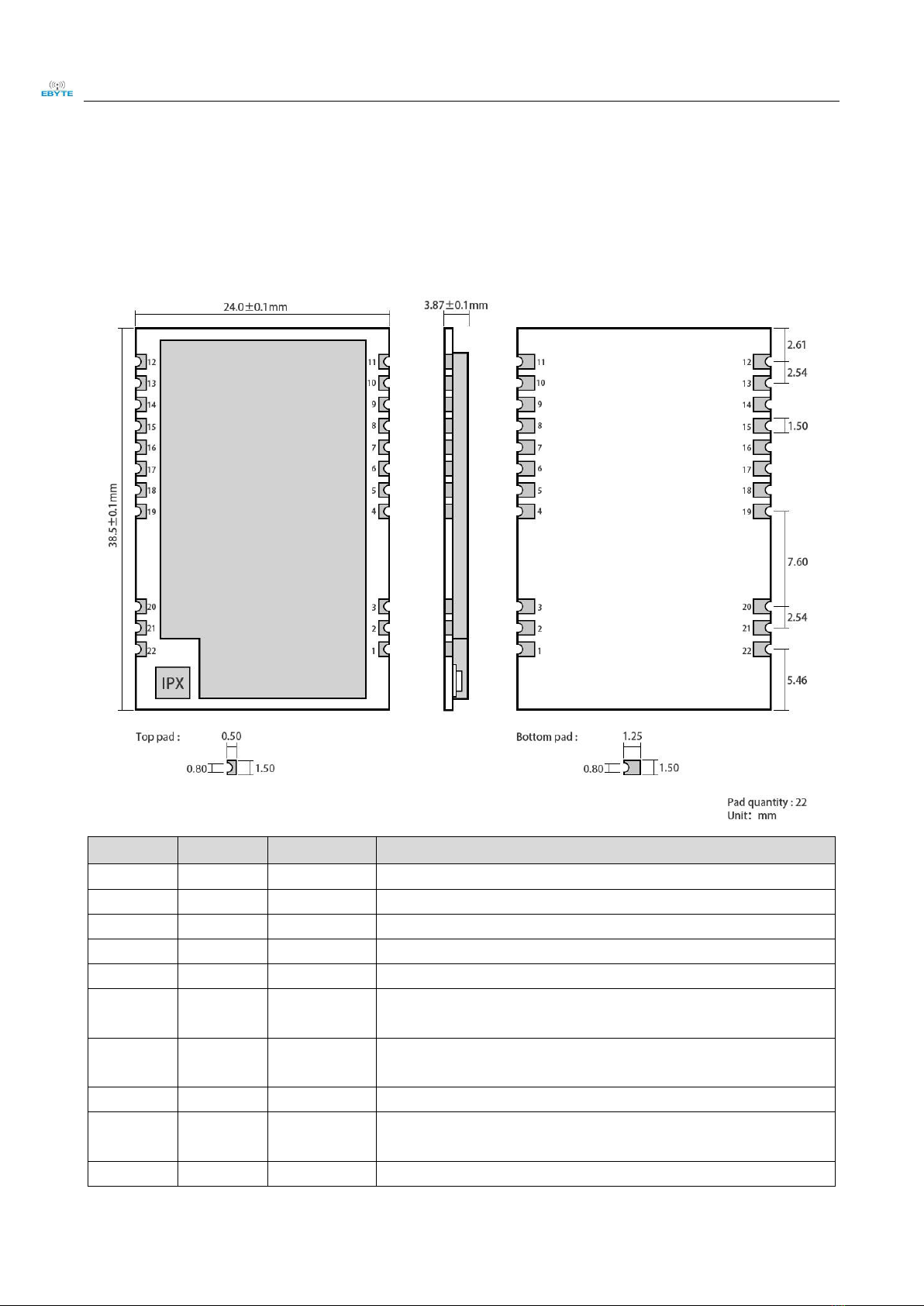

3. Size and pin definition

No.

Name

Direction

Function

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

RXEN

Input

RF switch receiving control pin, connected to external microcontroller IO,

valid in high level

TXEN

Input

RF switch transmitting control pin, connected to external microcontroller IO

or DIO2, valid in high level

DIO2

Input/Output

Configurable universal IO port (see SX1262 manual for details)

VCC

Power supply, 2.5~5.5V(It is recommended to add external ceramic filter

capacitor)

VCC

Power supply, 2.5~5.5V(It is recommended to add external ceramic filter

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

capacitor)

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

DIO1

Input/Output

Configurable universal IO port (see SX1262 manual for details)

BUSY

Output

For status indication (see SX1262 manual for details)

NRST

Input

Chip reset trigger input pin, valid in low level

MISO

Output

SPI data output pin

MOSI

Input

SPI data output pin

SCK

Input

SPI data output pin

NSS

Input

Module chip select pin for starting an SPI communication

GND

Ground wire, connected to the power reference ground

ANT

Antenna interface, stamp hole (50 ohm characteristic impedance)

GND

Ground wire, connected to the power reference ground

4. Basic Operation

4.1 Hardware Design

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

Brief Connection between Module and Single Chip Microcomputer

The IO0、IO1、IO2、IO3 in MCU means the IO port of MCU.

DIO1、DIO2 is the normal IO port, which can be configured to multiple function. The DIO2 can

connect with TXEN，but not with the IO port of MCU. It’s used to control RF switch, see more details

in SX1262 datasheet. Also It can be floated when not in use.

The DIO3 is powered by a 32MHz TCXO crystal.

Ensure the good grounding, large area of paving, small the power supply ripple, the filter capacitor

should be increased and as close as possible to the VCC and GND pins of module.

It is recommended to add 200R protection resistor to RXD/TXD of external MCU.

Note:

It is recommended to use DC stabilized power supply to supply power to the module. The power supply ripple

coefficient is as small as possible, and the module needs to be reliably grounded.

Please pay attention to the correct connection of the positive and negative poles of the power supply. If the reverse

connection is connected, the module may be permanently damaged.

Please check the power supply to ensure that between the recommended supply voltage, if exceeding the maximum,

the module will be permanently damaged.

Please check the stability of the power supply, the voltage can not be significantly frequent.

When designing the power supply circuit for the module, it is often recommended to reserve more than 30% of the

margin, and the whole machine is beneficial for long-term stable operation.

The module should be as far away as possible from the power supply, transformers, high-frequency wiring and other

parts with large electromagnetic interference.

High-frequency digital traces, high-frequency analog traces, and power traces must be avoided under the module. If

it is necessary to pass through the module, assume that the module is soldered to the Top Layer, and the copper is

spread on the Top Layer of the module contact part(All copper-covered and well grounded), and must be close to

Chengdu Ebyte Electronic Technology Co., Ltd. E22-900M30S User manual

the digital part of the module and routed in the Bottom Layer.

Assuming the module is soldered or placed in the Top Layer, it is also wrong to randomly route the Bottom Layer or

other layers, which will affect the module's spurs and receiving sensitivity to varying degrees.

Assume that there are traces with large electromagnetic interference around the module (high-frequency digital,

high-frequency analog, power trace), which will greatly affect the performance of the module. It is recommended to

stay away from the module according to the strength of the interference. If necessary, appropriate isolation and

shielding can be done;

If the communication line uses a 5V level, a 1k-5.1k resistor must be connected in series (not recommended, there is

still a risk of damage).

Try to stay away from some physical layers and also have a 2.4GHz TTL protocol, for example: USB3.0

The antenna mounting structure has a great influence on the performance of the module. It is necessary to ensure

that the antenna is exposed, preferably vertically upward. When the module is mounted inside the case, use a good

antenna extension cable to extend the antenna to the outside of the case.

The antenna must not be installed inside the metal case, which will greatly reduce the transmission distance.

It is recommended to add a 200R protection resistor to the RXD/TXD of the external MCU.

4.2 Software Programming

This module is SX1268/SX1262+PA+LNA. Its driving mode is exactly the same as SX1268/SX1262. Users can

operate according to SX1268/SX1262 chip datasheet.

DIO1 and DIO2 are general-purpose IO ports, which can be configured into multiple functions. DIO2 can be

connected to TXEN and not connected to the MCU's IO port. It can be used to control the RF switch transmission.

If not used, you can hang it. For details, see the SX1262 manual.

DIO 3 is used to supply 32 MHz TCXO crystal oscillator.

5. FAQ

5.1 Communication range is too short

The communication distance will be affected when obstacle exists.

Data lose rate will be affected by temperature, humidity and co-channel interference.

The ground will absorb and reflect wireless radio wave, so the performance will be poor when testing near ground.

Sea water has great ability in absorbing wireless radio wave, so performance will be poor when testing near the sea.

The signal will be affected when the antenna is near metal object or put in a metal case.

Power register was set incorrectly, air data rate is set as too high (the higher the air data rate, the shorter the

distance).

When the power supply at room temperature is lower than the recommended low voltage, the lower the voltage is,

the lower the transmitting power is.

Due to antenna quality or poor matching between antenna and module.

5.2 Module is easy to damage

Please check the power supply and ensure it is within the recommended range. Voltage higher than the peak will

lead to a permanent damage to the module.

Please check the stability of power supply and ensure the voltage not to fluctuate too much.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ebyte Module sans fil

Ebyte

Ebyte E330-400T13S Manuel utilisateur

Ebyte

Ebyte E220-900M22S Manuel utilisateur

Ebyte

Ebyte E32 Series Manuel utilisateur

Ebyte

Ebyte E32 Series Manuel utilisateur

Ebyte

Ebyte ESP32-C3-MINI-1U Manuel utilisateur

Ebyte

Ebyte E01-2G4M20S1B Manuel utilisateur

Ebyte

Ebyte E220-900MM22S Manuel utilisateur

Ebyte

Ebyte E840-TTL-GPRS03 Manuel utilisateur

Ebyte

Ebyte E07-400M10S Manuel utilisateur

Ebyte

Ebyte E18-MS1PA2-IPX Manuel utilisateur

Ebyte

Ebyte E220-900T30D Manuel utilisateur

Ebyte

Ebyte E103-W02 Manuel utilisateur

Ebyte

Ebyte E78-868LN22S Manuel utilisateur

Ebyte

Ebyte E22-900T30DC Manuel utilisateur

Ebyte

Ebyte E22-230TXXS Manuel utilisateur

Ebyte

Ebyte ESP32-WROOM-32UE Manuel utilisateur

Ebyte

Ebyte E32-170T30D Manuel utilisateur

Ebyte

Ebyte E220-900T30S Manuel utilisateur

Ebyte

Ebyte ESP32-S3-MINI-1 Manuel utilisateur

Ebyte

Ebyte E32-433T33D Manuel utilisateur

Ebyte

Ebyte E49-400M20S4 Manuel utilisateur

Ebyte

Ebyte E70-433T14S2 Manuel utilisateur

Ebyte

Ebyte E22-900T22S1C Manuel utilisateur

Ebyte

Ebyte E200-900A17S Manuel utilisateur

Manuels Module sans fil populaires d'autres marques

Laird

Laird RM024 Manuel utilisateur

Laird

Laird BT830-SA Guide de configuration rapide

Fibocom

Fibocom FM101-NA-20 Instructions d'installation

Waldmann

Waldmann EnOcean TALK MODUL G2 Manuel utilisateur

Smartech

Smartech LBT-1.DO4 Manuel utilisateur

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manuel utilisateur

Yuga

Yuga CLM920 Manuel utilisateur

Waldmann

Waldmann TALK Bluetooth Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manuel d'installation

Quectel

Quectel SC690A Series Supplément

Panasonic

Panasonic INDUSTRY PAN9028 Guide de configuration rapide

LongSung Technology

LongSung Technology U9507E Manuel utilisateur

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manuel utilisateur

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manuel utilisateur

CHIEF

CHIEF AVMW Manuel utilisateur

Huawei

Huawei EM701 Manuel utilisateur

SIYI

SIYI FTM30 Manuel utilisateur

RF-Star

RF-Star RF-BM-4055B1L Mode d’emploi
