USER MANUAL

for

KF860 ARRAYS

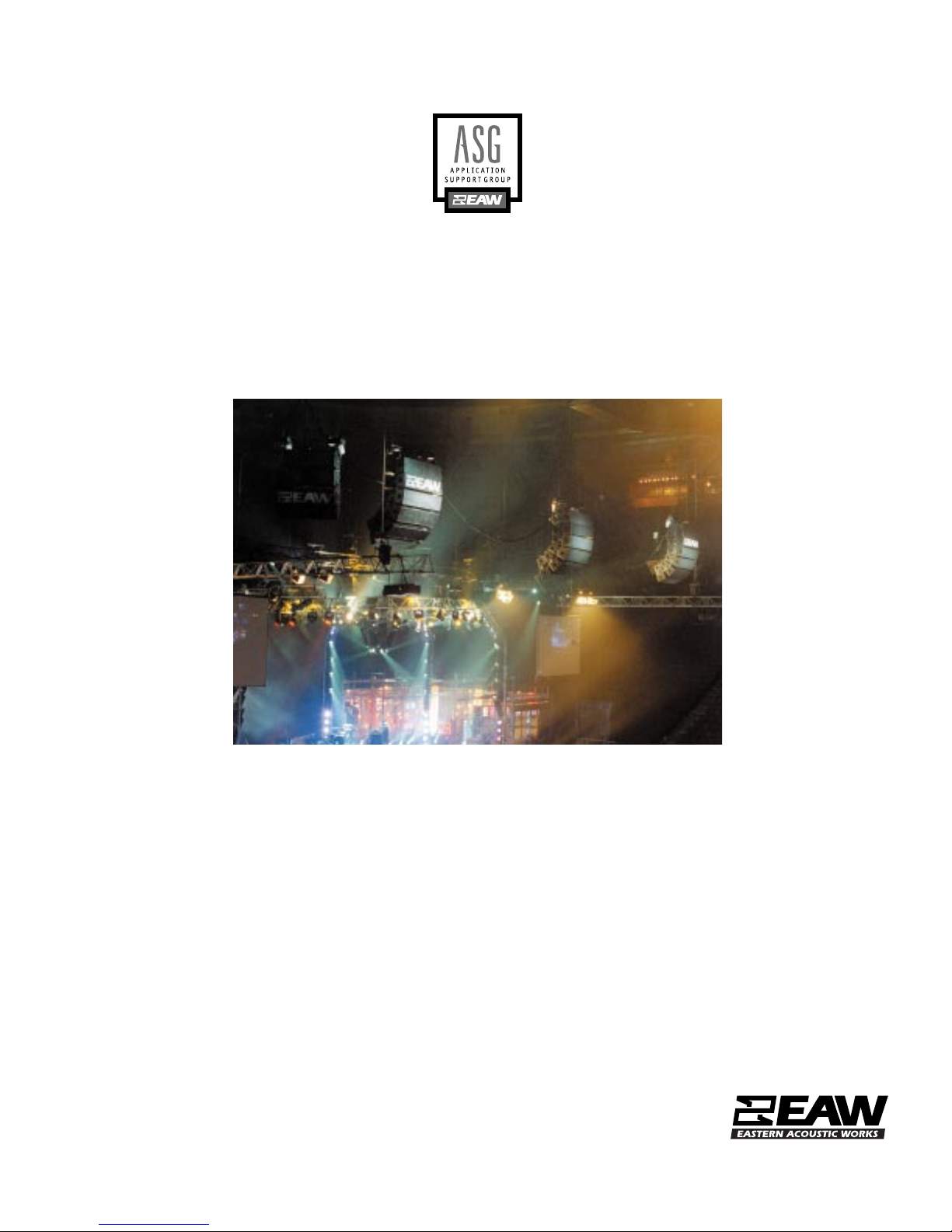

Juno Awards

GM Place, Vancouver, BC, Canada

Application: Live Sound

Devices Used: KF860, KF850, JF260, KF940, SM200, MX8600

Touring Company: Rocky Mountain Sound

EASTERN ACOUSTIC WORKS

PRODUCT USAGE GUIDE:

AN INTRODUCTION

ThisisthefourthinstallmentintheEasternAcousticWorks

ProductUsageGuideseries.Thegoalofthisseriesistooffer

concise,accurateguidanceontheuseEAW loudspeaker

products.

Eachguidewillofferaconciseoverviewofaparticular

productseriesandillustratethemostcommonmethods

ofuse.Thischapterwillfocusontheapplicationofthe

sixmostcommonKF860SeriesVirtualLineArray

conﬁgurations.

KF860 SERIES

TheKF860/VLASeriescomprisestwo

high-outputmodulesoptimizedto

createverticallinearrays. TheSeries

comprisestwomodules–theKF860

whichfeaturesa60°horizontal

coveragepattern,andtheKF861

whichfeaturesa90°patternfor

nearﬁeldcoverage.Nominalvertical

coverageis30°buttheeacharray'strue

verticalpatternisdeterminedbythesizeand

conﬁgurationofthearrayaswellasbydigitalsignal

processorsettings.

Eachmodulecontains2x15-inwoofers,2xhorn-loaded

10-inmidfrequencyconedrivers,and2x2-inexit/75mm

voicecoilcompressiondriversonconstantdirectivityhorns.

KF860 SERIES BACKGROUND

AND DESCRIPTION

TheKF860/VLASerieswasoriginallydevelopedtohelp

solvespeciﬁcproblemsforhigh-endentertainmentindustry

eventsthatfeaturedbothliveandbroadcastaudiences.

Thekeydesignparameterswereminimalarraysize,high

outputandbroadbandpatterncontrol.

PartoftheKF860Seriessolutionwastheapplication

ofconﬁguration-speciﬁcdigitalsignalprocessing(DSP)

tomaintainpatterncontroloveranexceptionallywide

bandwidth.Settingsvarydependingonthenumberof

modulesinthearrayandtheanglebetweenadjacent

modules.ThustwocrucialelementsofanyKF860Series

applicationareaccuratelysplayingtheenclosuresand

applyingthecorrectDSPsettings.

BUILDING AND PROCESSING

KF860 SERIES ARRAYS

Tomaintainaccurateandrepeatablearrayangles,EAW

developedaunique,all-steelriggingsystemfortheKF860

Seriesthateliminatesguesswork.Thesteelriggingplatesthat

linkmodulestogetherﬁtintosteel-tubingbracketsoneach

endofthemoduleandaresecuredwithquick-releasepins.

Thereaderwillﬁndacompleteexplanationofthisrigging

systemonpages7and8ofthisguideaswellasinthe

companionpublication,KF860 Hardware Instructions.

EAW has developedappropriatesettingsfortheMX8600

CloseCoupledDigitalProcessortocontroleachofthe

KF860arrayconﬁgurationsdiscussedinthisguide.These

settingsareavailablefromtheftp(ﬁletransferprotocol)

sectionofEAW's website(www.eaw.com)orcanbefaxedas

textﬁlesformanualentry. These settings are appropriate to

theMX8600andonlytheMX8600.Donotattempttouse

thesesettingsinanyotherDSPunit.ContactEAW's

ApplicationSupportGroupformoreinformation.

HANGING AND AIMING

KF860 SERIES ARRAYS

HangingKF860arraysrequirestheuseofadedicated

"bumperbar"developedforEAWbyATM, Inc. The bumper

baracceptsthetopportionoftheriggingplatesattwelve

pre-conﬁguredlocations.

Thetopmoduleofanyarraywillbeaimedatanangle

determinedbythebumperbarlocationselectedandthesize

andconﬁgurationofthearray.Asmostapplicationrequire

thearraytobehungabovetheintendedcoveragearea,the

barhasbeendesignedtoaimthearray'soutputdown.

However, the bar can be reversedtoaimthearray'soutputin

anupwarddirection.Achartindicatingallpossibleangles

thatcanbeobtainedfromtheriggingsystemcanbefound

onpage8ofthisguide.

EAW has developedaspeciallymodiﬁedhandtruckto

assist inriggingKF860Seriesarrays. Speciﬁcinstructionon

itsusecanbefoundatEAW's websiteorbycontactingEAW

andrequestingtheKF860RiggingHardwareInstructions.

TWO-HIGH KF860 CONFIGURATION

TypicalUses:Distributedground-stackedclusters,delay

clustersonliftsorscaffolds.

Coverage:20degrees(speciﬁcanglesdeterminedbyaiming)

BumperBarTrimHeight(nominal):N/A

Splay:Theboxesarenominallysplayed10degrees,whichis

thetight-packedconﬁguration.Thecoverageanglecanbe

openeduportightenedbysplayingmoreorlessthanthe

nominal10degrees.Ground-stackingnote???

Aiming:Theclustershouldbeaimedsothattheseam

betweenthetwoboxespointsatthefarthestseat.This

conﬁgurationistunedfora200ftthrow.

Processors:OnlyoneEAW MX8600 processor is required.

• For manual entry–useﬁle 2xKF860.TXT whichmaybe

foundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle2xKF860.EAC whichmaybefound

atftp://ftp.eaw.com/Process/MX8600

THREE-HIGH KF860 CONFIGURATION

TypicalUses:Theatres

Coverage:+10degreesto-60degrees

BumperBarTrimHeight(nominal):22ft

Splay:Thethreeboxesareaimed+5,-10,&-35degrees,sothe

boxesshouldberiggedwith15degree(uppertomiddlebox),

and25degree(middletodownﬁllbox)splays.

Aiming:Theclustershouldbeaimedsothatthetopbox

pointsatthehighestseatingarea.Thisconﬁgurationistuned

fora100ftthrowtothefarthestseat.

Processors:Oneprocessorshoulddrivetheuppertwoboxes.

Thisprocessorisreferredtoas“main”inthesettings.

Asecondprocessorshoulddrivethelowestbox.This

processorisreferredtoas“downﬁll”inthesettings.

• For manual entry–useﬁle 3xKF860.TXT whichmaybe

foundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle3xKF860.EAC whichmaybefound

atftp://ftp.eaw.com/Process/MX8600

5°

15°

5°

-10°

-35°

Ground-Stacked Application Shown

FOUR-HIGH KF860 CONFIGURATION

TypicalUses:Theatresandsmallarenas

Coverage:+15degreesto-60degrees

BumperBarTrimHeight(nominal):40ft

Splay:Theboxesareaimed+10,0,-15,&-35degrees,sothe

boxesshouldberiggedwith10degree(toptosecondbox),

15degree(secondtothirdbox),and20degree(thirdboxto

downﬁllbox)splays.

Aiming:Theclustershouldbeaimedsothatthetopbox

pointsatthehighestseatingarea.Thisconﬁgurationistuned

fora150ftthrowtothefarthestseatandmaximizedvertical

coverage.

Processors:Oneprocessorshoulddrivetheupperthree

boxes.Thisprocessorisreferredtoas“main”inthesettings.

Asecondprocessorshoulddrivethelowestbox.

Thisprocessorisreferredtoas“downﬁll”inthesettings.

• For manual entry–useﬁle 4xKF860.TXT whichmaybe

foundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle4xKF860.EAC whichmaybefound

atftp://ftp.eaw.com/Process/MX8600

FOUR-HIGH “SHED”

KF860 CONFIGURATION

TypicalUses:Shedsandsmallfestivals.

Coverage:+2degreesto-60degrees

BumperBarTrimHeight(nominal):27ft

Splay:Theboxesareaimed0,0,-15,&-35degrees,sothe

boxesshouldberiggedwith0degree(toptosecondbox),

15degree(secondtothirdbox),and20degree(thirdbox

todownﬁllbox)splays.

Aiming:Theclustershouldbeaimedsothatthetopbox

pointsatthefarthestseat,orstraightoutforfestivals.

Thisconﬁgurationistunedfora200ftthrowtothefarthest

seatandcutsoffveryquicklyabovehorizontal.

Processors:Oneprocessorshoulddrivetheupperthree

boxes.Thisprocessorisreferredtoas“main”inthesettings.

Asecondprocessorshoulddrivethelowestbox.

Thisprocessorisreferredtoas“downﬁll”inthesettings.

• For manual entry–useﬁle 4xKF860shed.TXT whichmay

befoundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle4xKF860shed.EAC whichmaybe

foundatftp://ftp.eaw.com/Process/MX8600

-35°

-15°

0°

10°

-35°

0°

-15°

0°

SIX-HIGH KF860 CONFIGURATION

TypicalUses:Arenas

Coverage:+15degreesto-60degrees

BumperBarTrimHeight(nominal):40ft

Splay:Theboxesareaimed+5,0,-5,-10, -20,&-35degrees,

sotheboxesshouldberiggedwith5degree(toptosecond

box),5degree(secondtothirdbox),5degree(thirdtofourth

box),10degree(fourthtoﬁfthbox),and15degree(ﬁfthto

sixthbox)splays.

Aiming:Theclustershouldbeaimedsothatthetopbox

pointsatthefarthestseat.Thisconﬁgurationistunedfora

300ftthrowtothefarthestseatwithmaximizedvertical

coverage.

Processors:Oneprocessorshoulddrivetheupperfour

boxes.Thisprocessorisreferredtoas“main”inthesettings.

Asecondprocessorshoulddrivethetwolowestboxes.

Thisprocessorisreferredtoas“downﬁll”inthesettings.

NOTE:Thisisdifferentfromallofthesmallerrigs,which

treatonlytheonebottomboxas“downﬁll”.

• For manual entry–useﬁle 6xKF860.TXT whichmaybe

foundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle6xKF860.EAC whichmaybefound

atftp://ftp.eaw.com/Process/MX8600

-35°

-20°

0°

-5°

5°

-10°

SIX-HIGH “FESTIVAL”

KF860 CONFIGURATION

TypicalUses:Festivals,largesheds

Coverage:+2degreesto-60degrees

BumperBarTrimHeight(nominal):27ft

Splay:Theboxesareaimed0,0,0,-5, -20,&-35degrees,so

theboxesshouldberiggedwith0degree(toptosecondbox),

0degree(secondtothirdbox),5degree(thirdtofourthbox),

15degree(fourthtoﬁfthbox),and15degree(ﬁfthtosixth

box)splays.

Aiming:Theclustershouldbeaimedsothatthetopbox

pointsatthehighest/farthestseatorstraightoutforfestivals.

Thisconﬁgurationistunedfora400ftthrowtothefarthest

seat.Theresponsefallsoffquicklyabovehorizontal.

Processors:Oneprocessorshoulddrivetheupperfourboxes.

Thisprocessorisreferredtoas“main”inthesettings.

Asecondprocessorshoulddrivethetwolowestboxes.

Thisprocessorisreferredtoas“downﬁll”inthesettings.

NOTE:Thisisdifferentfromallofthesmallerrigs,which

treatonlytheonebottomboxas“downﬁll”.

•Formanualentry–useﬁle6xKF860fest.TXT whichmay

befoundatftp://ftp.eaw.com/PPSTﬁles/KF860.

•ForECORE–useﬁle6xKF860fest.EAC whichmaybe

foundatftp://ftp.eaw.com/Process/MX8600

-35°

-20°

0°

-5°

0°

5 DEG

0 DEG

10 TO 25 DEG

0 DEG

5 DEG

ACHIEVING VARIOUS SPLAY ANGLES

BETWEEN KF860 SERIES ARRAY MODULES

AchievingthepropersplayanglesbetweenKF860Seriesarray

modulesisarelativelystraight-forwardprocedure.Asshown

intheillustrationsbelow,eachmodule'sbottomendbracket

holesaremarkedtoindicatetheangle(s)theywillproduce

whentheriggingplateisconnectedthroughthem.Eachrig-

gingplate'sholesaremarkedsimilarly.

Toproduceagivensplayangle,simplyaligntheproper

holesontheriggingplatewiththeproperholesonthemod-

ule'sbottomendbracketandinsertquickreleasepins.

Eachmodulestopendbracketisequippedwithaspring-

loadedcamdevicethatacceptsthebottomoftherigging

plate.Thespring-loadedcamsholdtheriggingplateinplace

whilequickreleasepinsareinsertedtolocktheplateinplace.

PleaseconsultEAW's KF860 HardwareInstructionsforfurther

information.

Stage Right

Stage Left

KF860 SERIES ARRAY MODULE BOTTOM END BRACKET HOLES

CABINET'S BOTTOM

END BRACKET

ADJUSTABLE RIGGING

PLATE

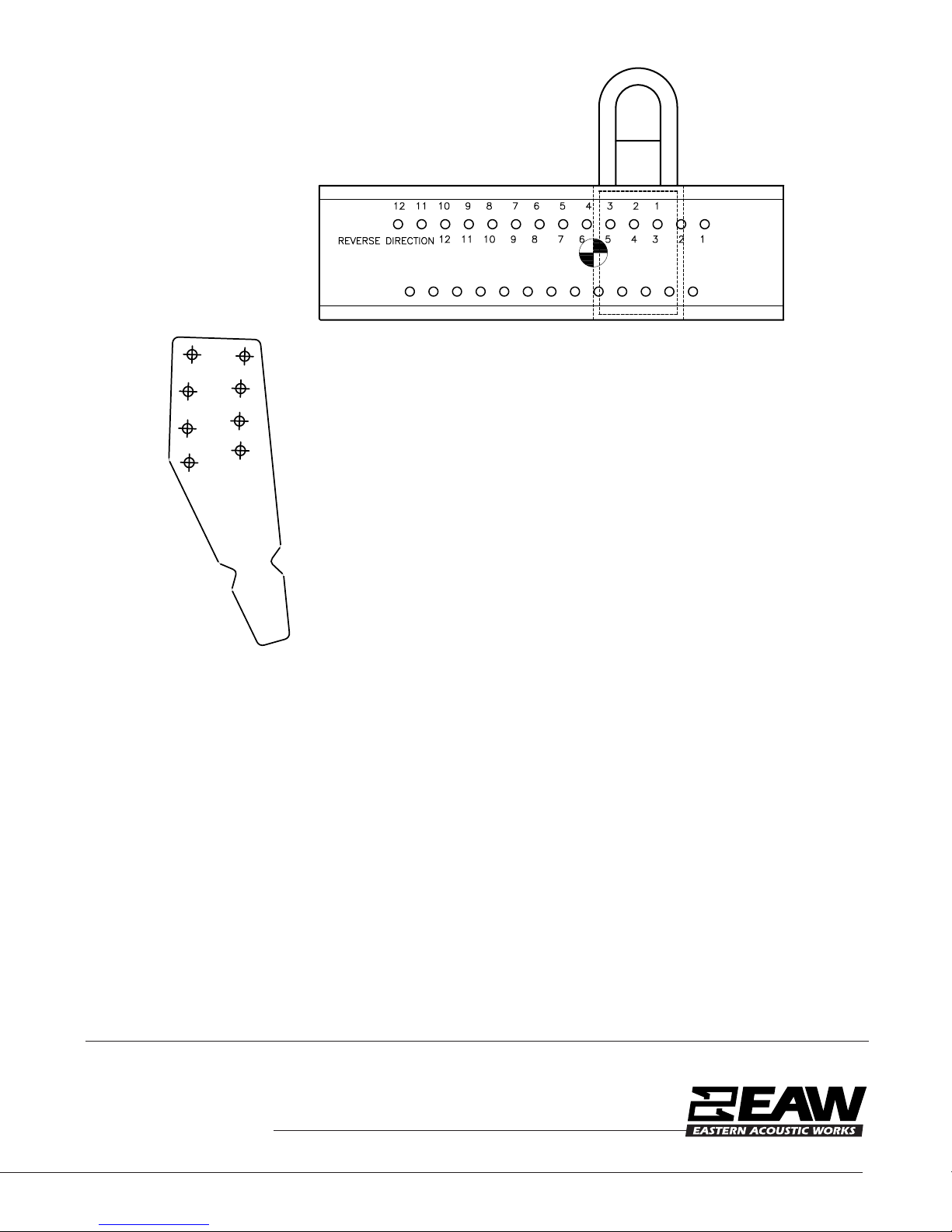

HANGING AND AIMING KF860 SERIES ARRAYS

ThedrawingaboveillustratestheKF860SeriesbumperbarcreatedforEAWbyATM

Flyware.Byproperlyselectingtheholestowhichthetopmoduleisconnected,users

canaimanarray’scoverageover awiderangeofangles.

Mostapplicationsrequireaimingthearrayinadownwarddirection.Thusthe

bumperbar’sforwarddirection(totheleftintheillustrationabove)allowsavarietyof

downangles.Shouldtheuserrequireaimingthearrayinanupwarddirection(suchas

insportsarenaswhereupperdecksareabovethearrayheight,simplysetthebumper

barinthereversdirection(totherightintheillustrationabove).

Always use holes “A” and “G” on the rigging plate (as shownintheriggingplate

illustration)toconnectthetopmoduletothebumperbar.Hole“A”shouldalways be

frontmost,nomatterwhichdirectionthebumperbarisfacing.

Pleaseconsultthechartbelowtodeterminetheappropriatebumperbarpositionto

achieveyourdesiredarrayangle.Note:theanglesinthechartindicatethetopmost

module’scenterlinerelativetothehorizontalaxis.

KF860 Rigging Plate

Pos. #1 Pos. #2 Pos. #3 Pos.#4 Pos.#5 Pos.#6 Pos.#7 Pos.#8 Pos.#9 Pos.#10 Pos.#11 Pos.#12

2x Standard 1.0 -1.0 -3.0 -5.5 -7.5 -9.5 -11.5 -13.5 -15.5 -18.0 -20.0 -22.0

2x Reverse -5.0 -3.0 -1.0 1.0 3.5 5.5 8.0 10.0 12.5 15.0 17.5 20.0

3x Standard 7.5 6.0 4.0 2.5 0.5 -1.0 -3.0 -4.5 -6.0 -8.0 -9.5 -11.0

3x Reverse 2.0 4.0 5.5 7.0 9.0 11.0 13.0 15.0 16.5 18.5 21.0 23.0

4x Standard 9.5 8.0 6.5 5.0 3.0 2.0 0.0 -1.0 -2.5 -4.0 -5.5 -7.0

4x Reverse 4.0 6.0 7.5 9.0 10.5 12.0 13.5 15.5 17.0 19.0 20.5 22.5

4x Shed Stand. 4.5 3.0 1.5 0.5 -1.0 -2.5 -4.0 -5.0 -6.5 -7.5 -9.0 -10.5

4x Shed Rev. 0.0 1.0 2.5 4.0 5.5 7.0 8.0 9.5 11.0 12.5 14.0 15.5

6x Standard 8.0 7.0 6.0 5.0 4.0 2.5 1.5 0.5 -0.5 -1.5 -2.5 -3.5

6x Reverse 4.0 5.5 6.5 7.5 8.5 10.0 11.0 12.0 13.0 14.0 15.5 17.0

6x Fest. Stand. 3.5 2.5 1.5 0.5 -0.5 -1.5 -2.5 -3.5 -4.5 -5.5 -6.5 -7.5

6x Fest. Rev. 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0

All angles are rounded to the nearest 1/2 degree

One Main Street, Whitinsville, MA 01588 Tel: 800 992 5013 / 508 234 6158 Fax: 508 234 8251 Web: http://www.eaw.com

EUROPE: EAW INTERNATIONAL LTD., TEL: +44 1494 539090 FAX: +44 1494 539091

The Laws of Physics /The Art of Listening

Ce manuel convient aux modèles suivants

Autres manuels EAW Matériel de DJ

EAW

EAW UMX.96 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
