Eaton Memshield 3 Series Manuel

IMPORTANT NOTES

1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician

in accordance with current electrical engineering Codes of Practice, Regulations for the Electrical equipment of

Buildings (BS7671), CDM2007 - Construction (Design and Management) Regulations 2007, HSG150 - Health and

Safety in Construction, Statutory requirements and any Specific instruction issued by the Company.

2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of

the person responsible for its future operation and maintenance, and is at all times available for ready reference.

3. These notes assume throughout that the product is disconnected from the supply. It is essential that this is done

before any work is carried out.

4. These Panelboards are only designed for use with Eaton MCCBs. Failure to comply will result in invalid warranty and certification.

5. Operation of the incoming and outgoing devices should only be carried out by an instructed or skilled person.

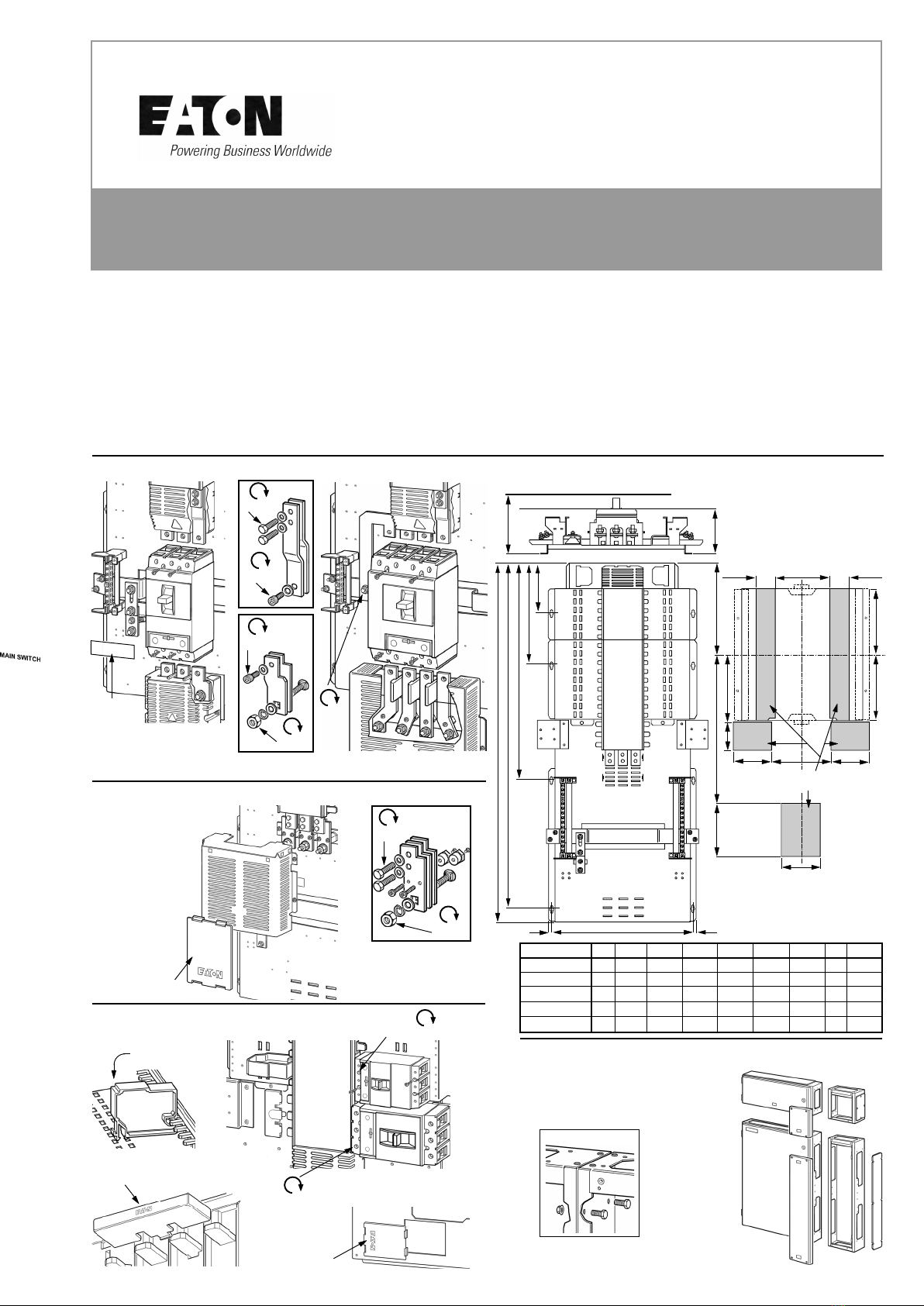

Memshield 3 400A Panelboard/Pan Assemblies

EPBN1640, EPBN11240, EPBN2640, EPBN21240, EPBN21840

EPBPN1640, EPBPN11240, EPBPN2640, EPBPN21240, EPBPN21840

Instruction leaflet LT1209(12/19)

Locate and click

400A MCCB INCOMER FITTING EPBKN2403, EPBKN2404

400A DIRECT CABLE INCOMER FITTING EPBKN240L

NOTE: When Top Fed, MCCB terminations must be reversed

OUTGOING MCCB & BLANK FITTING

EPBN1BP1, EPBN2BP3

400A PAN ASSEMBLY DIMENSIONS

EPBPN1640 - EPBPN21840

Click into

Cover aperture

Box fixing

CAT N0. A B C D E F G H J

EPBPN1640 167 N/A 473.5 923 979.5 222.25 N/A N/A 318.25

EPBPN11240 167 438.5 725.5 1175 1231.8 358 N/A N/A 454

EPBPN2640 167 N/A 473.5 923 979.5 177 96.75 102 383

EPBPN21240 167 348 745 1194.5 1251 312.75 232.5 102 518.75

EPBPN21840 167 529 1016.5 1466 1522.5 448.25 368.25 102 654.5

499

202.8

Min

Inside

Door

154.7

InsideCover

68.95 68.95

COVER APERTURES

188.5

208.8

130 130

183.5

137

400A CABLE BOX, EXTENSION BOX, FILLER BOX AND

DIN ENCLOSURE

EPBN2640SXB, EPBN21240SXB

EPBN21840SXB, EPBN2CX250

EPBN2EX250, EPBN2EXDIN

NB - Provision to reposition Earth

Terminals in Cable Box

6Nm (Terminal Screw)

Click into

Cover aperture

Position

on Cover

46Nm

14Nm

31Nm

MCCB

Apertures

31Nm

46Nm

15Nm

IMPORTANT: Fit MCCB with the

adjustment dial end towards

the Busbar.14Nm

(Terminal Screw)

The use to which this product is put and its place of installation is outside our

control. Particular care should therefore be take n to follow the instructions g iven

here and to ensure their continued availability in conjunction with the use of th e

product.

No responsibility can be accepted by us if these instructions are disregarded.

Further copies of these instructions and information concerning the installation

and proper use of this product can be obtained by contacting the:

Technical Services Department

Eaton Electric Limited, Middleton,Manchester. M24 7GQ.

Tel: +44(0)8700 545 333,

email: [email protected]

www.eaton.com/recycling

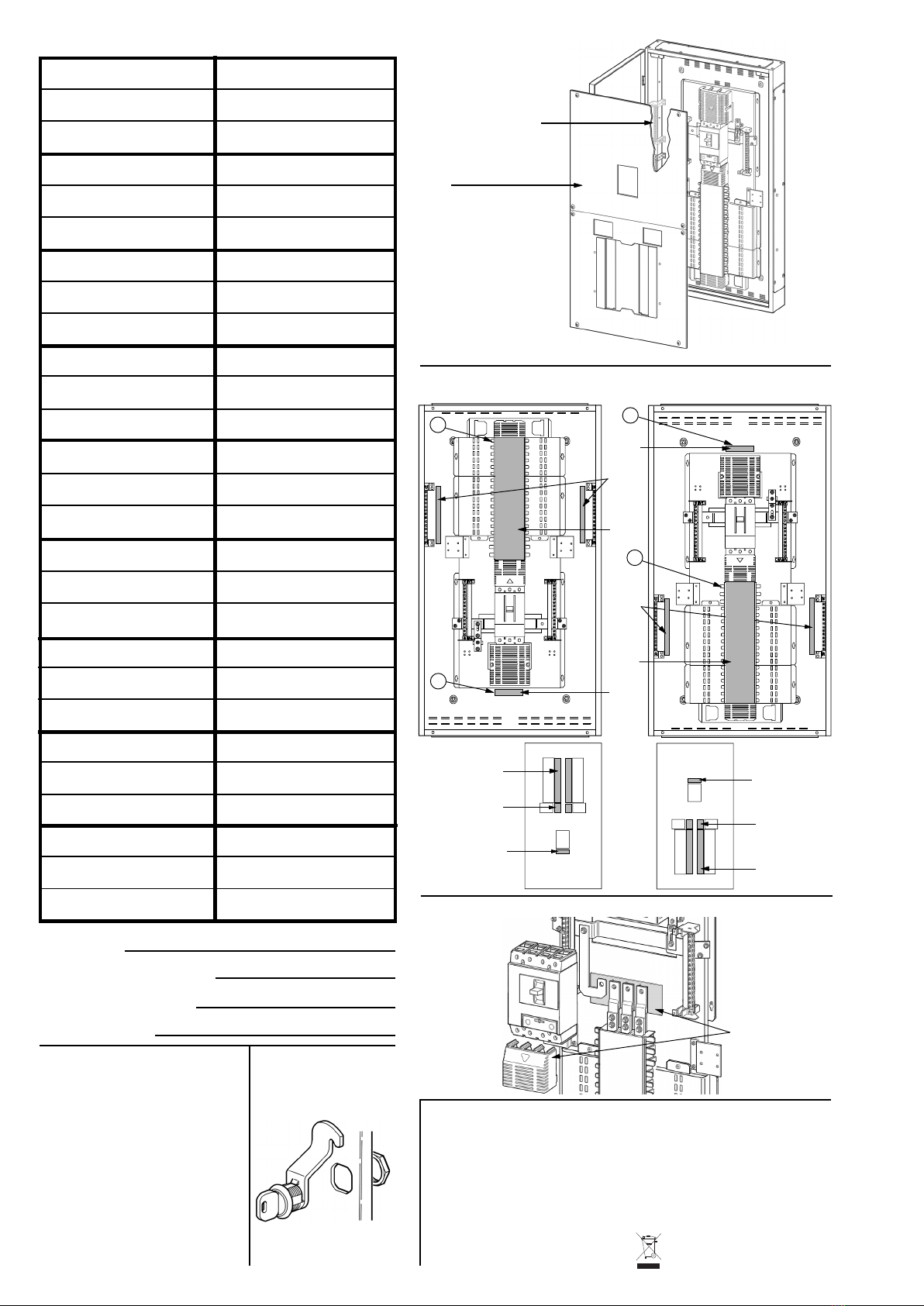

TOP ENTRY

Alternative Earth position

(both sides)

Main

Cover

Prior to cabling, check pan

assembly alignment with

main cover

Panelboards are supplied

ready for bottom entry.

For top entry convert as

shown below.

KEY LOCK FITTING

EPBDLK1

Rotate Inner Cover

and Pan assembly

1800

LH OUTGOING CIRCUITS RH OUTGOING CIRCUITS

FED FROM:

INCOMING CABLE SIZE:

INSTALLATION DATE:

CONTRACTOR:

Warning -

Intellectual Property Rights

Eaton wishes to make it clear that it

owns intellectual property rights in the

product which it manufactures (whether

or not listed in this leaflet) and that it will

take legal action against any party

found to be manufacturing, using, or

selling any article which infringes the

company’s intellectual property. All

marks in this document identified with

an R symbol or a TM symbol adjacent

to the mark are trademarks of Eaton.

TOP FEED ADAPTOR FITTING EPBKTFN3

BOTTOM FEED TOP FEED

Phase

Label

Earth

Labels

Busbar

Way

Label

Phase

Label

L1 L1

Busbar

Way

Label

LABEL FITTING Ensure all way labels are fitted in the correct places

Earth

Labels

Cover Way

Labels

Cover Way

Labels

Adaptor

Shields

Main Switch

Label

Main Switch

Label

Cover Way

Labels Cover Way

Labels
