Eaton CSAU-01 Manuel
1
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211
© 2020 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation All Rights Reserved / Printed in Austria
www.eaton.com/recycling
Switching Actuator, Double-pole
CSAU-01/03
8
CSAU-01/03
Douple-pole
Program
ESM support
OFF
868.3 MHz
IP20
Actuator Type Load
CSAU-01/03 Double-pole 6A
+ 5°C*4
-5°C
-25°C
+70°C
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply 230 VAC, 50 Hz
Power standby (Typical) 570mW
Load 230 VAC, 50 Hz, 8 A resistive (at 45°C)
Switching technology Relay
Switching lifetime (Typical) 30×106
Inrush current (Typical) 15A@4s
Protection Internal overtemperature protection
RF 868,3 MHz xComfort compatible,
ESM support
Max RF power: 25 mW (ERP)
ESM Extended Status Messaging support
Dimensions 48.6 x 45.3 x 26.2 mm (H x W x D)
Instruction Leaflet
Montageanweisung
Notice d’installation
Instrucciones de montaje
Istruzioni per il montaggio
Инструкция по монтажу
Montagehandleiding
Montagevejledning
Οδηγίες εγκατάστασης
Instruções de montagem
Monteringsanvisning
Asennusohje
Návod k montáži
Paigaldusjuhend
Szerelési utasítás
Montāžas instrukcija
Montavimo instrukcija
Instrukcja montażu
Navodila za montažo
Návod na montáž
Монтажни инструкции
Instrucţiuni de montaj
Upute za montažu
Kullanma Talimatı
Инструкција за монтажу
Intruksjonsblad
Монтажна інструкція
ت ا ة
MRF Version 2.65
RM Version: 41a
SHC-RF Version: 2.00
ECI-RF Version: 2.00
USB-RF Version: 2.00
xComfort Bridge Version: 1.0
136211211_136211211 13.03.2020 12:58 Seite 1
2
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211
© 2020 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation All Rights Reserved / Printed in Austria
www.eaton.com/recycling

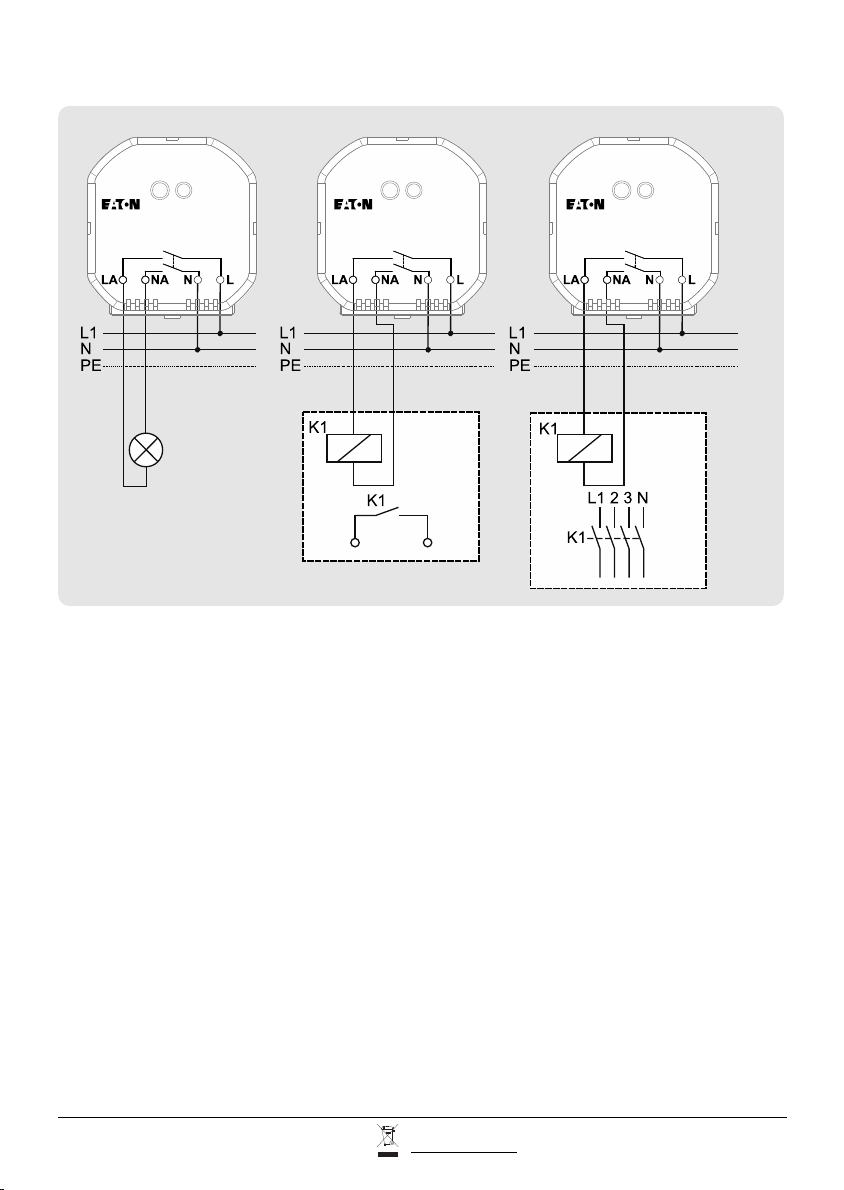

Wiring diagrams / Aansluitschema's / Koblingsskjemaer /
Schaltpläne / Schéma zapojení
CSAU-01/03 Double-pole
136211211_136211211 13.03.2020 12:58 Seite 2
3
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211
© 2020 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation All Rights Reserved / Printed in Austria
www.eaton.com/recycling

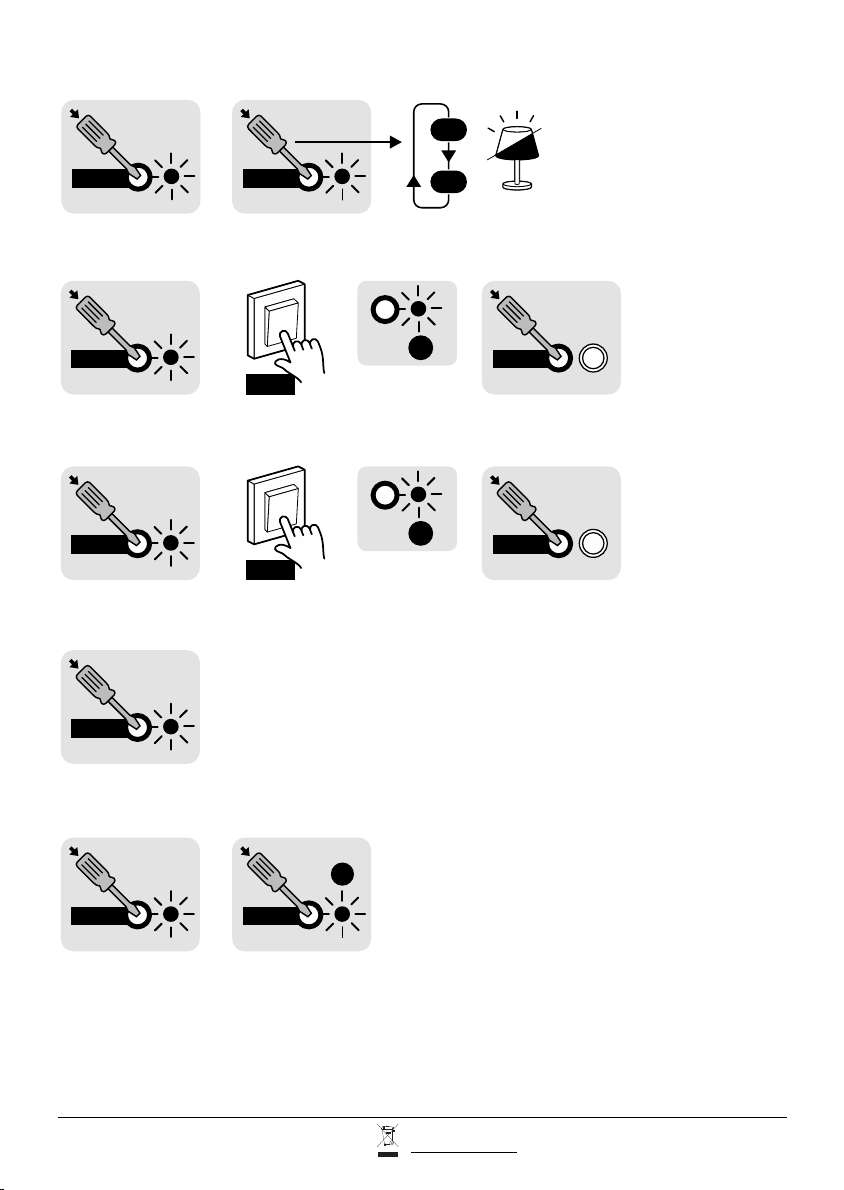

Manual switching - test / Handmatig schakelen - test / Manuell betjening - test /
Handschaltung - Test / Ruční přepínání / test
Assign Sensor in Basic Mode / Sensor in Basic Mode toewijzen / Tilknytte i Basic Mode /
Zuweisen im Basic Mode / Přiřadit v základním režimu
Remove Sensor in Basic Mode / Sensor in Basic Mode verwijderen / Fjerne i Basic Mode /
Löschen im Basic Mode / Odstranit v základním režimu
Identify in MRF / Identificeren in MRF / Identifiser i MRF /
Identifizieren im MRF / Identifikace v MRF
Back to factory default / Terug naar fabrieksinstellingen / Tilbake til fabrikkinnstillinger /
Auf Auslieferungszustand zurücksetzen / Zpět na tovární hodnoty
>5s > 0.5s
< 0.5s
< 0.5s
> 2s
< 0.5s
ON
OFF
>5s
5x
2x
< 0.5s
< 0.5s
5x
< 0.5 s
> 0.5 s
136211211_136211211 13.03.2020 12:58 Seite 3
4
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211
© 2020 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation All Rights Reserved / Printed in Austria
www.eaton.com/recycling
EU
- type examination performed by:
TÜV Austria Services GmbH, Notified Body
1230 V
ienna, Deutschstrasse 10, Austria
Affixing
date of CE mark: 2020
D
oc.Id.: CSAU-0103_030320
Senior Vice President Director Quality
General Manager & Systems
Friedrich Schröder
Fernando Ceccarelli
Declaration of Conformity
We, EATON Industries (Austria) GmbH
3943 Schrems, Eugenia 1
Austria
declare under our sole responsibility as manufacturer that the product (family)
Eaton - Switching Actuator all-pole,
CSAU-01/03
(the declaration of conformity applies to all
listed types within our actual product catalogue)
provided that it is installed, maintained and used in the
application intended for, with respect to the relevant manufacturers
instructions, installation standards and “good engineering practices”
complies with the provisions of Council directive(s):
RED Directive 2014/53/EU
RoHS Directive 2011/65/EU
based on compliance with following standard(s):
EN 300 220-2 V3.1.1, EN 300 220-2 V3.2.1, EN 50491-5-1:2010, EN
50491-5-2:2010, EN 60669-2-5:2016, EN 301 489-1 V1.9.2, EN 301 489
V2.1.0, EN 301 489-3 V1.6.1, EN 301 489-3 V2.1.1, EN IEC 63044-5-
1:2019, EN IEC 63044-5-2:2019, EN 50581:2012
Schrems, 03.03.2020
136211211_136211211 13.03.2020 12:58 Seite 4
