Eaton GREEN MOTION RANGE XT66 Mode d’emploi

TECHNICAL

DOCUMENTATION

NON-CONTRACTUAL PICTURES | DOC. VERSION 19012021

Opening the charging station and any changes to the configuration must be done by a qualified electrician and must comply with local regulations

and laws for safety in the use of electricity. Failure to comply with the regulations in this manual will result in the end the warranty period.

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 2

CONTENT

1 INTRODUCTION 3

1.1 Technical Specifications 3

1.2 Dimensions and weights 3

2INSTALLATION 4

2.1 Mounting 4

2.2 Site design 9

2.3 Wiring 10

3COMMISSIONING 12

3.1 Opening the Range XT 66 housing 12

3.2 Electrical connection 13

3.3 Charging station configuration 14

3.4 Emobility Cockpit connection 15

4USAGE OF THE STATION 18

4.1 Description of the station 18

4.2 Sockets and Cables 19

4.3 Charging states 19

5MAINTENANCE 22

5.1 Troubleshooting 22

5.2 Cleaning or replacing the filters 23

5.3Support 24

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 3

1 INTRODUCTION

1.1 Technical Specifications

POWER INPUT

DC RANGE XT EV CHARGER

Input voltage

3 x 400 VAC 50 Hz

Input current

3 x 96 Arms (66 kW)

Power factor

> 0.99

Standby consumption

< 100 W

POWER OUTPUT

Output power

66 kW

Output voltage

500 VDC

Output current 66 kW

165 ADC

Output type

CCS cable (standard) and CHAdeMO cable (optional)

Efficiency

> 96%

Simultaneous charges

USER INTERFACE & CONTROL

User interface

Button, charge status indicator, 10-inch touch screen display

Mobile phone app

iOS and Android (online charging station)

Control of access

RFID, App, SMS, Scan & Charge

Network interface

Ethernet cable; 3G/4G/ 5G

Remote management

Software management system (eMobility Cockpit) (online)

ENVIRONMENTAL

Operating temperature

-25°C to 45°C

Altitude

Up to 2000 m (6500 ft.)

Setting

Floor mount

Humidity

<95% relative humidity

MECHANICAL

Dimensions

1705 x 833 x 263mm

Weight

≈180 kg

Housing material

Stainless steel

Cooling

Fan cooling

Cable length

5 meters (16.5 ft.)

REGULATION

Conformity

IEC 61851-1

Protection rating

IP54

Communication protocol

OCPP 1.6J

Bidirectional

V2G ready

Protection

Over current, under voltage, over voltage, residual current, surge protection, short

circuit, over temperature, ground fault, galvanically insulated

1.2 Dimensions and weights

Width

833 mm w/o plug

Height

1705 mm

Depth

263 mm

Weight

≈180 Kg

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 4

2 INSTALLATION

2.1 Mounting

The Range XT has an air inlet on the left side and outlet on the right side. Keep left and right side with at

least 300mm to guarantee an unimpeded airflow. If necessary, take precautions to have a free air flow

and to prevent snow or objects from blocking the inlet and outlet.

The cable support shall be mounted at a height comprised between 1 and 1.1m from the ground level,

for optimal accessibility.

It can be mounted freely to the right or the left side of the charging station depending upon site

configuration and user preferences, considered the 300mm free space for the air inlet and outlet.

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 5

Front view:

Bottom view:

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 6

Concrete Support Mounting

Fix the column on the concrete base with 4 threaded rods M10 according to the following diagram.

Do not forget the flat washers.

Concrete base 800 x 450 x 250 mm:

The Ethernet cable must come out at least 2 meters from the concrete base.

Fixation point

Electrical cable

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 7

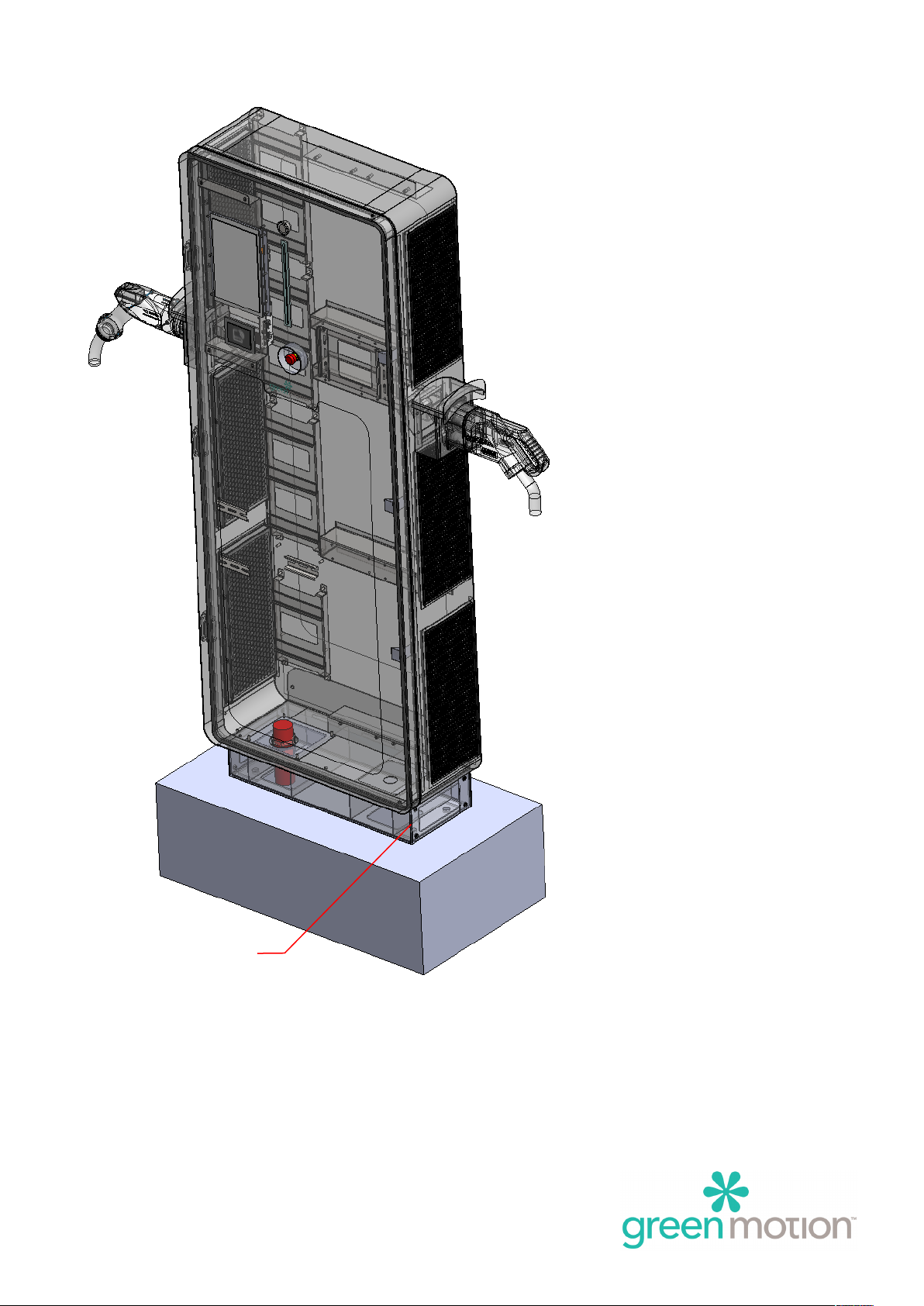

Fixation point can be accessed via a removal trap door on the sheet metal casing.

Fixation point

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 8

Lifting Anchor

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 9

2.2 Site design

A site for Electric Vehicles (EV) equipped with Range XT 66 charging stations can be designed in different

setups. This section is intended to provide some valuable information on the placement of the Range XT

66 charging stations with respect to parking spaces.

Optimal placement

As show in the figure here below we recommend installing the Range XT 66 front and center of the

parking space and each charging station should serve one parking space.

Range XT 66 Range XT 66 Range XT 66

Range XT 66

Range XT 22

Range XT 66

Range XT 22

1 2 3

Range XT11/22 Range XT11/22 Range XT11/22

RANGEXT 66 – TECHNICAL DOCUMENTATION Page 10

2.3 Wiring

Connect the station to the electrical panel with the following protections:

Model

66 kW

Input voltage

400 VAC

Input current

96 Arms

Power cable min cross section 1

50 mm2

Recommended circuit breaker at panel 2

C125

As the Range XT is connected directly to the Mains Grid, there is no need of Earth Fault Current

Breaker.

• These sections must be re-assessed by the installer according to the length.

• The Installer must define the types of Circuit breaker.

• The circuit breakers at panel of 125 A and the power cable minimal cross sections 50 mm2are

overvalued in order to ensure the functioning of the charging station with a temperature increase.

NOTE FOR SWITZERLAND

• The NIBT standard does not requires DC terminals to be protected against direct fault currents.
