Earthworks CTF Manuel utilisateur

User’s Guide

CTF

Tabletop Gooseneck

Microphone with

Integrated Base

CTF Tabletop Gooseneck Microphone with Integrated Base

The CTF microphone provides a exible microphone solution,

allowing you to either temporarily place the microphone on a table

for ad hoc meeting spaces or permanently afx it to a surface.

Optimized for speech, the CTF microphones feature a at

frequency response out to 30kHz that delivers the highest level

of speech intelligibility and articulation. This means less straining

to understand the words being spoken due to poor audio quality,

so more time can be spent understanding the message being

transmitted.

Whether speaking directly on-axis or to the sides of the microphone,

the CTF microphone always reproduces the speaker’s voice with

incredible clarity and intelligibility. This wider coverage also means

that fewer Earthworks microphones are required to properly cover

a conference room, cutting down on the number of channels of

DSP, cables and other ancillary equipment required for the system.

Compatible with all DSP systems that provide 24-48V phantom

power, the CTF microphones can easily integrate into existing

system designs or new installations.

Polar Response

500

15K

Frequency Response: 20Hz - 30kHz

Polar Pattern: Cardioid

Sensitivity: 20mV/Pa (-34dBV/Pa)

Power Requirements: 24-48V Phantom, 10mA

Max Acoustic Input: 139dB SPL @ 1kHz

Noise: 16dB SPL (A weighted)

Output: XLR-3M (pin 2+)

Min. Output Load: 1K between pins 2 & 3

Base Dimensions: 4.1 x 4.1 x 0.45 inches

(104.1 x 104. 1 x 11.4 mm)

Cable Length: 10’ (3.04m)

Connector Type: XLR-3M

Weight: 0.5 lbs (226g)

Specications subject to change without notice

Specications

Coverage Area

Top View

Standing Seated

╧

Red

Black

White

Shield

(pin 2)

(pin 3)

(pin 1)

Output Cable Connection

for XLR-3 Connector

Keyhole Mount

6-32 Mounting

Holes

Bottom of Microphone

Rubber Foot

Placement & Installation

The CTF microphone comes with a low prole 10 ft. (3.04m) output cable with

installed standard XLR3-M connector. A keyhole is included on the bottom of the

CTF, so it can be secured to a tabletop or at surface. If changing the output

connector is required, use the supplied connection information below.

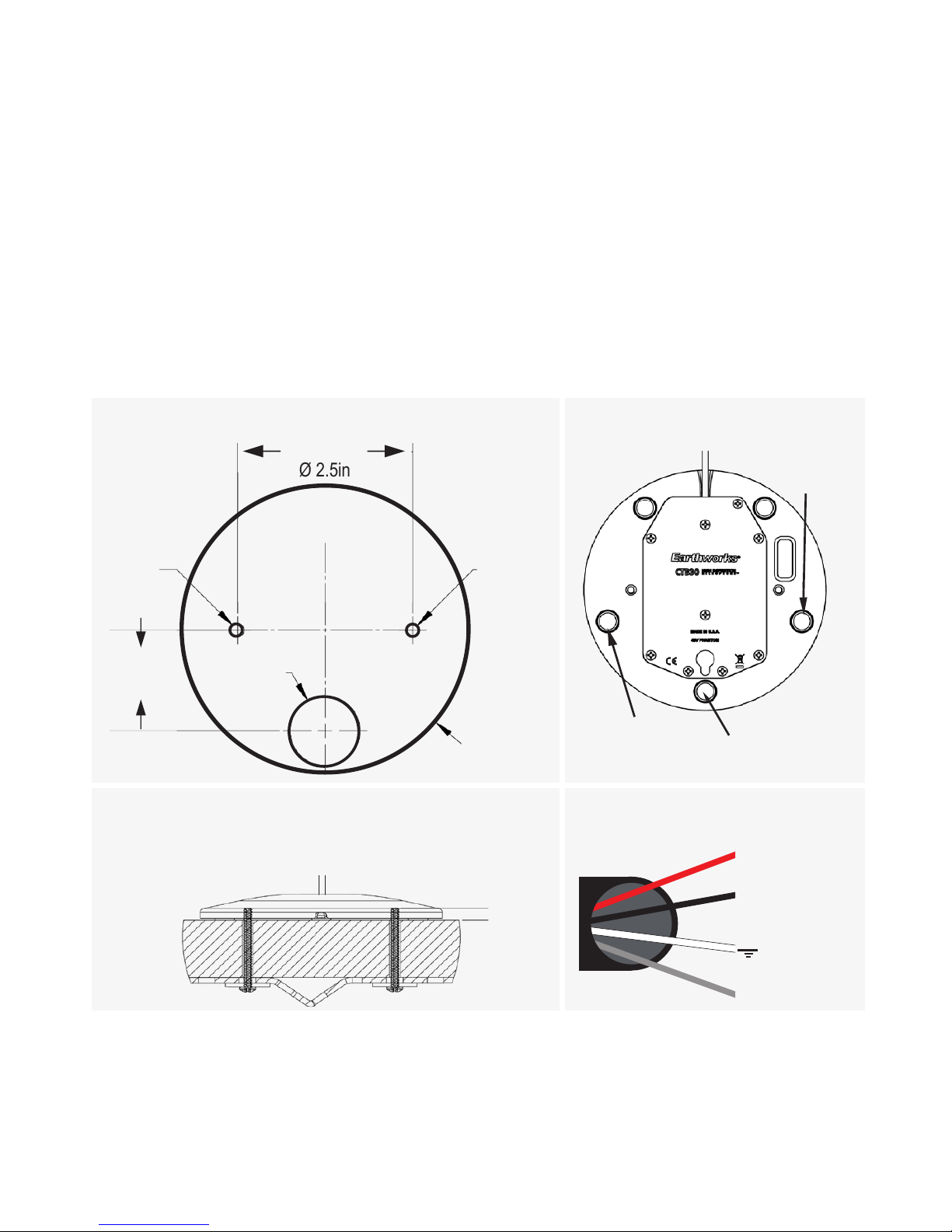

Template for Mounting Holes

[63.50mm]

Ø 2.5in

[4.76mm]

Ø .188in

[36.51mm]

Ø 1.438in

[25.40mm]

Ø 1.0in

[4.76mm]

Ø .188in

[104.14mm]

Ø 4.1in

Side View

6-32 screws must not protrude more than 3/16” [4.76mm]

through surface to avoid damage to microphone ange

Dimension Drawings

Cable Length 10 ft. (3.04m)

with Installed XLR-3M

(dimensions shown in inches)

0.097

Cable Diameter

0.798

2.815

4.10

.460

.140

.025

Permanently Installed on Table

with XLR Connector Removed

Permanently Installed on Table

with XLR Connector Attached

Earthworks Inc • 37 Wilton Road, Milford, NH 03055, USA

Email: info@earthworksaudio.com • Phone: 603-654-2433 • Fax: 603-654-6107

Warranty

All Earthworks microphones carry a limited warranty (parts and

labor). Please visit earthworksaudio.com/warranty for details.

Product Registration

To help you get the most out of your Earthworks purchase,

please take a moment and register your product with us online at

earthworksaudio.com/register.

Service & Repair

If you have any problems with your Earthworks products, please

contact our Service & Repair Department.

Email: returns@earthworksaudio.com

Telephone: (603) 654-2433, ext. 119
