EarthQuake 15683 Manuel utilisateur
Instruction Sheet
Hiller/Furrower Kit with Adapters
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
15683 HILLER/FURROWER KIT (OPTIONAL ACCESSORY)
Thank you for purchasing a hiller/furrower attachment for your rototiller. We know that you will be pleased with the many uses
you can accomplish with this handy tool.
PARTS BREAKDOWN
P/N: 25133
ECN: 11711
REV2: 06/20/17
© 2017 Ardisam, Inc.
All Rights Reserved
All weights, specications and features are approximate and are subject to change without notice. Due to continuous product
improvements, product images may not be exact. Items used for props not included. Some assembly may be required.
KEY # PART # DESCRIPTION QT Y.
16513 BRACKET HILLER/FURROWER RED 1
2 16514 WING LEFT HILLER/FURROWER RED 1
3 16515 WING RIGHT HILLER/FURROWER RED 1
4 16516 SHOVEL HILLER/FURROWER RED 1
5 20143 WASHER M8 X 16 X 1.5 MM GR8.8 ZN 4
6 21247 BOLT M10 X 1.5 X 30 MM HHCS GR8.8
ZN
2
7 21810 WASHER M8 EXTERNAL TOOTH LOCK 4
23204 NUT M8 X 1.25 MM W GR8 ZN 4
9 23205 BOLT M8 X 1.25 X 20 MM CRG GR8
ZN FT
4
KEY # PART # DESCRIPTION QT Y.
10 23206 BOLT M10 X 1.5 X 40 MM CRG GR8
ZN FT
2
11 W1265V0903 NUT M10 HNYLK GR8.8 ZN 4
- 25126 HILLER ADAPTER HUSQVARNA 1
- 25127 HILLER ADAPTER SOUTHLAND/
POWERMATE
1
- 25128 HILLER ADAPTER TROYBILT/
CUB CADET
1
9
38
7
561
11
2
4
10
INSTALLATION
1. Attach the bracket (1) to the shovel (4) using two M10 x 40mm carriage bolts (10) and M10 locknuts (11).
NOTE: The M10 carriage bolts (10) are installed from the front of the shovel (4), while the bracket (1) is installed from the
back of the shovel (4).
2. Align the curved slots of the left wing (2) with the square holes on the left side of the shovel (4). The small bend of the left
wing (2) should be facing up. Using two M8 x 20mm carriage bolts (9), at washers (5), external tooth washers (7), and wing
nuts (8), secure the left wing (2) to the shovel (4). Repeat step to install the right wing (3).
NOTE: Adjust the left and right wing (2, 3) to the correct hill size before tightening the wing nuts (8).
3. Remove two carriage bolts (A) that hold the tail to the tine shield. Slide the slotted end of the bracket (1) over drag stake
mount (under the tail hood of your tiller).
4. Align the holes in the bracket (1) with the single hole in the middle of the drag stake mount. Using the M10 x 30mm bolt (6)
and a M10 locknut (11), secure the hiller/furrower to the tiller.
NOTE: There is an extra M10 x 30mm bolt (6) and M10 locknut (11) that is used for the 25127 adapter only.
5. Re-attach the tail to the tine shield.
A
Instruction Sheet
Hiller/Furrower Kit with Adapters
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
25126 - Husqvarna Hiller/Furrower Adapter
ASSEMBLY INSTRUCTIONS
1. Remove the standard depth stake on the back of the tiller.
SEE FIGURE 1
2. Slide the adapter up into the slot the standard depth stake
was in. SEE FIGURE 2
3. Secure the adapter by inserting the pin above the tiller
hood into the top hole of the adapter. SEE FIGURE 3
4. Secure the hiller/furrower to the adapter with M10 x 30mm
bolt (6) and M10 locknut (11). SEE FIGURE 4
NOTE: When tightening the hiller/furrower to the
adapter, make sure the bracket on the hiller/furrower is in
complete contact with the adapter and not tightening to
the depth stake mount of the tiller.
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4
25127 - Southland & Powermate Hiller/Furrower Adapter
ASSEMBLY INSTRUCTIONS
1. Slide the standard drag stake out of the drag stake mount
on the back of the tiller and reinstall it, so that the top of
the drag stake is now the bottom. SEE FIGURES 1 & 2
2. Re-insert the pin for the drag stake, so that the drag stake
end sits ush with the bottom of the mount. SEE FIGURE 2
Place the split side of the adapter over the drag stake and
align the holes. Secure the adapter to the standard drag
stake with M10 x 30mm bolt (6) and M10 locknut (11).
SEE FIGURE 3
NOTE: This adapter uses the extra M10 x 30mm bolt (6)
and M10 locknut (11).
3. Secure the hiller/furrower to the adapter with M10 x 30mm
bolt (6) and M10 locknut (11). SEE FIGURE 4
Instruction Sheet
Hiller/Furrower Kit with Adapters
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4
Instruction Sheet
Hiller/Furrower Kit with Adapters

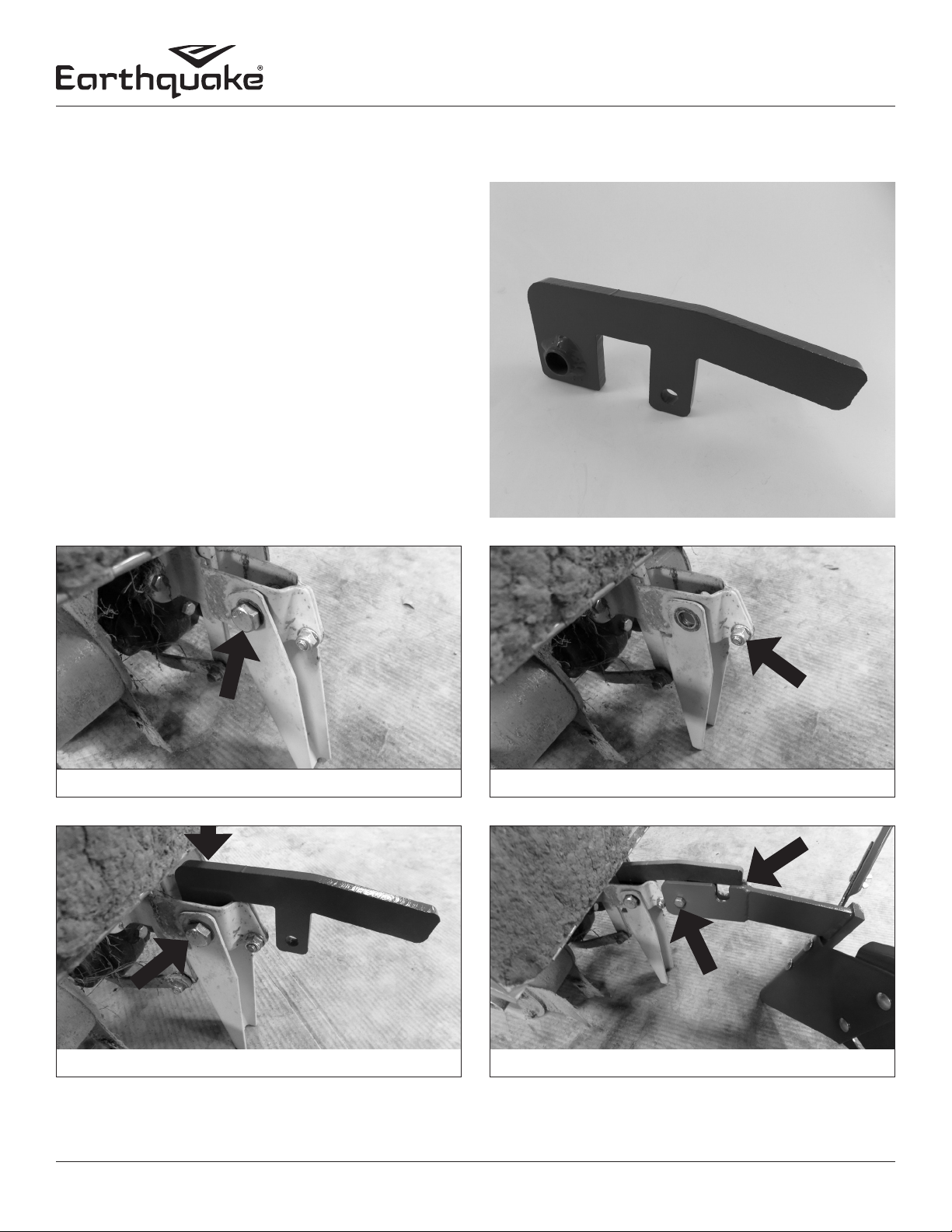

25128 - Troy-Bilt & Cub Cadet Hiller/Furrower Adapter
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
ASSEMBLY INSTRUCTIONS
1. Remove the bigger bolt that holds on the kick-back stake
and set aside. SEE FIGURE 1
2. Loosen the smaller nut on the kick-back stake to the end of
the bolt’s threads. SEE FIGURE 2
NOTE: This allows the adapter to slip into position better.
3. Place the adapter into the square space of the kick-back
stake mount. Secure the adapter and kick-back stake to
drag stake mount with previously removed bigger bolt.
SEE FIGURE 3
4. Once the adapter is in place, tighten up smaller nut.
5. Place the hiller/furrower bracket on the adapter by sliding
the bracket underneath the adapter. Adapter tail must sit on
top of bracket. SEE FIGURE 4
6. Secure the hiller/furrower to the adapter with M10 x 30mm
bolt (6) and M10 locknut (11). SEE FIGURE 4
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4
