E-Z DRILL 110B Instructions d'utilisation
SETTING UP THE
MODEL 110B
SAFETY PRECAUTIONS FOR THE
MODEL 110B
System Under Pressure: Shut off air supply and disconnect air
hose before disassembling or disconnecting parts.
Flying Debris: During boring, chips may be ejected. Stay behind
control panel and wear safety glasses to prevent eye injury.
Pinch Points: Keep hand clear of carriage assembly. Hands or
fingers caught between carriage and frame may be seriously injured.
Moving Parts: When moving drill unit, use carriage lock to
prevent assembly from sliding onto hands or fingers.
Heavy Load: Use handles to reposition the drill unit. Weight of
the drill unit may cause back strain if improperly lifted.
SAFETY PRECAUTIONS FOR THE
MODEL 110B (continued)
Loud Noise: Wear ear protection to prevent eardrum damage
from air compressor.
Dust: Wear a dust protection mask to protect from concrete dust.
High Pressure: High pressure from the air compressor can
damage the drill, and can void the warranty.
Lifting The Drill Unit: when using a lifting device to pick up the
drill unit, use a strap or chain which is rated for the proper weight,
and attach to the lifting bale on the drill unit. Be sure carriage lock is
in place.
INSTALLING THE DRILL BIT
System Under Pressure: Shut
off air supply and disconnect air
hose before disassembling or
disconnecting parts.
• IMPORTANT: The chuck size of
the drill bits must match the chuck
size of the drill. All E-Z Drill Model
110B drill units have a 7/8” x 3
1/4” chuck size.
• The Model 110B requires an 18”
UC bit, which will give up to 12” of
drill depth.
INSTALLING THE DRILL BIT
• IMPORTANT: You must have
the correct bit guide bushing to
match the bit you will be using:
For drilling a:
5/8” diameter hole, use 1108
MCP
3/4” diameter hole, use 1109
MCP
7/8” diameter hole, use 1110
MCP
1” diameter hole, use 1111
MCP
1 1/8” or larger diameter hole,
use 1112 MCP
INSTALLING THE DRILL BIT
•Heavy Load: Use handles to
reposition the drill unit. Weight
of the drill unit may cause back
strain if improperly lifted.
• Lay the machine on one side.
This gives easier access to the
drill motor and bit guide.
INSTALLING THE DRILL BIT
• To install a drill bit, loosen the
swivel bolt until you can swing
it out away from the lower bit
guide.
• NOTE: You can use the
wrench provided on the back
of the control panel.
INSTALLING THE DRILL BIT
• Flip up the retainer latch on the
drill motor.
INSTALLING THE DRILL BIT
• Place the bit into the chuck
and close the bit guide and
tighten the swivel bolt.
INSTALLING THE DRILL BIT

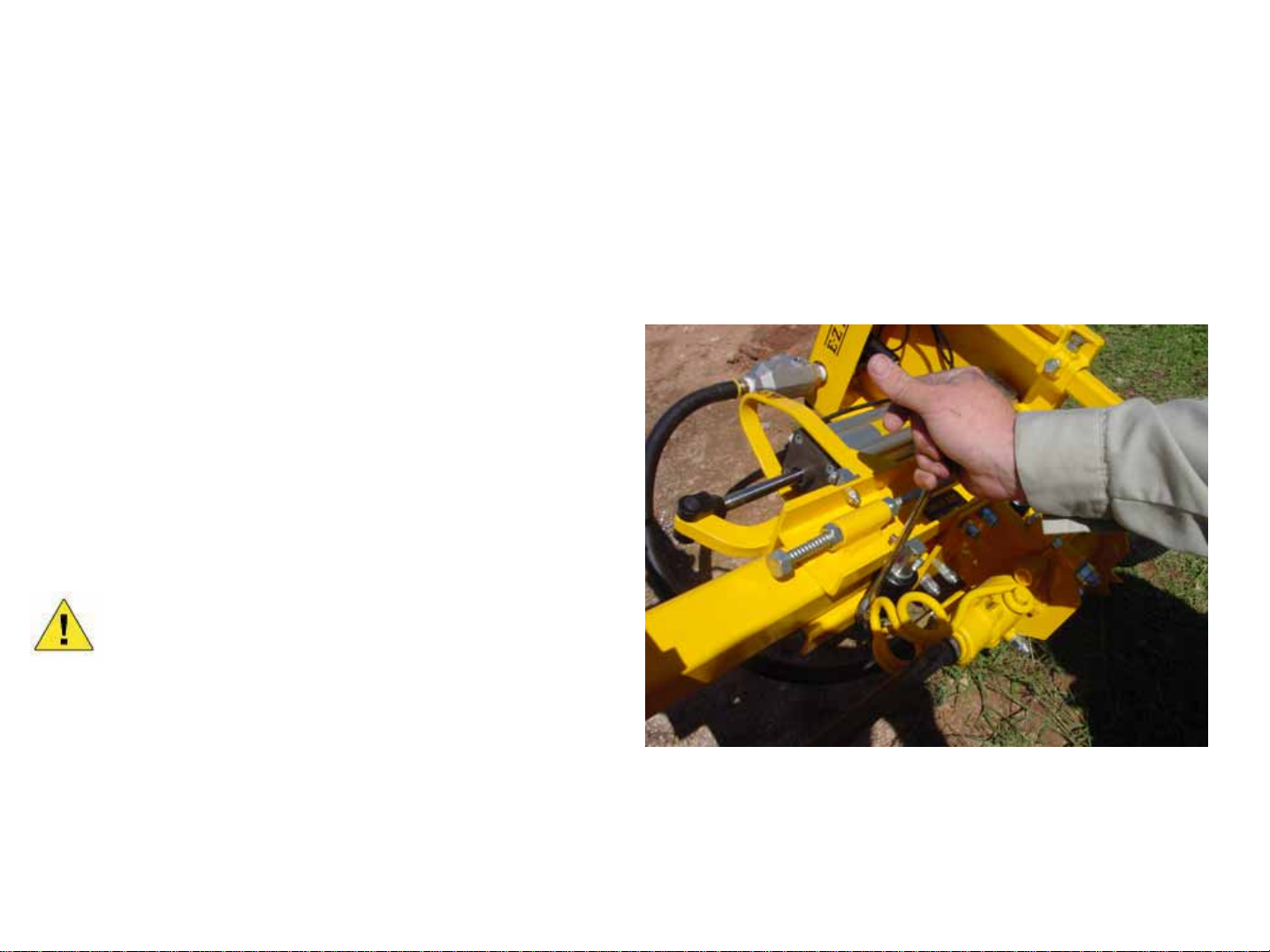

• Close the latch on the rock drill
by flipping it down back in
place.
•Pinch point
