E-RAN ER-M127C Manuel utilisateur

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

PRODUCT MANUAL

ER-M127C

Ver:1.0

：谭世盛

2015.08.25

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

TABLE OF CONTENTS

TABLE OF CONTENTS.................................................................................................................. 2

INTRODUCTION ............................................................................................................................ 3

DECLARATION .............................................................................................................................. 3

NOTICE............................................................................................................................................ 3

GETTING STARTED....................................................................................................................... 4

ABOUT THIS PRODUCT ....................................................................................................... 4

KEYS & OUTLETS ................................................................................................................. 4

FUNCTION OF KEYS............................................................................................................. 4

TURN ON/OFF ........................................................................................................................ 5

BATTERY LEVEL ................................................................................................................... 5

MICRO SD CARD SLOT ...................................................................................................... 5

MAIN MENU........................................................................................................................... 5

MUSIC MODE................................................................................................................................. 6

PLAY MUSIC........................................................................................................................... 6

VIDEO MODE ................................................................................................................................. 6

FM FUNCTION ............................................................................................................................... 7

TUNNING ................................................................................................................................ 7

SAVE STATION ....................................................................................................................... 7

LISTEN TO SAVED STATIONS ............................................................................................. 7

DELETE SAVED STATIONS.................................................................................................. 7

PICTURE MODE............................................................................................................................. 7

CHOOSE PICTRE.................................................................................................................... 7

SETTING.......................................................................................................................................... 8

ACCESS SETTING.................................................................................................................. 8

BRIEF INTRODUCTION OF ALL ITEMS ............................................................................ 8

HOW TO SET........................................................................................................................... 8

FOLDER MODE………………………………………………………………………………….. 9

BLUE TOOTH…………………………………………………………………………………….. 9

USE BLUE TOOTH……………………………………………………………….. …………9

PEDOMETER………………………………………………………………………………………9

USE PEDOMETER………………………………………………………………..………… 9

USED AS USB DISK....................................................................................................................... 9

PC CONNECTION ................................................................................................................ 10

CONNETING WITH WALL CHARGER/ADAPTER .......................................................... 10

TROUBLESHOOTING ................................................................................................................. 10

SPECIFICATIONS......................................................................................................................... 11

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

INTRODUCTION

M127C is a new generation portable audio device. It can support not only MP1、MP2、MP3、

WMA、WMV music format but also lossless format such as APE、OGG. With it, you can enjoy music

anytime and anywhere,

●Support AMV，AVI video format.

●Support browsing JPEG.BMP,GIF format pictures.

●Support music formats: MP1、MP2、MP3、WMA、WMV、APE、OGG.

●Support FM stereo radio. Can autos-tune or manual-tune and save up to 20 stations.

●As a Plug & Play USB disk.

●7 EQ sound effects::Natural, Rock, POP, Classic, Soft, Jazz, DBB.

●Multi-modes for play: Repeat one, Repeat all, Random, Browse and play.

●Unique Bluetooth transmitter function: Connect other Bluetooth devices to play music from M127C.

●Unique pedometer function.

DISCLAIMER

zReproduction, transfer, distribution or storage of part or all of the contents in this document in any form without

the prior written permission of E-Ran is prohibited

zWhile all efforts have been made to ensure the accuracy of all contents in this manual, we assume no liability fo

r errors or omissions or statements of any kind in this manual, whether such errors or omissions or statements re

sulting from negligence, accidents, or any other cause.

zE-Ran operates a policy of continuous development. E-Ran reserves the right to make changes and improvemen

ts to any of the products described in this document without prior notice

zUnder no circumstances shall E-Ran be responsible for any loss of data or income or any special, incidental, co

nsequential or indirect damages howsoever caused

NOTE

Below contents are for how to use the device properly and keep it in good condition, please read carefully

zAvoid serious impact to the device.

zAvoid contact of benzol or any diluents.

zAvoid closing to strong powerful magnetic or electric fields.

zAvoid direct sunshine or heating devices.

zDo not try to disassemble, repair, or modify the device.

zDo not use the device with earphone while bicycling, driving, or motorcycling.

zDo not listen to music with high volume to avoid damage to your hearing.

zAssort and dispose with care the used packing, used batteries, used electrical devices.

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

1, GETTING STARTED

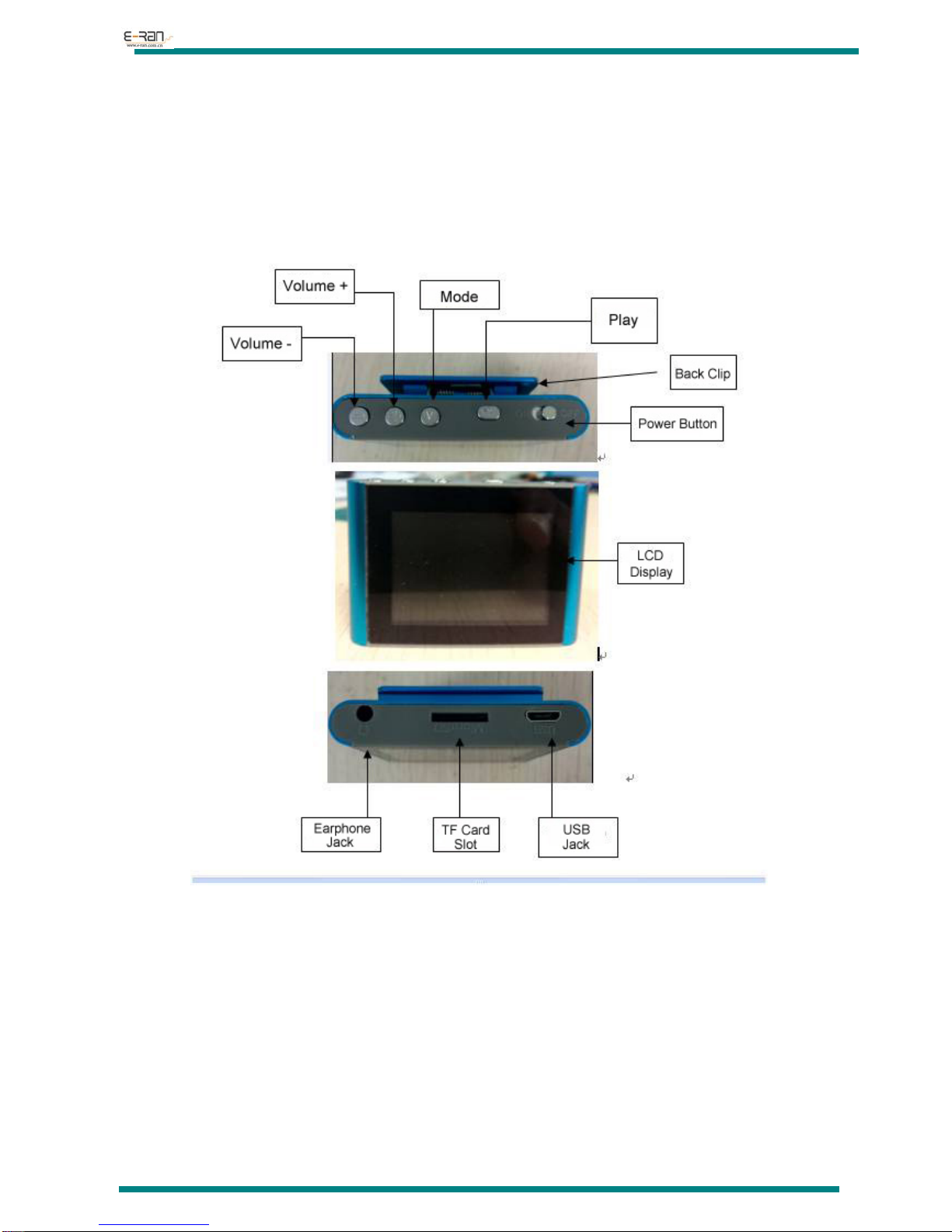

zAbout this Device

zFunctions of keys and jacks:

1, “PLAY”key：short press to play/pause; long press to turn on/off device.

2, “M”key：short press to select, enter main menu; long press to show volume control.

3, “＋”key ：short press for next track, long press to increase volume.

4, “－”key: short press for previous track, long press for decrease volume.

5, “USB Jack”：for USB connection for charging or data transfer.

6, “Earphone Jack”：for earphone plug.

7, “ON-OFF”：Power button.

8, “TF Card Slot”：insert a TF card to expand memory.

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

zTurn on/off the device

1, Make sure the power switch is at on position, long press the “M” key to turn on the device.

2, When the device is at on status, long press the “M” key to turn off the device.

zBattery level

when battery level at 4.2V，this battery icon will be shown to indicate full battery. It will change during

the period of use to indicate battery level accordingly.

When the battery level is low, a empty battery icon will appear to indicate that the device needs

charging.

Please switch off the power switch when you are not going to use it.

zTF card slot

When the TF card plugs in, beside the “Local folder”, A “Card folder” can be found on each sub menus.

Go to main menu, short press “+”or “-”to scroll the list to find “card folder”, short press “Play” to choose

to enter, short press “Play” key to play chose track.

zMain Menu

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

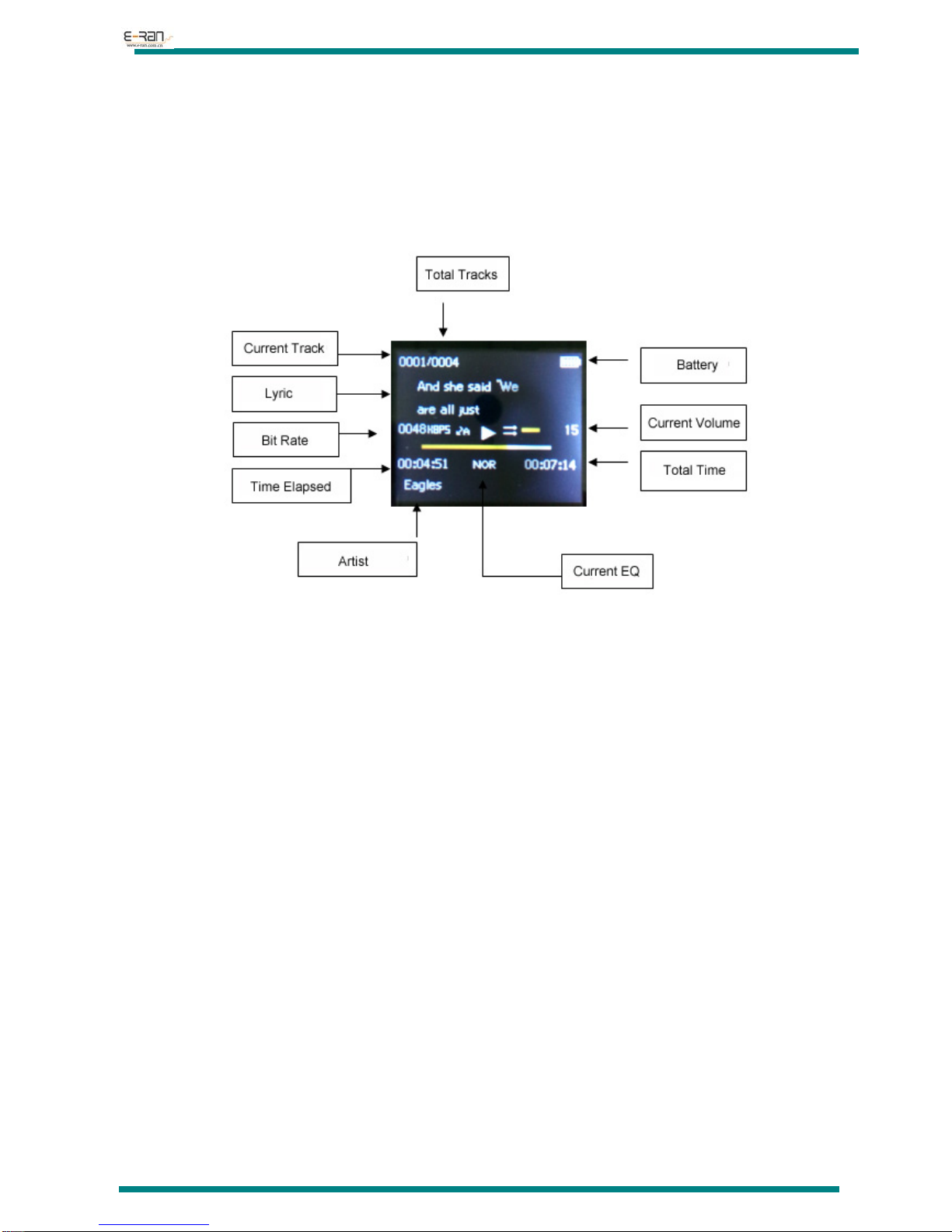

2, Music Mode

zPlay Music

1, Plug the earphone to the earphone jack.

2, Turn the power switch to ON.

3, When device boot on, use “+”or “-”key to select music mode，press PLAY to enter “Music Mode”.

4, Play music：short press “PLAY” key to start play. Short press “—”key for previous track. Short

press“＋”key for next track. Long press “—”key to decrease volume, while long press “＋”key to

increase volume. Long press “M” key to return main menu.

5, Submenu of Music mode: All Songs, Artists, Albums, Genres, Directory-Listing, Record Files Playlists,

Create Playlist, Last Played，

3, Video Mode

1, For playing video, please refer to the instruction of playing music.

2, Key functions while playing video.

2.1,“PLAY”key：short press for Play/Pause, long press for power off device.

2.2,“M”Mkey：short press for return to previous menu.

2.3, Short press—/＋key：previous video/next video.

2.4, Long press—/＋：Decrease/increase volume.

4, FM Radio

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

zListen to FM radio

1, Please make sure the earphone is plug in as the earphone cable works as an antenna, switch to FM

function, short press “PLAY” key to activate, short press “M” key to show sub menu and choose the

function you want.

2, Auto Tune. Press “+”or “-”to scroll to Auto Tune, short press “PLAY” key to start auto tuning.

zSaved scanned stations

1, Auto Tuning function will save the scanned stations automatically.

2, User can listen FM radio via Bluetooth function of this device on the condition is that this device is

paired (connected ) with a Bluetooth speaker or headsets.

zListen to saved stations

1, press “+”or “-”keys to switch from saved stations

zDelete saved stations

1, Short press “M” key show submenu, use “+”or “-”keys to scroll to the Clear Preset, short press

“PLAY” to confirm, a list of the stations will show, use “+”or “-”keys to select station, a warning

window will pops out, choose YES and short press “PLAY”to delete the preset station。

5, Picture Mode

zChoose picture

1, Choose the Picture mode in main menu, press “PLAY” to enter, short press “+”or “-”keys to scroll from

folders, short press “PLAY” to choose picture.

2, Short press “Play” key，device will go to slide show mode.

3, Short press “+”or “-”keys for next/previous file.

6, Setting

How to access Setting:

At main menu, short press “+”or “-”keys to scroll to Setting, press “PLAY” to enter.

zSubmenus

Music Repeat, Shuffle, Equalizer

Radio Setting FM Region

Picture Settings Setting auto play time

Power Off Setting auto power off time

Display Settings Brightness, Backlight timer

Language Setting languages

System System Information, Upgrade firmware

Exit Setting Back to main menu

7, Folder Function

Choose Folder icon at main menu, short press “PLAY” key to enter, user can see all the files in that folder,

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

choose the file want to play, short press PLAY”to play the file.

8, Bluetooth Function

● Bluetooth Function

M127C has a Bluetooth transmitter function, which allow it to transmit the music to a Bluetooth

speaker of Bluetooth headset. Before using this function, please make sure your Bluetooth speaker

of Bluetooth headset is at paring status, then choose the Bluetooth function of M127C, short press

“PLAY” key to enter submenu, and choose “Bluetooth Search”, then after searching, a list of

available Bluetooth devices will be shown, and choose the name of your Bluetooth speaker of

Bluetooth headset for pairing. After successful paring, short press “M” key to return to submenu of

Bluetooth, choose All Songs, then choose Local folder or Card folder, then choose music to play,

then you can enjoy music from Bluetooth speaker of Bluetooth headset。

9, Pedometer

● Pedometer

Go to “Step”, short press “PLAY” key to enter. Firstly, go to “Personal info” to set your personal

data such as “High”, “Weight” and “Step length”, then press “M” to exit and goes to “Start step”,

short press “Play” key to start/stop step counts. “History” can save up to 6 records. In “Clear

history” user can choose to clear all or single record.

10, Use as USB disk

zConnect to PC

1, This device have standard USB disk function, support OS: Windows98（need to install driver）,

Windows 2000 and later versions（no need of driver）, Mac OS 10.3 and later versions，Linux Redhat

8.0and later versions.

2, If user want to disconnect the device from PC after transferring/copying files, please make sure to eject

the device from the PC first, then can plug off the device, otherwise caused errors or files lost, we will

not responsible for any result caused by this.

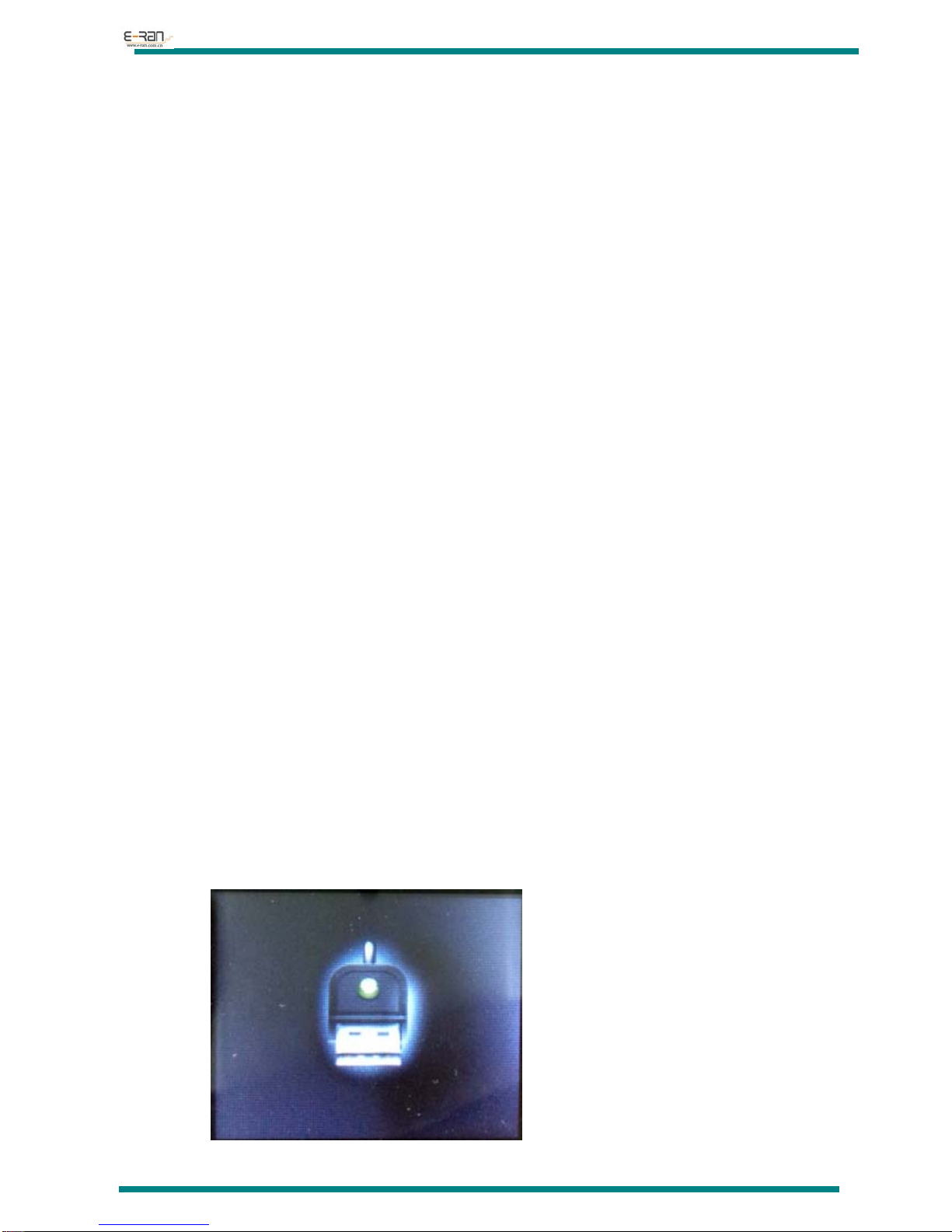

3, When connected to the PC, the device screen will show：

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

Note：It is normal situation when the real capacity of the device is less than that stated on the label as the

OS(operating system) will take some disk space.

zCharging

You can connect M127c to USB port of your PC or laptop for charging.

11, Trouble Shooting

Device fail to power on Make sure the power switch is at “ON”position

Make sure the device has battery power

No sound from earphone Make sure the volume level is no at 0，and earphone is well

plug in

Make sure the earpiece is clean

Make sure the music file you are playing is intact and not

damaged.

Unreadable screen display Make sure you choose the right language

Bad FM receiving Adjust earphone cable’s position

Shut down nearby electrical devices which might causes the

interference.

Can not copy files to the

M127C

Check the USB for any damage

Make sure the USB cable is well connected

Make sure the driver is installed properly

Check whether the device’s memory is full

E-RAN TECHNOLOGY CO., LTD

http://www.erantech.com Tel:86-755-29238428 Fax:86-755-61624301

12, Specification

Model Number ER-M127C

Unit Size 55.5mm*43mm*10mm

Unit Weight 32g （not include accessories）

Screen 1.8 inch, TFT

USB USB2.0 (High Speed)

Flash Flash：1GB-16GB

Battery 3.7V Poly Lithium

Work time for playing music: around 13 hrs

Audio

Output for

earphone

（L）10mW＋（R）10mW（32Ohm）

Support MP3 Bit

Rate

8K bps – 320K bps

Support WMA 、

WMV 、ASF Bit

Rate

5K bps – 384K bps

F/R 20Hz-20KHz

N/R 85dB

THD 0.06%

Frequency Range 76MHz – 90MHz / 87MHz – 108MHz

Station Preset Maximum 20 stations

Output for

earphone

（L）10mW＋（R）10mW（32Ohm）

N/R 45dB

Bluetooth Working Range 10 meters

Support Music format MP1,MP2,MP3,WMA,WAV, APE、OGG

Support Video format AMV, AVI

Environment Temperature -5º to 40º

Support Languages 25 Languages

Support OS Windows98/ME/2K/XP/Vista/Win7/Linux6.2/Mac os 10

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the

receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced

radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved

by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use

only shielded interface cables when connecting to computer or peripheral devices).

Table des matières

Manuels Lecteur multimédia populaires d'autres marques

Visual Land

Visual Land Impulse Manuel utilisateur

limHD

limHD 200i Manuel utilisateur

Transcend

Transcend DMP10 Manuel utilisateur

Philips

Philips GoGear Muse SA2MUS08 Manuel utilisateur

Fantec

Fantec MM-HDRL Manuel utilisateur

Dune HD

Dune HD Duo 4K Manuel utilisateur

IAdea

IAdea HMP-505S Manuel utilisateur

Camos

Camos MMS-1000 Manuel utilisateur

Energy

Energy 75 Series Manuel utilisateur

Z3 Technology

Z3 Technology DME-03 Manuel utilisateur

Sony

Sony SVR-2000 Guide de l'utilisateur

Meicheng

Meicheng HD-1080K12 Manuel utilisateur

DENAFRIPS

DENAFRIPS ARCE Manuel utilisateur

Topaz

Topaz CMS Media Player Instructions d'utilisation

InFocus

InFocus LightCast Manuel utilisateur

IconBiT

IconBiT XDS1003D Manuel utilisateur

Quanmax

Quanmax QDSP-2090 Series Manuel utilisateur

Samsung

Samsung MP-80S Manuel utilisateur
