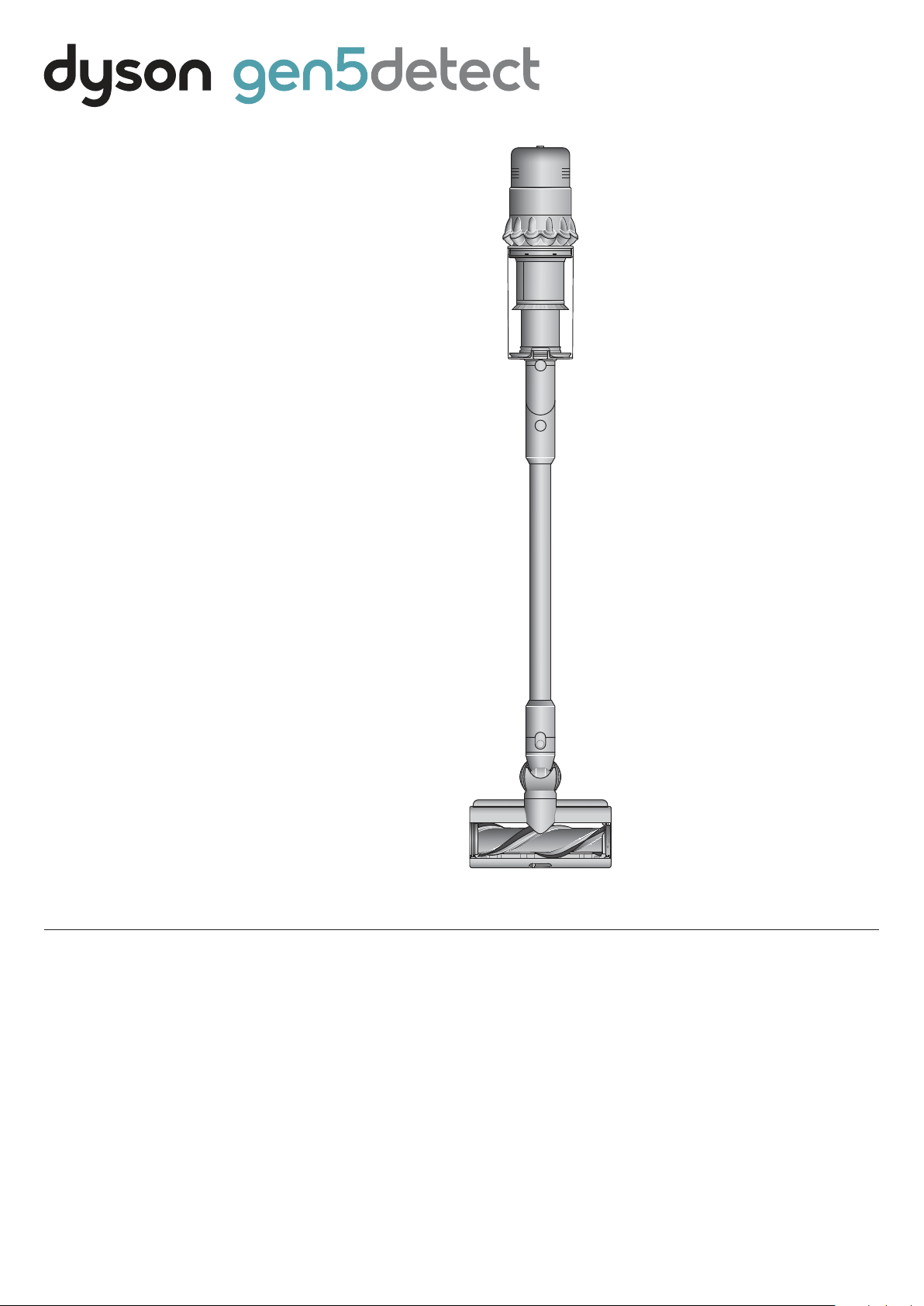

Top view of the Dyson Gen5

detect machine, showing cleaner

head, wand, bin and main body.

In the box

Some tools may not be included.

You can buy additional tools at https://www.dyson.com.sg/Combination tool Soft dusting brush

Stubborn dirt brush

Two tools in one –wide

nozzle and brush,

for quick switching

between cleaning and

dusting tasks around

your home or car.

Enclosed in a skirt

of soft nylon bristles

for gentle, vacuum-

assisted dusting of

delicate objects and

surfaces.

Stiff nylon bristles

dislodge ground-in dirt

from coarse carpets,

high traffic areas and

car interiors.

Charger

Charges your vacuum with

or without a dock.

Wand clip

Clips to your vacuum's

wand to hold tools.

Extension hose

Adds up to 61cm of

flexible reach to any

tool attachment,

to clean up high or

down low in your

home or car.

Hair screw tool

Anti-tangle conical

brush bar spirals hair

off and into the bin.

Motor-driven cleaning

for smaller spaces.

Fluffy Optic™

cleaner head

A precisely-angled

blade of light makes

invisible dust visible

on hard floors.

Digital Motorbar™cleaner head

Dyson DLS™technology monitors brush

bar resistance and adapts power across

different floor types. Hair removal vanes

prevent tangling around the bristles.

Wand with Built-in dusting and crevice tool

Awkward gap tool

Long and narrow, with

a 22°twist to clean car

storage compartments,

tight gaps and hard-to-

reach places.

Scratch-free

dusting brush

Gentle on delicate

surfaces. Self-cleaning

– a rotating cuff keeps

the soft bristles clear

of dust.

Low-reach adaptor

Bends to comfortably

reach down low.

Engineered to clean

further under low

furniture by adjusting

the wand angle

up to 90°.

Light pipe crevice tool

Crevice tool with LED

lights lets you reach

into dark, narrow

spaces and see where

you’re cleaning.

Fabric and

mattress tool

Removes dust, dirt

and allergens from

mattresses and

upholstery.

Wall dock

The Dyson cordless vacuum

drops into the wall-mounted

charging dock, ready for

your next clean.

Stored inside the wand is a ready-to-

go crevice tool for on-the-spot cleans.

Vacuum cleaner with

battery and bin attached

Up-top adaptor

Bends and locks at

different angles. For

effective cleaning in

hard-to-reach high

areas of your home.

Your machine will come with one, or both, of the cleaner heads shown here.

A brush bar located inside

the cleaner head and

a suction control slider

located on the front.

A rectangular

dock that

needs to be

fixed to a wall

with screws.

The charger is a one

piece unit with the

plug, connector end

and cable.

Dyson wand, with a built-in dusting and

crevice tool, convenient

for on-the-spot cleans.

A soft fluffy brush bar housed within

the cleaner head. There is an electrical

connecter end that can attach to the end

of the wand or directly to the machine.

The Scratch-free

dusting brush has

a head made of

soft bristles for

cleaning delicate

surfaces.

The Awkward

gap tool is long

and slim, with a

22 degree twist,

for cleaning tight

gaps and hard-to-

reach places.

This tool has a

combination

of brush head

and crevice tool

together in one

unit. The brush

head slides down

the crevice tool

when needed.

A small

cleaner head

with an angled

body housing

the motor and

an electrical

connector to attach to the directly to the machine.Pliable bristles and

felt bumper strip on a

narrow, tapered tool.

A short nozzle with

stiff bristles on the

underside.

With an elbow

joint, fitted

between the

bin and the

tool.

A wide, triangular

shaped nozzle.

A plastic clip that

attaches to the wand

A flexible hose

engineered from

tough wire and

durable plastic.

A jointed

connector that

creates a flexible

joint between

the machine

and the tool. It

must be used in

conjunction with

a tool or cleaner

head.

A long tool with

an angled end.

Main body showing the bin and

battery attached.

Getting started

Power modes

Eco mode

Auto and Med mode

Boost mode

Maximum run time for longer cleans

all around your home.

Designed for intensive spot

cleaning of ground–in dirt.

Your machine has three power

modes for different tasks. Change

power modes quickly using the silver

Selection button.

Medium mode for the optimum balance

of power and run time. Attach your

cleaner head or Hair screw tool to

activate Auto mode. Suction power

automatically adapts to dust levels.

Boost

Eco

Auto Med

180

500

μm

38:37

00%1

Using the LCD screen

Shows you when your

floor is clean

A piezo sensor continuously

sizes and counts dust

particles at the inlet.

Your machine categorises,

counts and displays the

amount of particles picked

up. Bars will rise and fall

depending on the amount

of debris and dust detected

– showing you in real-time

when your area is clean.

clik

click

Diagram

showing the

connection of

the wand onto

the main body,

with the wand

release button

aligned with

the top of the

main body.

The screen showing the machine set to

Eco mode with a full battery in green

to show that this will give the longest

battery life of the three modes.

The screen showing the machine set

to Boost mode with a red battery to

show that this will give the shortest

battery life of the three modes.

Location of the Selection

button on the screen

on the filter end of the

machine.

The screen, on the end of the

main body, showing a graph of

the sizing and counting of the

dust particles.

Arrow showing the end

of the wand connecting

to the cleaner head.

Two screens showing the

machine set to Auto mode and

Med mode with a blue battery

showing that this will give a

medium length of battery life.

Screen on the

filter end of the

machine.

Finger pressing the

selection button on

the screen to move

between power

modes.

The LCD screen

Settings menu

Change language

For more information and support for your machine go

online: https://support.dyson.com.sg/SupportHome.aspxControl the settings on your machine using the Selection button.

To enter the settings menu, press and hold the button until the menu

screen appears. Press the button to move through the options within

the settings menu.

Hold the button to open an option.

– Language

– Alerts

– Serial numbers

To change the language on your screen, press the Selection button and hold

it until the language list appears. Release the button.

Tap the Selection button to scroll through the language list to your preferred

language. Press and hold the button until the countdown ends.

A green tick will appear on the screen to show your language selection

is complete.

To cancel your selection, release the button during the countdown.

English

selected

English

Español

Language

Alerts

Serial

numbers

Exit menu

Find your serial numbers

You can find your serial numbers in the settings menu.

Press the Selection button to move through the settings sequence

until you reach Serial numbers.

Press and hold the button to select this option.

Press the button to move through your serial numbers information.

Serial

numbers

The Selection button on

the screen being pressed.

Two screens,

the first with

the language

list and then

the tick screen

to show that

the language

has been

successfully

changed.

In the settings menu, the Language

option allows you to select your

screen’s language preference.

In the settings

menu, the

Language

option allows

you to select your

screen’s language

preference.

In settings, the

third screen option

allows you to view

Serial numbers.

The Exit menu

screen is the final

option in settings.

In settings, the

Alerts option allows

you to set the on-

screen allerts to

On or Off.

The Serial numbers screen

is the option for searching

for your serial numbers.

Run time countdown

When the battery needs charging, your machine will pulse three times and a

Low run time icon will appear on the screen.

Low run time will be in amber, or red when in Boost mode.

When your battery is empty, a red warning icon will appear on the screen.

Battery health and Boost advice

To get the best performance and life from your battery,

use Eco or Auto/Med mode.

If you use Boost mode frequently, this message may appear, to help you

conserve your battery life.

Low

run time

Low

run time

Low power

modes maintain

battery health

Exit settings menu

Exit menu

The screen

reads Low

run time,

surrounded

by an amber

circle, when

the battery

needs

charging.

The screen reads Low

run time, surrounded

by a red circle, if the

battery runs low while

in Boost mode.

Alert with a

white heart icon,

reads ‘Low power

modes maintain

battery health’.

An alert with three battery

icons, large, medium and

small. The first two coloured

grey to indicate empty.

The third is red, indicating

very low battery.

The battery health

is shown on the

batteries on the

screen.

A red screen with an icon with a plug

being connected to the power supply.

This demonstrates the battery is empty

and needs charging.

Screen with ‘Exit

menu’ wording and

return icon.

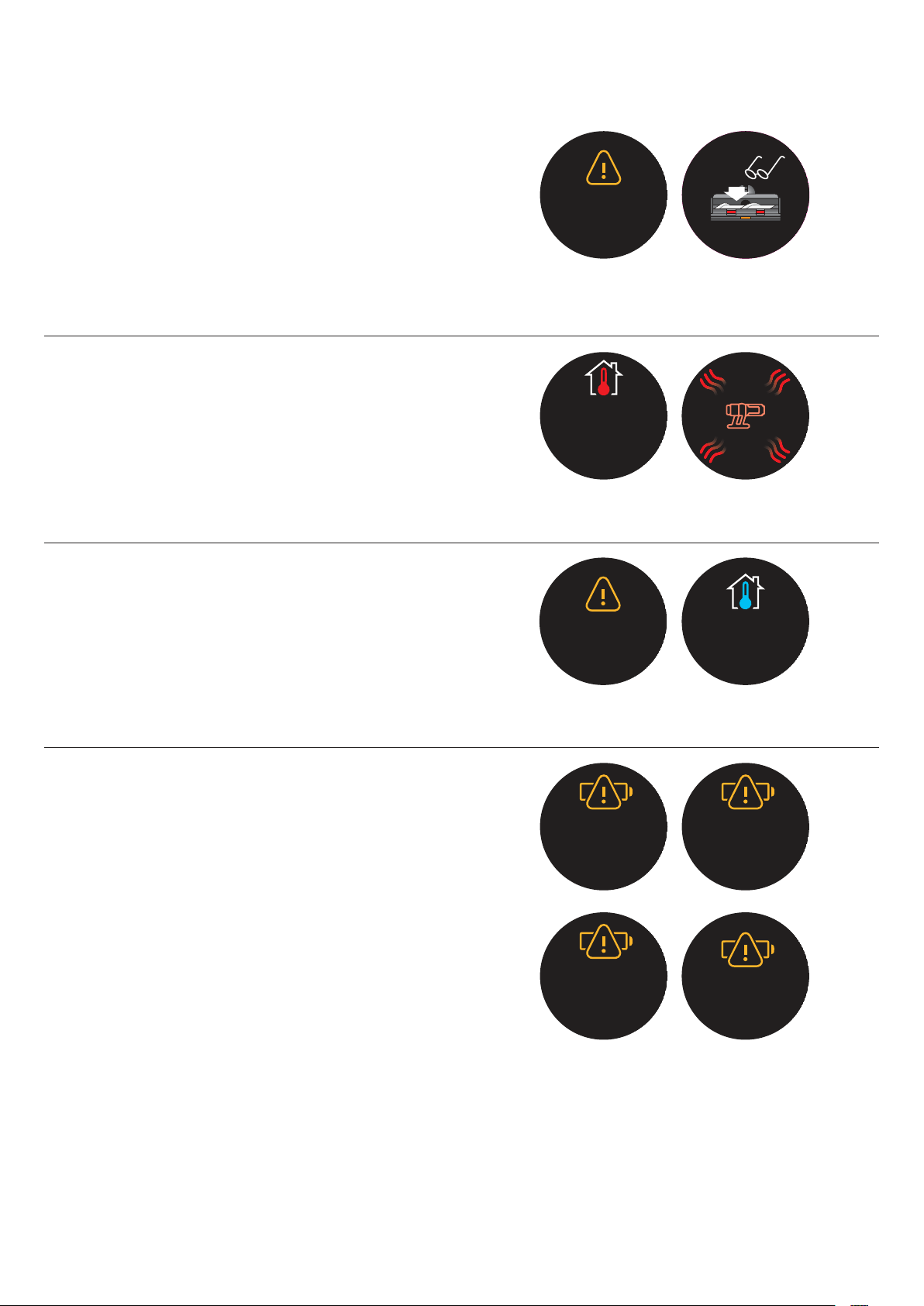

The alerts you might see are:

Airway obstructed

Your machine has a blockage that needs removing. Watch the

animation to see which airways to check. Make sure your

machine is turned off before removing a blockage.

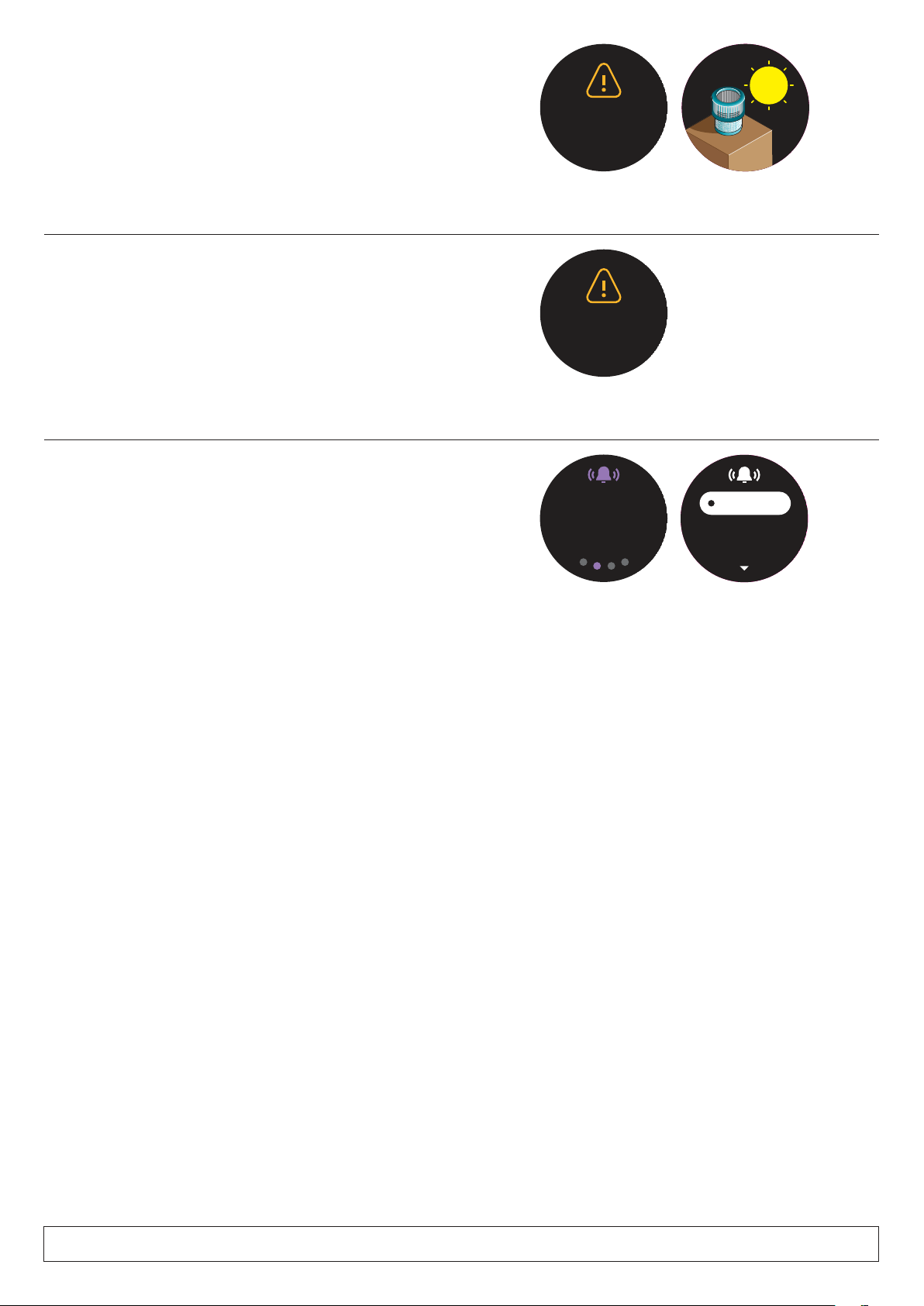

High storage temperature

Your machine is being stored in a place where the temperature

is too high. Move your vacuum to a cooler place.

Cold temperature

Your machine is too cold. Move your vacuum into a warmer

environment and leave to warm up.

Non-Dyson battery

A non-Dyson battery has been detected. If you are not aware

that you are using a third party battery for your machine,

this may be a counterfeit.

…safety

information

Alerts

Airway

obstructed

High

temperature

detected

Machine too

cold

Leave to

warm up

Non Dyson

battery

detected.

Refer to

compliance

and…

Use genuine

parts to protect

your machine

Alert icon

with Airway

obstructed

wording.

Alert icon

with ‘High

temperature

detected’

wording.

Alert icon with

‘Machine too

cold’ wording.

Alert icon with

‘Non Dyson

battery detected’

wording.

Alert warning

icon reads ‘Use

genuine parts

to protect

your machine’.

Alert icon

with ‘Refer to

compliance

and…’ wording.

Alert icon

with ‘…safety

information’

wording.

Alert icon with

‘Leave to warm

up’ wording.

A pair of spectacles observing

the bottom of a cleaner head

is an obstruction warning

directing you to investigate

a blocked cleaner head.

A vaccum handle icon, surrounded by four

three-pronged, red heat symbols, is an alert

signalling your vacuum is too hot – and

should be stored clear of a heat source.

Clean filter

Your filter needs cleaning. Please refer to ‘Washing your filter’.

After cleaning, leave to dry for at least 24 hours before

reattaching it to your machine.

Filter not sealed

Your filter isn’t properly fitted. Twist your filter anti-clockwise

and pull it away from your machine. Reattach to your machine,

twisting it clockwise until it locks into place.

24h

Learn more about your LCD screen. View video on your owner’s page.

Filter needs

cleaning

Filter not

sealed

Change alert settings

You can turn the alert motor pulse off. Your motor will no longer pulse but

run time alert information will continue to be displayed on the LCD screen

when your machine needs your attention.

Turning off alerts will not turn off the blockage alert pulsing. This is to ensure

you clear any blockages, preventing damage to your machine.

Make sure you have entered the settings menu. Tap the Selection button to

move through the options within the settings menu. Press and hold the button

to select the ‘Alerts’ option.

Tap the button until your selection is highlighted. Hold it down until the

countdown ends and a tick appears on the screen. To cancel your selection,

release the button during the countdown.

Off

Exit

Alerts

Alert icon with a filter

graphic and ‘24+’

reminds you to leave

your filter to dry for

24hrs after washing.

The Alert settings

menu reads

On, Off, Exit.

The Alerts screen

allows you to choose

On or Off.

Alert icon with

‘Filter not sealed’

wording.

Alert icon with

‘Filter needs

cleaning’ wording.

Charging your machine

If you have additional click-in batteries, we recommend that you alternate

the batteries to maintain even performance.

Caring for your floors

Check that the underside of the cleaner head or tool is clean and free from

any objects that may cause damage.

Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s

recommended cleaning instructions.

The brush bar on your machine can damage certain carpet types and floors.

Some carpets will fuzz if a rotating brush bar is used when vacuuming. If this

happens, we recommend vacuuming without the motorised floor tool and

consulting with your flooring manufacturer.

You can use your machine immediately, or charge it partially,

without the need to fully charge before first use.

Connect to the charger, either directly or in the dock.

The blue LEDs on both sides of the battery will flash during charging.

When the battery is fully charged, both LEDs will light for five seconds.

Your battery is fully charged when the display shows 100%.

Your machine won’t operate or charge if the ambient temperature is below

5°C (41°F). This is designed to protect both the motor and battery.

Changing your click-in battery

Removing your battery

Refitting your battery

Align your battery with the handle and slide it in. Push firmly until it clicks

into place.

00%1

clik

click

Push the Battery release button at the front of the battery unit, and slide the

battery off your machine.

Charge the battery.

The charger connected from the

power supply using the wall dock.

The charger connected from

the power supply directly

into the front of the battery.

Arrows showing the location of the Battery release button at the

front of the battery unit, and the battery coming off the handle

when the button is pressed. The battery is then shown being

replaced on the base of the handle, clicking into place.

Minimise dust contact

Empty as soon as the dirt reaches the MAX level – don’t overfill. Using your

machine when the dirt is above the MAX line may affect the performance

and require more frequent filter washing.

Emptying your bin

Hold the machine over the bin, pointing downwards.

Firmly push the red bin release button. The bin will slide down, cleaning the

shroud as it goes, and the bin base will open.

The bin base won’t open if the red bin release button isn’t pushed down all

the way.

Release the dirt

Close the bin

Push the bin base upwards until your bin and bin base click into place.

Remove your wand

Overfilling your bin could result in inaccurate readings on the particle graph.

Press the grey wand release button, on the top of the wand, and pull the wand

away from the bin.

Make sure your machine power is turned off before removing your wand or

releasing the bin.

clik

click

Cover your bin tightly in a dustproof bag while you empty. Remove your bin

carefully, seal the bag tightly and dispose.

The bin lid closing

with an audible click

and the bin being

pushed upwards with

another click once it

is fully in place.

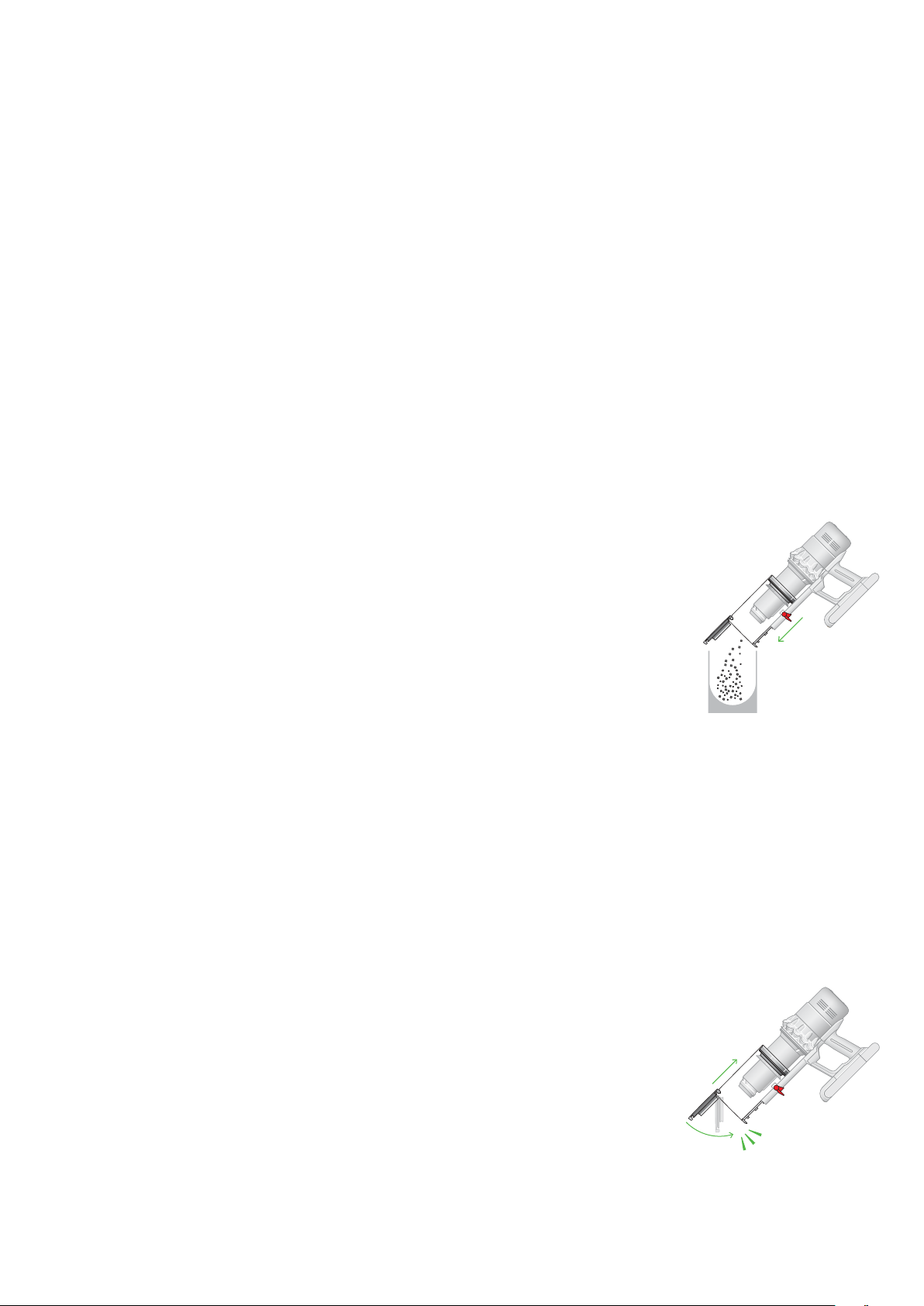

Illustration of

the bin being

emptied into

a bag.

Cleaning your bin

Remove your bin

Refit your bin

clik

click

If you need to clean your bin, empty it as shown in the ‘Emptying your bin’

section.

Press the red button located on the bin runner to release the bin and slide

your bin off the runner.

Clean your bin using a damp, lint-free cloth.

Make sure that your bin and seals are completely dry before refitting.

Your bin isn’t dishwasher safe and the use of detergents, polishes or air

fresheners to clean your bin isn’t recommended, as it may damage

your machine.

Insert the spine on to the bin runner.

Close your bin by pushing the bin base upwards until the bin and bin base

click into place.

The bin being removed

and the location of the

bin release lever on the

underside of the bin runner.

The bin being

pushed back into

position on the bin

runner.

The bin base

being closed as

the bin is slid

back onto its

runner and into

position.

Autres manuels pour gen5 detect

Table des matières

Autres manuels Dyson Aspirateur

Dyson

Dyson V7 Motorhead Manuel utilisateur

Dyson

Dyson Radix Cyclone 8 DC07 brush control Manuel utilisateur

Dyson

Dyson Baby DC22 Manuel utilisateur

Dyson

Dyson DC28 Manuel utilisateur

Dyson

Dyson DC24 Blueprint Limited Edition Manuel utilisateur

Dyson

Dyson BIG BALL Manuel utilisateur

Dyson

Dyson DC32 Manuel utilisateur

Dyson

Dyson dc78 Manuel utilisateur

Dyson

Dyson DC14 Telescope Reach Manuel utilisateur

Dyson

Dyson DC40 Manuel utilisateur

Dyson

Dyson Ball DC25 Manuel utilisateur

Dyson

Dyson Slim DC18 Manuel utilisateur

Dyson

Dyson DC59 Animal Manuel utilisateur

Dyson

Dyson DC 52 Manuel utilisateur

Dyson

Dyson Cinetic Big Ball Manuel utilisateur

Dyson

Dyson DC23 Turbinehead Manuel utilisateur

Dyson

Dyson Ball DC25 Manuel utilisateur

Dyson

Dyson DC04 Manuel utilisateur

Dyson

Dyson DC26 Manuel utilisateur

Dyson

Dyson DC39 multi floor Manuel utilisateur

Dyson

Dyson DC23 Motorhead Manuel utilisateur

Dyson

Dyson V11 Manuel utilisateur

Dyson

Dyson DC07 Origin Manuel utilisateur

Dyson

Dyson DC30 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur

Dyson gen5 detect Manuel utilisateur

Manuels Aspirateur populaires d'autres marques
