dynarex 10712 Manuel utilisateur
Manufactured for:
Dynarex Corporation
10 Glenshaw Street
Orangeburg, NY 10962
USA • www.dynarex.com
Made in China
Reorder No. 10712
Bariatric
Trapeze Bar
with Stand
1
Bariatric Trapeze Bar with Stand User Manual
1
Trapeze Grab Bar
Trapeze Holder
Ring
Connection Point
Connection Point
Connection Point
Upright Frame
Floor Base
Chain
Triangle Base
Congratulations on your purchase of
our Bariatric Trapeze Bar with Stand!
Our trapeze bar is engineered and
designed with durability and easy
maintenance in mind.
The trapeze bar will allow patients to
lift themselves while in bed.
Please read through this manual and
get acquainted with your Bariatric
Trapeze Bar with Stand. Follow the
maintenance schedule to ensure
proper functioning of your unit.
SAFETY PRECAUTIONS
Do not operate your Bariatric Trapeze
Bar with Stand until you read and fully
understand this manual.
• Do not operate your trapeze bar until
it is fully assembled and checked.
• Do not exceed the maximum weight
capacity (700 lb.) of the Bariatric
Trapeze Bar with Stand.
• Do not modify or replace with parts
other than those manufactured by
Dynarex.
2 3
Bariatric Trapeze Bar with Stand User Manual Bariatric Trapeze Bar with Stand User Manual
ASSEMBLY INSTRUCTIONS

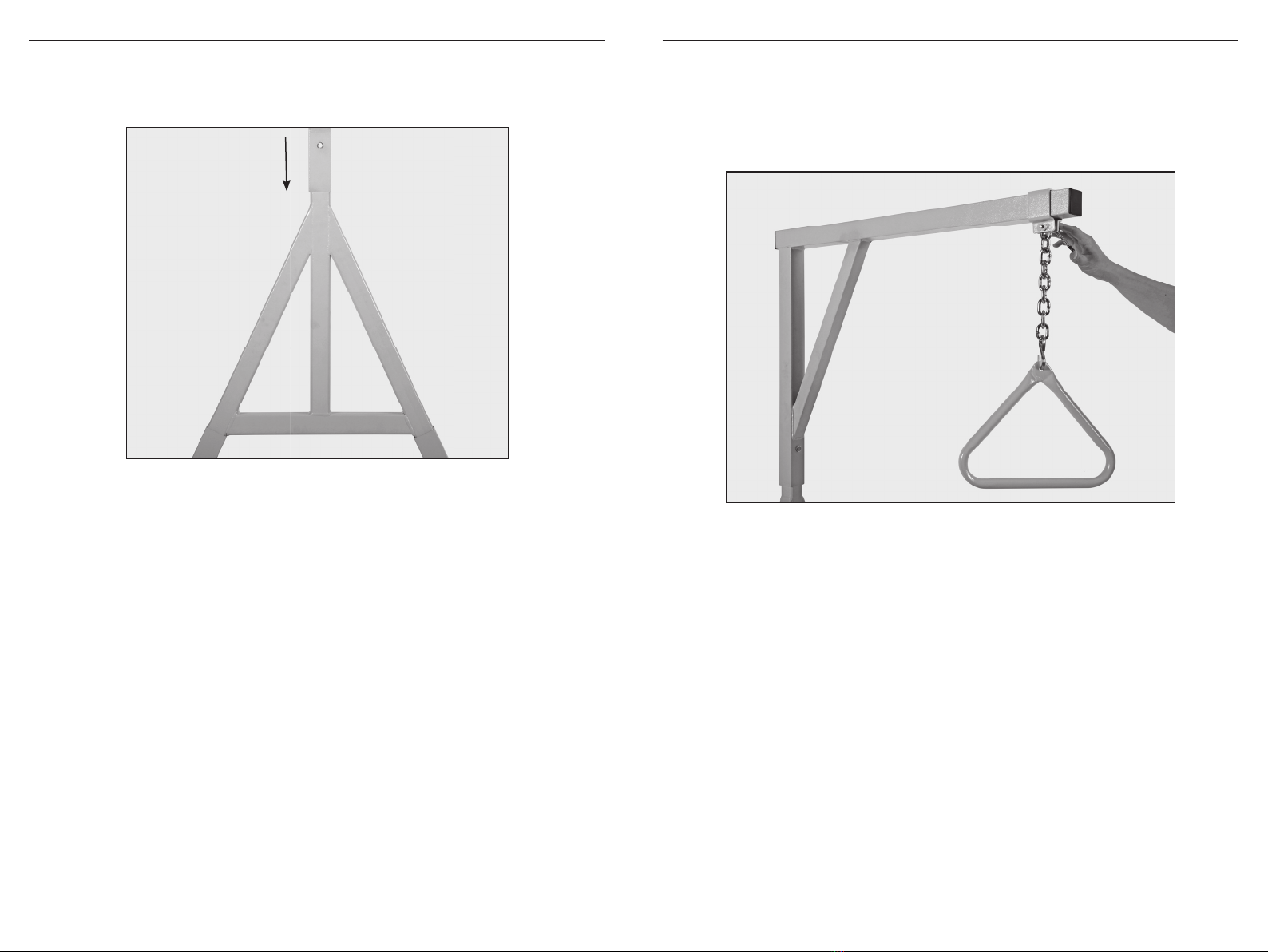

1. Insert Triangle Frame to the Floor
Base (see gures 1 and 2).
2. Insert screw, ensuring it goes
through all four holes and is
extended through the opening. Add
the washer ( gure 3) and tighten the
nut ( gure 4).
3. Repeat step 1 to 2 for the other fl oor
base.
Figure 1
Figure 3
Figure 2
Figure 4
ASSEMBLY INSTRUCTIONS
A. Please carefully unpack the
container and remove the Bariatric
Trapeze Bar with Stand from the
shipping carton.
B. lnspect the packaging, and make
sure that there are no shipping
damages and all the components
are in the shipping carton.
2 Floor Bases
1 Triangle Frame
1 Upright Frame
1 Trapeze Grab Bar (with chain)
3 Complete Screw-Washer-Nut-Bolt
sets
C. Assistance is needed and highly
recommended in completing the
nal assembly due to heavy weight
of parts.
45
Bariatric Trapeze Bar with Stand User Manual Bariatric Trapeze Bar with Stand User Manual
ASSEMBLY INSTRUCTIONS
6. Slide trapeze holder ring over the
tube. Insert thumb screw through
ring and turn clockwise until tight to
secure in place ( gure 6).
MAINTENANCE
1. Clean the Bariatric Trapeze Bar
with Stand regularly with
non-abrasive cleaners.
2. Check monthly that all screws are
tight and have not loosened.
3. Make sure all rubber tips and ends
are in good condition for use.
ASSEMBLY INSTRUCTIONS
4. Insert Upright Frame to the top of
the Triangle Base ( gure 5).
5. Insert screw, ensuring it goes
through all four holes and is extend-
ed through the opening. Add the
washer and tighten the nut.
Figure 5
Figure 6
Bariatric Trapeze Bar with Stand User Manual
R190909
LIMITED LIFETIME WARRANTY
Your Dynarex Product is warrantied
to be free of defects in materials and
workmanship for the lifetime of the
product for the original purchaser.
This item was built to exacting
standards and carefully inspected
prior to shipment. This Limited
Lifetime Warranty is an expression of
our condence in the materials and
workmanship of our products and our
assurance to the consumer of years of
dependable service.
The Warranty shall not apply under the
following conditions:
• Problems arising from normal wear
• Problems arising from failure to
adhere to the product instructions
• Problems arising from misuse,
negligence, accident or improper
operation, maintenance or storage
• Problems arising from modications
or unauthorized repairs, parts or
attachments
• Products where the serial number
has been removed or defaced
• Problems with non-durable
components, such as rubber
accessories, casters, and grips,
which are subject to normal wear
and need periodic replacement
Dynarex shall not be liable for any
consequential or incidental damages
whatsoever. Dynarex shall repair or
replace defective products at its option.
The foregoing warranty is exclusive
and in lieu of other express warranties,
if any, including the implied warranties
of merchantability and tness of a
particular purpose. The remedy for any
violation of the implied warranty shall
be limited to repair or replacement of
the defective product pursuant to the
terms contained herein.
If you have a question about your
Dynarex device or this warranty,
please contact an authorized Dynarex
dealer.
