Dynam Cessna 550 Turbo Jet RTF

Перейти в карточку товара

8 800 775 98 98

Instruction Manual

Specification

Wingspan:1180mm

Fuselage Length:1080mm

Flying weight:1150g

Servo:9gX4

Battery:11.1v 2200mAh 20C Li-Po

ESC:40AX2

Motor:KV3300X2

Wing loading:63g/dm2

RTF INCLUDING

RTF including:

fuselage

wing

elevator

landing gear

Vertical stabilizer

plastic parts set

Hardware

Elevator

edf set

glue

decal

balance charger

LI-Po battery (11.1V 2200mAh 20C)

transmitter

Adaptor

Cockpit

ESC

As shown,Insert the speed

controllers into fuselage.

As shown, Apply the foam glue on

the joiner of the left and right horizontal

stabilizer.

Insert the vertical stabilizer into

the fuselage.

As shown,Fix the EDF set on

fuselage with 3X40mm screw.

As shown,Glue the horizontal

stabilizer in place.

As shown,Fix the vertical stabilizer on

fuselage with 2.3X20mm screw.

Insert the direction pushrod into the

hold of quick-controller and tighten

clamp connectors.

As shown, Insert speed controller

wires into THR channel of receiver.

As shown,Fix the nose landing gear

on fuselage with 2.5X8mm screw.

As shown, Insert Z-bend of pushrod

into the hole of the nose landing gear.

As shown, Apply the foam glue to the

stuffing foam and insert it into fuselage

as shown.

As shown,Insert elevator pushrod into

the hold of quick-controller and tighten

clam connectors.

(Remark: The servo should be in center position)

Apply the foam glue on the joiner of the

left and right wings.

As shown,Apply the foam glue on the

plastic part and insert it in the main wing

as shown.

As shown,Apply the foam glue on the

joiner of the rear landing gear and push

it in the position.

As shown,Fix the wing on fuselage

with 6X50mm plastic screw.

As shown,Put the battery in position.

As shown,Connector the aileron servos

with Y wires.

Installing the Battery position.

As shown,Glue left and right main wings

together.

As shown, Apply the foam glue to the

stuffing foam and insert it into wing as

shown.

19 20

THROTTLE

RUDDER

ELEVATOR

AILERONS

airplane action

control plane

movement

control plane

movement

Aileron

movement

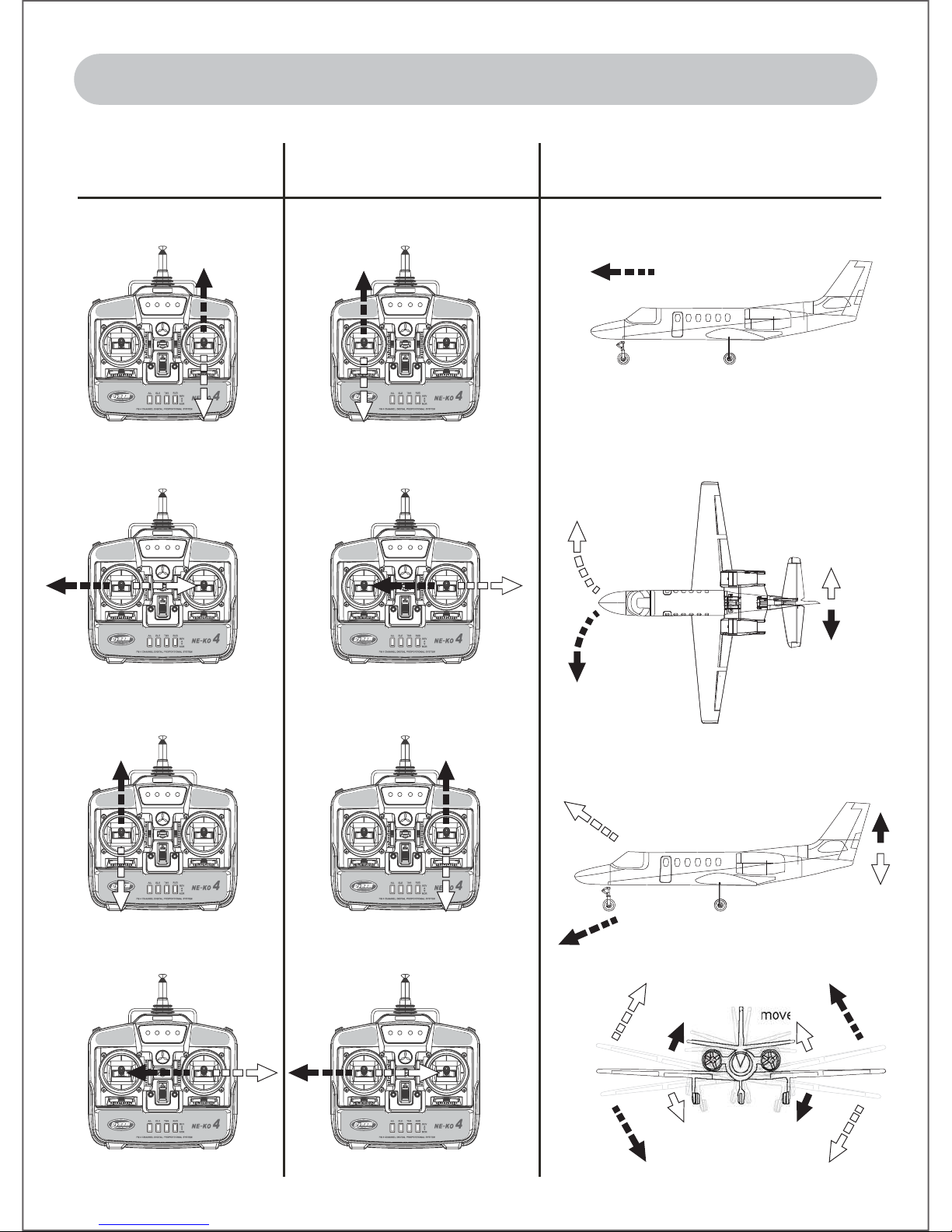

STICK OPERATION

MODE 1 MODE 2 MOVEMENT
