Operating Instructions
A 1129A

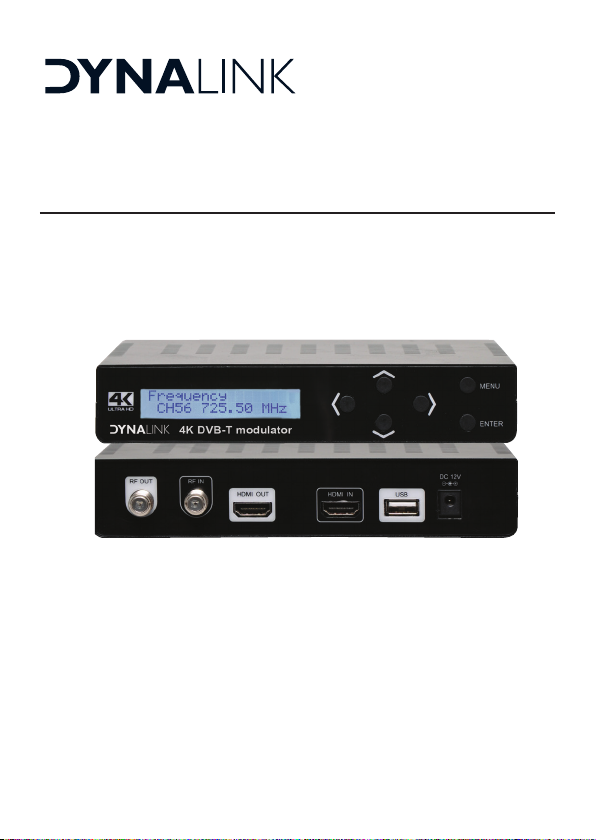

HDMI RF Digital DVB-T Modulator
with 4K Loop Output
Package Contents
• 1080p modulated resolution
• HDMI 4K pass through
• H.264 video compression
• 30dB MER (typical)
• 100dB output level
• RF TV antenna input
• 177-858MHz frequency
• Includes power supply
1 x HDMI DVB-T Modulator
1 x 12V Power adapter
1 x User Manual
Features
A 1129A
HDMI RF Digital DVB-T Modulator
A high performance HD modulator module able to generate a signal in
DVB-T format (Digital Terrestrial Television) from HDMI input. This mod-
ulator allows you to distribute any HD device signals (Foxtel, DVD etc)
in HD around the home or business with ease. It is equipped with one
channel HDMI input, one HDMI out (4K pass-though) and one DVB-T RF
out (1080p Max resolution). It also adjusts the compression rate to the
available bandwidth.
Overview
Specications
HDMI IN
HDMI OUT
RF Output
RF Input
Modulation
Power Supply
Display
Connections:
Max 4K Resolution
4K Pass Through
1 DVBT RF output with type F female, 75 ohm
(Max 1080P resolution)
RF Combiner
Standard: DVBT (ETSI EN 300 744)
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
FFT Carriers Mode: 2K, 8K
Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz
12V Adapter
LCD panel @ 2 x 16 characters (on front panel).
Environmental for
operating
6 Local keys on front panel
Temperature range: 5°C- 40°C
Relative Humidity: 80% @ 30°C
A 1129A
HDMI RF Digital DVB-T Modulator
Note: To be able to see the 4K signal output from HDMI OUT (HDMI
Pass through)port, the specications requirement of connected TV listed;
4K Ultra HD (3840x2160) Resolution, HDMI 2.0, HDCP 2.2/1.4, Support
4K50P/60P, HDMI 2.0 Cable
Input Channel
Video
Video System
Audio System
Video
Video Resolution
Video Bit rate
Audio
Audio Bit rate
DVB insertion tables
Type
Frequency
MER
Output level
RF Level Adj
Attenuation step
Source Input:
Compression:
RF Output:
101
HDMI
480i/p, 576i/p, 720p, 1080i/p, 4K(3840x2160
or 4096x2160)
HDMI
1080p 25 / 30 Max
12Mbps MAX
MPEG-2 / AAC
192 Kbit/S
SDT, NIT
Service Name , Network Name , Provider
Name , TS ID , Network ID , Original NET ID,
LCN , NIT Version , Private Data ,Country
1 Multiplex DVBT with a digital TV service
177 – 858 MHz
30 dB Min.
100 dBuV
0 dB ~ -30dB
1dB per step
Specications
A 1129A
HDMI RF Digital DVB-T Modulator
ATTENTION!
FOR THIS CONFIGURATION YOU SHOULD USE OUTPUT FREQUENCIES DIFFERENT
FROM THE ONES THAT YOUR TV IS CURRENTLY USING.
3. Navigation
The instrument is congured through its 6 keys and front panel display.
In general, it is not necessary to congure the instrument to generate a
DVB-T signal compatible with any digital terrestrial television receiver.
Installation
1. Power Supply:
Connect the external power supply to the 100~230V mains and the 12V
to the DC input.
Once connected to power, the device turns on and it takes about 30
seconds to be operational. Then the message “Keyboard Locked”
appears on the display.
2.Connection Diagram:
A 1129A
HDMI RF Digital DVB-T Modulator
1. Display (LCD)
2. Menu navigation keys:
Product Diagram
12
3 4 5 6 7 8
• ENTER Key : Select parameter, or menu
• L / R Keys : Move menu, or characters
• Up / down : Select value of the gure, or eld
• MENU keys : Return to start menu
3. TV COFDM Output
4. RF Combiner
5. 4K Pass Through Output
6. HDMI Input
7. USB: Firmware output only
8. Input 12V DC power adapter (included).
Note: The resolution of the LCD Display is representative of the video
resolution of the RF output.
Please refer to below table :
A 1129A
HDMI RF Digital DVB-T Modulator
1. After connecting the power to the instrument, the message “Initial….”
“Please Wait...” appears for 37 seconds.
2. Then the message “Keyboard Locked” appears. To access to the
conguration menus the user has to enter a password.
3. Press ENTER .
4. The eld “Enter Password” appears. Enter the access code. (By
default: 0000).
5. Press ENTER .
6. The eld “Network Setting” appears, this is the rst option on the
conguration menu.
Starting
1. Frequency: It sets the frequency value for the output signal. Important:
Check that the selected frequency is not already being used by a current
television distribution channel.
2. RF Level Adj: It adjusts the power level of the output signal, in dB
units. Its range from 0 to -30 dB.
3. Bandwidth: Channel bandwidth. (6, 7 , 8 ,7-8MHz).
4. FFT Carriers: Signal transmission mode. (2K,8K).
5. Guard Interval: Safety signal margin. (1/4, 1/8, 1/16, 1/32).
6. Constellation: Constellation type used to transmit signal
(QPSK,16QAM, 64QAM).
7. Code Rate: Available values are (1/2, 2/3, 3/4, 5/6, 7/8).
8. Video Output: Video encode. H.264 of the video output.
9. Audio Output: Audio encode. Selection between MPEG-2 and AAC
10. Video Bitrate: Select video bit rate (2,4,6,8,10,12 Mbit/S).
11. Audio Bitrate: Bitrate to encode the audio. Maximum 192 kbit/s.
12. Service Name: Service name edit.
13. Provider Name: Service provider name edit.
14. Service ID: Service ID edit.
15. LCN: It species the index for the service sorting on the digital ter-
restrial television receiver. Values are between 1 and 999.
16. Country: Country selection for LCN sorting.
17. Original Net ID: Identier of the original network. It is the number to
identify the network from where the signal comes.
18. Network ID: It is the number that identies the network where the
signal is distributed.
19. Network Name: Network name edit.
20. TS ID: It is the transport stream identier.
Conguration menu
A 1129A
HDMI RF Digital DVB-T Modulator
21. NIT Version: Network Information Table version. In some countries it
should match with other tables version received from the receiver.
22. Information: It shows the rmware version installed in the modulator.
This option is not editable.
23. Apply Setting: It saves the current conguration on the non-volatile
memory of the modulator.
24. New Password: It allows the user to change to a new password to
access the menu.
25. Load Default: It returns to the default values.
Conguration menu
Conguration menu
A 1129A
HDMI RF Digital DVB-T Modulator
