Dynabrade 53472 Manuel utilisateur

Reversible Pistol Grip 0.5 hp. Direct-Drive Screwdriver

Model: 53472, 53474, 53475, 53477

Notice: Use these instructions along with the tool manual.

Important: Disconnect tool from the air supply.

To avoid damage, use the Special Repair Tools designed for disassembly and assembly.

Motor Disassembly:

1.

Place protective padding around housing. Fasten “Driver” in vise with spindle pointing

up.

Use a 1-9/16" (~40 mm) crowfoot or adjustable wrench to remove gear housing.

Turn counterclockwise.

(To disassemble gears see: Planetary Gear Disassembly)

1-9/16" (~40 mm) crowfoot

Protective

Padding

HEAT

GUN

2.

Remove motor from housing:

a) Carefully fasten 53339 Front Plate in vise with aluminum or bronze jaws.

b) Notice: Motor is held by o-rings. Use HEAT GUN to warm and expand housing.

3. Pull up and wiggle housing to release motor. Remove motor from housing.

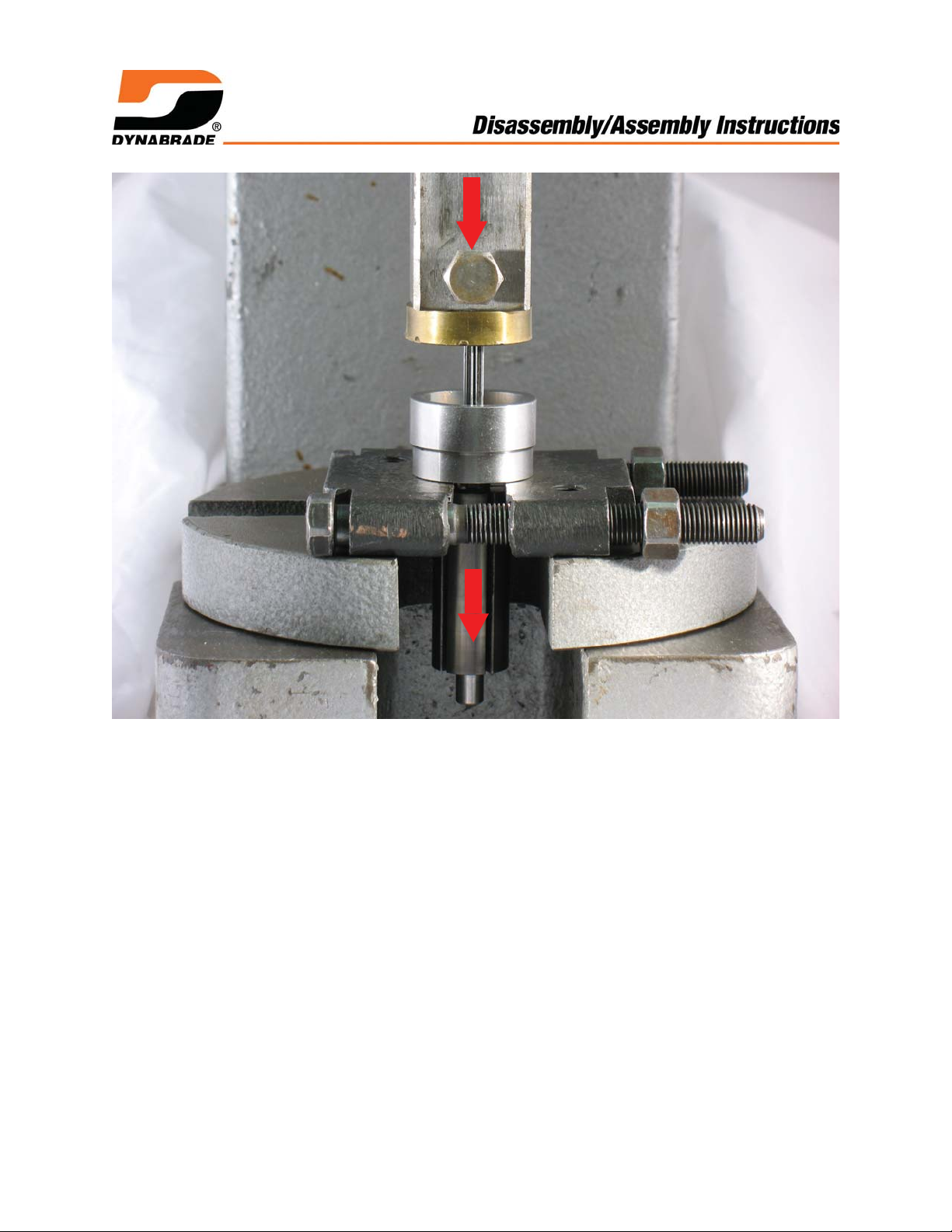

4. Fasten 96346 Bearing Separator (2") around 52046 Cylinder. Place separator and

motor in 96232 Arbor Press (#2) with rotor spindle pointingdown.

Use a Ø 1/4" or 6 mm flat-end drive punch to push rotor out of 02649 Bearing.

96232 Arbor Press

Ø 1/4" or 6 mm flat punch

96346 Bearing Separator

5. Use 96213 Bearing Removal Tool and arbor press to remove 02649 Bearing from

52044 Rear Plate.

96213 Bearing Removal Tool

6. Use arbor press and separator to remove rotor from front bearing and plate.

Remove 02651 Bearing, 53339 Front Plate, shims, and 53337 Spacer.

R

7. Use 96214 Bearing Removal Tool to push 02651 Bearing and 96556 Wave Washer

out of 53339 Front Plate. Remove shims from plate.

96214 Bearing Removal Tool

Motor disassembly completed.

Clean and inspect parts for wear or damage.

Motor Assembly:

1.

Select .003" (~0.08 mm) shim thickness from 53397 Shim Pack.

• Place shims into 53339 Front Plate.

• Install 02651 Bearing.

2.

Install 53337 Spacer onto rotor.

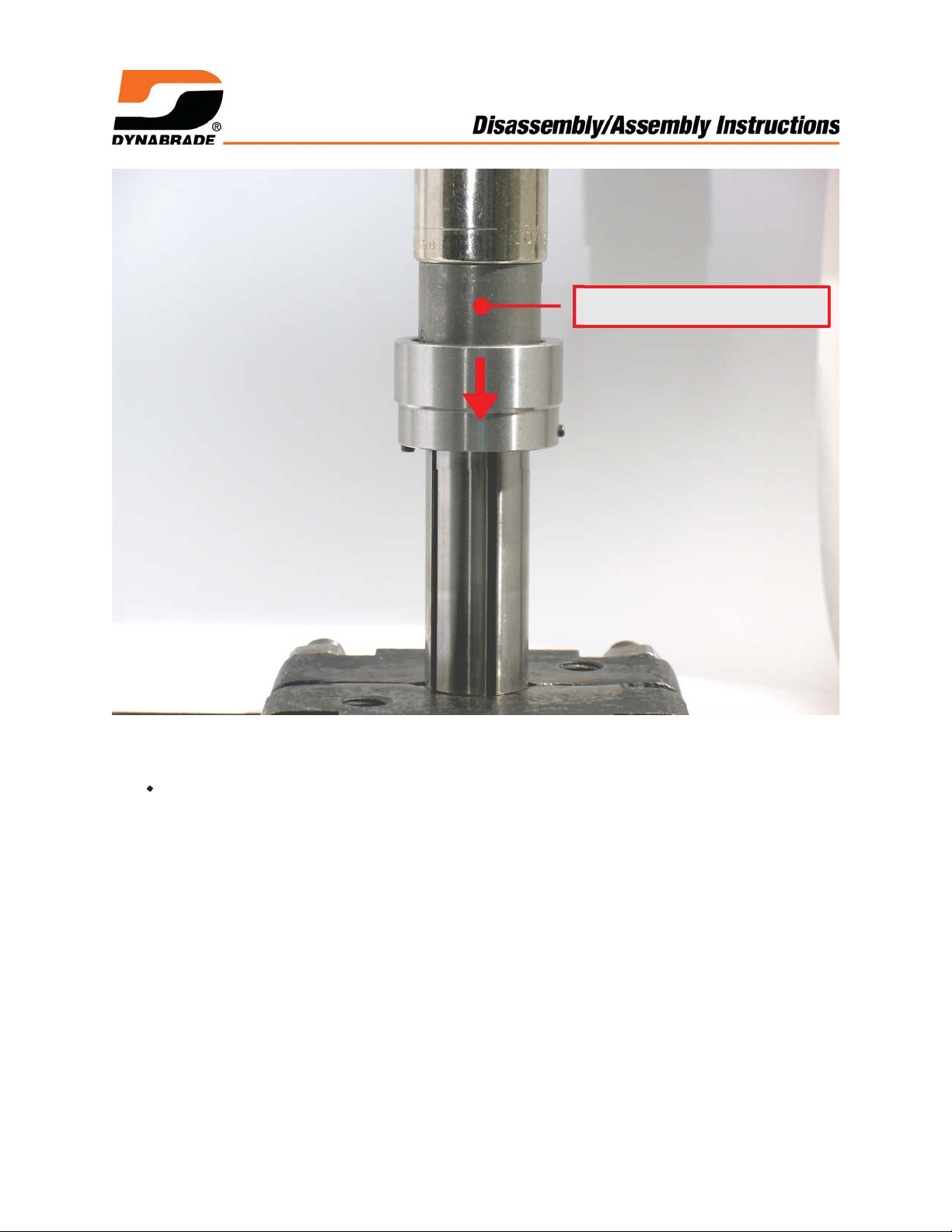

Use RAISED INSIDE DIAMETER of 96239 Bearing Press Tool and arbor press

to install; 53339 Front Plate, shims and 02651 Bearing. Notice: Use a socket on

top of 96239 to extend depth of press tool.

96239 Bearing Press Tool
