Disassembly Instructions – Mini Vacuum Dynorbital EXTREME

Models: X32V

Important: Disconnect sander from the air supply.

Notice: Use these instructions along with the tool manual. To avoid damage, use the

special repair tools designed for motor disassembly and assembly. Position 57092

Repair Collar around the housing. Fasten sander in vise with sanding pad facing up.

Do not over tighten sander in vise. Use 95263 Wrench (17 mm) to hold the balancer

shaft stationary.

To remove sanding pad, turn counterclockwise.

Motor Disassembly:

1. Use 56061 Lock Ring Wrench to remove 59415 Lock Ring.

 Turn counterclockwise.

2. Remove motor from housing.

 Remove 01024 O-Ring from 59412 Cylinder Sleeve Adapter.

 Remove lock ring 59415 from motor assembly

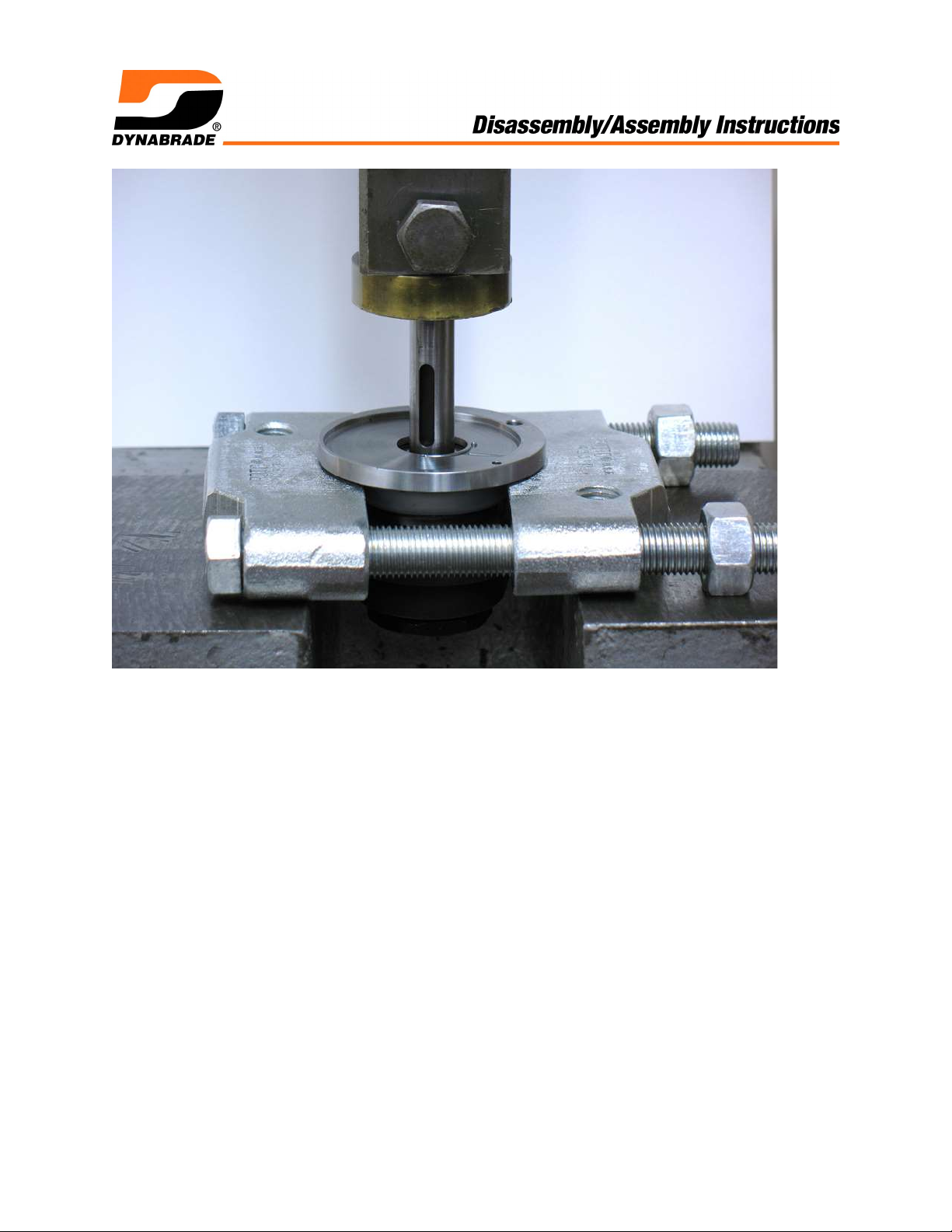

3. Fasten 96346 Bearing Separator (2") around 59411 Cylinder Sleeve. Place

bearing separator and motor in 96232 Arbor Press (#2) with counterweight

pointing down.

 Use arbor press and 5/16" or 8 mm diameter flat-end drive punch to push shaft

out of 01139 Bearing.

 Remove 59411 Cylinder Sleeve & 59412 Cylinder Sleeve Adaptor

4. Use 96214 Bearing Removal Tool to remove 01139 Bearing from 59405 Rear

Bearing Plate.

5. Remove vanes, rotor and key.

6. Use bearing separator and arbor press to remove the front bearing plate.

7. Fasten bearing separator between 58368 Bearing and the counterweight.

 Place bearing separator in arbor press with counterweight pointing down.

 Push shaft balancer from 58368 Bearing.

Motor disassembly completed.

Balancer Shaft and Bearing Disassembly:

1. Fasten counterweight in vise with hex of 59407 Balancer Shaft pointing up.

 Use a thin slot-blade screwdriver as a pick to remove 95613 Snap Ring.

(Next three views.)
