1.1 System Features
Dynabook Satellite C50/Pro C50 is a Slim and Light entry notebook PC based on the
mobile Intel Ice Lake U series Processor, providing high-speed processing capabilities
and advancedfeatures. The computer employs a Lithium Ion battery that allows it to be
battery-operated for a longer period of time. The display uses 15.6-inch FHD and HD
LED panel, at a resolution of 1920x1080 and 1366x768. The CPU package is BGA
type.
The computer has the following features:
Processor
•CPU is mobile Intel Ice Lake U
Processor:
Intel Ice Lake U i3 CPU
i3-1005G1 (1.20G)
Hz
Intel Ice Lake U i5 CPU
i5-1035G1 (1.00G)
Hz
Intel Ice Lake U i7 CPU
i7-1065G7 (1.30G)
Hz
Host Bridge System Controller
System Controller: Intel integrated Host bridge system into CPU.
Graphics
Internal: Intel Ice Lake -U
integrated.
4
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
Memory
The computer has 1 SO-DIMM DDR4 memory particles which support single
channel. DDR4 is driven at 1.2V. It can incorporate up to 16GB of memory
configuration.
Using the following sizes of memory configuration:
4096 MB SO-DIMM DDR4-3200MHz
8192 MB SO-DIMM DDR4-3200MHz
16384 MB SO-DIMM DDR4-3200MHz
Solid State Drive (SSD)
The computer accommodates SSD with following types:
SATA SSD M.2 128GB/256GB/512GB
Display
LCD displays come in the following type at resolution 1920x1080 and
1366x768:
15.6” FHD 250nits eDP 1920x1080 LED display
15.6" HD 220nits eDP 1366x768 LED display
On-Board LAN
The internal LAN supports 10/100/1Gbit Ethernet, enabling connection to a
LAN at up to 1Gbps. It supports Wake-up on LAN from S3/S4/S5 and PXE
boot support. This internal LAN has RJ45 jack to directly accommodate a LAN
cable.
Wireless LAN
The internal Mini Card slot supports, Intel Jefferson Peak1, 802.11ac+BT5.0
and Intel Harrison Peak2, 802.11ax+BT5.1 Wireless LAN cards. The Antenna
has two wires dual band.
5
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
Sound System
REALTEK ALC256 integrated audio controller supports multimedia. The sound
system contains the following:
Stereo speakers
External microphone &Headphone combo jack
Integrated microphone (with Webcam)
Keyboard
many kinds’ countries keyboard, which is Non-backlight keyboard with
UK/US/JP keyboard.
Pointing Device
Click Pad pointing device support. Gesture support for precision function as
Tapping/Tap and Drag/Pinch zoom/Up to 4 fingers.
USB Port
The computer has three USB ports, two for USB3.0 type A , Another One is
USB type C (USB3.1 Gen1/DP/PD). High-Speed USB3.0/3.1 allows data
transfers up to 5Gbps
HDMI Out Port
A HDMI monitor can be connected to HDMI Out Port on the computer.
Bridge Media Slot
This slot is for your memory card requirements like SD/Mini SD (need
adaptor)/Micro SD (need adaptor)/SDHC/SDXC and MMC Cards to provide
memory card read on your computer.
Webcam with embedded internal microphone
The computer has an internal camera. It supports HD (0.9M) with Camera
shutter. It also supports Camera LED, LED is on when Camera working. The
internal microphone is embedded in this camera module.
6
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
Battery
The computer has a 2 Cell (6000mAh) Lithium Ion battery pack.
Figures 1-1/1-2/1-3 and 1-4 show the computer and its system unit
configuration, respectively.

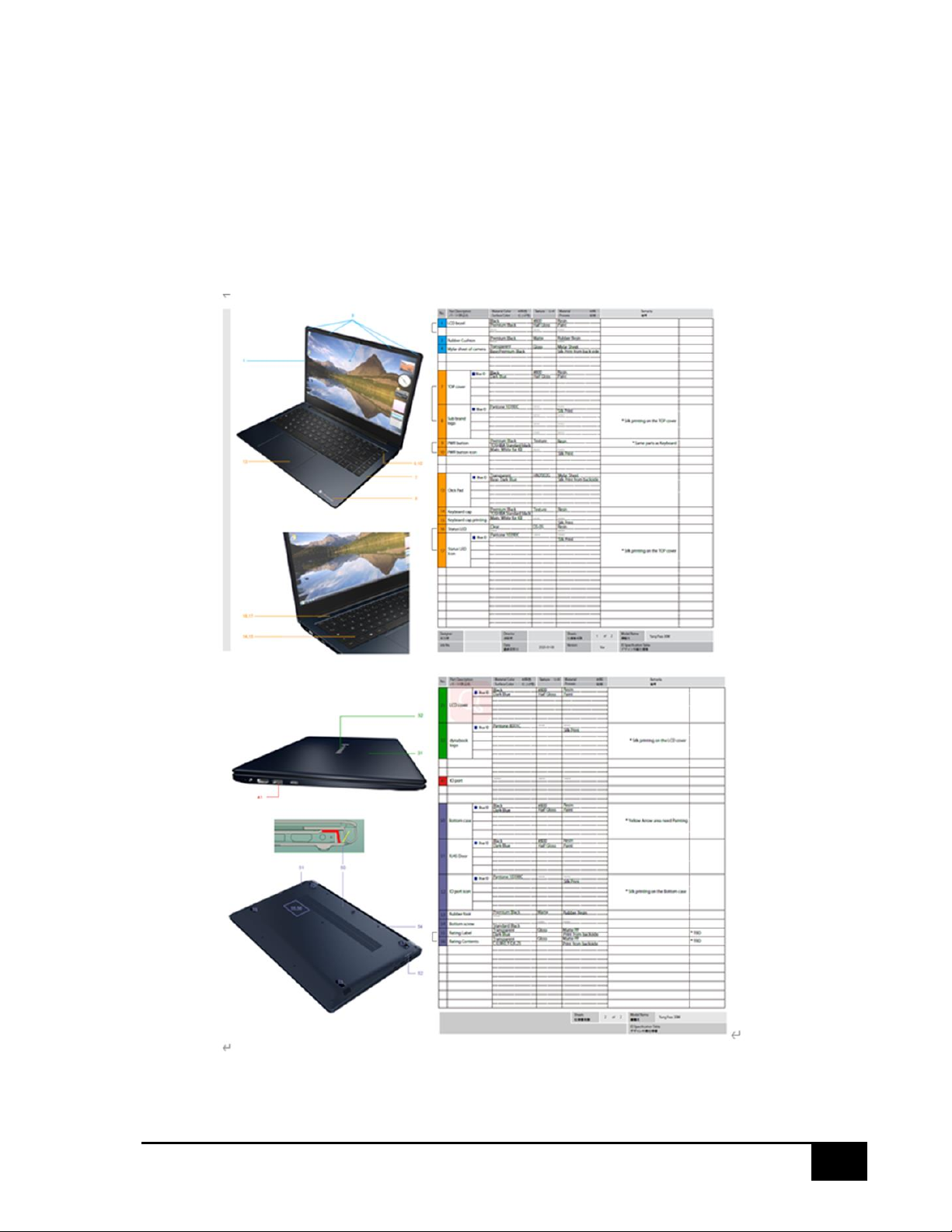

Figure 1-1 ID Parts Description Placement
7
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual

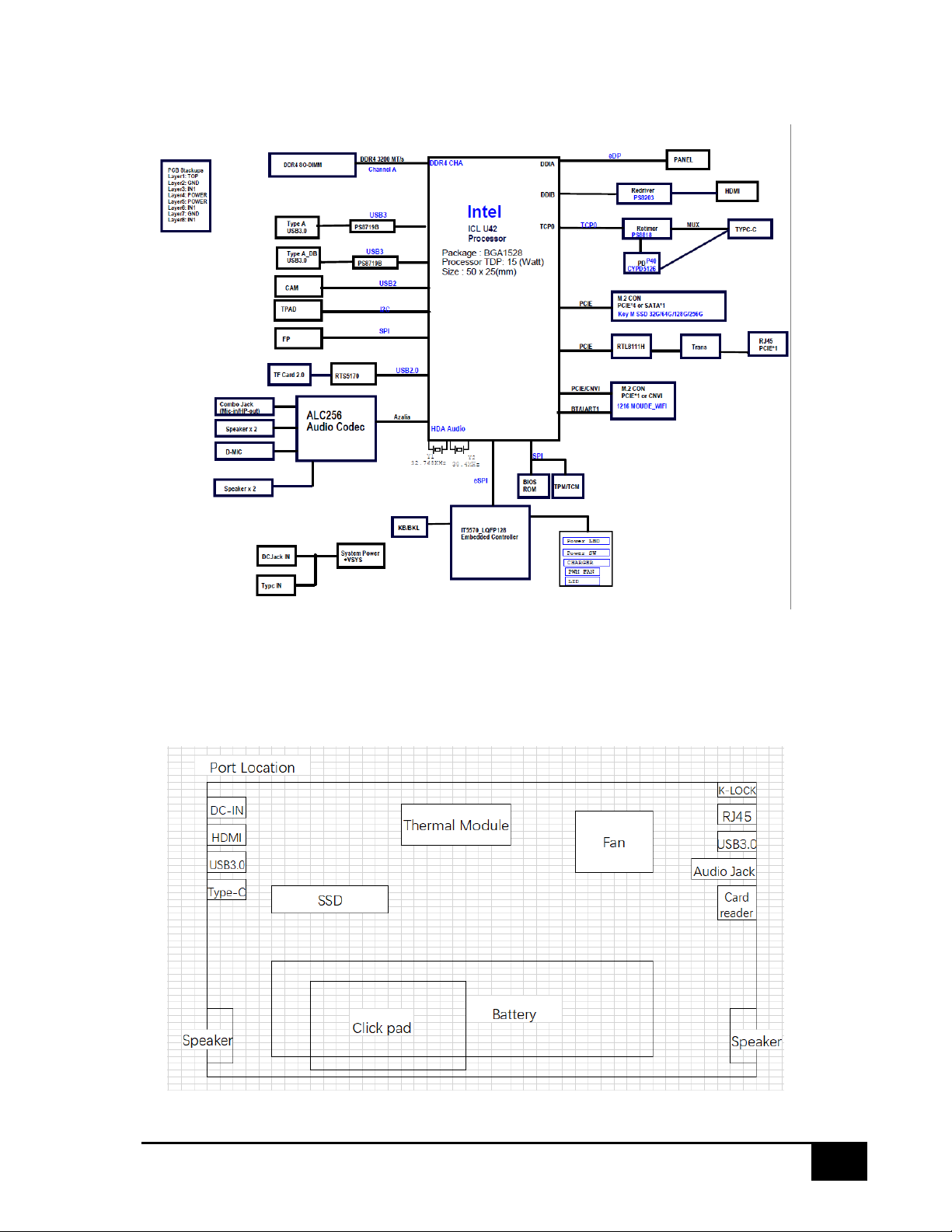

Figure 1-2 Computer Block Diagram
Figure 1-3 System Board Configurations
8
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
1
1.2 System Unit Components
Figure 1-4 System Unit Block
Diagram
9
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
The system unit of the computer consists of the following components:
Processor: CPU is mobile Intel Ice Lake U Processor:
Intel Ice Lake U i3 CPU
i3-1005G1(1.20G)Hz
Intel Ice Lake U i5 CPU
i3-1035G1(1.00G)Hz
Intel Ice Lake U i7 CPU
i7-1065G7(1.30G)Hz
Memory: The computer has 1 SO-DIMM DDR4 memory particles which support
single channel. It can incorporate up to 16GB of memory configuration.
PC4-3200 (3200MHz) SO-DIMM DDR4 supported
DDR4 1.2V operation
Data transfer rates: PC4-3200 on i3/i5/i7 CPU
BIOS ROM (Flash memory)
10
SATELLITE PRO C50-H, SATELLITE C50-H Maintenance Manual
Storage Size
Nv Storage size: 128K
NVRAM_BACKUP size: 192k
FV_MAIN_WRAPPER size: 4992k
FV_MAIN_WRAPPER free space: 2609k
FV_DATA size: 832k
FV_DATA free space: 3k
FV_NETWORK_WRAPPER size: 2240k
FV_NETWORK_WRAPPER free space: 1648k
FV_BB size: 448k
FV_BB free space: 65k
FV_BB_AFTER_MEMORY_WRAPPER size: 256k
FV_BB_AFTER_MEMORY_WRAPPER free space: 62k
FV_FSP_S size: 576k
FV_FSP_S free space: 215k
FV_FSP size :448K
System Controller
Mobile Intel integrated ICE Lake into CPU.
System Memory Interface
Technology Enhancements of Intel Fast Memory Access
System Memory Frequency
DRAM Clock Generation
DRAM Reference Voltage Generation
Processor Graphics Controller(GT)
Digital Display Interface(DDI)
Platform Environmental Control Interface(PECI)
Advanced Configuration and Power Interface
(ACPI)states supported
Processor Core Power Management
Integrated Memory Controller (IMC) Power Management
Graphics Power Management
Intel Turbo Boost Technology 2.0 Power Control
Configurable TDP (cTDP) and Low Power Mode
Adaptive Thermal Monitor
Digital Thermal Sensor
Intel Memory Thermal Management
Scenario Design Power(SDP)
