PS-24-1-U
99.827.11 1.0/07/16 1/2
English
Original instructions

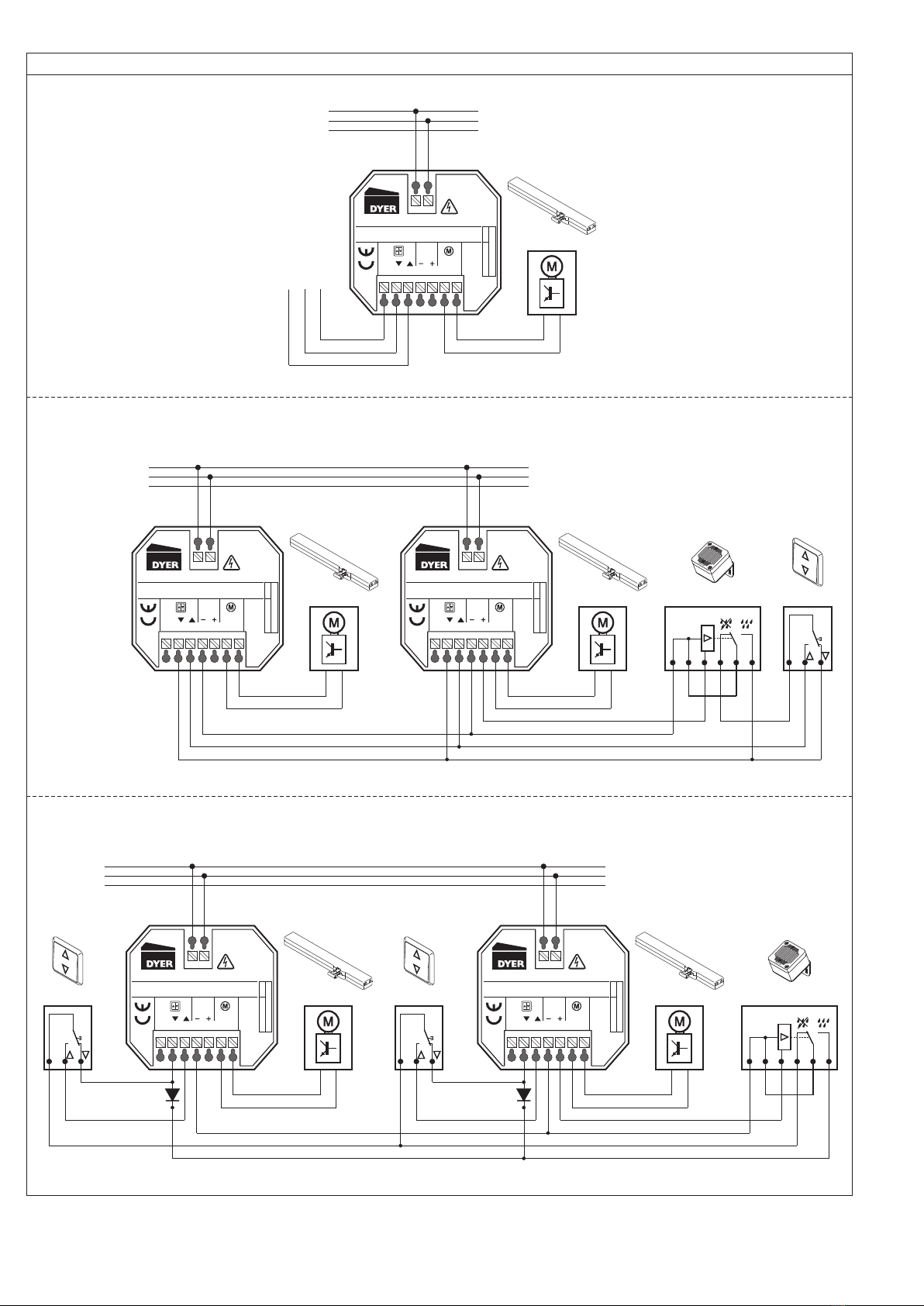

Example for Application
rain detector*
external control*
ventilation drive*
vent button*
* optional function extension (separate components retrofitable)
Safety notes
Operating voltage 230 V AC!
Risk of injury from electric shock!
Connection must be carried out by a certified electrical technician.
- Use only in dry rooms.
- Do not lay 24 V DC and 230 V AC cables in the same cable duct!
- Use unmodified original parts only.
- Observe the drive instructions for use.
Intended use
- Compact ventilation control for separate rooms and conservatories
- For triggering of 24 VDC drives
- 1 ventilation group
- 1 A total actuating current
- Ventilation safety function (key operation OPEN/CLOSE)
- Possibility of connecting rain detector or wind/ rain detector
- For installation in branch box provided on site
- Only for inside mounting
Technical Data
Type : PS-24-1-U
Power supply : 230 V AC 50 Hz
Power : 30 VA
Class of rating : short-time duty, 20%
Output : 24 V DC, max. 1 A
Ripple : <= 1%
Ingress protection : IP 30
Temp. range : -0 ... +50 °C
Housing : plastic
Dimensions : 50 x 48 x 28 mm WxHxD
Disposal
Electrical devices, accessories, batteries and packaging should be sorted for
environmental-friendly recycling.
Do not dispose electrical devices and batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for waste electrical and
electronic equipment and its implementation into national right, electrcal
devices that are no longer usable must be collected separately and dispo-
sed of in an environmentally correct manner.
PS-24-1-U
X2
N
b
IN:
230VAC / 30VA
OUT:
24VDC /
1A
2
mA
max.50
IP 3030.241.61
Temp.: 0°C...+55°C
C34567
1
L
X1
24V
a
Power
supply
WARNING
Read all safety warnings, instructions, illustrations and specifications
provided with this product.
Failure to follow all instructions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
Maintenance and cleaning
Maintenance work is only allowed when the device is in a de-energized
condition! Inspection and maintenance has to be carried out according to D+H
maintenance notes. Only original D+H spare parts may be used. Repair is to be
carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft cloth.
Do not use cleaning agents or solvents.
