DVS LCW-503 Manuel utilisateur

DVS

INSTRUCTION MANUAL

Digital Motion Detect Video Record System

This manual contains important information about this product's operation.

If you are installing this product for others, you must leave this manual -or a

copy-with the end user

PLEASE READ CAREFULLY AND SAVE

Color

RoHS

2002/95/EC

CONTENTS

Notice..................................................................................01

Function..................................................................................01

Using range...............................................................................01

Parts include in package...........................................................01

Technical Data............................................................................02

Unit Description of front Panel................................................03

SD Card using............................................................................03

Connecting the Device.............................................................04

Menu............................................................................................05

Manual capture Setup..................................................................06

Motion Detect Setup....................................................................07

Motion Detect Setup....................................................................08

Auto Capture Setup......................................................................09

Advanced Setting.........................................................................10

Advanced Setting.........................................................................11

Time/Date Setting..........................................................................12

Preview Mode...............................................................................13

Delete One Mode..........................................................................14

Delete All Mode.............................................................................15

Format Memory............................................................................16

Note before Use

Function Setup

Playback Operation

Notice 6.it is can be connect two cameras, and then

1.Please connect the parts of all demands have the function is Picture in picture, but just

first, then open power supply shoot the image of main camera

2.Please cut off power supply when you 7.Supply to all kind of CCD/CMOS camera

inserting or pulling out SD card to be avoiding 8.The stored photos/video clips will not lose

the equipments have damage. when power off

3.Please do not touch the metals part of the 9.Support video signal of NTSC/PAL

SD card directly by your hand. In order to 10.The setting of “motion detect sensing area,

prevent the SD card have damage sensitivity, interval” will not lose when power

permanence. off

4.Please use AC/DC power adaptor we offer 11.The shooting date is stored as file name,

5.Please far away from water or liquid, to the format of picture is JPEG, and the format

avoid short circuit of devise of video is AVI

6.In order to prevent the computer is frozen. 12.Can look for, and check images/video

When you use the equipment, Please don’t according to the shooting date

push multi- keystrokes at one time, or operate 13.Support playback the image on

abnormal and continually. TV/Monitor/Computer

Function Using Range

Digital Motion Detect Video Record System High performance, low cost, easy operating,

(DVS for short). It is new shoot and record can be connected all CCTV cameras, alarm

system of distinguish from high intelligent and systems and other devises as a combination to

digital motion picture. The basic function is use.

DVS=CCTV+DVR. When the motion object Suitable for monitoring home, office,

appears, the system can be take a picture or supermarket, warehouse, school, traffic tool,

shoot and record the picture by auto or Manu. police, Government and so on.

And then keep the picture into the inside

memorizer or SD. and that user can be view TV Parts include in package

(monitor) or computer (need install card reader) 1.DVS x1

anytime. User can be kept the picture into 2.DC12V adaptor x1

computer from SD card. 3.Video cable x2

1.Get into the state of "detecting moving 4.Din video cable x1

objects" once power on 5.User’s manual x1

2.Automatically take photos/record (record

images and sound simultaneously) once

detecting moving objects

3.Stop taking photos when the moving objects

stop moving

4.Support maximally 32G SD card which can

greatly enlarge the storage of images

5.Photos/Videos will overwrite when have no

space of hard disk

Note Before Use

Technical Data

①UP

②LEFT

③MENU/OK

④RIGHT

⑤DOWN

⑥SHOT

⑦MODE

⑧DISP

⑨ZOOM

①

②

③

④

⑤

⑥

⑦

⑧

⑨

DISP: Input signal swith, AV1,AV2,PIR;Use for wireless, as for channel switch function

SHOT: Shutter, playback, shop function

Zoom: 10x digital zoom, review function

Model

Power

Working Current

Working Temperature

Normal Capacity

Max. Capacity

Picture Form

Picture Element

Video Form

Frame Element

Frame Rate

Record Time

Compress Method

Record Signal

Video input

Video output

Dimension

Weight

LCW-503

DC12V

250mA

-10°C- +50°C

128Mb SD Card

32GB SD card

JPEG

640×480/D1

AVI

320×240/D1

30fps

10s/pc

Motion JPEG

Two Way Audio

Audio input 600Ω Typ

Audio output 600Ω Typ

155x95x30mm

135g

Please accord the following indication to inset SD card.

Please turn on secure button

Please cut off power supply when inset or put off SD card

Make sure secure button is turning on.

SD card

Unit Description of front Panel

SD card faucet direction

1.VIDEO OUT

2.DC12V

SD CARD: SD card insert groove PW switch On/Off

Direction of SD card

Support Max.capacity of 32GB

SD card Notice

Don’t touch metal part of SD card directly, otherwise, it will damage permanently by static

Please inset or put off SD card, when devise turn off.

1 2

Connecting the Device

Connecting indicates:

1, Use vide cable to connect monitor into video output port

Special adapter of DC12V

Camera

TV/monitor

Part 1: Manual Capture

Part 2: Auto Capture

Part 3: Motion Detect

Part 4: Advanced Setting

Part 5: Time/Date Setting

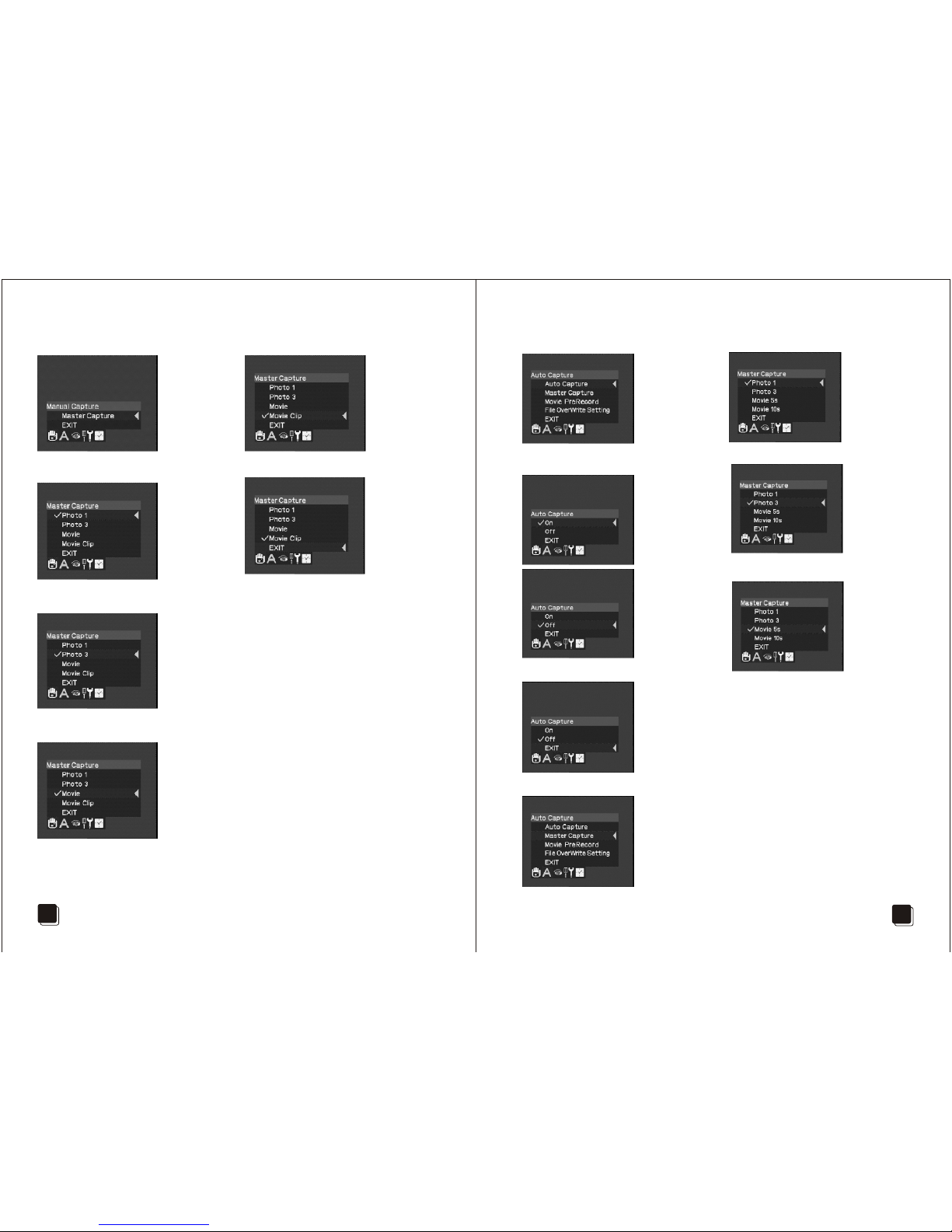

Manual Catpure Setup

1, Press MENU, enter into Manual Catpure setup interface

2, Use UP/DN key to select Photo 1,press OK/SHOT

key to capture for 1 picture

3, Use UP/DN key to select Photo 3, press OK/SHOT key to

continue catpure for 3 pictures

4, Use UP/DN key to select Movie, press OK/SHOT key to

begin/stop recording, saving for one AVI video

5, Use UP/DN key to select Movie Clip, press OK/SHOT key to

begin/stop recording, saving for several I minute AVI videos,

6, Use UP/DN key to exit

Auto Capture Setup

1, Press LF/RT key to enter into Auto Capture setup interface

2,Press OK key to enter into Auto capture interface,

use UP/DN key to select Auto Capturet On/OFF

3, Use UP/DN key to exit

4, Use UP/DN to select Master Capture Mode

5, Press OK key to enter into Master Capture Mode,

use UP/DN key to select Master auto capture 1 picture

6,Use UP/DN key to select Master auto capture 3 pictures

7,Use UP/DN key to select Movie 5 seconds,

Master auto recording, saving for AVI video

10, Use UP/DN key to enter into Movie PrerRcord interface,

note: choose Movie prerecord function, Picture-Picture function

will ineffective. And buttons will not high sensitivity as before.

Prerecord: Use prerecord,it can prerecord several seconds video

when you begin to prerecord. It can help user to review clear whan

happen in before,moment and after.

11, Use UP/DN key to select prerecord for 5 seconds.

12, Use UP/DN key to select prerecord for 10 seconds.

13, Use UP/DN key to Off

14, Use UP/DN key to exit Movie PreRecord interface

15, Use UP/DN key to select File Overwrite Setting

Auto Capture Setup

8,Use UP/DN key to select Movie 10 seconds,

Master auto recording, saving for AVI video

9, Use UP/DN key to select TimeSlot

9, Use UP/DN key to Exit Master Capture Mode

Auto Capture Setup

16,Press OK key to enter into File Overwrite Setting interface,

use UP/DN key to select On, it will auto continue to record and

cover before files

17,Use UP/DN key to select Off, it will clew SD card is full

18,Use UP/DN key to Exit File Overwrite Setting interface

19,Use UP/DN key to Exit Auto Capture interface

Motion Detect Setup

1, Press LF/RT key to enter into Motion detect interface

2, Use UP/DN key to select Range

3, Press OK key to enter into Range interface,use

UP/DN key to select MD range for whole screen

4,Use UP/DN key to select MD range for 1/4 screen

5,Use UP/DN key to select MD range for 1/6 screen

6,Use UP/DN key to exit Range

7,Use UP/DN key to select TimeSlot

8,Press OK key to enter in Timeslot interface,

Use UP/DN key to select internal time for 1 second

9,Use UP/DN key to select internal time for 3 seconds

Motion Detect Setup

10,Use UP/DN key to select internal time for 5 seconds

11,Use UP/DN key to exit Timeslot

12, Use UP/DN key to select Sensitivity

13,Press OK key to enter in Sensitivity interface,

Use UP/DN key to select Level of Sensitivity for Low

14,Use UP/DN key to select Level of Sensitivity for Middle

15,Use UP/DN key to select Level of Sensitivity for High

16,Use UP/DN key to Exit Sensitivity interface

17, Use UP/DN key to Exit Motion Dection

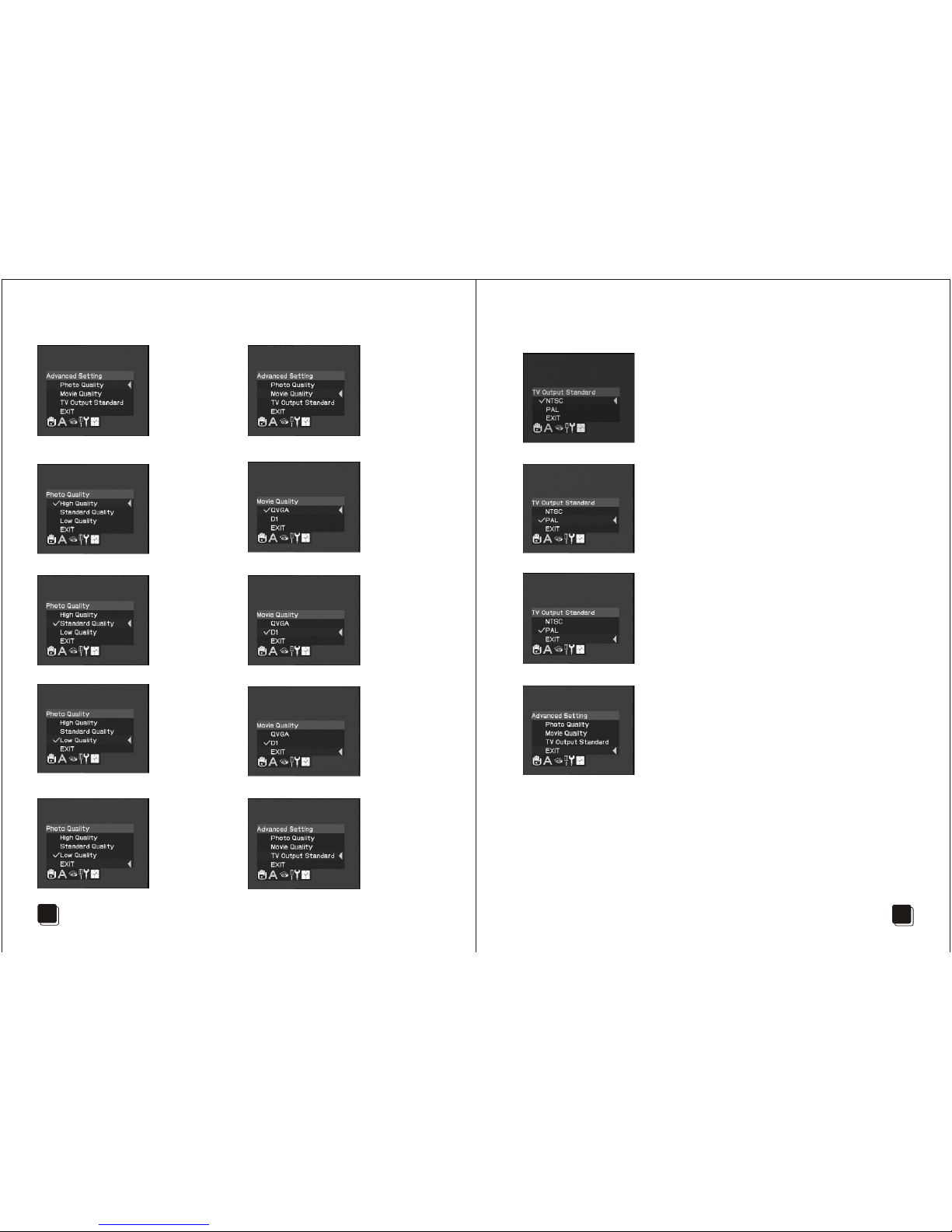

Advanced Setting

1,Press LF/RT key to enter into Advanced setup interface

2,Press OK key to enter into Photo Quality interface,

use UP/DN key to select High Quality

3, Use UP/DN key to select Standard Quality

4, Use UP/DN key to select Low Quality

5,Use UP/DN key to Exit Photo Quality interface

6, Use UP/DN key to select Movie Quality interface

7, Press OK key to enter into Movie Quality interface,

use UP/DN key to select QVGA

8, Use UP/DN key to select DI

9, Use UP/DN key to Exit Movie Quality interface

10, Use UP/DN key to select TV Output Standard

11, Press OK key to enter into TV Output Standard interface,

use UP/DN key to select NTSC system

12, Use UP/DN key to select PAL system

13, Use UP/DN key to exit TV Output Standard interface

14, Use UP/DN key to Exit Advanced Setting

Advanced Setting

Time/Date Setting

1, Press LF/RT key to enter into Time/Date Setting interface

2,Press OK key to enter into Set Time/Date interface,

use UP/DN key to set Time/Date

3, Press OK key to enter into Photo TimeStamp interface

4, Use UP/DN key to select Photo TimeStamp ON/OFF

5, Use UP/DN key to select Movie TimeStamp interface

6, Use UP/DN key to select Movie TimeStamp On/OFF

7, Use UP/DN key to Exit Time/Date Setting

Preview Mode

1, Press MODE key, enter into preview Mode interface

2, Press ZOOM key, enter into preview folder directory

3, Select Folder directory, press ZOOM key enter into root directory

4, Use UP/DN, LF/RT key to select browse file

5, Press MENU/OK key enter into browse file interface

6, Use UP/DN, LF/RT key to select browse file

7, Press MENU/OK key to open browse file

8, Press SHOT key to play/stop select file

9, Use UP key to quit play file

Delete One Mode

1, At preview Mode, use UP/DN, LF/RT key to select file

2, Press MENU key to enter into playback menu,

use UP/DN to select File Delete

3, Press MENU key to enter into File Delete interface

4, Use UP/DN key to select delete single

5, Press MENU key to enter into confirm menu

6, Use LF/RT key to select Yes key to delect

7, Use LF/RT key to select No to quit delete interface

8, Use UP/DN key to select Cancel, press MENU key to exit

Delete All Mode

1, At preview Mode, use UP/DN, LF/RT key to select file

2, Press MENU key to enter into playback menu,

use UP/DN to select File Delete

3, Use UP/DN key to select delete All

4, Press MENU key to enter into confirm menu

5, Use LF/RT key to select Yes key to delect

6, Use LF/RT key to select No to quit delete interface

7, Use UP/DN key to select Cancel, press MENU key to exit

Autres manuels DVS DVR

DVS

DVS 4 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
