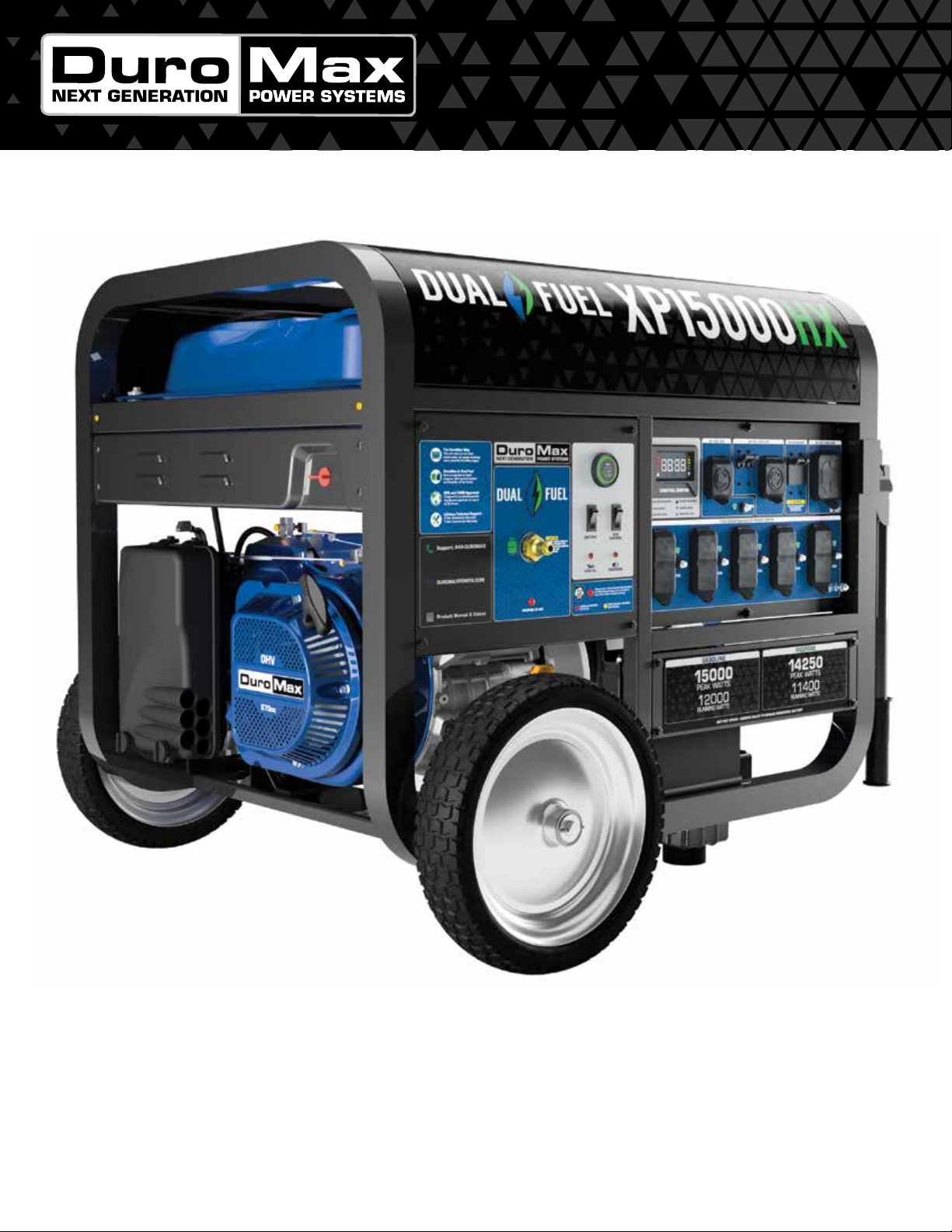

DUROMAX XP15000HX Manuel utilisateur
This manual provides information regarding the
operation and maintenance of these products. We
have made every effort to ensure the accuracy of the
information in this manual. We reserve the right to
change this product at any time without prior notice.
REV: XP15000HX-09082022 5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
www.duromaxpower.com
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
844-DUROMAX
XP15000HX
USER MANUAL
1. Introduction .................................................................................................................... 6
General Safety Procedures ........................................................................................... 8
Carbon Monoxide Safety ............................................................................................. 12
Unit and Purchase Information .................................................................................. 14
Introduction
4.
Checking the Oil ........................................................................................................... 30
Check the Gas Level ..................................................................................................... 31
Starting the Generator Using Gasoline ...................................................................... 32
Starting the Generator Using Propane....................................................................... 34
Starting the Generator Using Recoil Start ................................................................. 38
Starting the Generator Using Remote Start .............................................................. 40
Starting the Generator
3. Unpack the Generator.................................................................................................. 21
Wheel Kit Installation.................................................................................................... 22
Connect the Battery .................................................................................................... 24
Adding Oil ...................................................................................................................... 25
Adding Gasoline ............................................................................................................ 26
Grounding the Generator ............................................................................................ 27
Attach Propane Inlet..................................................................................................... 28
High Altitude Operation ............................................................................................... 28
Generator Setup
5.
AC Usage ........................................................................................................................ 44
Connecting the Generator to a Home........................................................................ 47
Connecting a Load to the Generator.......................................................................... 48
Choosing the Right Power Cord .................................................................................. 49
Using the Digital Multimeter ....................................................................................... 50
Idle Control Usage ........................................................................................................ 51
Using the Generator
2. Generator Components............................................................................................... 16
Package Contents ......................................................................................................... 18
Generator Components
CONTENTS
6.
7.
8.
Maintenance Schedule.................................................................................................. 54
Break-In Period ............................................................................................................. 55
Maintenance Log ........................................................................................................... 55
Checking the Oil ............................................................................................................. 56
Changing the Oil............................................................................................................. 57
Cleaning the Air Filter .................................................................................................... 58
Spark Plug Maintenance ............................................................................................... 60
Emptying the Gas Tank ................................................................................................. 62
Transporting the Generator ......................................................................................... 65
Storing the Generator for Same Day Use ................................................................... 66
Storing the Generator for Use Within 30 Days........................................................... 67
Storing the Generator for Longer than 30 Days ........................................................ 68
Specications.................................................................................................................. 70
.......................................................................................................................... 76
Basic Troubleshooting .................................................................................................. 72
Changing / Inspecting the Carbon Brushes ............................................................... 73
Wiring Diagram ............................................................................................................. 75
Maintenance and Care
Warranty
Troubleshooting
9. .................................................................................................. 80
Contact Information
For more information and resources on this model scan the QR
code below to link to our website product information page.
CONTENTS
6
THE DUROMAX WAY
The DuroMax Way is more than just a brand, it is our understanding and appreciation of just how
important power can be to someone without it…
DUROMAX FOR HOME
Electricity in our home not
only provides comfort but
safety as well. From keeping
the heat or A/C on to keeping
our food cold, power is
essential to our daily lives.
Inevitably when disaster
strikes and we are left without
power for a prolonged period
of time, our way of life is
put at risk. This is by far the
most critical time for reliable
portable power.
DUROMAX FOR WORK
On the job site, portable
power allows you the ability
to get work done in remote
locations when traditional
power sources are usually
unavailable. Equipment like
table saws, sanders, and
work lights are a necessity
and portable power can
play a critical role in getting
a job done successfully and
eciently.
DUROMAX FOR PLAY
Camping outdoors in a
remote location can get one
in touch with nature and allow
them to forget the stress of
the day to day grind. Here
portable power can provide
comfort as well as safety. With
portable power, you can keep
your cell phone charged, light
up your campsite, or even
brew a cup of coee, all while
being miles from civilization.
The DuroMax Way is a commitment to excellence. This vision is focused on the quality, reliability,
and durability of our products combined with outstanding customer service. We understand that
having dependable power whenever and wherever you need it provides comfort, safety, and peace
of mind. It is through this philosophy that DuroMax achieves our vision of...
7
INTRODUCTION
DuroMax Power Equipment is headquartered in Ontario, California and is the industry’s leader in
Dual Fuel portable generator technology. In addition to a full assortment of portable generators
ranging from digital inverters to large 15,000-watt portable standby units, their product line
includes pressure washers, engines, pumps, and accessories.
The foundation of our company is built on quality, reliability, durability, and customer service. At
DuroMax our vision is simple, we are committed to Powering Everyone... Anywhere!
Engines that are certied to comply with U.S. EPA emission regulations for SORE (Small o Road
Equipment), are certied to operate on regular unleaded gasoline and may include the following
emission control systems: (EM) Engine Modications and (TWC) Three-Way Catalyst (if so equipped).
STOP
Please do not return
to the store.
DuroMax representatives are ready to help you
with any questions, concerns, or issues about your
new product. We can guide you through assembly,
start up, and how to operate your new generator.
We want you to be able to put your new generator
to use right away!
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
1-844-DUROMAX
TOLL-FREE
Notice Regarding Emissions
8
DANGER:This generator produces poisonous carbon monoxide gas when running. This
gas is both odorless and colorless. Even if you do not see or smell gas, carbon monoxide
may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness,
and eventually death.
●Use outdoors ONLY in non-conned areas.
●Keep several feet of clearance on all sides to allow proper ventilation of the generator.
WARNING: The exhaust from this product contains chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator produces heat when running. Temperatures near exhaust can
exceed 150°F (65°C).
●Do not touch hot surfaces. Pay attention to warning labels on the generator denoting
hot parts of the machine.
●Allow generator to cool for several minutes after use before touching engine or areas
which heat during use.
GENERAL SAFETY PROCEDURES
Please familiarize yourself with the following safety symbols and words:
●DANGER: Indicates a hazard that will result in serious injury or death if instructions are not
followed.
●WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not
followed.
●CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not
followed.
SAFETY ALERT SYMBOL
The safety alert symbol is used with one of the safety words (DANGER,
WARNING, or CAUTION) to alert you of hazards. Please pay attention to
these hazard notices both in this manual and on the engine.
9
WARNING: This generator may emit highly ammable and explosive gasoline vapors,
which can cause severe burns or even death. A nearby open ame can lead to an
explosion even if not directly in contact with gasoline.
●Do not operate near an open ame.
●Do not smoke near the generator.
●Always operate on a rm, level surface.
●Always turn the generator o before refueling.
●Allow generator to cool for at least 2 minutes before removing the fuel cap. Loosen
cap slowly to relieve pressure in the tank.
●Do not overll the gas tank. Gas may expand during operation. Do not ll to the top
of the tank.
●Always check for spilled gas before operating.
●Empty the gasoline tank before storing or transporting the generator.
●Before transporting, turn the fuel valve to the o position and disconnect
the spark plug.
WARNING:This generator produces a powerful voltage, which can result in electrocution.
●ALWAYS ground the generator before using it (see the “Grounding the Generator”
portion of the “PREPARlNG THE GENERATOR FOR USE section).
●The generator should only be plugged into electrical devices, either directly or with
an extension cord. NEVER connect to a building electrical system without a qualied
electrician. Such connections must comply with local electrical laws and codes. Failure
to comply can create a back-ow of power, which may result in serious injury or death
to utility workers.
●Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal
decking or steelwork. GFCls are available in-line with some extension cords.
●Do not use uncovered in rainy or wet conditions.
●Do not touch bare wires or receptacles (outlets).
●Do not allow children or non-qualied persons to operate.
In addition to the above safety notices, please familiarize
yourself with the safety and hazard markings on the
generator.
DANGER
DO NOT OVERFILL
THE GAS TANK
OVERFILLING CAN RESULT
IN A FIRE, EXPLOSION,
OR DEATH.
1.5”
10
