-1

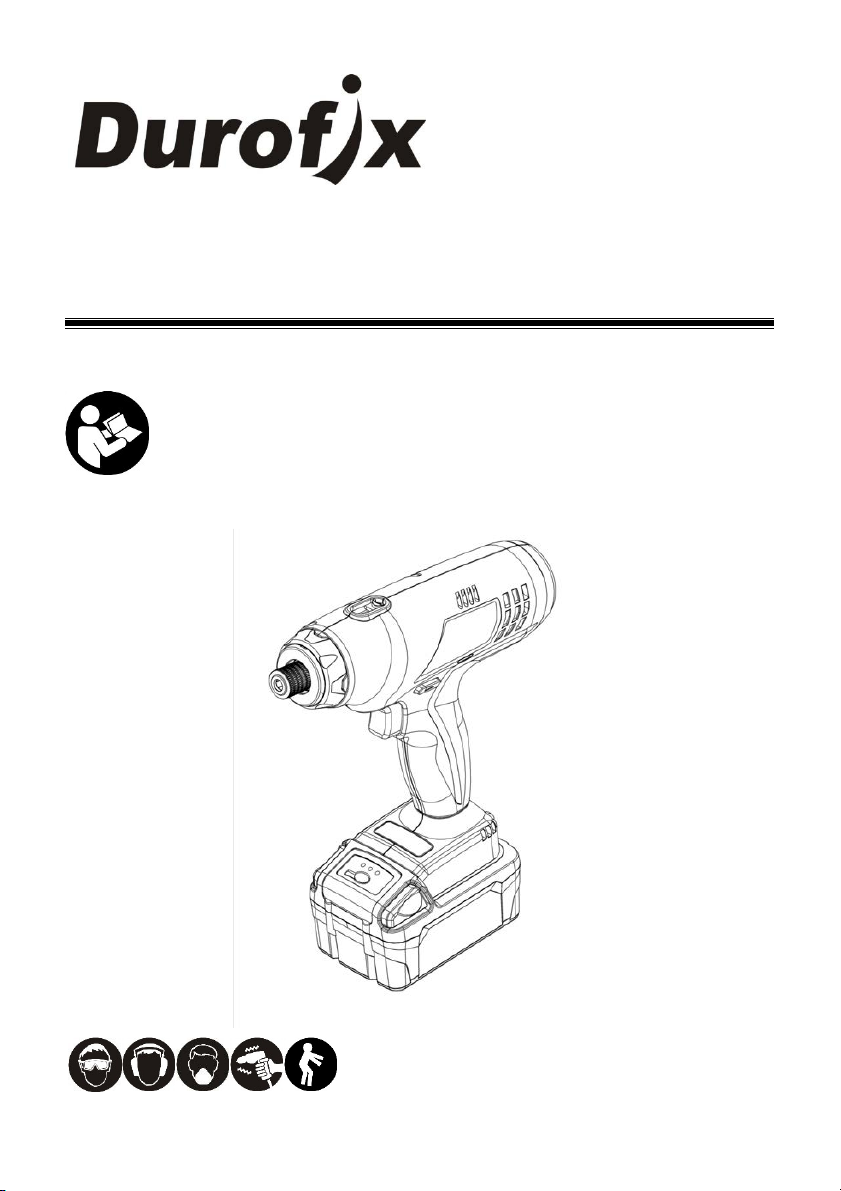

RV2048-W2, RV2048-W6, RV2048-W12

(BLUE TOOTH TYPE)

PRECISION CORDLESS SCREWDRIVRER

PRODUCT INFORMATION MANUAL

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,

OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.

DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND

UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS

MANUAL. FAILURE TO COMPLY MAY RESULT IN ACCIDENTS INVOLVING FIRE,

ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY. SAVE THIS OWNER’S

MANUAL FOR FUTURE REFERENCE AND REVIEW IT FREQUENTLY FOR SAFE

OPERATION.

Original Instructions

-2

THANKS FOR CHOOSING THIS PRODUCT

Durofix provides you with products at an affordable price, and we would like you to be

fully satisfied with this product and our technical support. If any help or advice is

needed, please kindly contact us.

INTENDED USE

This tool is intended for trained adult use only.

This screwdriver is designed to remove and install threaded fasteners.

GENERAL SAFETY RULES

Read all safety warnings, instructions, illustrations and

specifications provided with this power tool.Failure to follow

all instructions listed below may result in electric shock, fire and/or serious injury.

The term "power tool" in all of the warnings listed below refers to your mains-

operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS

The safety instructions provided in this manual are not intended to cover all possible

conditions and practices that may occur when operating, maintaining and cleaning

power tools.

Always use common sense and pay particular attention to all the DANGER,

WARNING, CAUTION and NOTE statements of this manual.

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

DANGER indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate injury.

NOTE provides additional information that is useful for proper

use and maintenance of this tool. If a NOTE is indicated make

sure it is fully understood.

DANGER

WARNING

CAUTION

NOTE

WARNING

-3

WARNING LABEL IDENTIFICATION

Read Manuals Before Operating Product.

Wear Eye Protection.

Wear Hearing Protection.

Wear Dust Mask.

Power tools can vibrate in use.

Keep body stance balanced and firm. Do not overreach when operating this

tool.

IMPORTANT SAFETY RULES

When using power tools, always prevent exposure and breathing of harmful

dust and particles.

WARNING: Some dust created by power sanding, sawing, grinding, drilling and

other construction activities contains chemicals known to the State of California to

cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks and cement and other masonry products, and

arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area,

and work with approved safety equipment, such as dust masks that are specially

designed to filter out microscopic particles.

WARNING: Handling the power cord on corded products may expose you to lead, a

chemical known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

WORK AREA

DANGER

-4

Keep work area clean and well lit. Cluttered and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the

dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions

can cause you to lose control.

ELECTRICAL SAFETY

a. Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric shock

if your body is earthed or grounded.

b. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock

c. Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

d. When operating a power tool outdoors, use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric

shock.

e. If operating a power tool in a damp location is unavoidable, use a residual

current device (RCD) protected supply. Use of an RCD reduces the risk of

electric shock.

f. NOTE The term “residual current device (RCD)” can be replaced by the term

“ground fault circuit interrupter (GFCI)” or “earth leakage circuit breaker

(ELCB)”.

PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating

a power tool. Do not use a power tool while you are tired or under the

influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment such as

dust mask, non-skid safety shoes, hard hat, or hearing protection used for

appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before

WARNING

-5

connecting to power source and/or battery pack, picking up or carrying the

tool. Carrying power tools with your finger on the switch or energising power

tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in

personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables

better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used. Use of these devices

can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become

complacent and ignore tool safety principles. A careless action can cause

severe injury within a fraction of a second.

TOOL USE AND CARE

a. Use clamps or other practical way to secure and support the workpiece to a

stable platform. Holding the work by hand or against your body is unstable and

may lead to loss of control.

b. Do not force tool. Use the correct tool for your application. The correct tool

will do the job better and safer at the rate for which it is designed.

c. Do not use tool if switch does not turn it on or off. A tool that cannot be

controlled with the switch is dangerous and must be repaired.

d. Disconnect battery pack from tool or place the switch in the locked or off

position before making any adjustments, changing accessories, or storing the

tool. Such preventive safety measures reduce the risk of starting the tool

accidentally.

e. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

f. Maintain power tools and accessories. Check for misalignment or binding of

moving parts, breakage of parts and any other condition that may affect the

power tool’s operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

g. Keep cutting tools sharp and clean. Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

WARNING

-6

h. Use the power tool, accessories and tool bits etc. in accordance with these

instructions, taking into account the working conditions and the work to be

performed. Use of the power tool for operations different from those intended

could result in a hazardous situation.

i. Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control

of the tool in unexpected situations.

j. When battery pack is not in use, keep it away from other metal objects like:

paper clips, coins, keys, nails, screws, or other small metal objects that can

make a connection from one terminal to another. Shorting the battery

terminals together may cause sparks, burns, or a fire.

k. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with sharp cutting edge are less likely to bind and are easier to

control.

l. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool's operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly maintained

tools.

m. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may create a risk of injury

when used on another tool.

BATTERY TOOL USE AND CARE

a. Ensure the switch is in the off position before inserting battery pack.

Inserting the battery pack into power tools that have the switch on invites

accidents.

b. Recharge only with the charger specified by the manufacturer. A charger that

is suitable for one type of battery pack may create a risk of fire when used with

another battery pack.

c. Use power tools only with specifically designated battery packs. Use of any

other battery packs may create a risk of injury and fire.

d. When battery pack is not in use, keep it away from other metal objects like

paper clips, coins, keys, nails, screws, or other small metal objects that can

make a connection from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

e. Under abusive conditions, liquid may be ejected from the battery; avoid

contact. If contact accidentally occurs, flush with water. If liquid contacts

eyes, additionally seek medical help. Liquid ejected from the battery may cause

irritation or burns.

f. Do not use a battery pack or tool that is damaged or modified. Damaged or

g. modified batteries may exhibit unpredictable behaviour resulting in fire,

WARNING

-7

explosion or risk of injury.

h. Do not expose a battery pack or tool to fire or excessive temperature.

Exposure to fire or temperature above 130 °C may cause explosion. NOTE The

temperature „130 °C“ can be replaced by the temperature „265 °F“.

i. Follow all charging instructions and do not charge the battery pack or tool

outside the temperature range specified in the instructions. Charging

improperly or at temperatures outside the specified range may damage the battery

and increase the risk of fire.

SERVICE

Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel may result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow instructions

in the Maintenance section of this manual. Use of unauthorized parts or failure to

follow Maintenance Instructions may create a risk of shock or injury.

SPECIFIC SAFETY RULES AND SYMBOLS

Hold tool by insulated gripping surfaces when performing an operation where

the cutting tool may contact hidden wiring. Contact with ’live’ wire will also

make exposed metal parts of the tool ’live’ and shock the operator.

Be aware that this tool is always in an operating condition, because it does not

have to be plugged into an electrical outlet. Always set the trigger switch to the

locked OFF position when installing or removing the battery pack or bits.

Do not use bits or sockets larger than those recommended. Large bits or drills

may overload the wrench/driver and damage the motor and gears.

Do not use if chuck jaws or other parts are cracked or worn.

Never change direction of rotation until motor has completely stopped.

Never hold work in your hand, lap, or against other parts of your body when

driving.

Do not use drill as a router or try to elongate or enlarge holes by twisting the

drill bit. Drill bits may break and cause injury.

Keep hands away from rotating parts.

Keep drill bit clear of yourself and all objects while installing and removing bit.

Some wood contains preservatives which can be toxic. Take extra care to prevent

inhalation and skin contact when working with these materials. Request, and follow,

CAUTION

-8

all safety information available from your material supplier.

SYMBOLS

The label on your tool may include the following symbols. The symbols and their

definitions are as follows:

SYMBOL NAME EXPLANATION

V Volts Voltage (potential)

no No Load Speed No-load Rotational Speed

kg Kilograms Weight

d.c. Direct Current Type of Current

…/min Revolutions per

Minute

Revolutions, Surface Speed, Strokes, etc.

per Minute

rpm Revolutions per

Minute

Revolutions, Surface Speed, Strokes, etc.

per Minute

FUNCTIONAL DESCRIPTION

-9

CONTROLS AND COMPONENTS:

1. Torque Adjust Cover 2. 1/4” Hex. Shank

3. Trigger 4. Handle

5. Battery Pack 6. Release Button

7. Forward/Reverse Lever 8. Auto Shut OFF Indicator

9. USB plug

SPECIFICATIONS

Model Number Unit

RV2047-W2

RV2047-W6

RV2047-W12

Voltage V d.c.

Drive/Anvil in. 1/4” Hex.

Max. Tightening Torque ft-lbs

0.37~1.5

0.5~2

0.7~4.4

1~6

2.2~8.9

3~12

No Load Speed rpm 0~1000 0~800

Tool Weight(with battery 2.0Ah)

lbs

3.19

1.45

WARNING

− that the vibration emission during actual use of the power tool can differ from the

declared total value depending on the ways in which the tool is used; and

− of the need to identify safety measures to protect the operator that are based on an

estimation of exposure in the actual conditions of use (taking account of all parts of the

operating cycle such as the times when the tool is switched off and when it is running

idle in addition to the trigger time).

Charger Model Number

DC20US28-30A

Input

100-240 Va.c., 50-60 Hz

Output

21.0 Vd.c.

Output Amps

3.0A

Input Power

Charger Weight

85W

0.88 lbs / 0.4kg

Battery Pack Model Number

B2027LA / B2027LA-2

Type

Li-ion

Capacity

2.0Ah / 4.0Ah

-10

ASSEMBLY

INSTALLING OR REMOVING BATTERY PACK

TO INSTALL BATTERY PACK: Push battery pack (A) onto tool (B) until it locks in

place. (see Fig. 1)

TO REMOVE BATTERY PACK: Depress the battery the two side release button and

pull battery pack (A) out of tool (B). (see Fig.1)

Fig. 1

TORQUE SETUP AND ADJUSTING

1. Open the torque adjust cover (see Fig.2).

Fig.2

2. Use the attached screwdriver (A) insert into the circle hole (B). (see Fig.3).

(A)

(B)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DUROFIX Tournevis électrique

DUROFIX

DUROFIX RV2047-W45 Dessin dimensionnel

Manuels Tournevis électrique populaires d'autres marques

Makita

Makita DFT085F Manuel utilisateur

Parkside

Parkside 345138 2004 Manuel utilisateur

Makita

Makita DFL650F Manuel utilisateur

AEG

AEG BST 18BLX2-0 Manuel utilisateur

Ingersoll-Rand

Ingersoll-Rand D5000 Series Manuel utilisateur

BGS technic

BGS technic 956 Manuel utilisateur

Hilti

Hilti SD 6000 Manuel utilisateur

Parkside

Parkside PEPS 3 A1 Manuel utilisateur

Festool

Festool TI 15 Manuel utilisateur

Makita

Makita DWT190 Manuel utilisateur

Matatakitoyo Torque Tools

Matatakitoyo Torque Tools MTD Manuel utilisateur

Skil

Skil 2346 Instructions de montage

DeWalt

DeWalt XR LI-ION DCD931 Manuel utilisateur

Festool

Festool DWC 18-2500 Manuel utilisateur

EINHELL

EINHELL TE-CD 12/1 Li Series Manuel utilisateur

Makita

Makita BFT043F Manuel utilisateur

Stanley

Stanley SCD2 Manuel utilisateur

Atlas Copco

Atlas Copco LUM12 SR Feuille d'instructions
