Duracell D-HUB Manuel utilisateur

Model: D-HUB

INSTALLATION MANUAL

For use with the DURACELL PO ER CENTER 5KW

Revision History

Revision

Date

Status

Author

Comments

08/30/2022 Ian Grover

Released

05/01/2022 Initial

n/a

Ian Grover

02 04/05/2023 Released Ian Grover Removed TP-Link Kit

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions for the DURACELL HUB as part of a complete home energy

storage system. The DURACELL Hub is a peripheral of the DURACELL PO ER CENTER 5K energy storage

system. The energy storage system will be referred to as the ESS throughout this manual.

CAUTION: Hazardous Voltages! This product contains hazardous voltage and energy that may be lethal. It

may only be installed by qualified personnel who have read this manual and are familiar with its operation and

hazards. The following safety procedures should be followed:

Only connect the DURACELL HUB to a compatible electrical service as defined in the model specifications.

Ensure proper electrical grounding in accordance with code requirements.

Ensure proper airflow path for active cooling.

Never operate system in a manner not described by this manual.

Only qualified personnel should service this product.

Ensure cover is securely fastened after installation is complete.

Do not attempt to operate this product if there is any physical evidence of damage to the enclosure or internal

components.

CAUTION! This product contains an AGM lead acid battery. This product must be stored indoors in an

environmentally conditioned location prior to installation, protected from rain and exposure to any hazardous

chemicals. Inspect the battery case prior to installation. Do not install and power the product if there appears

to be damage to the battery and contact your local product distributor.

Do not dispose of the system or any of the components within the cabinet. Batteries, electronics, cables, and

metal parts are recyclable. Consult your municipal waste management authority to determine required

methods of component recycling.

California Proposition 65

WARNIN ! This product can expose you to chemicals including bis (2-ethylhex-yl)phthalate, which is known to

the State of California to cause birth defects or other reproductive harm. For more information go to

https://www.p65warnings.ca.gov/.

Contents

1 INTRODUCTION .................................................................................................................... 1

1.1 ABOUT THIS MANUAL –SUPPORTING DOCUMENTS........................................................................................................1

1.2 GLOSSARY..............................................................................................................................................................1

1.3 INITIAL INSPECTION OF MATERIAL LIST .......................................................................................................................1

1.4 SPECIAL TOOLS &HARDWARE ..................................................................................................................................2

1.5 FUNCTIONAL OVERVIEW ...........................................................................................................................................2

1.5.1 Grid Connected Solar plus Storage ........................................................................................ 2

1.5.2 Backup Solar plus Storage ................................................................................................... 3

1.5.3 Backup Solar PV curtailment method: Frequency Shift Power Control (FSPC)............................... 3

1.5.4 Circuit and system sizing for 100 / 125 / 150 Amp electrical panels ............................................. 3

1.5.5 Circuit and system sizing for 200+ Amp electrical panels .......................................................... 3

1.5.6 Over-sized PV systems ....................................................................................................... 3

1.6 INTERNAL COMPONENT OVERVIEW ............................................................................................................................4

1.6.1: Energy management controller (EMC) ................................................................................. 4

2 INSTALLATION PLANNIN ....................................................................................................... 5

2.1 INSTALLATION CLEARANCES BETWEEN THE DURACELL HUB AND THE BATTERY SYSTEM ..............................................5

2.2 INSTALLATION CONDUIT PLAN –POWER AND COMMUNICATION CIRCUITS.........................................................................6

2.3 SLD -AC COUPLED PV SYSTEM WITH BACK-UP POWER OPERATION...........................................................................7

3 INSTALLATION INSTRUCTIONS ................................................................................................ 8

4 ELECTRICAL WIRIN INSTRUCTIONS ......................................................................................... 8

4.1 EMC CABLE CONNECTION .......................................................................................................................................8

4.2 AK1 CABLE CONNECTION.........................................................................................................................................8

4.3 AC POWER CONNECTIONS .......................................................................................................................................8

4.3.1 Phase Orientation in Split Phase 120/240 Systems ................................................................... 9

4.3.2 Main Electrical Panel Connection ......................................................................................... 9

4.3.3 Backup Panel Connection .................................................................................................. 10

4.3.4 ESS: PCS Grid Port Connection ........................................................................................... 10

4.3.5 ESS: PCS Load Port Connection .......................................................................................... 10

4.4 CTCONNECTIONS .................................................................................................................................................11

4.4.1 Main Electrical Panel CT Connections .................................................................................. 11

4.4.2 Solar PV CT Connection ..................................................................................................... 11

4.4.3 PCS CT Connections ......................................................................................................... 11

4.5 12V BACKUP BATTERY CONNECTION.......................................................................................................................11

5 OPERATION ........................................................................................................................ 12

5.1 EMC SELECTOR SWITCH ........................................................................................................................................12

5.2 PRE-STARTUP CHECKLIST....................................................................................................................................... 12

5.3 STARTUP ..............................................................................................................................................................12

5.4 POST-STARTUP CHECKLIST .....................................................................................................................................12

5.5 PERMISSION TO OPERATE CHECKLIST....................................................................................................................... 13

6 MAINTENANCE .................................................................................................................... 13

7 TROUBLESHOOTIN ............................................................................................................. 13

8 TECHNICAL DATA ............................................................................................................... 14

8.1 ELECTRICAL SPECIFICATIONS ..................................................................................................................................14

8.2WIRE AND TORQUE RATINGS ...................................................................................................................................14

APPENDIX A: ELECTRICAL BLOCK DIA RAM OF INTERNAL COMPONENTS ............................................ 15

APPENDIX B: MULTI-MODE TRANSFER / BYPASS RELAY OPERATION ................................................... 16

KX:DURACELL HUB BYPASS /TRANSFER RELAY......................................................................................................... 16

K3: PCS TRANSFER RELAY ..........................................................................................................................................16

K1: PCS ISLANDING RELAY .......................................................................................................................................... 17

PCS AND HUB RELAY STATE MAP..................................................................................................................................17

BACKUP SUPPLY INTERRUPTION PERIOD DURING GRID OUTAGE /RETURN TO GRID ..............................................................17

APPENDIX C: INTERNET CONNECTION OPTIONS ...........................................................................18

1HARD-WIRED ETHERNET........................................................................................................................................18

1 Introduction

Throughout this manual, the following symbols will be used to highlight important information and procedures:

Symbol

Definition

Symbol

Definition

WARNIN ! A dangerous voltage or other

condition exists. Use extreme caution when

performing these tasks.

Function performed by energy

management system / controller.

CAUTION! This information is critical to the safe

installation and or operation of the product.

Follow these instructions closely.

NOTE: This statement is important.

Follow instructions closely.

1.1 About this manual – supporting documents

This manual is intended to be used by qualified service and installation personnel for the purposes of installation

and startup only. The DURACELL HUB energy management system & gateway requires installer administration and

device commissioning prior to operation of the ESS. Refer to the Fleet Installer Administration Guide and the

DURACELL HUB Install & Commission Quick Guide for further details.

This product is permanently wired to the home electrical service, and must be installed by a licensed electrician

only. This product is a power distribution peripheral intended to be operated with the ESS. Refer to the DURACELL

PO ER CENTER 5K Installation & Startup Manual for installation of the ESS.

Go to

www.duracellpowercenter.com

for a complete list of installer resource materials.

1.2 Glossary

1.3 Initial Inspection of Material List

The system components supplied with the

DURACELL HUB are shown below. Each

component should be inspected visually for any

damage that may have been caused by

shipment. If parts are missing or damaged,

please contact your local distributor.

Term Definition Term Definition

AC / DC Alternating Current / Direct Current NC/NO Normally Closed / Normally Open

AHJ Authority Having Jurisdiction NEC/CEC National (USA) Electric Code / Canadian Electric Code

ARC Auto Recovery Control PCS Power Control System (Inverter)

DC Direct Current PE (GND) Protective Earth

EMC Energy Management Controller PV Photo-Voltaic

EMS Energy Management System RF Radio Frequency

ESS Energy Storage System SOC State Of Charge (Battery)

LED Light Emitting Diode SOH State of Health (Battery)

Item

Description

1 EMS-A DURACELL HUB

2 Current transformer – 200 Amp

3 Current transformer – 50 Amp

4 EMS to PCS RJ-45 cable

5 AK1 DURACELL HUB control cable

6 USB to Mini-USB service cable

(x2)

(x3)

EMS

Figure

: DURACELL HUB materials list.

1.4 Special Tools & Hardware

In addition to the standard tools required for enclosure mounting, the following tools should be readily available to

complete the installation.

•Drill and hole saw kit

•RJ-45 crimp tool and RJ-45 connectors

•all mounting hardware.

•#0 flat screwdriver.

•

1.5 Functional Overview

The DURACELL HUB is equipped to support an AC coupled solar plus storage installation with backup power to a

dedicated backup electrical panel. The DURACELL HUB is a power distribution center for the ESS, routing all AC power

between the main and backup electrical panels. In the event of a grid outage, the DURACELL HUB will be energized

by the ESS, which will island off the main electrical panel. As shown below, the PV inverter’s AC output is connected

to the backup panel to support solar charging of the battery during a grid outage.

Figure 2: DURACELL HUB with DURACELL PO ER CENTER 5K .

1.5.1 Grid Connected Solar plus

Storage

The DURACELL HUB routes power from the main

electrical panel to the backup panel through the ESS

Grid/Load transfer circuit when the grid is live and

the battery system is in service (normal operation).

The EMC commands the battery system to charge or

discharge the battery as demanded by the energy

management algorithm. In a self-consumption

algorithm, for example, the EMC calculates the

difference in total load vs. solar PV, and routes the

balance of power to/from the battery as needed.

hen the battery is full, PV power bypasses the

battery to grid/loads. hen the battery is at

minimum reserve, all home loads are supplied

entirely by the grid. The following diagram

outlines the power flow possibilities while grid

connected.

Note: The DURACELL HUB is equipped with an internal automatic bypass switch which provides uninterrupted

service to the backup electrical panel when the ESS is either not powered (installed but pending permission to

operate) or out of service.

Inverter

PV panels

Grid

Load

power

Home

Internet

Service

Main

Panel

Backup

Panel

Home loads

to grid

Inverter

PV panels

Grid

Load

Main

Panel

Backup

Panel

ome

loads

Home loads

Figure

: Grid connected solar plus storage.

communication

ethernet

1.5.2 Backup Solar plus Storage

During a grid outage, the DURACELL HUB isolates the battery

system and backup electrical panel from the grid. In this mode, the

EMC is in a monitoring state, with most control handed over to the

ESS. The ESS curtails PV when the battery is either full or exceeds

the charge limit of the battery. On low SOC, the battery system

goes into a standby state until either the solar resource or the grid

returns.

IMPORTANT! Shutting off the DURACELL HUB circuit breaker at the

main electrical panel will place the ESS into backup mode and

continue to energize the backup panel.

1.5.3 Backup Solar PV curtailment method:

Frequency Shift Power Control (FSPC)

During backup power operation of the ESS, PV curtailment is achieved by shifting the frequency up or down to trip

the PV inverter. This curtailment method, defined as frequency shift power control (FSPC), is required to prevent

solar from over-charging the battery. By default, the ESS will ramp up frequency to a PV trip range of 62.1 Hz, but

this is adjustable depending on the regulatory frequency trip limits within the jurisdiction.

IMPORTANT! PV inverters connected to the backup panel must have frequency trip settings programmed within the

following ranges: PV low frequency trip range: 57.0 to 59.3 Hz, PV high frequency trip range: 60.5 to 62.0 Hz.

If the PV inverter cannot be adjusted within the range specified, the PV inverter must not be connected to the backup

panel.

NOTE: The DURACELL HUB is not suitable for use in applications where the electric utility prohibits PV power export

to the grid. For non-export applications, consult your DURACELL PO ER CENTER 5K dealer for alternate EMS

panel solutions.

1.5.4 Circuit and system sizing for 100 / 125 / 150 Amp electrical panels

Line side tapping the main electrical panel is required for ESS installations where the electrical service rating is under

200 Amp. Refer to section 2.3, figure 11.

1.5.5 Circuit and system sizing for 200+ Amp electrical panels

The DURACELL HUB may be connected to a 200+ Amp electrical panel using a single 40A breaker. For this

configuration, the total solar PV output connected to the backup electrical panel will depend on the curtailment

features of the solar PV inverter. If the PV inverter is equipped with its own curtailment controls that can limit PV

output to 5k or less in backup mode, the maximum rating of the PV inverter connected to the DURACELL HUB is 7.6

k AC. For PV inverters without internal curtailment methods, the 5 k PV restriction applies. Regardless of PV

size, this configuration permits the DURACELL HUB EMS to limit continuous combined solar plus storage output to 7.6

k AC (32 Amp).

1.5.6 Over-sized PV systems

For installations with PV systems that are

larger than the DURACELL HUB and ESS can

accommodate, the PV inverters must be split

up such that the balance of PV is wired directly

to the main electrical panel.

NOTE: An additional CT must be added to the

main panel connected PV inverter.

Inverter

Load

Home

loads

Backup

Panel

Inverter

PV panels

Grid

Load

Main

Panel

Backup

Panel

Home

loads

Home loads

Inverter

Excess

PV panels

Figure 4: Backup solar plus storage.

Figure 5: Over-sized PV systems connected to main panel.

PV panels

1.6 Internal Component Overview

The DURACELL HUB is equipped the following components as identified in the diagram below:

Figure 6: DURACELL HUB internal component overview.

1.6.1: Energy management controller (EMC)

IMPORTANT! The device unique identifier (UID) & serial number (S/N) tag attached to the front of the EMC is required

to register the device to the cloud so that it may be monitored via the Fleet Installer monitoring system. Record this

information for online registration.

The EMC performs the following functions:

•Commands the battery system to charge and discharge as defined by the selected control algorithm.

•Monitors the home loads, solar PV, and battery power via on-board 8 channel power meter.

•Provides the Internet gateway to customer supplied internet router via wired Ethernet.

A 12V AGM UPS backup battery supplies uninterrupted power to the EMC.

Figure 7: EMC feature overview – rev1 EMC faceplate label.

Web config tool

Service port

(mini-USB)

8 channel

power meter

12V AG

Backup battery

Ethernet to

Internet router

(or to a Wi-Fi

range extender)

2 Installation Planning

Before installing the DURACELL HUB, read all instructions and warnings in this manual. The DURACELL HUB can be

installed in an indoor and outdoor non-corrosive environment (not marine environment). all mounting hardware

is not included.

CAUTION! All electrical installation work should be performed in accordance with local building and electrical

codes.

WARNIN ! Isolate the DURACELL HUB from all energy sources prior to electrical installation by means of

disconnects, breakers or connectors. Failure to properly isolate either AC or DC sources may result in serious injury

or death.

NOTE: Communication cables between the DURACELL HUB and the battery system are limited in length. The

DURACELL HUB should be installed within 2 ft of the battery system.

CAUTION! Do not install in direct sunlight.

2.1 Installation clearances between the DURACELL HUB and the battery system

The DURACELL HUB includes a 10 foot communication cable that connects the hub to the battery system. If the

installation is constrained such that the DURACELL HUB must be located greater than 24” from the battery system,

consult the DURACELL PO ER CENTER 5K Installation & Startup Manual for instructions on creating an extended

communication cable.

Figure 8: Installation clearances between the DURACELL HUB and the ESS.

Max: 24”

(600 mm)

2.2 Installation conduit plan – power and communication circuits

The following example outlines the conduit plan for power and communication circuits for a complete solar plus

storage system using the DURACELL HUB and the DURACELL PO ER CENTER 5K . (String PV inverter shown –

replace with equivalent AC combined micro-inverter output, where applicable).

Table 1: Circuit summary for a solar plus storage installation.

Conduit

Ref Circuit Definition

Conductor

(recommended) Circuit Protection

P1 ESS grid power 8/3 40 Amp

P2 ESS backup power 8/3 40 Amp

P3 Main panel power 8/3 40 Amp

P4 Backup panel 8/3

40 Amp feeder if total backup ccts exceed 40

Amp/240V rating

P5 Solar PV power 8/3 40 Amp

EMS communication cable

3 meter patch cable included

CAT 5/6 STP -

S2 (x2) CT , 50 Amp 8 ft pigtail 18/2, 300V

-1

AK1 Hub Control Signal cable

harness included , 10 ft 18/2, 300V -

S4 (x2) CT, 200 Amp 8ft pigtail 18/2, 300V

-1

S5 CT , 50 Amp 8 ft pigtail 18/2, 300V

-1

Note 1: Conductor type referenced where Hub is installed greater than 24” from the ESS. Signal wiring routed in

conduit with power must be 300V rated. For runs longer than 10 meters, signal separation from power is

recommended to minimize signal interference.

Disclaimer:

Manufacturer supplied components represented here are limited to the PCS/Battery, DURACELL HUB, and CTs for PV, battery, and

mains. All other materials and components represented are customer supplied. CEC/NEC electrical code compliance is the

responsibility of the designer and/or electrical permit holder. Source circuit disconnects for PV and ESS grid/load ports not shown.

CT home

CT 50A: (2x)

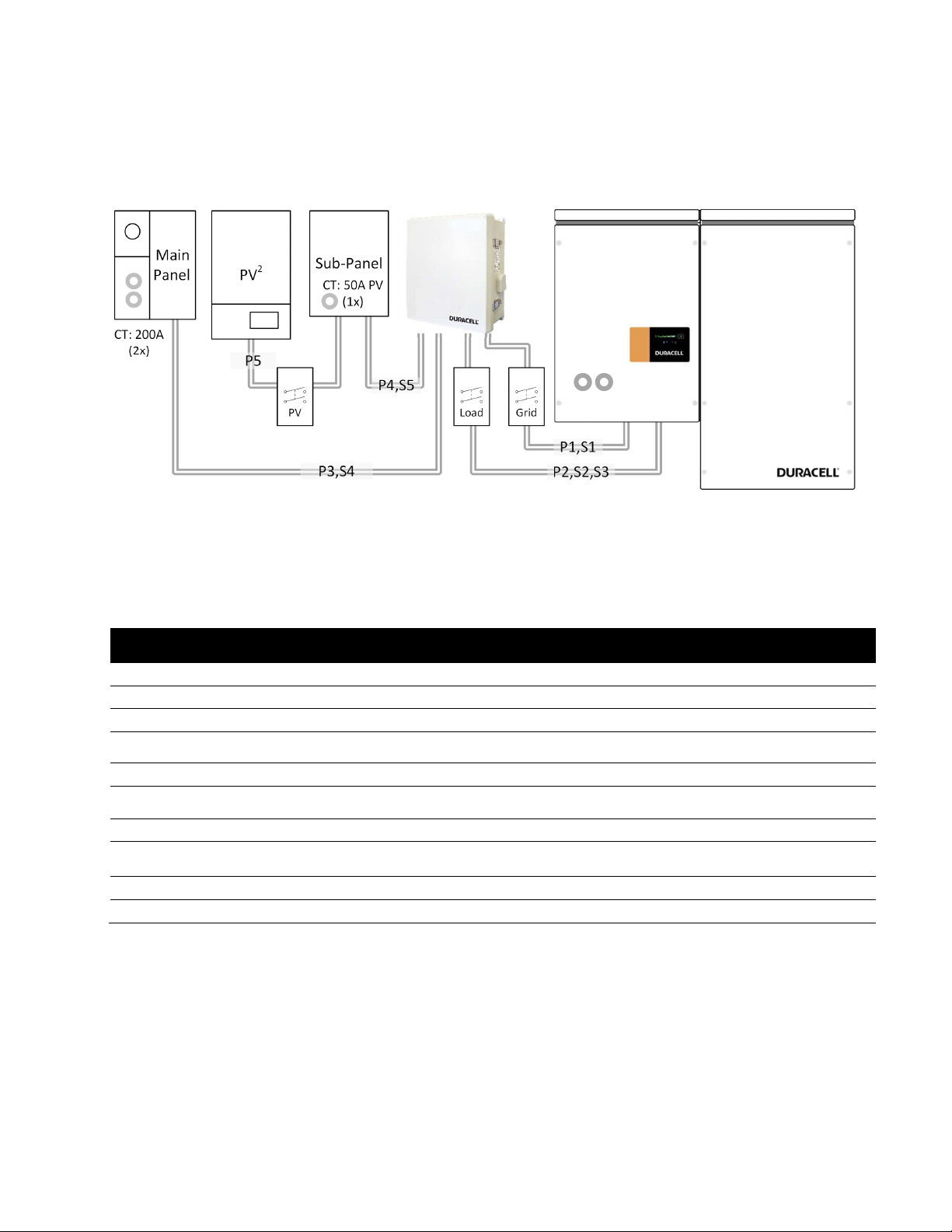

Figure 9: Installation conduit plan for a solar plus storage installation (base model shown).

Table des matières

Autres manuels Duracell Bloc de piles

Duracell

Duracell CR2450 Manuel utilisateur

Manuels Bloc de piles populaires d'autres marques

Acumentrics

Acumentrics PACK-POWER SYSTEM Manuel utilisateur

ACDC Dynamics

ACDC Dynamics SPF12-50 Manuel utilisateur

Aegis

Aegis ABL-72020P Manuel utilisateur

Dyness

Dyness TowerESS Manuel utilisateur

Growatt

Growatt APX 5.0P-S0-US Manuel utilisateur

EGO

EGO BAX1300 Manuel utilisateur

CyberPower

CyberPower BCA Series Manuel utilisateur

Intermec

Intermec 700 Series Manuel utilisateur

Dometic

Dometic PLB40 Manuel utilisateur

V-TAC

V-TAC VT-48280-W2 Manuel utilisateur

Valence

Valence RT Manuel utilisateur

Nikon

Nikon MB-D14 Manuel utilisateur

IOGear

IOGear GBP24V Series Manuel utilisateur

Inventus Power

Inventus Power PROTRXion S-12V100-TRX-HD Manuel utilisateur

Clas Ohlson

Clas Ohlson PW-290A Manuel utilisateur

EINHELL

EINHELL MULTI-Ah Power X-Change Plus Manuel utilisateur

Samsung

Samsung EB-U3300 Manuel utilisateur

ECTIVE

ECTIVE LC Series Manuel utilisateur
