Durabrand CD-62 Manuel utilisateur

IB-CD62(CDR92A-0D8)-WM-E-011503

AM/FM STEREO RADIO

PROGRAMMABLE CD PLAYER

MODEL CD-62

OPERATING INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE

BUILT-IN AM/FM RADIO RECEIVER

PLAYS MUSIC COMPACT DISCS

6 DIGIT LCD VISUAL DISPLAY

TRACK REPEAT & DISC REPEAT

BASS BOOST SYSTEM

DELUXE STEREO HEADPHONES INCLUDED

USES 2 SIZE AA BATTERIES (NOT INCLUDED)

IB-CD62(CDR92A-0D8)-WM-E-011503

LOCATION OF CONTROLS

1.CD LCD VISUAL DISPLAY

2.CD REPEAT BUTTON ( )

3.CD PROGRAM BUTTON ( )

4.CD STOP AND POWER OFF BUTTON ( )

5.CD DOOR

6.CD DOOR OPEN BUTTON

7.AM/FM DIAL LENS

8.CD BACKWARD SKIP/SEARCH BUTTON ( )

9.CD FORWARD SKIP/SEARCH BUTTON ( )

10.CD PLAY/PAUSE AND POWER ON BUTTON ( )

11.CD/OFF/RADIO FUNCTION SWITCH

12.POWER ON INDICATOR

13.AM/FM TUNING CONTROL

14.BATTERY DOOR

15.BASS BOOST SWITCH

16.AC ADAPTOR JACK (AC ADAPTOR NOT INCLUDED)

17.AM/FM/FM STEREO BAND SWITCH

18.PHONES JACK (HEADPHONE JACK)

19.VOLUME CONTROL

20.LINE OUT JACK (FOR HOME STEREO USE)

21. FM STEREO INDICATOR 1

IB-CD62(CDR92A-0D8)-WM-E-011503

POWER SOURCES

Using with Batteries

TIPS ON BATTERY USE

Reversing polarities will damage the batteries and possibly this set. Be sure to

follow polarity ( + and - ) as indicated.

Do not mix different types together (Alkaline, Carbon-Zinc, Nickel-Cadmium etc.),

or old batteries with new ones.

When not in use for an extended period of time, or while internal batteries will not

be used, remove them to prevent possible acid leakage or corrosion resulting in

damage to this player.

When the batteries have become discharged, they must be disposed of in a safe

manner that complies with all applicable laws.

Installation of batteries should only be done by an adult (for safety).

WHEN SHOWS OR FLASHES IN THE DISPLAY

While CD playing, if the alkaline batteries are weak and discharged, this symbol

  shows or flashes in the display, then the power automatically turns off. If this

occurs, replace the alkaline batteries (also if the display does not show anything,

the batteries are dead).

ALKALINE BATTERY LIFE

Bear in mind that battery life expectancy is based upon volume and bass listening

levels.

Maximum battery power consumption happens at maximum settings. Typical life

for 2 size AA fresh alkaline batteries is above 8 hours of continuous use for CD

play and 5 hours longer for radio use.

Insert two size AA alkaline batteries

according to the + and - markings on

the bottom of the set.

NOTE 1: The display is blank when you listen to the radio, so when the display

does not show anything, please check if the CD/OFF/RADIO FUNCTION

switch is moved to the CD position.

Power this player by connecting an optional (not included) AC ADAPTOR or by inserting

2 size AA fresh alkaline batteries.

NOTE: Before you buy an AC Adaptor, please note the only AC ADAPTOR suitable for

this player is DC 4.5V 600mA, with polarity , others may damage the

player. Please check voltage & current (mA) before buying an AC ADAPTOR.

NOTE 2: The radio may work normally for about 5 hours when   shows or

flashes in the display indicating batteries are weak for CD play, but still

OK for the radio.

NOTE 3: You may use rechargeable batteries on this set. However, because

rechargeable batteries generally have lower voltage (1.2 volts instead of

1.5 volts). Your playing time will be much less than normal fresh alkaline

batteries.

IB-CD62(CDR92A-0D8)-WM-E-011503

CONNECTING TO HOME STEREO SYSTEMS

The LINE OUT jack is made to accept a stereo mini plug (3.5mm). Simply connect the

cables mini plug to the LINE OUT jack on this player, and the other appropriate end

usually RCA JACKS to the CD/AUX INPUTS of your home stereo.

YOUR CD PLAYER

TO AUX IN JACKS TO LINE OUT JACK

YOUR STEREO

SYSTEM

OPTIONAL CABLE (3.5mm)

TO RCA JACKS

IB-CD62(CDR92A-0D8)-WM-E-011503

DISC PLAYING

5Adjust the volume.

2Load the disc.

3Connect the headphones.

4Press the PLAY/PAUSE button ( ), the POWER ON

indicator will light up.

1234

Push

here

Disc

LABEL SIDE UP

SLIDE TO OPEN

TO PHONES JACK

(NOT LINE OUT JACK!)

STEREO

HEADPHONES

PLAY/PAUSE

BUTTON

VOLUME CONTROL

TRACK NUMBER

CURRENTLY

PLAYING

ELAPSED PLAYING

TIME OF THE

CURRENT TRACK

1Slide the CD/OFF/RADIO

FUNCTION switch to CD

position.

CD/OFF/RADIO

FUNCTION

SWITCH

POWER ON

INDICATOR

MAXIMUM MINIMUM

VOLUME

IB-CD62(CDR92A-0D8)-WM-E-011503

OTHER OPERATIONS

Operation Press Display window shows

To pause play

To release pause and

resume play

TRACK NUMBER

CURRENTLY

PLAYING

ELAPSED TIME

FLASHES

TRACK NUMBER

CURRENTLY

PLAYING

PLAYING TIME

ADVANCES

To stop play

To skip to the next

track(s)

To skip to the previous

track(s)

once (or repeatedly)

To go ahead at high

speed (search forward)

Keep depressed and release it when the

desired music section of the disc is found.

To go back at high

speed (search back-

ward)

Keep depressed and release it when the

desired music section of the disc is found.

If you press and hold the SKIP button ( )

while the last track is playing, and the end of the

track is reached, the music stops and the display

will show the total tracks and total playing time of

the CD, then power will shut itself off after 30

seconds.

Auto power off function

The power turns off automatically 30 seconds after all tracks on the disc have been

played or after the STOP button is pressed to stop play.

To shut off the power immediately, press the STOP button twice or slide the CD/OFF/

RADIO FUNCTION switch to OFF position.

Get into Stop Mode

TOTAL TRACKS TOTAL PLAYING

TIME

Press the PLAY/PAUSE button , the set

begins to play, then press the STOP button ,

the display will show six digits similar to the

example on the right.

PLAY/PAUSE button

STOP button

To turn off the power Slide the CD/OFF/RADIO FUNCTION switch to

OFF position, or press the STOP button quickly

twice.

TOTAL TRACKS TOTAL PLAYING

TIME

IB-CD62(CDR92A-0D8)-WM-E-011503

REPEAT, INTRO AND RANDOM PLAY

You may have repeat, intro or random play using the REPEAT button. Press the REPEAT

button several times, and the display will show the followings in turn:

SINGLE TRACK REPEAT

Plays one song over and over till you press STOP.

During play, select the song you want to repeat with

either of the SKIP/SEARCH buttons ( or ),

then press the REPEAT button once, the symbol

REPEAT 1

appears in the display.

The song currently playing will repeat over and over,

until you press STOP.

ALL TRACKS REPEAT (DISC REPEAT)

Repeats all songs in order till you press STOP.

During play, press the REPEAT button twice, the

symbol

REPEAT ALL

will show in the display.

All songs will keep playing in sequence 1, 2, 3, etc.

and when finished, will start all over again until you

press the STOP.

INTRO PLAY

This plays the first 10 seconds of songs in sequential

order.

1. During play, press the REPEAT button three times,

the word INTRO will flash in the display.

2. Press the PLAY button, the word INTRO will stop

flashing and the first 10 seconds of each song

on the CD will play in sequential order.

3. When you find a song you like, press the PLAY

button, normal play will be resumed, that song

(and the following songs) will play normally.

RANDOM PLAY

This plays the songs on the disc in a random order.

1. During play, press the REPEAT button four times,

the word SHUFF will flash.

2. Press the PLAY button, this will play all of the

songs in random order selected by the CD player.

The SHUFF will stop flashing.

3. Press the SKIP/SEARCH button to skip to the

next random song.

REPEAT 1 REPEAT ALL INTRO SHUFF NORMAL PLAY

SKIP SEARCH

IB-CD62(CDR92A-0D8)-WM-E-011503

PROGRAMMED PLAY

During programming, the word

PROG

(program) flashes in the display. To program

songs to play in your preferred order, follow steps below:

1. Press the PROGRAM button once.

The word

PROG

and   will flash in

the DISPLAY.

2.Press the SKIP/SEARCH button ( or

) to select track number 3 (example).

the

PROG

and   will flash in the

display.

Track number

3. Press the PROGRAM button to confirm.

The track 3 is now programmed.

Program #2 will now show in the

display, ready for your next selection of

track.

4. Repeat steps 2 and 3 to program other

tracks till you finish (up to 20 selections).

5. After programming is finished, press

PLAY to begin programmed play. The

word

PROG

show in the display and

music begins.

Programming Example

Program Number 12 3 4 5 6 7 8

Track Number (song number) 35 8 2 4 1 1

etc.

The tracks (songs) on the disc can be programmed (arranged in advance) to play in

any order you prefer (up to 20 tracks can be programmed).

Program number

NOTE:

- The player will stop automatically after

all programmed tracks have been

played.

- To quit programmed play, press STOP

button once. Then you may press

PLAY button to re-start normal play.

Your programmed memory will be lost:

When the alkaline batteries are

exhausted or removed, or the AC

ADAPTOR is disconnected.

When the power is off, or the CD DOOR

is opened.

PROGRAM

SKIP SEARCH

PROGRAM

IB-CD62(CDR92A-0D8)-WM-E-011503

RADIO OPERATION

4Adjust the volume.

1Slide the CD/OFF/RADIO

FUNCTION switch to RADIO

position, the POWER ON

indicator will be turned on.

2Select AM, FM or FM STEREO

with the AM/FM/FM STEREO

BAND switch.

3Rotate the TUNING CONTROL

to select your favorite radio

station.

NOTE: If you tune into an FM

stereo station, the

FM STEREO indicator

will be turned on.

5If you prefer more bass, slide

the BASS BOOST switch to

ON position.

FM STEREO

INDICATOR

AM/FM

DIAL LENS

CD/OFF/

RADIO

FUNCTION

SWITCH

AM/FM/FM STEREO

BAND SWITCH

TUNING

CONTROL

MAXIMUM MINIMUM

VOLUME

NOTE:The BASS BOOST

switch is on the

bottom of the set.

6To turn off the radio, slide the

CD/OFF/RADIO FUNCTION switch

to the OFF or CD position.

POWER ON

INDICATOR

VOLUME

CONTROL

OFF ON

BASS BOOST

IB-CD62(CDR92A-0D8)-WM-E-011503

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is

very dirty, dampen (not dripping wet) the

cloth with a weak solution of soapy water,

and then wipe clean.

Cleaning the lens

A dirty lens will cause sound skipping. If

the lens is very dirty, the player may not

work. We suggest using a special cleaning

disk (not included) available in most music

and Hi-Fi stores. However, if you do not

have one, you may use the instructions

below.

Use a cotton swab very slightly dampened

with alcohol to clean the lens.

MAINTENANCE

To remove the Disc

Open the CD DOOR by sliding the CD

DOOR OPEN button, hold the disc by the

edge while slightly pressing on the center

spindle as illustrated, then lift it from the

edge to release and remove.

Cleaning the Discs

Fingerprints should be carefully wiped

from the surface of disc with a soft cloth.

Unlike conventional records, compact

discs have no grooves to collect dust

and microscopic dirt, so gently wiping

them with a soft cloth should remove

most particles. Wipe in a straight

motion from the center to the edge.

Handling Compact Discs

Dirty, scratched or warped discs may

cause skipping or noise.

Handle the disc only by the edges. To

keep clean, do not touch its surface.

Never use thinner, benzine, record

cleaner or antistatic spray on a compact

disc. Such chemicals can damage its

plastic surface.

Discs should be stored in their cases

after use to avoid scratches.

Do not expose discs to direct sunlight,

high humidity, high temperatures, or

dust, etc. Prolonged exposure to

extreme temperatures can warp the disc

(such as leaving the discs in your car

during summertime).

Do not stick or write anything on either

side of disc. Sharp writing instruments,

or the inks used in some felt-tipped pens,

may damage its surface.

NOTE:

Always press STOP button and wait for

the disc to stop rotating before sliding the

CD DOOR OPEN button to remove the

disc.

Table des matières

Autres manuels Durabrand Lecteur CD

Durabrand

Durabrand CD-566 Manuel utilisateur

Durabrand

Durabrand CD-855 Manuel utilisateur

Durabrand

Durabrand CD-203 Manuel utilisateur

Durabrand

Durabrand CD-855 Manuel utilisateur

Durabrand

Durabrand CD-203 Manuel utilisateur

Durabrand

Durabrand CD-2086 Manuel utilisateur

Durabrand

Durabrand 60 SECONDS ESP PLUS CD-89 Manuel utilisateur

Durabrand

Durabrand CD-208 Manuel utilisateur

Durabrand

Durabrand CD-896 Manuel utilisateur

Durabrand

Durabrand CD-56 Manuel de l'opérateur

Durabrand

Durabrand CD-915 Manuel utilisateur

Durabrand

Durabrand CD-109 Manuel utilisateur

Durabrand

Durabrand CD-916 Manuel utilisateur

Durabrand

Durabrand CD-625 Manuel utilisateur

Durabrand

Durabrand CD-2036 Manuel utilisateur

Durabrand

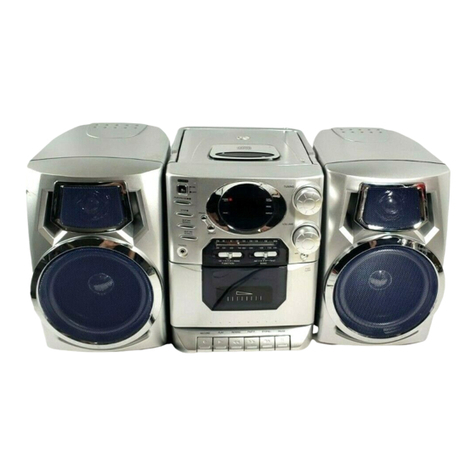

Durabrand CD-1493 Manuel utilisateur

Durabrand

Durabrand CD-85 Manuel utilisateur

Durabrand

Durabrand CD-109 Manuel utilisateur

Durabrand

Durabrand CD-1095 Manuel utilisateur

Durabrand

Durabrand CD-565 Manuel utilisateur

Durabrand

Durabrand 60 SECONDS ESP PLUS CD-89 Manuel utilisateur

Durabrand

Durabrand CDR-1902 Manuel utilisateur

Durabrand

Durabrand CDR-1902 Manuel utilisateur

Durabrand

Durabrand CD-56 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur
