DS-800(BT)

Pocket-size Wireless Scanner

User’s Manual

Table of Contents

Memory Mode ---------------------------------------------------------------------------3

BT Local name---------------------------------------------------------------------------3

Bluetooth mode configuration------------------------------------------------------4

Remote Mac Address------------------------------------------------------------------5

Pin Code-----------------------------------------------------------------------------------5

Bluetooth parameter configuration by software-----------------------------6

USB-HID / USB-COM Mode----------------------------------------------------------6

Memory Mode Setting-----------------------------------------------------------------7

Ext Transmission Delay-------------------------------------------------------------10

Lamp OFF Delay-----------------------------------------------------------------------10

Standby Time---------------------------------------------------------------------------11

Separator---------------------------------------------------------------------------------11

Bluetooth Mode Setting-------------------------------------------------------------12

Lamp OFF Delay-----------------------------------------------------------------------12

Connect OFF Time--------------------------------------------------------------------14

Standby Time---------------------------------------------------------------------------14

Time out----------------------------------------------------------------------------------15

Grneral Configuration Setting----------------------------------------------------17

USB-HID Keyboard Type-----------------------------------------------------------17

Transmission Gap--------------------------------------------------------------------18

Transmission Delay------------------------------------------------------------------19

Timeout----------------------------------------------------------------------------------20

Keyboard Layout Setting----------------------------------------------------------21

Bluetooth HID Dongle Keyboard Layout Setting--------------------------22

Virtual COM Type---------------------------------------------------------------------23

Time out----------------------------------------------------------------------------------23

Transmission Gap---------------------------------------------------------------------24

Transmission Delay--------------------------------------------------------------------25

System Control------------------------------------------------------------------------26

Trigger Mode-------------------- -------------------------------------------------------28

Buzzer----------------- -------------------------------------------------------------------29

Beep Volume-----------------------------------------------------------------------------29

Beep Tone-------------------------------------------------- ------------------------------30

Beep Time -------------------------------------------------------------------------------31

Standby Time---------------------------------------------------------------------------32

LED OFF Delay-------------------------------------------------------------------------33

Lamp OFF Delay-----------------------------------------------------------------------34

Good Read Time-----------------------------------------------------------------------35

Setup Timeout--------------------------------------------------------------------------36

Vibrator OFF Delay--------------------------------------------------------------------37

Double Confirm------------------------------------------------------------------------38

Global Min. / Max. Length-----------------------------------------------------------39

Global Min. Length---------------------------------------------------------------------39

Global Max. Length -------------------------------------------------------------------40

Set Data & Time-----------------------------------------------------------------------41

Symbology Settings-----------------------------------------------------------------42

UPC-A--------------- --------------------------------------------------------------------43

UPC-E---------------- -------------------------------------------------------------------44

EAN-13-----------------------------------------------------------------------------------46

EAN-8-------------------------- ----------------------------------------------------------48

Code-39------------------------------------------------------- --------------------------50

Codabar / NW7--- ---------------------------------------------------------------------52

Code-128---------------------------------------------------------------------------------54

Interleaved 2 of 5 ---------------------------------------------------------------------56

Industrial 2 of 5----- -------------------------------------------------------------------57

Matrix 2 of 5---- ------------------------------------------------------------------------58

Code 93------ -------------------- -------------------------------------------------------59

Code 11-- ------------ -------------------------------------------------------------------60

MSI / Plessey---------------------------------------------------------------------------61

UK / Plessey --------------------------------------------- -----------------------------62

Telepen-----------------------------------------------------------------------------------63

RSS (GS1 DataBar) 14---------------------------------------------------------------64

RSS (GS1 DataBar) Limited--------------------------------------------------------65

RSS (GS1 DataBar) 14 Stack-------------------------------------------------------66

RSS (GS1 DataBar) Expansion----------------------------------------------------67

RSS (GS1 DataBar) Expansion Stack ------------------------------------------68

Output Format Settings-------------------------------------------------------------69

Transmission Preamble---------------------------------------------------------------69

Transmission Postamble -------------------------------------------------------------69

Preamble Data--------------------------------------------------------------------------70

Postamble Data ------------------------------------------------------------------------71

Prefix / Suffix---------------------------------------------------------------------------72

Prefix Data-------------------------------------------------------------------------------72

Suffix Data ---------- --------------------------------------------------------------------73

Code ID / Sub Code ID--------------------------------------------------------------74

Code ID Setting------------------------------------------------------------------------74

Wait Add-On Count------- ----------------------------------------------------------76

Min. / Max. Length---------------------------------------- ---------------------------77

Min. Length------------------------------------------------------------------------------77

Max. Length -----------------------------------------------------------------------------79

Truncate Zero--------------------------------------------------------------------------81

Truncate Leading ---------------------------------------------------------------------86

Truncate Ending-----------------------------------------------------------------------89

Insert 0 Position---------------- ------------------------------------------------------92

Insert 1 Position -----------------------------------------------------------------------95

Insert 0 Data----- -----------------------------------------------------------------------98

Insert 1 Data -------------------------------------------- ------------------------------101

Hexadecimal / Decimal Table----------------------------------------------------104

ASCII Code Table--------------------------------------------------------------------105

Memory Mode

Switch from Bluetooth to Memory Mode

Send

Connect the USB cable between scanner

and PC, and scan the below “Send” barcode.

Clear

Clear all barcode data in the memory

Bluetooth mode configuration

Enter

End

Mode

Slave Mode : Third party Bluetooth devices ( Mode:0)

Master Mode - Third party Bluetooth devices (Mode:1)

Econnect Bluetooth dongle Mode I (Mode:2)

HID Mode - For third party Bluetooth devices (Mode:3)

iPad OSK MODE (Mode selection code:4)

Econnect Bluetooth dongle Mode II (Mode:5)

BT Local name

Enter

BT Local name

End

Set Local name as ‘BT Scanner’

(A) Scan “BT Module Enter” barcode

(B) Scan “BT Local name” barcode

barcode table =>“4”,”2”,

“5”,”4”, “2”,”0”, “5”,”3”, “6”,”3”, “6”,”1”, “6”,”E”, “6”,”E”,

“6”,”5”, “7”,”2”→”OK”(configured as ‘BT Scanner’,

Please refer to ASCII TABLE)

(D) Scan “End” Barcode

3 4

Remote Mac Address

Enter

Remote Mac Address

End

Set Remote Mac Address to 00126F006EAA

A. Scan “BT Module Enter” barcode

B. Scan “Remote Mac Address” barcode

C. Scan parameters from Hexadecimal /decimal

barcode table =>“0”, “0”,“1”,”2”, “6”,”F”, “0”,”0”,

“6”,”E”, “A”,”A”→”OK” (Set “Remote Mac Address

“ value to 00126F006EAA)

D. Scan “End” barcode

Pin Code

Enter

Pin Code

End

Set Pin Code to 5678

(A) Scan “BT Module Enter” Barcode

(B) Scan “Pin Code” Barcode

table =>“5”,”6”, “7”,”8”→”OK”

(Set “Pin Code “ value to 5678)

(D) Scan “End” Barcode

Bluetooth parameter configuration by software

Enter

ISP

Connect scanner with PC by USB cable, and

set the scanner to ISP mode.

Scan the below barcodes step by step to set the

scanner to ISP mode.

USB-HID / USB-COM Mode

Enter

USB-HID

USB-COM

Before scan the barcode, make sure the

scanner and the Bluetooth

Dongle is in paired status.

5 6

Memory Mode Setting

Enter

Header Transmission

Disabel

*Enabel

Date & Time Transmission

Disabel

*Enabel

Reject Same

End

*Disabel

Enabel

Good Read Beep

Disabel

*Enabel

Good Read Vibrator

*Disabel

Enabel

Time Format

*hh：mm：ss

hh：mm

7 8

Date Format

*yyyy/mm/dd

mm/dd/yyyy

yy/mm/dd

mm/dd/yy

yyyy-mm-dd

mm-dd-yyyy

yy-mm-dd

mm-dd-yy

dd/mm/yyyy

dd/mm/yy

dd-mm-yyyy

dd-mm-yy

Enter

End

Ext Transmission Delay

This configuration enables the delay time (time gap) setting in between

each barcode data sending to PC.

(1) Enter

(2) Ext Transmission Delay barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~250 = 0~2.5sec)

(4) OK

(5) End

Lamp Off Delay

The configuration enables the setting of duration time of scanner LED

power off.

(1) Enter

(2) Lamp Off Delay barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~255 = 0~255sec)

(4) OK

(5) End

9 10

Standby Time Bluetooth Mode Setting

This configuration enables the time configuration for the main power

switching off after scanner LED turned off.

(1) Enter

(2) Standby Time barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~99 = 0~99sec)

(4) OK

(5) End

Separator

This configuration enables separator setting in between date, time and

barcode data. In order for the date and time to be display in front of each

barcode data, Date & time transmission must be enabled.

(1) Enter

(2) Separator barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Max:1digit)

(4) OK

(5) End

BT List

Enter

List

User can simply understand their Bluetooth

parameter setting by scanning the following

barcode, and use the notepad to receive the

Bluetooth parameter configuration data.

BT Default Setting

Enter

Default

User can restore the default setting for the

Bluetooth Parameter.

The configuration enables the setting of duration time of scanner LED

power on and off

Lamp Off Delay

(1) Enter

(2) Lamp Off Delay barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~255 = 0~255sec)

(4) OK

(5) End

12 11

Enter

End

Good Read Beep

*Enabel

Disabel

Good Read Vibrator

Enabel

*Disabel

The vibration configuration if barcode reading

is successfully decoded. Note:Vibration

function is only available for the scanner with

vibrator installed.

Connect Off Time

(1) Enter

Under the Bluetooth mode, when the Bluetooth connection is

established while the scanner is not working. This configuration enables

to set the duration of scanner sleep time. (Note: Default value is 6 as

60 seconds)

(2) Connect Off Time barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~255 = 0~42Min 30sec)

(4) OK

(5) End

Standby Time

This configuration enables the time configuration for the main power

switching off after scanner LED turned off.

(1) Enter

(2) Standby Time barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~99 = 0~99sec)

(4) OK

(5) End

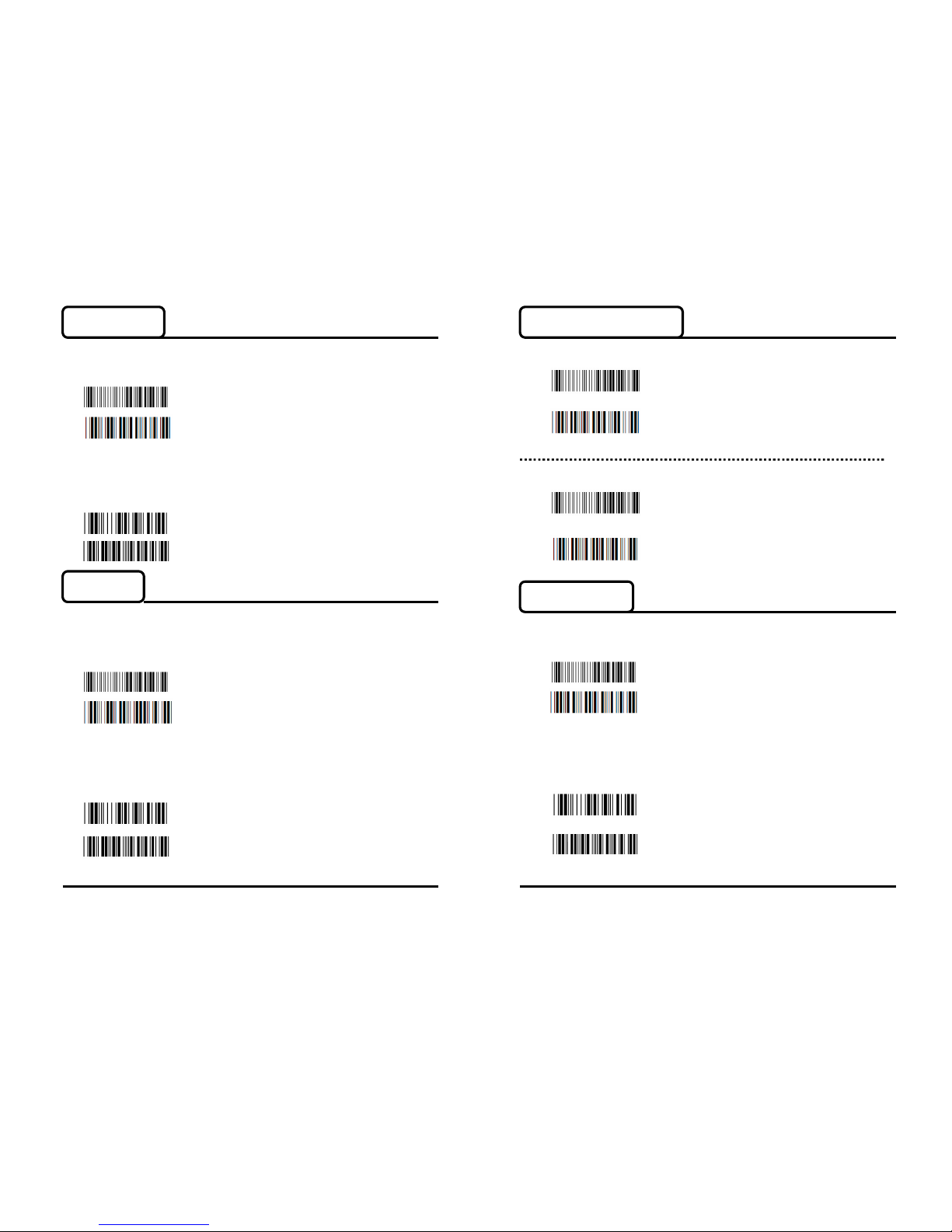

Data & Time Transmission

*Enabel

Disabel

Under Bluetooth mode, user can enabled/

disable the time stamp function in front of the

barcode data.

Time Format

*hh：mm：ss

hh：mm

Time format configuration, in order for the time

stamp to be display in front of each barcode

data, Date and Time Transmission must be

enabled and configure the following formats:

13 14

Timeout

The timeout setting for the handshaking acknowledgment from the host

PC, if scanner did not receive acknowledgement from the host PC, the

warning sound will be active. This function is particular useful for some

applications which host PC takes longer response time.

(1) Enter

(2) Timeout barcode

(3) Scan parameters from Hexadecimal /

Decimal table

(Range:0~99 = 0~99sec)

(4) OK

(5) End

Enter

End

Date Format

*yyyy/mm/dd

mm/dd/yyyy

yy/mm/dd

mm/dd/yy

yyyy-mm-dd

mm-dd-yyyy

yy-mm-dd

mm-dd-yy

dd/mm/yyyy

dd/mm/yy

dd-mm-yyyy

dd-mm-yy

16 15

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dubaco Lecteur de codes-barres

Dubaco

Dubaco DS-210 Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
