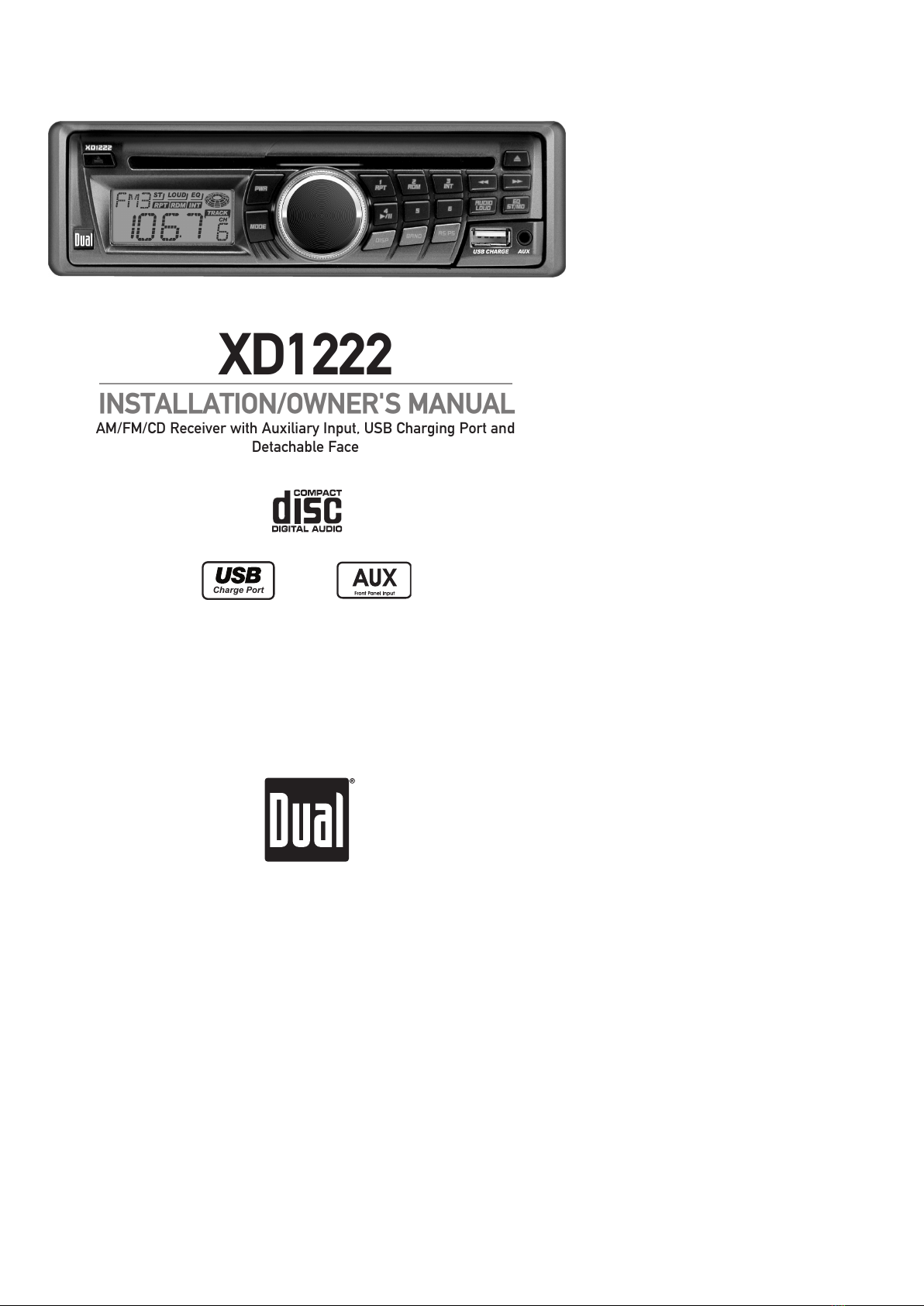

Dual XD1222 Mode d'emploi
AM/FM/CD Receiver with Auxiliary Input, USB Charging Port and
Detachable Face
XD1222
Charge Port
INSTALLATION/OWNER'S MANUAL
2
Preparation
KEYS
HEX BOLT
MOUNTING SLEEVE
PLAIN WASHER
HEX NUT
MOUNTING STRAP
TYPICAL MOUNTING METHOD
XD1222 INSTALLATION
Please read entire manual before installation.
Before You Start
•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.
•Avoidinstallingtheunitwhereitwouldbesubjecttohightemperatures,suchasfrom
directsunlight,orwhereitwouldbesubjecttodust,dirtorexcessivevibration.
Getting Started
•Remove2transitscrewslocatedontopoftheunit.
•Insertthesuppliedkeysintotheslotsasshown,andslidetheunitoutofthemounting
sleeve.
•Installmountingsleeveintoopening,bendingtabstosecure.
•Connectwiringharnessandantenna.Consultaqualifiedtechnicianifyouareunsure.
•Certainvehiclesmayrequireaninstallationkitand/orwiringharnessadapter(sold
separately).
•Testforcorrectoperationandslideinto
mounting sleeve to secure.
•Snaptrimringintoplace.
3
Rear Preamp Output
Connect to amplifier RCA input
Antenna Connector
RCA Cable
(sold separately)
AMP
BLUE
BLACK
RED
YELLOW
Remote Turn-On
Connect to amplifier or power
antenna. Insulate wire if not used.
Ground
Connect to vehicle
chassis ground.
Accessory
Connect to ignition
circuit or switched 12 volt source.
Memory
Connect to battery
circuit or constant 12 volt source.
Right Front
Gray/Black (-)
Gray (+)
Left Front
White/Black (-)
White (+)
Right Rear
Violet/Black (-)
Violet (+)
Left Rear
Green/Black (-)
Green (+)
5 AMP
AGC Fuse
Wiring Diagram
FUSE
When replacing the fuse,
makesurenewfuseisthe
correct type and amperage.
Using an incorrect fuse
could damage the radio.
TheXD1222usesone5amp
AGC fuse located in-line.
* Caution-Donotattachanyspeakerleadstogroundasseveredamagewilloccur.
XD1222 INSTALLATION
