INSTALLATION/OWNER'S MANUAL

AM/FM Receiver with Bluetooth and Fixed Face

XD18BT

XD18BT INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for

instructions.

• Avoid installing the unit where it would be subject to high temperatures, such

as from direct sunlight, or where it would be subject to dust, dirt or excessive

vibration.

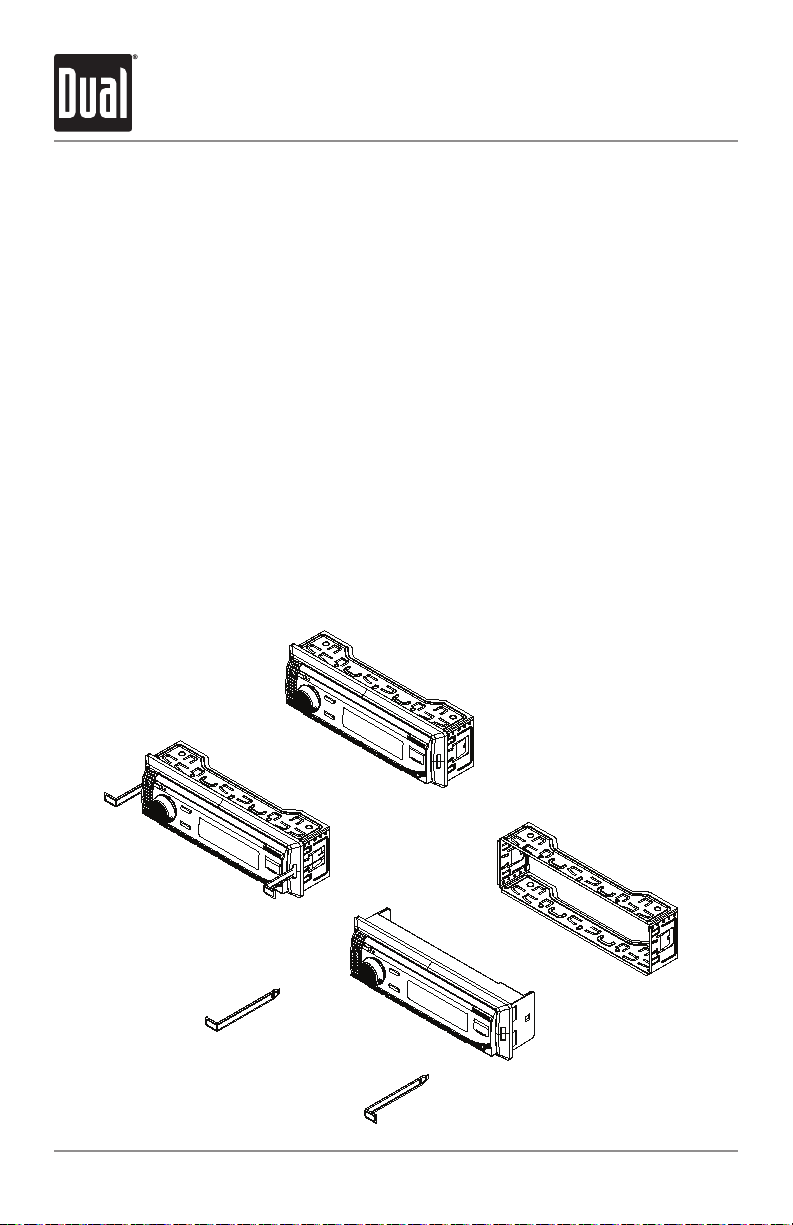

Getting Started

•Insert the supplied keys into the slots as shown, and slide the unit out of the

mounting sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are

unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

TYPICAL

FRONT-LOAD

DIN MOUNTING

METHOD

XD18BT INSTALLATION

Wiring Diagram

FUSE

When replacing the

fuse, make sure new

fuse is the correct type

and amperage. Using

an incorrect fuse could

damage the radio.

The unit uses

one 10 amp AGC fuse

located beside

the Heat Sink

XD18BT OPERATION

Control Locations

Preset 1 / Play/Pause

Dimmer

Source

Band/Display

Bluetooth Talk

Mute

Power

Microphone

Volume / Audio

Tune / Track Up

Tune / Track Down

Voice Assist

USB Port

Auxiliary Input

Reset

Preset 6 / Folder Up

Preset 5 / Folder Down

Preset 4 / Random

Preset 3 / Repeat

Preset 2 / Intro

1 3 6

15 14 13 12 11 10 917

XD18BT OPERATION

Press the button to turn the unit on. Press again to

turn the unit off.

Press SOURCE to select between Radio, USB, Auxiliary

Input and Bluetooth. Sources of operation are shown in

the display.

Adjust volume using the volume knob.

Press to silence the audio. Press again to resume

listening at the previously selected volume.

Press DISP to toggle between various displayed

information.

Press DIM to select the dimmer level: DIM HI/DIM MED/

DIM LOW.

Insert a 3.5mm cable in the unit's front AUX port.

With the unit on, press BAND/DISP to display clock time.

Press and hold BAND/DISP until the hours begins to

flash, then release.

Rotate the volume knob left or right to adjust the hours,

then press BAND/DISP. When the minutes begins to

flash, rotate the volume knob left or right to adjust the

minutes.

Press BAND/DISP momentarily to save the selected time.

Press the RESET button to reset the unit back to the

factory settings if abnormal operation occurs. The reset

button is located on the front panel.

Press the volume knob momentarily to select between

audio functions.

Press and hold the volume knob for more than two

seconds to select between the menu functions.

Rotate the volume knob left/right to adjust or activate

the desired function/audio.

Power On/Off

Changing Modes

Volume

Mute

Display

Dimmer

Auxiliary Inputs

Setting the Clock

Reset

Audio / Menu

General Operation

XD18BT OPERATION

AM/FM Tuner Operation

Seek Tuning

Manual Tuning

Band

Storing Presets

Recalling Presets

Automatically Store

Preset Scan Stations

Press and hold TUNE

or TUNE

for two seconds

to auto seek to the previous or next strong station.

Press TUNE

or TUNE

momentarily to change

radio frequency up or down one step at a time. Press

and hold TUNE

or TUNE

for three seconds

to advance quickly, then release it to stop on desired

station.

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands. Up to six presets can be programmed

for each band, enabling up to 18 FM stations and 12 AM

stations to be stored in memory.

To store a station, select the desired band and station.

Press and hold the desired preset button (1-6) for more

than two seconds. When stored, the preset number will

appear in the display.

Preset stations can be recalled anytime by pressing the

corresponding preset button.

Press and hold the volume knob for more than two

seconds, then press DISP to 18 FM stations and 12 AM

stations automatically.

Touch PS to recall each preset station that has been

stored in memory for each band.

(Available with the Dual Smart Remote App only.)

XD18BT OPERATION

To play MP3 files, insert a USB device containing MP3

files.

Press TUNE

to skip to the beginning of the next

track. Press TUNE

to skip to the beginning of the

previous track.

Press and hold TUNE

or TUNE

to fast forward

or reverse a track.

Press

to temporarily stop USB playback.

Press

again to resume playback.

Folders can be found by pressing Folder Up or Folder

Down. About one second after the folder name is

displayed, the first file under the selected folder will be

displayed and playback will begin.

Press RPT to toggle between RPT ALL, RPT FLR and RPT

ONE.

• RPT ALL - Plays all tracks on USB device.

• RPT ONE - Continuously repeats selected track.

Press RDM to play tracks in random order; press again to

cancel the RDM function.

Press INT to play the first 10 seconds of each track;

press again to cancel the INT function.

Playing MP3 Files

Track Select

Fast Forward

and Reverse

Pause

Folder Access

Repeat

Random

Intro

USB Operation

XD18BT OPERATION

Preparation

Pairing a New

Device

Streaming Audio

Troubleshooting

Before using a Bluetooth device, it must be paired and

connected. Ensure that Bluetooth is activated on your

device before beginning the pairing process.

The head unit broadcasts the pairing signal constantly

when no devices are connected. Complete the pairing

sequence from your Bluetooth device. Refer to the

owner’s manual for your device for more details.

The device name is “Dual Media Player”.

The Bluetooth passcode is "1234”.

Note: If passcode "1234" does not pair your device to

the receiver, use passcode "0000".

Note: The head unit can be in any mode of operation

when pairing is performed.

The head unit supports A2DP wireless streaming audio

from a Bluetooth mobile device directly to your head

unit.

The following functions can be used to control the music:

• Press

to skip to the next available audio track.

• Press

to skip to the previous audio track.

• Press

to toggle between play and pause during

playback.

Bluetooth Operation

XD18BT OPERATION

Voice Activation

Your receiver is designed with an easy access voice activation button to use Siri®

or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone

assistant while you drive with only the push of a button!

Bluetooth should be paired between your smartphone and the receiver. Press the

voice activation button, and the receiver will switch into Bluetooth mode, This will

activate Siri® or Google AssistantTM on your smartphone. You will need to manually

switch back to the previous or desired mode once this operation is terminated.

Dual iPlug P2 Smart App Remote Control

Use the Dual iPlug P2 Smart App

Remote Control on an Apple or Android

smartphone to control the receiver via

Bluetooth.

Change the mode, station, song,

volume, and settings directly from

your smartphone without being in the

receiver's line-of-sight.

Download the Dual iPlug P2 Smart App

Remote Control from Apple App Store or

Google Play Store and install it on your

smartphone or tablet (QR code download

link on the right).

XD18BT OPERATION

Specifications

Tuning range: 87.5MHz-107.9MHz

Usable sensitivity: 8.5dBf

50dB quieting sensitivity: 10dBf

Stereo separation @ 1kHz: >30dB

Frequency response: 30Hz-13kHz

Tuning range: 530kHz-1710kHz

Usable sensitivity: <42dBu

Frequency response: 30Hz-2.2kHz

Speaker output impedance: 4~8 ohms

Line output voltage: 1.2 Volts RMS

Dimensions: 7" x 2" x 2" (178 x 50 x 50 mm)

Design and specifications subject to change without notice.

FM Tuner

AM Tuner

General

CEA-2006 Power Standard Specifications

(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)

Power Output: 14 Watts RMS x 4 channels at 4 ohms and <1%

THD+N

Signal to Noise Ratio: 75dBA (reference: 1 watt into 4 ohms)
