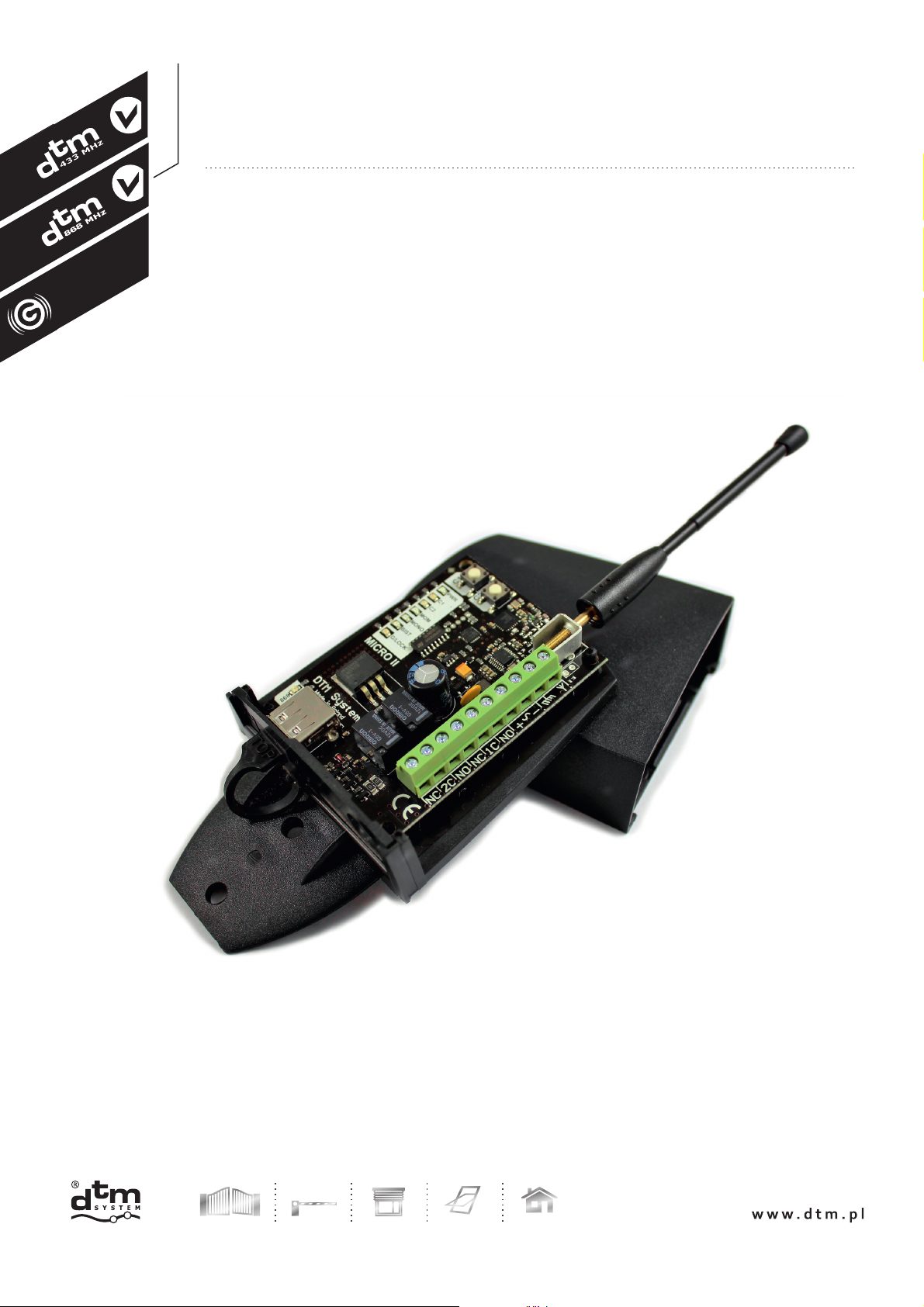

Dtm MICRO2 Mode d’emploi

2-CHANNE L R A D I O R E C E I V E R

MICRO2 / MICRO2 868 / MICRO2 Duo

Installation and assembly v. 2.1

G A L A C T I C

automation system

GENERAL INFORMATION

A series of MICRO2 two-channel receivers is designed to work with gate drivers, roller shutters, and other automation devices,

where the control pulse is required. It provides a simple and inexpensive way to expand the functionality of the installation of a

remotecontrol.

SPECIFICATIONS AND UTILITY

hReceiverpowersupply: 12...24VAC/DC

hReceiver’s memory: MICRO2-200 remotesofDTM433MHz series

MICRO2868-200remotesofDTM868MHz series

MICRO2Duo-200remotesofDTM433MHz or/and DTM868MHz

hOperatingtemperature: from-20°Cto+55°C

hExternaldimensionsofhousing: 79x138x33mm

hDegreeofprotection: IP-53

hMounting: outdoorsorin other deviceshousing

hWeight: 125g

hFrequency: MICRO2 - 433MHz

MICRO2 868 - 868MHz

MICRO2 Duo - 433MHz and 868MHz

hRelayoutput: 2NO/NCoutputs

hOperatingmode: monostable,bistable,momentary

hMonostableactivationtime: 0,5s/from1 to 127severy1s/from1to127 min. every 1 min.

hVery clear and simple user interface, based on LEDs and two buttons;

hTheabilitytoaddremoteswithoutneedof using receiver button;

hTheabilitytoaddremotesprogrammedoutsideinstallation-Galacticfunction;

hTheabilitytodisableoperationof remotes addedto receiver- servicelock;

hTheabilitytomanageareceiverviaUSB;

hTheabilitytodeleteasingleremote(the need to have removed remote);

hTheabilitytoverifythenumberofaddedremotes.

EASY REMOTE ADDING

EASY REMOTE ADDING LOCK

GALACTIC FUNCTION

SERVICE LOCK

VERIFYING NUMBER OF ADDED REMOTES

MANAGEMENT VIA USB

MICRO2 MICRO2 868 MICRO2 Duo

lack *only DTM868MHz

Tab. 1. Availability of functions in MICRO2 versions.

automation system

1. RECEIVER INSTALLATION

The receiver consists of a splash-proof surface-mount housing with screw-rod antenna (Figure 1) and the electronic board

(Figure2).

Receiver housing of IP-53 allows flexibility in selecting the mounting location. The receiver can be placed directly under the

gatedrivercoveraswellason the post of the fence.

Access to the screw terminals and interface of the receiver is possible after removing the external antenna and sliding the

receivercover.

Beforeconnectingthewiresmustbecarriedthrough the cable hole of 8mm diameter.

Receiverhousing is equipped with theUSB connector cover, so youcan accesstheconnectorwithoutremovingthecover.

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

Choosingamounting location be aware of:

-thenegativeimpactofelectricityandmetalobjectsneighborhoodto receiverantenna,

-thenegativeimpactofradiointerferencefromsourcesother than the remote,

-thenegativeimpactofdensedevelopment,humidorconcretewalls,

-reducingtherangeofremotewithusedbattery,

-increasingtherangewithincreasing the height of the receiver antenna.

Fig. 1. Receiver housing.

handle with holes

Φ5mm

screwd external antenna

sliding housing cover

cable entry

Φ8mm

USB

connector cover

PWR

MOM

MONO

BIST

G/LOCK

868

433

MICRO II

DTM System

Made in Poland

|NC|2C|NO|NC|1C|NO

Fig. 2. View of the receiver board with description.

MICRO2 MICRO2 868 MICRO2 Duo

version of receiver signaling

868

433

868

433

868

433

external antenna handle

programming button C1

programming button C2

USB connector

LEDs:

PWR

MOM

MONO

BIST

G/LOCK

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

Receiver board has a microprocessor control unit with LEDs and buttons; executive elements realized on two relays; and screw

connectorsforconnectingthe power supply, antenna and controlled devices.

The controlled device must be connected to the receiver output. If the device requires normally open (NO) control, connect the

devicetotheterminalsNOandC. If device requires normally closed (NC) control, connect the device to the terminals NC andC.

The receiver is equipped with a rod antenna. In order to increase the radio coverage use an external antenna using coaxial cable

with an impedance of 50Ω. Connect antenna's coaxial cable to the terminal marked (central cord) and to the terminal

markedGND .

12-24V AC/DC connection is indicated by PWR LED. During receiver operation, each switching of C1/C2 output channel is

indicatedbyC1/C2 LED.

screw terminal description

12-24V

outputs

NONO 1C2C NCNC

power antenna

2. RECEIVER PROGRAMMING

MICRO2 receiver has ability to program parameters of work. Before programing refer to Figure 2. showing view of mainboard,

programmingbuttonsC1andC2 andLEDs location.

2.1 Adding remote to receiver memory

When receiver is on the working mode, press and hold programming button of chosen channelC1/C2. Red LEDC1/C2 lights on,

thenpresschosenremotebutton.SuccessfuladdingisindicatedbyLEDC1/C2blinking.

2.2. Deleting remote from receiver memory

To delete remote from memory press and hold simultaneously receiver both C1 and C2 buttons. All LEDs blink, then press

any button of remote that you want to delete. Successful deleting is indicated by C1 LED blinking.

Pressing C1 and C2 buttons over 10 seconds will format receiver memory. (see section 2.12)

PRESS AND HOLD

C1 AND C2 BUTTONS

2 3

ALL LEDs BLINK

OUT, MOM, MONO, BIST

PRESS BUTTON OF REMOTE

YOU WANT TO DELETE

C1 LED BLINKS

- DELETING SUCCESSFUL

2 3 41

PRESS AND HOLD

C1/C2 BUTTON C1/C2 LED LIGHTS PRESS CHOSEN

BUTTON ON THE REMOTE

C1/C2 LED BLINKS

- ADDING SUCCESSFUL

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

Fig. 4. Deleting a remote.

Fig. 3. Adding a remote.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

2.3. Easy remote adding function

Easy remote adding function allows to register remote without physical access to receiver buttons. It is neccessary to be in

receiverradiorangeandtohavepreviouslyaddedremote.

For easy adding press, in receiver radio range, for 15 seconds button of already added remote.Then, in time no longer than 3

seconds,pressandholdfor 15 seconds button of remote you want to add.

Easyremoteaddingfunctionisnot available when:

·channelisconfiguratedinmomentarymode

·easyremoteaddingfunctionislocked

·ifusedremotesaretwoof a different frequency

·servicelockison

Failureineasyremoteaddingmaybecausedby:

·lowbatteryofremote

·radiointerferenceduringprocedure

·receivermemoryfull

2.4. Easy remote adding function locking / unlocking

To secure the device against unwanted remote adding (especially important in access protected zones) easy remote adding

function must be locked.To lock/unlock function press and hold C1 and C2 buttons, then release one C1 or C2 button. After 5

secondsC1andC2 LEDswill light on alternately every 5 seconds.

ReleasingsecondC1 orC2 button when:

·C1LEDlights on - easy remote adding function locked,

·C2LEDlighton - easy remote addin function unlocked.

Releasing second button in time no more than 5 seconds from releasing first button will cause leaving the procedure

withoutsavingchanges.

PRESS BUTTON

OF „OLD” REMOTE

FOR 15 SECONDS

AFTER MAX. 3 SECONDS

REMOTE IN RECEIVER

RANGE

PRESS BUTTON

OF „NEW” REMOTE

FOR 15 SECONDS

REMOTE IN RECEIVER

RANGE

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

Fig. 5. Easy remote adding.

Fig.6. Locking/unlocking easy remote adding.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PRESS AND HOLD C1 AND C2

2 3

RELEASE C2

AFTER 5 SECONDS

C1 AND C2 LEDs WILL

LIGHT UP ALTERNATELY

RELEASE BUTTON WHEN

C1 ON

- EASY ADDING LOCKED

RELEASE BUTTON WHEN

C2 ON

- EASY ADDING UNLOCKED

868

433

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

C1 C2

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

2.5. Entering of authentication code (unable for MICRO2 version)

Galactic function allows adding remotes programmed and configured outside the installation, without need to use receiver

buttons.

It is necessary to have remote with Galactic function, remote has to be programmed with authentication code by

GPROGprogrammer.

To enter authentication code to receiver pressC1 orC2 button. C1 orC2 LED lights on and LED indicating currently set working

mode lights on. Press repeatedlyC1 or C2 button to light onG/LOCK LED. LED will pulse.While LED pulsing press and hold for 5

secondstwobuttons of remote withGalacticfunction.

Remote used in this procedure becomes "master" remote. It is neccessary to tag the remote for future use. One

"master"remotecanbeusedforseveralreceivers.

FrequencyofG/LOCKLED pulsing indicates is authentication code set or not.

Very fast pulsing (over10pulsespersecond)indicateslackofGalactic code in the receiver.

Slowpulsing(1pulsepersecond) indicatesGalacticcodeissetinthe receiver.

2.6. DeletingGalactic authentication code (not available for MICRO2 version)

To delete authentication code of Galactic function it is necessary to have "master" remote, that authentication code has been

setwith.

To delete authentication code press C1 or C2 button. C1 or C2 LED lights on and LED indicating currently set working mode

lights on. Press repeatedly C1 or C2 button to light on G/LOCK LED. LED will pulse. While LED pulsing press and hold for 5

secondstwobuttons of "master" remote, that code has been previouslysetwith.

Galacticauthenticationcodeisdeletedaftermemoryformat(section2.12).

2 3 41

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

Fig.8. Deleting Galactic code.

REMOTE WITH GALACTIC

CODE

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

2 3 41

Fig.7. Entering Galactic code.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PRESS REPEATEDLY

C1/C2 BUTTON

TO LIGHT G/LOCK LED

G/LOCK LED

BLINKS SLOWLY

PRESS AND HOLD

TWO BUTTONS

FOR 5 SECONDS

G/LOCK GOES OUT

C1 LED BLINK

- CODE DELETED

PRESS REPEATEDLY

C1/C2 BUTTON

TO LIGHT G/LOCK LED

G/LOCK LED

BLINKS FAST

PRESS AND HOLD

TWO BUTTONS

FOR 5 SECONDS

G/LOCK GOES OUT

C1 LED BLINK

- CODE ENTERED

REMOTE WITH GALACTIC

CODE

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

G/LOCK GOES OUT,

C1 LED BLINKS

-MASTER REMOTE ADDED

PWR

MOM

MONO

BIST

G/LOCK

G/LOCK GOES OUT,

C2 LED BLINKS

-MASTER REMOTE DELETED

PWR

MOM

MONO

BIST

G/LOCK

2.8.Service lock.Adding / deleting the "master" remote.

Service lock is a function which switches off operation of remotes added to the receiver at the time of eg. maintenance on the

installation.Enablingservicelockcausethat receiverdoesnot respond to the signal from the remotes.

To activate service lock it is necessary to add "master" remote to the receiver. Adding "master" remote is independent of

adding remotes to the channels. "Master" remote can be used for control of the channel and for switching the service lock as

well.You can enter up to 5 "master" remotes to activate/deactivate the service lock.

To add/delete a "master" remote pressC1 or C2 button. LEDC1 or C2 and LED indicating the currently selected operating mode

MOM / MONO / BIST will light. By pressing the C1 orC2 button repeatedly light theG/LOCK LED.G/LOCK LED will blink. During

this time, press and hold for 3 seconds remote button. C1 LED blinks if "master" remote added, C2 LED blinks if "master"

remotedeleted.

It is recommended that the "master" remote was not added to the receiver and served only to activate/deactivate the

servicelock.

IN RECEIVER RADIO

RANGE

PRESS AND HOLD

FOR 5 SECONDS

TWO REMOTE BUTTONS

C1 LED BLINKS

- REMOTE REGISTERING

SUCCESSFUL

Fig.9. Adding a remote with the use of Galactic function.

REMOTE WITH GALACTIC

CODE

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

2.7.Adding the remote with the use ofGalactic function (not available for MICRO2 version)

The condition of the success of adding the remote with the use of the Galactic function is the compatibility of authentication

codessetinthereceiverandthe remote.

Inordertoaddthe remote,press and hold for 5 seconds any two buttons on the remote, in receiver radio range.

Failedaddingcanbecausedby:

hincompatibilityofauthenticationcodesinthereceiverandtransmitter,

hlowbattery,

hradiointerferencethatmayoccurduring the procedure,

hthereceivermemoryisfull(attempttoadd201remote).

2 31

REPEATEDLY PRESS C1/C2

BUTTON TO LIGHT

G/LOCK LED

WILL BLINK

PRESS AND HOLD

REMOTE BUTTON

FOR 3 SECONDS

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

Fig.10. Adding/deleting the „master” remote.

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

2.10. Setting channeloperating mode on bistable or momentary.

To set the operation channel C1/C2, press and release the C1/C2 button. Red LED C1/C2 lights on and yellow LED indicating

currently set working mode lights on. Press repeatedly C1/C2 button, to set desired mode of operation. The yellow LED with

MOM description set momentary mode, the LED with BIST description - bistable mode. To confirm the selected operating

mode,pressandholdC1/C2button.C1/C2LEDblinks,andC1/C2andMOM/BISTLEDslightoff.The operating mode is saved.

Pressingtheother channel button while programing will leave procedure without saving.

1 2 3 4

PRESS C1/C2 BUTTON LED LIGHT

C1/C2 + MOM / MONO / BIST

PRESS C1/C2

TO LIGHT MOM/BIST LED

CONFIRM BY PRESSING

AND HOLDING C1/C2

Fig.13. Setting bistable or momentary mode.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

2.9.The service lock enable / disable.

To enable / disable the service lock you must have "master" remote (point 2.8.).

To enable / disable the service lock press five times in no more than 5 seconds, in receiver radio range, any button of the

"master"remote.Service lock enabling signalsG/LOCK LED on, service lock disable signalsG/LOCKLED off.

Servicelockisdeletedaftermemoryformatofthereceiver(pint2.12.).

23a 3b

Fig.11. The service lock enable / disable.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

„MASTER” REMOTE

PRESS 5 TIMES

ANY BUTTON

OF „MASTER” REMOTE

IN RECEIVER

RADIO RANGE

G/LOCK LED ON

- SERVICE LOCK ON G/LOCK LED OFF

- SERVICE LOCK OFF

DTM System spółka z ograniczoną odpowiedzialnością spółka komandytowa

2.11. Setting channeloperating mode on monostable.

To set the operation mode of the channel C1/C2, press and release theC1/C2 button. RedC1/C2 LED lights on and yellow LED

indicating currently set working mode lights on. Press repeatedly C1/C2 button to set monostable mode, indicated by the

yellow LED with MONO description.To confirm the selected operating mode, press again and hold C1/C2 button. MONO LED

goes out and after a moment starts blinking. While holding down the C1/C2 button deduct the required number of blinks and

then release the C1/C2 button. Deducted number of MONO LED blinks will set the turn on time of channel in seconds or

minutes.To set the activation time in minutes briefly press the C1/C2 button after C1/C2 button is released and MONO LED is

blinkingfast.To set the activation time of 0,5s releaseC1/C2 button before the first blink of yellow MONO LED.

1 2 3 4

PRESS C1/C2 BUTTON LED LIGHT

C1/C2 + MOM / MONO / BIST

PRESS C1/C2

TO LIGHT MONO LED

PRESS AGAIN AND HOLD

C1/C2 BUTTON

MONO LED GOES OUT

FOR A MOMENT...

RELEASING BUTTON

AT THAT MOMENT

SET THE 0,5s TIME

...MONO LED STARTS

BLINKING COUNTING

NUMBER

OF SECONDS/MINUTES

RELEASE C1/C2 BUTTON

AFTER COUNTING DESIRED

TIME IN SECONDS

Fig.14. Setting the monostable mode.

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

868

433

PWR

MOM

MONO

BIST

G/LOCK

MONO LED STARTS

BLINKING

FAST AND THEN GOES OUT

PWR

MOM

MONO

BIST

G/LOCK

PRESSING C1/C2 WHILE

MONO LED BLINKS FAST

WILL SET THE TIME IN MIN.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels dtm Récepteur

dtm

dtm mark Instructions d'utilisation

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur

dtm MICRO2 Mode d’emploi

Manuels Récepteur populaires d'autres marques
