DTM System MEMO Manuel utilisateur

SERVICE PROGRAMMER

MEMO

user manual

MEMO PROGRAMMER SOFTWARE

MEMO MANAGER

v1.1

user manual v1.1

automation systems

TABLE OF CONTENTS

I. MEMO - SERVICE PROGRAMMER .................................................3

1. General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Elements of the programmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4. Receiver management through the MEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4.1. MEMO connection to the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4.2. Remotes / numbers backup to MEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4.3. Remotes / numbers write to receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4.4. Receiver software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5. Registration of operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6. MEMO code table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

II. MEMO MANAGER - MEMO SOFTWARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1. Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2. Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Installation and start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. Connecting MEMO to a computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Program main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.1. CONTROL GSM tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.1.1. Editing numbers and receiver configuration . . . . . . . . . . . . . . . . . . . . . . 13

5.2. RADIO RECEIVERS tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.2.1. Editing remote control files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.3. FIRMWARE tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

automation systems

I. MEMO - SERVICE PROGRAMMER

1. GENERAL INFORMATION

MEMO is a service programmer designed to work with selected DTM System receivers. Using the

programmer allows you to save remote controllers memory or telephone numbers memory from the

receiver to a file, enter remote controllers or telephone numbers to the receiver memory from a file, and

update the receiver firmware.

2. TECHNICAL DATA

power supply 3,3 - 5V, via USB or receiver

storage capacity 2 MB

external dimensions of the housing 75x45x15 mm

3. ELEMENTS OF THE PROGRAMMER

MicroUSB SOCKET

for powering the device,

communication with PC

and receiver

BACKUP LED

green

WRITE LED

red

UPDATE LED

orange

BACKUP button

WRITE button

UPDATE button

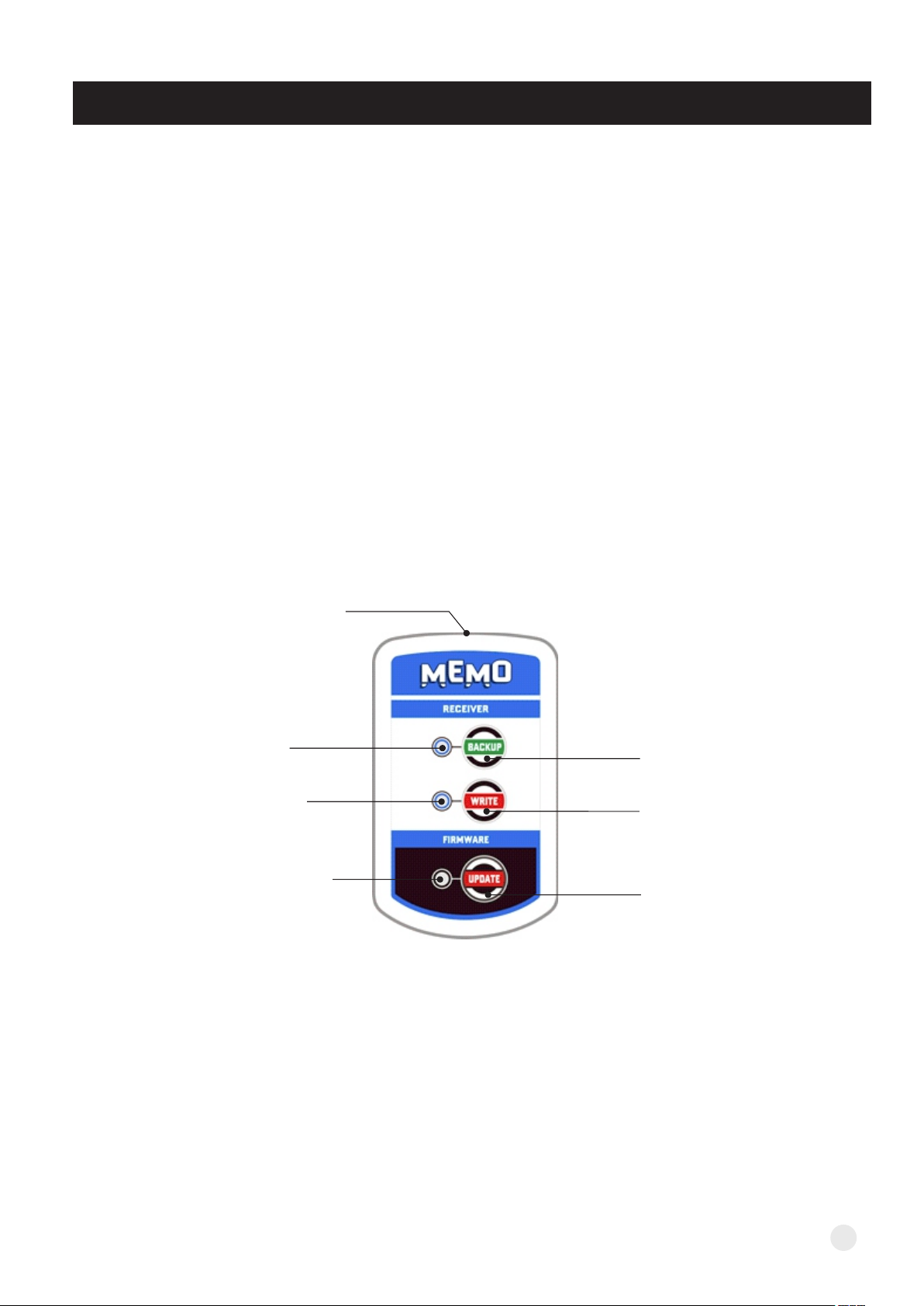

Fig.1. View of the MEMO service programmer with description of the elements.

4. RECEIVER MANAGEMENT THROUGH MEMO PROGRAMMER

4.1.MEMO CONNECTION TO THE RECEIVER

The programmer should be connected to the receiver using the USB cable included in the set. The

programmer's readiness for operation is signaled by blinking of the BACKUP, WRITE and UPDATE LEDs.

During connection with the receiver the programmer buttons are active.

4.2. REMOTES / NUMBERS BACKUP TO MEMO

In order to create keyfob / numbers memory file:

źconnect the MEMO programmer to the receiver. The BACKUP, WRITE and UPDATE LEDs will begin to

flash to indicate that the programmer is ready for operation.

źpress the BACKUP button. Ongoing recording is signaled by a flashing green BACKUP LED. The end of

the recording is signaled by the blinking of the BACKUP, WRITE and UPDATE LEDs.

When saving the remote / number memory do not disconnect the MEMO programmer from the

receiver.

If errors occurred during recording, the green BACKUP LED will flash cyclically to indicate the error code

(see section 6).

The backup file with memory of remote controls / receiver numbers is saved in the MEMO programmer. It

gets the name RD_xxxxx.RRF, where "xxxxx" is the file's serial number. Each subsequent saved remote

controls / number memory file will receive a name with the next number. The files can be edited after

connecting the MEMO programmer to the computer in the MEMO MANAGER program (see the MEMO

MANAGER manual).

Deleting a file from the programmer's memory does not affect the order of numbering. The device

searches for the highest busy number and assigns the new file a sequential number.

When the highest number 99999 is busy, MEMO will report an error and the remotes / numbers will fail to

or delete files.

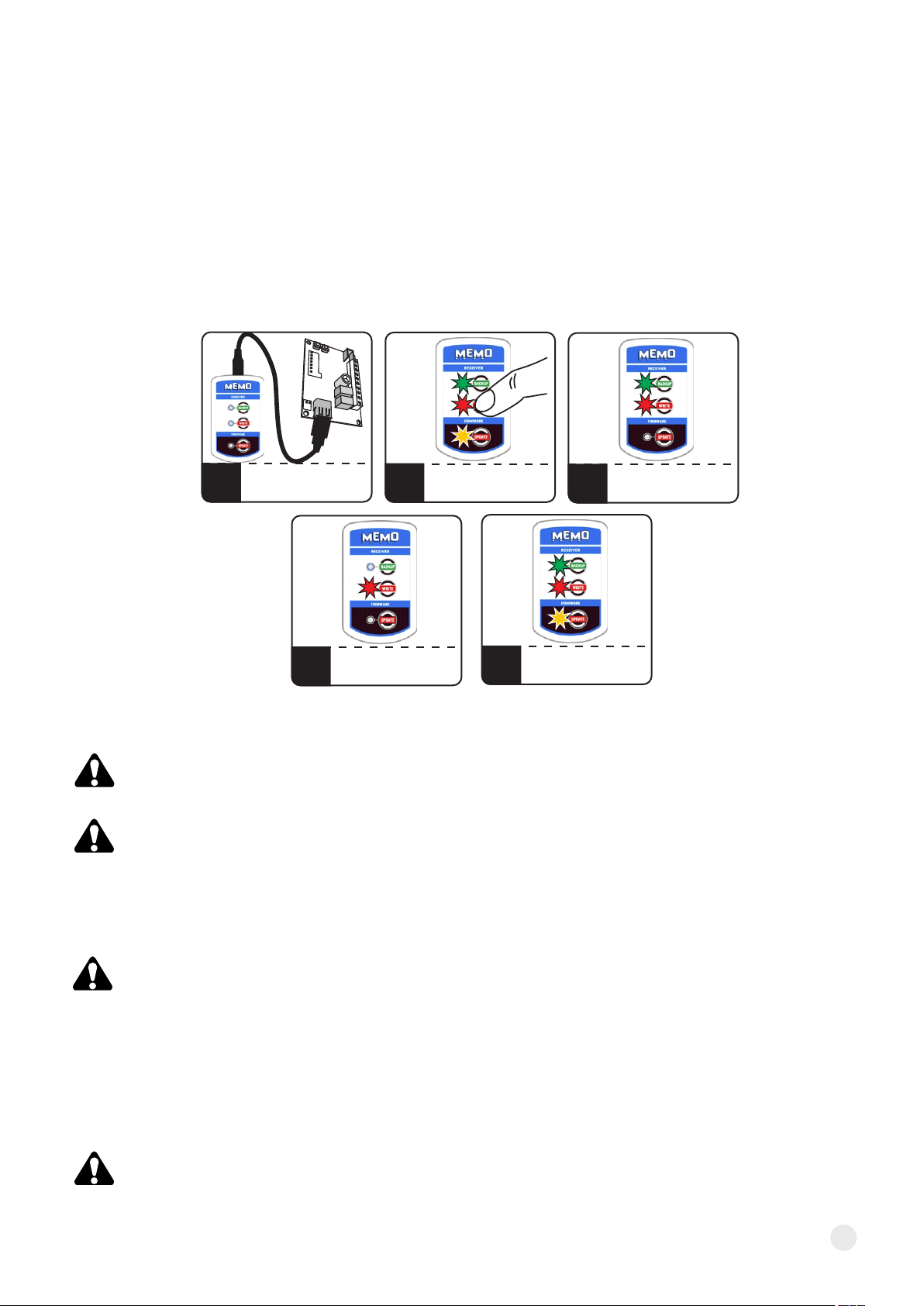

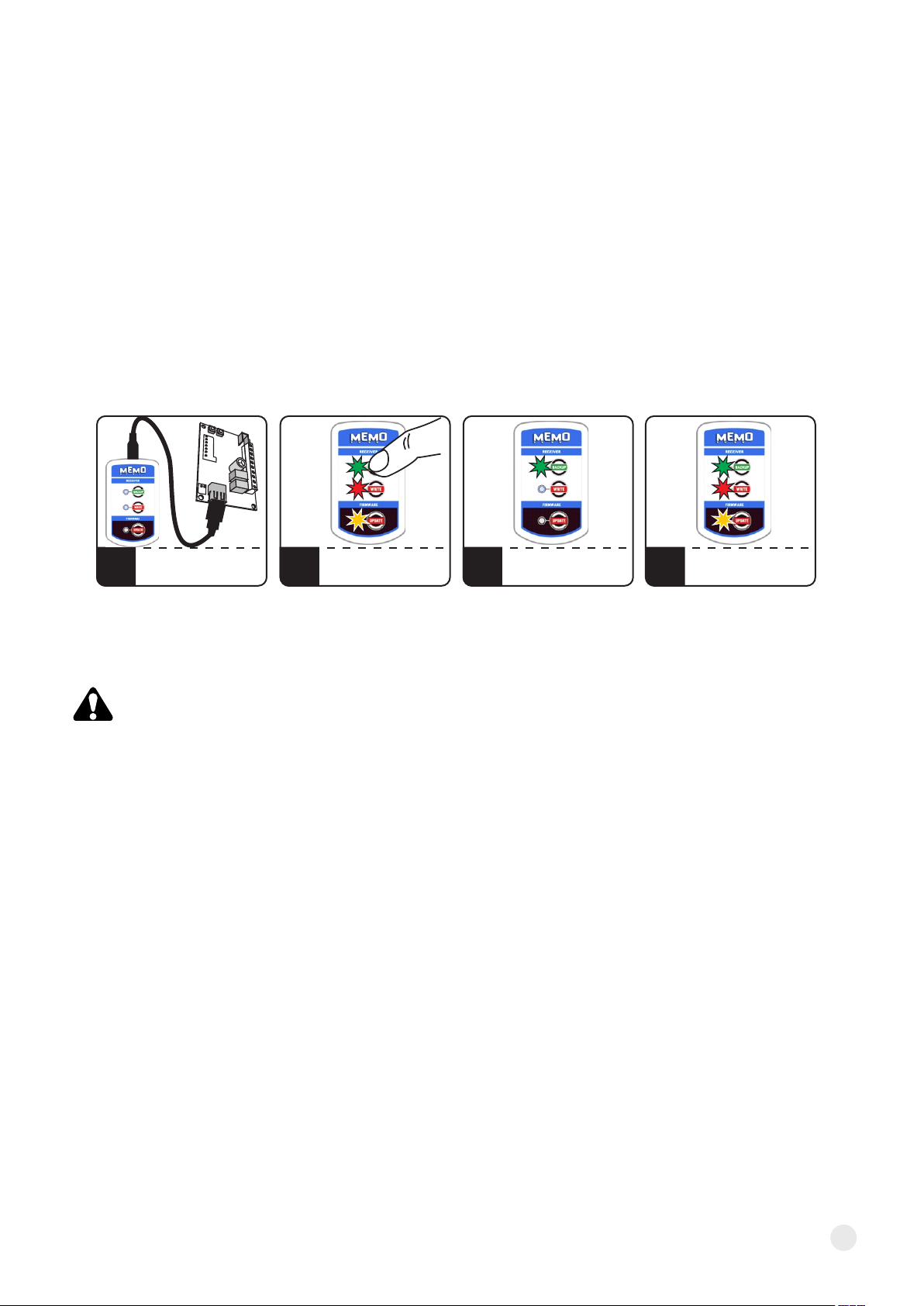

fIG. 2. Remotes / numbers backup to MEMO.

4ALL LEDS BLINK

SAVING FILE COMPLETED

3BACKUP LED BLINKS

RECORDING IN PROGRESS

2ALL LEDS PULSE

PUSH THE BACKUP BUTTON

1CONNECT MEMO TO

RECEIVER VIA USB CABLE

868

433

PWR

MOM

MONO

BIST

G/LOCK

4.3. REMOTES / NUMBER WRITE TO RECEIVER

To write remotes / numbers:

źconnect the MEMO programmer to the receiver. The BACKUP, WRITE and UPDATE LEDs will begin to

flash to indicate that the programmer is ready for operation.

źpress the WRITE button. MEMO will first create an emergency backup of the receiver's memory. It is

signaled by a fast pulsing of the green BACKUP diode and lighting of the red WRITE diode. Then, the

process of saving remote controls / numbers to the receiver's memory will start. This is indicated by the

green BACKUP diode going off and the red WRITE diode pulsing. The end of the recording is signaled by the

blinking of the BACKUP, WRITE and UPDATE LEDs.

When writing remote controls / numbers from a file, do not disconnect the MEMO programmer

from the receiver.

Only the remote memory is copied from radio receivers. The GSM number memory and receiver

settings are copied from GSM receivers.

If errors occurred during the recording, the red WRITE diode will flash cyclically to indicate the error code

(see item 6).

The remotes / numbers from the receiver's memory will be replaced with remotes / numbers

entered from the file.

The process of writing remote controls / numbers to the receiver is preceded by creating an emergency

backup called AUTOBACK.RRF. Creating an emergency backup does not affect the remote memory

storage process.

If errors appear during backup, the process will be interrupted and the green BACKUP LED will flash

periodically to indicate an error code (see section 6).

After saving the remote controls to the receiver's memory, it is necessary to synchronize the rolling

counters of the remote controls with the receiver. When using the remote control with the receiver

for the first time, press the remote control button twice.

1CONNECT MEMO TO

RECEIVER VIA USB CABLE

868

433

PWR

MOM

MONO

BIST

G/LOCK

5ALL LEDS BLINK

RECORDING TO

RECEIVER COMPLETED

3BACKUP LED BLINKS

WRITE LED ON

RECORDING AUTOBACK.RRF

2ALL LEDS PULSE

PUSH THE WRITE BUTTON

4WRITE LED BLINKS

RECORDING REMOTES/

NUMBERS TO RECEIVER

Fig. 3. Remotes / numbers write to the receiver.

In the receiver's memory, remotes / numbers from the file set in the MEMO MANAGER program as the

main one are first entered (see the MEMO MANAGER instruction).

If no file is set as the main one, the MEMO programmer will use the remotes / numbers file with the highest

number for saving, i.e. the file of recently remembered remotes / numbers.

It is possible to skip the main file and select the most recent remotes / numbers to save the file.

The procedure can be used for simple transfer of remote control memory / numbers between

receivers.

In order to enter to the receiver the last saved remotes / numbers and configuration of the GSM receiver,

bypassing the main file, you should:

źconnect the MEMO programmer to the receiver. The BACKUP, WRITE and UPDATE indicator LEDs will

begin to flash to indicate that the programmer is ready for operation.

źpress and hold the WRITE button for more than 3 seconds.

źrelease the WRITE button when the red WRITE LED goes off. MEMO will first create an emergency

backup of the receiver's memory. It is signaled by a fast pulsing of the green BACKUP diode and lighting of

the red WRITE diode. Then the process of saving the remote controls to the receiver's memory will start.

This is indicated by the green BACKUP diode going off and the red WRITE diode pulsing. The end of the

recording is signaled by the blinking of the BACKUP, WRITE and UPDATE LEDs.

When entering remote controls / numbers from a file, do not disconnect the MEMO

programmer from the receiver.

If errors occurred during the recording, the red WRITE diode will flash cyclically to indicate the error code

(see item 6).

1CONNECT MEMO TO

RECEIVER VIA USB CABLE

868

433

PWR

MOM

MONO

BIST

G/LOCK

7ALL LEDS BLINK

RECORDING TO RECEIVER

COMPLETED

3HOLD THE WRITE BUTTON

UNTIL THE LED TURNS OFF

2ALL LEDS BLINK

PUSH AND HOLD

WRITE BUTTON

6WRITE LED BLINKS

RECORDING TO RECEIVER

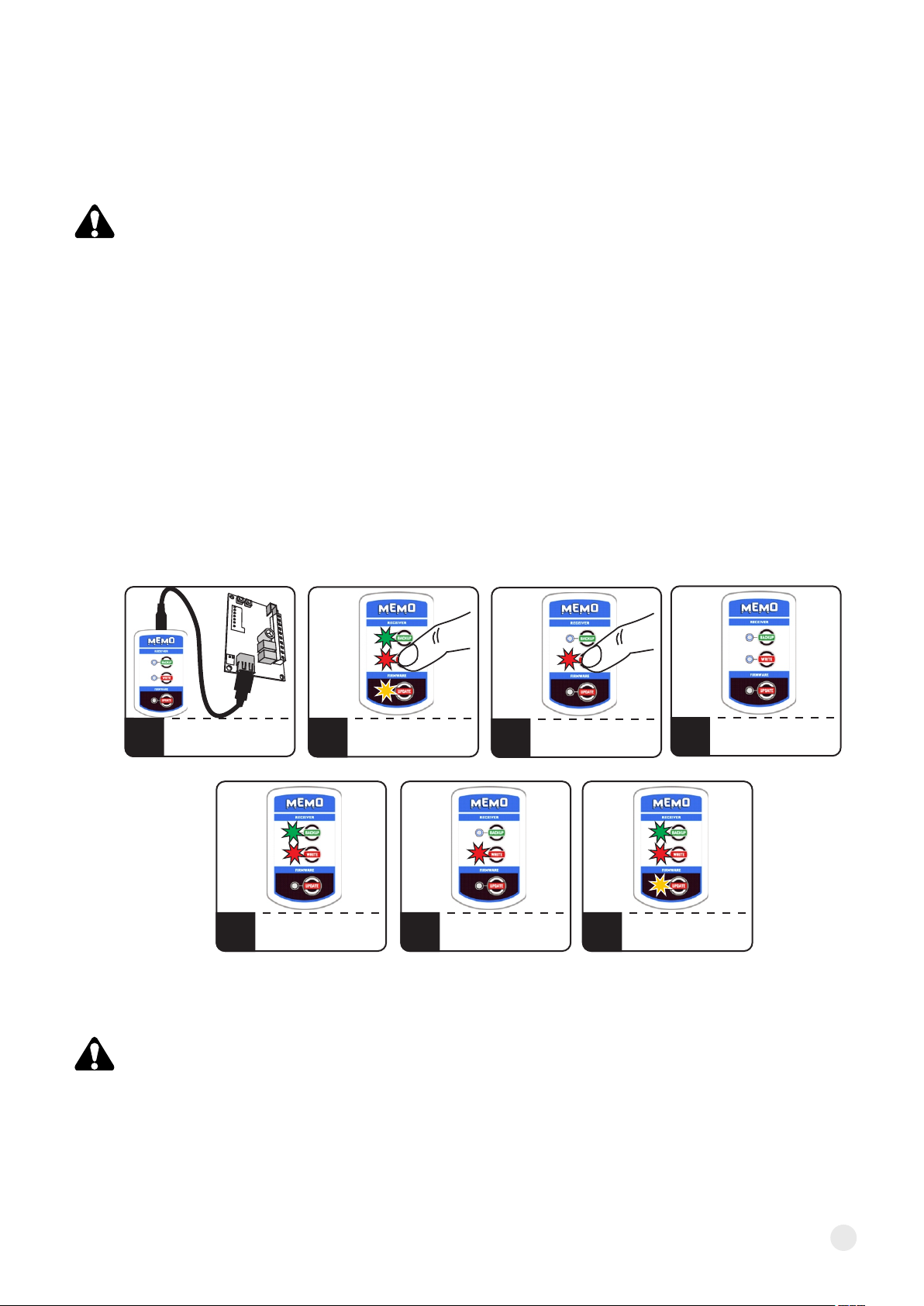

fIG. 4. Recording of remotes / numbers and configuration of the GSM receiver using the last created file.

4RELEASE THE WRITE

BUTTON WHEN THE LED

TURNS OFF

5BACKUP LED BLINKS

WRITE LED ON

RECORDING AUTOBACK.RRF

4.4. RECEIVER SOFTWARE UPDATE

To update the receiver firmware it is necessary to have a firmware file. The files should be

downloaded using the MEMO MANAGER program (see the MEMO MANAGER manual).

MEMO can contain many firmware files for different receivers. The MEMO programmer recognizes the

model and software version of the receiver to which it is connected. On this basis, the programmer selects

which of the available files to use for updating.

To update the receiver software:

źconnect the MEMO programmer to the receiver. The BACKUP, WRITE and UPDATE indicator LEDs will

begin to flash to indicate that the programmer is ready for operation.

źpress the UPDATE button. The orange UPDATE LED will flash to indicate that the software has been

updated. The end of the update is signaled by the blinking of the BACKUP, WRITE and UPDATE LEDs.

źThe receiver resets and restarts.

During the software update, do not disconnect the MEMO programmer from the receiver.

If errors occurred during the update, the orange UPDATE diode will flash periodically to indicate the error

code (see section 6). Depending on what error the receiver has, it can reset and run with the old version of

the software or remain in the software update mode. In this case, repeat the software update process.

In the software update procedure, the MEMO programmer always selects the latest firmware version

available on the device. If the receiver firmware version is newer than available in the MEMO programmer

memory, the programmer expects confirmation of the operation of uploading the older version of the

software. The waiting state is signaled by the steady cyclic blinking of the orange UPDATE diode.

Confirmation is made by pressing the UPDATE button again. The operation is canceled by pressing one of

the other two BACKUP or WRITE buttons.

1CONNECT MEMO TO

RECEIVER VIA USB CABLE

868

433

PWR

MOM

MONO

BIST

G/LOCK

5RECEIVER RESET

3UPDATE LED BLINKS

UPDATE IN PROGRESS

2ALL LEDS PULSE

PUSH THE UPDATE BUTTON

4ALL LEDS PULSE

UPDATE COMPLETED

868

433

PWR

MOM

MONO

BIST

G/LOCK

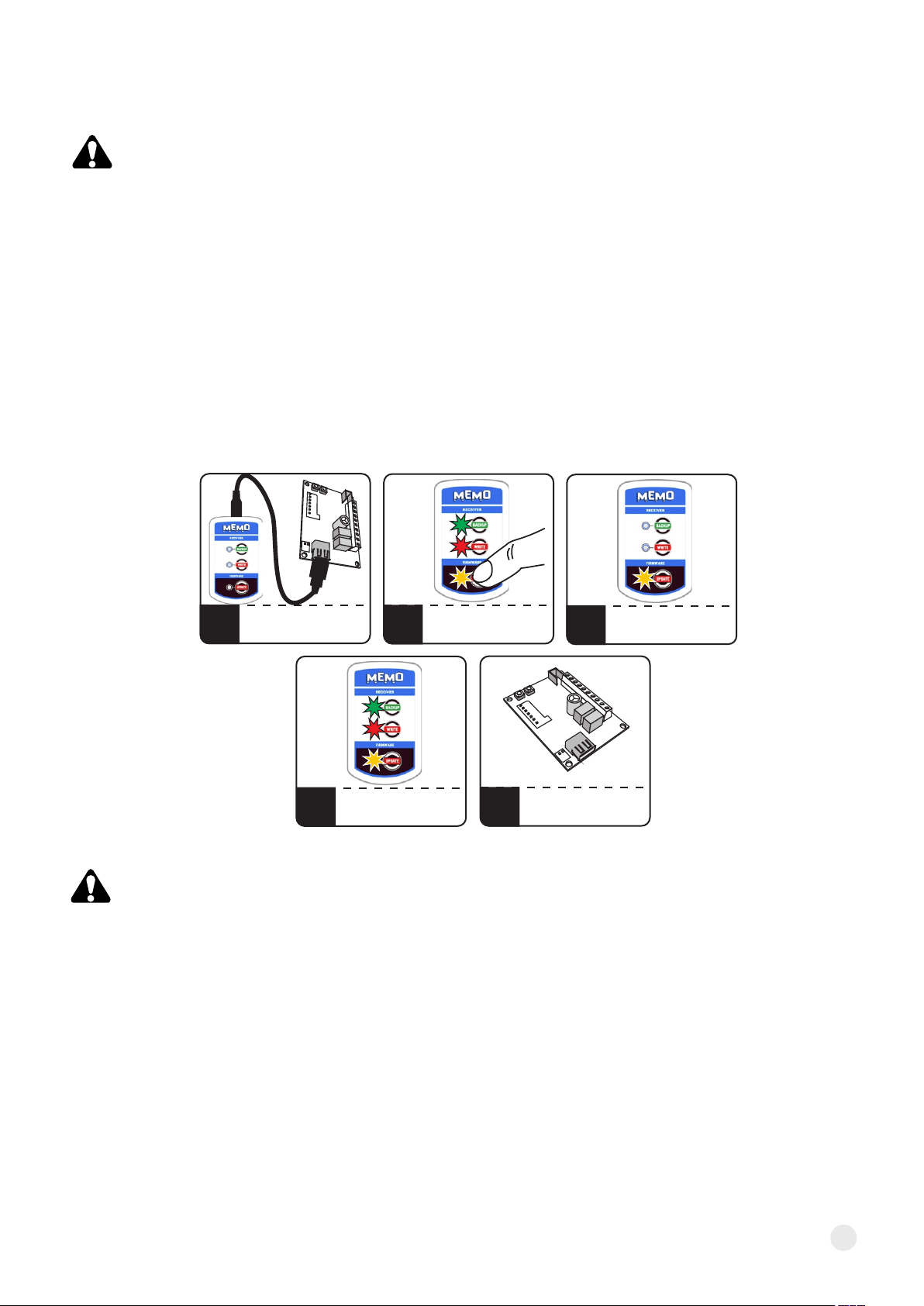

Fig. 5. Receiver firmware update.

5. REGISTRATION OF OPERATIONS

Each operation performed by the MEMO programmer is recorded in the log.txt file, available after

connecting MEMO to the computer.

The file contains basic information about the course of operations, such as: receiver type, firmware

version, file name, operation status, type and error code.

The report on operations is as follows:

Device type: specifies the device type

Firmware version: receiver firmware version

File name: name of the file in the MEMO memory used during the operation

File device type: the type of device the file is for (only for firmware)

File firmware version: file firmware version (for firmware files)

Status: additional information about the result of the operation

Error code: error code (00 means no error)

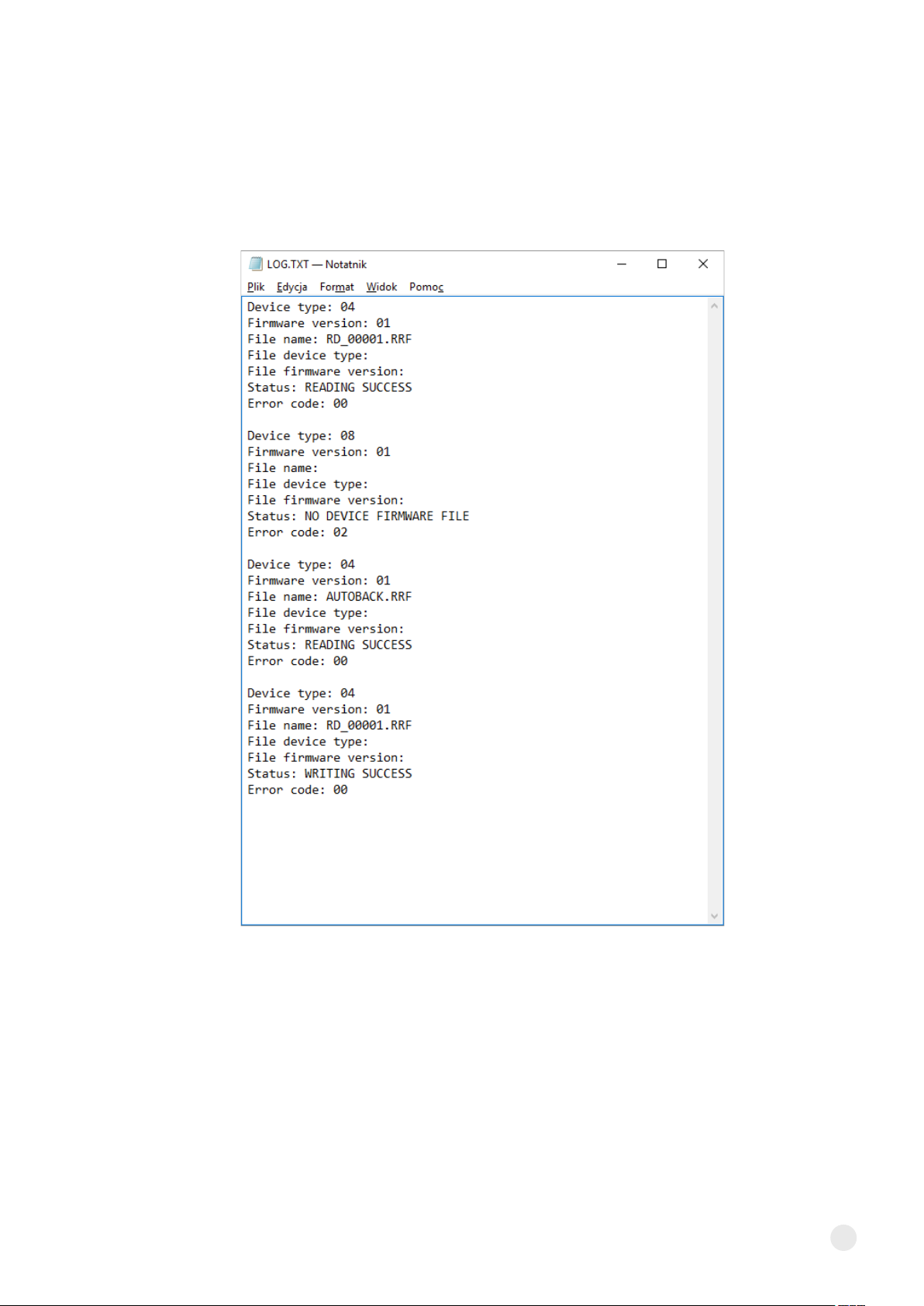

Fig. 6. Sample of log.txt file.

6. MEMO PROGRAMMER CODE TABLE

In the case of errors during the backup operation to the MEMO, write to the receiver, firmware updates,

one of the LEDs BACKUP, WRITE, or UPDATE (depending on the operation being performed) will

periodically blink, the blink indicates the amount of the type of error (Table 1). The error code is recorded in

the log.txt file (see item 5).

the communication line has not been released

by the receiver

the receiver could not be identified

(no readable communication was established)

the receiver is not ready for programming

(did not accept the data package)

timeout during transmission

(communication interrupted)

frame retry limit exceeded

(illegible transmission)

internal file system error

unable to read / write file

corrupt firmware file

checksum error

internal file system error

unable to create directory

unable to write data to file

full memory

brak pliku firmware dla podłączonego odbiornika

no firmware files

error creating automatic backup autobackup

no file for write operation

(WRITE)

unable to create name for new file

(operation BACKUP)

error while reading remotes / numbers,

incorrect checksum, repetition limit exceeded

error while saving to receiver memory

no confirmation of receipt of data

aktualizacja oprogramowania zakończona sukcesem

saving memory to file successful

successfully entering the remotes / numbers

into the receiver's memory

COMMUNICATION

ERROR

FILE SYSTEM

ERROR

NO FIRMWARE

FILE

READ WRITE

FILE ERROR

PROGRAM

SUCCESS

READING

SUCCESS

WRITING

SUCCESS

ISSUE

CODE

NUMBER

OF BLINKS

ERROR

NAME

Tab. 1. MEMO service programmer code table.

II. MEMO MANAGER - MEMO SOFTWARE

1. USAGE

MEMO MANAGER is a computer program designed to support the MEMO service programmer. The

program allows you to manage files used in working with the MEMO service programmer and edit the

contents of remote memory / number files. MEMO MANAGER software ensures full compatibility between

systems thanks to the support of remote controls files from various receiver models.

2. HARDWARE REQUIREMENTS

- a PC with MS Windows® version NT / XP / Vista / 7/8/10

- .net framework version 4.0 or higher required to be installed

3. INSTALLATION AND START-UP

Run the installation file Memo_setup.exe. The file is available for download on the manufacturer's website

www.dtm.pl. During installation, follow the program installer's guidelines. After installing the software,

start the MEMO MANAGER program and connect the MEMO programmer.

4. CONNECTING THE MEMO PROGRAMMER TO A COMPUTER

The programmer should be connected to the computer using the USB cable included in the set. The

programmer's readiness for operation is signaled by blinking of the BACKUP, WRITE and UPDATE LEDs.

During the connection with the computer the programmer buttons are inactive.

The MEMO programmer is recognized by the Windows® operating system as a mass memory with a

capacity of approx. 2 MB, from which you can read or write files. No driver installation required.

To operate the MEMO service programmer, it is recommended to use dedicated software -

MEMO MANAGER.

The power supply and readiness for operation is indicated by the pulsing of the BACKUP, WRITE and

UPDATE LEDs on the MEMO service programmer panel.

Table des matières

Autres manuels DTM System Équipement industriel

DTM System

DTM System slim III Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
