Item # 305 202 732
Model # DS18114
USE AND CARE GUIDE
1-LIGHT WALL SCONCE
Questions, problems, missing parts? Before returning to the store,
call Design Solutions International Customer Service
Mon-Fri 9:30 am to 3:00 pm EST
1-800-388-6141 ext. 216
For customer service support and the fastest response, please email us at
Table of Contents
Safety Information
Warranty
READ AND SAVE THESE INSTRUCTIONS.
FIVE (5) YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants this fixture to be free from defects in materials and workmanship for a period of five (5) years from date of
purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this product
is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the
manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration,
neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any
way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of
an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship.
This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear
and tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specifically disclaims any warranty, whether expressed or implied, of fitness for a particular purpose,
other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or
incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-800-388-6141 ext. 216 Eastern Time, Mon-Fri 9:30 am to 3:00 pm EST. For customer service support
and the fastest response, please email us at CustomerSupport@DSILighting.com.
DANGER: Before starting installation of this fixture
or removal of a previous fixture, disconnect the power
by turning off the circuit breaker, removing the fuse at
the fuse box, or tripping the breaker that controls that
circuit. Tape a sign to the panel warning others to
leave the circuit alone while you work.
CAUTION: CONSULT A QUALIFIED ELECTRICIAN IF
YOU HAVE ANY ELECTRICAL QUESTIONS. If you have
any non-electrical questions about this fixture, please
call our Customer Service Team at 1-800-388-6141
ext. 216. Please reference your SKU (305 202 732) or
UPC (802513181142).
Table of Contents ........................................................... 2
Safety Information ......................................................... 2
Warranty ......................................................................... 2
Five (5) Year Warranty ............................................................... 2
What is Covered ........................................................................ 2
What is Not Covered .................................................................. 2
Pre-Installation ...............................................................3
Planning Installation ..................................................................3
Tools Required ........................................................................... 3
Hardware Included .................................................................... 3
Package Contents ..................................................................... 4
Installation ...................................................................... 5
Care and Cleaning ......................................................... 7
Troubleshooting ............................................................. 7
Service Parts .................................................................. 8
Model .........................................................................................8
2
□For your protection and safety, carefully read and understand
the information provided in this manual completely before
attempting to assemble, install, or operate this product. Failure
to do so could lead to electrical shock, re, or other injuries that
could be hazardous or even fatal.
□Before touching any wire, use a voltage tester to make sure it
is not live.
□When replacing fuses, turn off the main power rst. Make sure
your hands and feet are dry, and place one hand behind your
back to prevent electricity from making a complete circuit
through your chest. Touch the plug fuse only by its insulated
rim. Remove cartridge fuses with a fuse puller.
□Use tools with insulated handles and ladders made of wood or
berglass.
□To protect children, place a safety cover over any unused
outlets.
IMPORTANT: Inspect the wire insulation for any cuts,
abrasions, or exposed copper that may have occurred
during shipping. If there is a defect in the wire, do not
attempt installation. Please call the Customer Service
Team at 1-800-388-6141 ext. 216. For customer service
support and the fastest response, please email us at
NOTE: This product requires one 60W maximum medium
base (E26) type "ST64" or "A" or 9W maximum medium
base (E26) self-ballasted LED vintage Edison bulb (sold
separately).
Pre-Installation
NOTE: Hardware not shown to actual size.
PLANNING INSTALLATION
Read all instructions before installing.
To avoid damaging this product, place it on a soft, non-abrasive surface, such as carpet or cardboard.
Phillips
Screwdriver
Safety
Goggles
Wire
Stripper
Electrical
Tape
Pliers
TOOLS REQUIRED (NOT INCLUDED)
HARDWARE INCLUDED
AA BB
FF
EE
CC
GG
DD
3
Part Description Quantity
AA Mounting bracket 1
BB Outlet box screw (short) 2
CC Support screw (long) 2
DD Hex nut 2
Part Description Quantity
EE Green ground screw
(Pre-assembled to mounting bracket (AA)) 1
FF Wire connector 3
GG Cap nut 2
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
D
4
Part Description Quantity
A Fixture body 1
B Rubber washer 3
C Thumbscrew 3
D Glass shade 1
Installation
AA
AA BB
DD
CC
5
□Fasten the support screws (long) (CC) into the mounting
bracket (AA), and secure it using the hex nuts (DD).
□Fasten the mounting bracket (AA) onto the outlet box using
two outlet box screws (short) (BB).
1 Preparing the mounting bracket
NOTE: The support screws (long) (CC) should extend
long enough to protrude through the canopy on the
fixture body (A) when it is mounted. (Adjust as needed.)
2 Installing the mounting bracket
□Strip 3/4 in. of insulation from the wire ends.
□Connect the black wire from the xture to the black wire from the outlet box, then connect the white wire from the xture to the
white wire from the outlet box.
□The bare copper ground wire from the xture must loop one turn under the head of the green ground screw (EE) on the mounting
bracket (AA) before it is connected to the ground conductor of the supply circuit.
□Cover the wires with wire connectors (FF). Tape the wire connectors (FF) and wires together, and carefully position all wires inside
the outlet box.
3 Making the electrical connections
FF
EE
AA
Installation (continued)
6
□Place the xture body (A) over the outlet box, and ensure the
heads of the support screws (long) (CC) come through the
holes of the canopy of the xture body (A).
□Tighten the cap nuts (GG) onto the protruding support screws
(long) (CC) on the mounting bracket (AA) until the canopy
assembly (A) is held rmly against the wall.
□Place the glass shade (D) over the socket, align the holes of the
glass shade (D) with the holes of the cap of the xture body (A),
then secure the glass shade with the rubber washers (B) and
the thumbscrews (C) as shown on the diagram.
4 Assembling the xture body to the
outlet box 5 Installing the glass shades
AA
A
B
C
D
GG
CC
AA
□Install the light bulb (not included) into the socket. Use one 60-watt
medium base (E26) type “ST64” bulb (recommended).
6 Installing the light bulbs
NOTE: You can also use one 60-watt maximum medium
base (E26) type “A” bulbs or 9W maximum medium base (E26)
LED vintage Edison bulb (sold separately). Do not exceed the
recommended wattage.
Care and Cleaning
Troubleshooting
7
□Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use only a dry, soft cloth to dust or wipe carefully.
□To clean the xture, disconnect power by turning off the circuit breaker or by removing the fuse at the fuse box. Use a dry or
slightly dampened, clean cloth to wipe the exterior surface of the xture.
Problem Possible Cause Solution
The lights will not turn on. The bulb is burned out. Replace the light bulb.
The power is off. Ensure the power supply is turned on.
There is a faulty switch. Test or replace the switch.
There is a faulty wire connection. Check the wiring.
The fuse blows or the circuit breaker
trips when the light is turned on.
There are crossed wires or the power
wire is grounding out. Discontinue use of the lamp. Check the wire connections.
Contact a qualied electrician or call the Customer Care
Service Team at 1-800-388-6141 ext. 216. For customer
service support and the fastest response, please email us

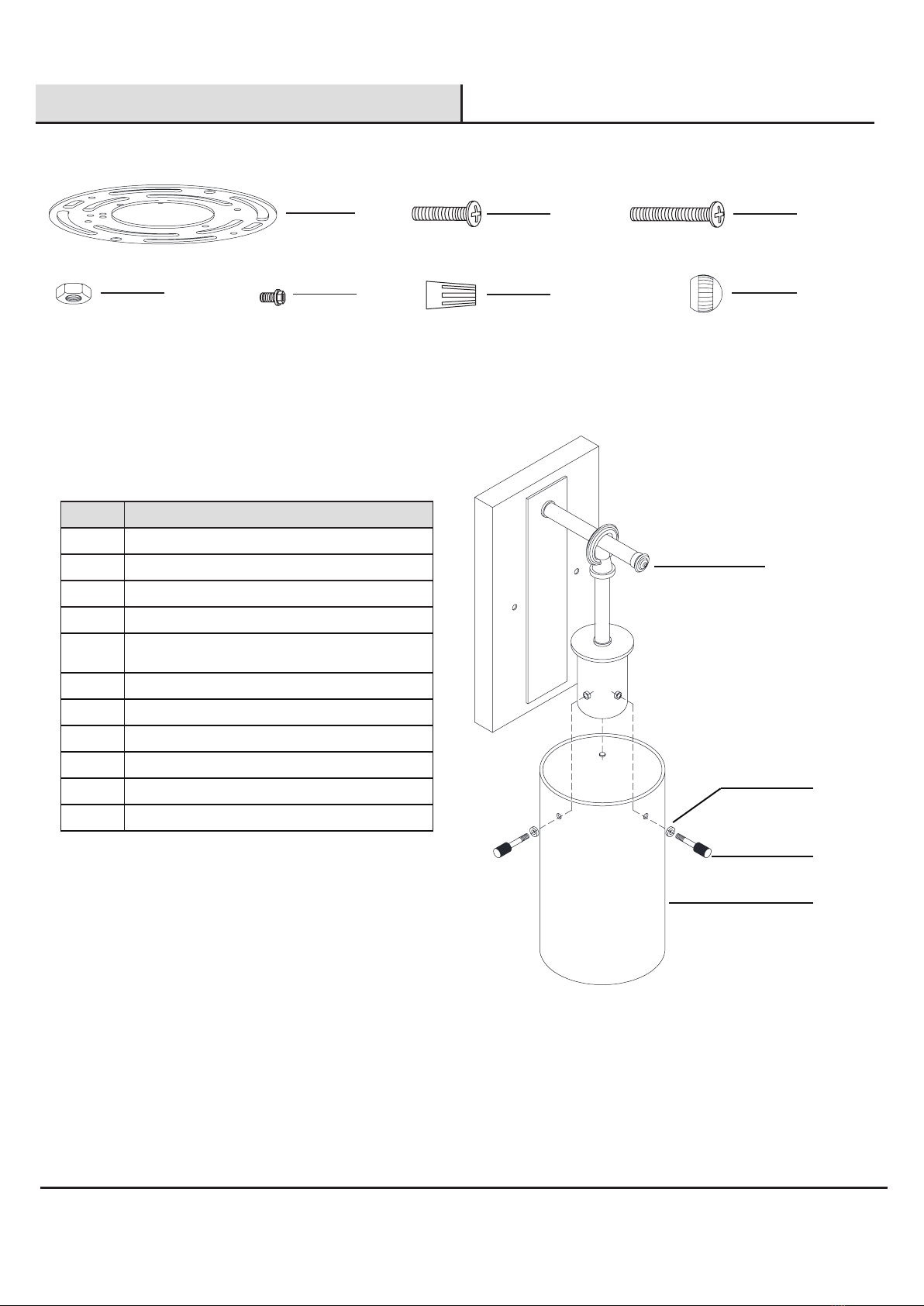

Service Parts
8
MODEL: DS18114
Part Description
AA Mounting bracket
BB Outlet box screw (short)
CC Support screw (long)
DD Hex nut
EE Green ground screw
(Pre-assembled to mounting bracket (AA))
FF Wire connector
GG Cap nut
AFixture body
BRubber washer
CThumbscrew
DGlass shade
AA BB
FF
EE
CC
GG
DD
A
B
C
D
Questions, problems, missing parts? Before returning to the store,
call Design Solutions International Customer Service
Mon-Fri 9:30 am to 3:00 pm EST
1-800-388-6141 ext. 216
For customer service support and the fastest response, please email us at
Retain this manual for future use.
Artículo núm. 305 202 732
Modelo núm. DS18114
GUÍA DE USO Y MANTENIMIENTO
LÁMPARA DE PARED DE UNA BOMBILLA
¿Tiene alguna pregunta o algún problema? ¿Le faltan piezas? Antes de volver a la
tienda, llame al Servicio de atención al cliente de Design Solutions International
De lunes a viernes, de 9.30 a 15 h EST
1-800-388-6141 ext. 216
Para obtener ayuda de nuestro Servicio de atención al cliente y la respuesta más
rápida, envíenos un correo electrónico a
