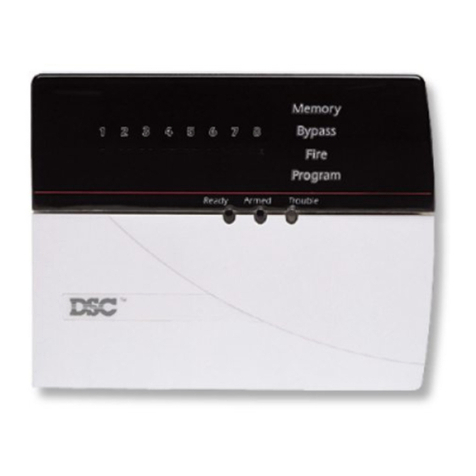

DSC Power 832 Manuel utilisateur

DSC

DSC PC 2500 Manuel utilisateur

DSC

DSC PC3000 Manuel utilisateur

DSC

DSC Communique VPM5580TC Manuel utilisateur

DSC

DSC PC5020 Power864 Manuel utilisateur

DSC

DSC Voice Assisted Security Control Escort 4580 Manuel utilisateur

DSC

DSC SYSTEM MASTER PC4000 Manuel utilisateur

DSC

DSC Classic PC580 Manuel utilisateur

DSC

DSC PC1000 Manuel utilisateur

DSC

DSC GSM0110 Manuel utilisateur

DSC

DSC MAXSYS PC4020 Manuel utilisateur

DSC

DSC Maxsys PC6010 Manuel utilisateur

DSC

DSC PC1550 Manuel utilisateur

DSC

DSC LCD4500 Manuel utilisateur

DSC

DSC Envoy NT9010 v1.0 Manuel du propriétaire

DSC

DSC SYSTEM MASTER PC4000 Guide de l'utilisateur

DSC

DSC ALEXOR Manuel utilisateur

DSC

DSC Power832PC5010 CP-01 Manuel utilisateur

DSC

DSC Voice Assisted Security Control Escort5580TC Manuel utilisateur

DSC

DSC PG9938 Manuel utilisateur

DSC

DSC PC-LINK9 Manuel utilisateur

DSC

DSC Maxsys PC6010 Guide de l'utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur

panels, keypads & modules

Contact your DSC distributor.

www.dsc.com | 1-888-888-7838

IMPASSA

Self-Contained 2-Way Wireless Security System

Quick-Start Installation Guide

1. Remove the Front Plate

Using a small screwdriver, insert in the bottom left and right-hand slots and

gently pry to separate the front panel.

2. Mount the Back Cover

Begin by routing telephone line wiring, Input/Output wiring and AC power

wiring through the cutout in the back cover. Determine placement location

and mount the back cover to the wall using the screws and drywall plugs.

Note: For versions supporting cellular communications, the cellular signal

strength can be ﬁrst checked in section [850], to determine the optimal

location to mount the unit.

3. Connect Wiring

Connect wiring to the terminal block on the back cover.

4. Connect the Battery

Connect the battery cable to the connector on the PCB, ensuring proper

orientation of the connector.

5. Attach the Front Cover

Place the top portion into the back cover ﬁrst and press the bottom portion

into the back cover to snap into place.

Artwork PN 30001315 / Manufacturing PN 29008215R001

6. Power Up the System

Apply power by plugging in the transformer.

8. Template Programming

The functions required for basic operation of the IMPASSA system can be

conﬁgured (4-digit code) quickly through the use of template programming in

section [899]. Code prompts exist for pre-deﬁned zone deﬁnitions, reporting

code formats, communication call directions and DLS setup. Once the code

has been programmed, you will be prompted to enter the monitoring station

telephone number and account code, DLS access code, entry and exit

delays, and the installer code.

7. Enrol Wireless Devices

Using the quick enrol feature found in section [898], wireless devices can be

enrolled into the IMPASSA system easily.

9. Perform Placement Testing

The proposed placement of each wireless device should be tested before it is

mounted by entering section [904]-[907]. Testing the signal strength between

IMPASSA and the wireless devices can be accomplished in a group (global

placement test) or individuals.

10. Cellular Conﬁguration

a. Prior to system installation, ensure the SIM card has been activated

with Connect24 (C24 Communications)

b. Conﬁgure the communications phone numbers in section [301]-[303]

and [305] to the desired conﬁguration

c. Conﬁrm the cellular communicator module by programming panel

section [382] option [5] as ON

d. Conﬁrm panel section [401] option [1] as ON in order to perform

DLS sessions through cellular
