Please read these instructions carefully before assembling or operating this product.
Ensure you are familiar with all of the safety and operating instructions.
Nimbo Lightweight Posterior
Posture Walker
Assembly & Operating Instructions
with optional Pelvic Stabiliserwith optional Forearm Platforms
Contents
Technical Specication
Important Safety Information
Care and Maintenance
Parts
1
1
2
2
3
Optional Accessories
Assembly
Fitting the Optional Accessories
Warranty
3
4
8
Drive Medical is an ISO 9001 certied company.
For more details about our products please see your local dealer.
Introduction
The Nimbo Walking Aid is available in ve different sizes. It is used as a posterior walker
and is available with a number of accessories.
The Nimbo may be used outdoors but is restricted to smooth and even terrain without
obstacles. Examples of such terrain may include paths, pavements and playgrounds.
The Nimbo should not be used on rough or uneven ground, muddy conditions or on
grass or gravel. If the user wishes to operate the Nimbo in this environment, Outdoor
Wheels are available from Drive Medical Stockists under product code KA8100.
The outdoor wheels will not work on the lowest setting of the KA4200 or KA5200.
For this position and for use on the KA1200 we recommend the KA8100S.
Code Handle bar
Height
Overall
Width
Width inside
Handle Grip
Depth opened
at base
Weight Weight
Capacity
KA1200N 37-47cm 53cm 34cm 64cm 4kg 45kg
KA2200N 48-64cm 56cm 34cm 74cm 5kg 45kg
KA3200N 50-77cm 64cm 38cm 84cm 5kg 90kg
KA4200N 72-91cm 64cm 41cm 91cm 6kg 90kg
KA5200N 92 104cm 74cm 48cm 94cm 7kg 125kg
All dimensions are metric.
Specifications
Back
2
Please read all of these instructions fully before assembly or operation.
• Unpack and check that you have all of the parts and attachments shown.
• To avoid risk of suffocation to children or animals, dispose of the plastic bags correctly.
• Remove all packing materials and dispose of correctly.
• Pay attention to the environment and avoid obstacles, bad ooring or carpet and other
hazards.
• Ensure that only Drive parts are used on the Nimbo. Periodically visually inspect the
walker for signs of wear.
• Please ensure that only one person uses the walker at any one time, and do not
exceed the weight limit.
• Children using the Nimbo walkers should be supervised at an adequate level
dependent upon their individual ability.
• Always consult your healthcare professionals for advice on how to use the
Nimbo safely.
• Do not use the castor and / or reverse locks without professional instruction.
Important Safety Information
Care and Maintenance
Cleaning:
• Check the smooth function of the wheel sets regularly and prevent the wheel from
getting dirty. Clean regularly by hand with a damp cloth.
• Do not use any abrasive detergents. Solvents can damage the coating and surface of
plastic parts.
• Metal and screw connections must be checked regularly and to make sure that they
are stable. If necessary retighten the screws.
• The locking buttons must be checked thoroughly. Contact your dealer immediately if
the buttons are not functioning correctly.
• The bearing and tread of each wheel will wear differently depending upon the
environment, users weight, walking style and type of use. Regularly check for wear
and replace if required. The wheel should be lubricated regularly.
• After use in heavily muddy areas, etc the wheels and associated parts should be
washed down to remove excess dirt.

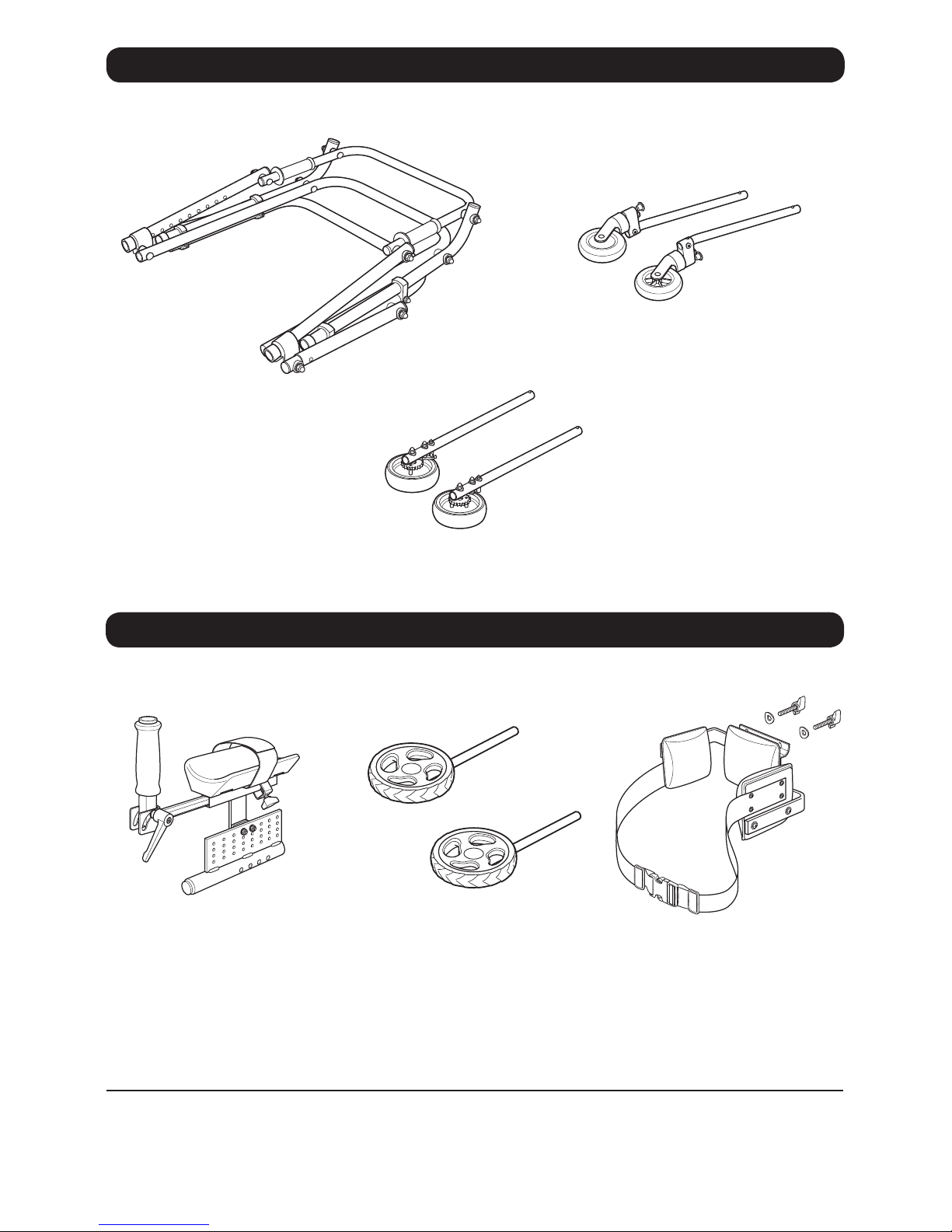

Parts Nimbo Walker
3
Optional Accessories
Forearm Platform
Seat
Pelvic Stabiliser
Rear Anti-reverse Wheels (pair)
Front Swivel Wheels (pair)
Handgrips (pair)
Armrests (pair)
Armrest Supports (x 2)
Tools Required: 10mm and
13mm spanner, 6mm Allen key.
Nimbo Frame
(See separate installation sheet)
Outdoor Wheels
Outdoor Wheels (x 2) Pelvic Stabiliser
Washers (x 2)
Fixing Bolts (x 2)
‘Click’
4
Assembly

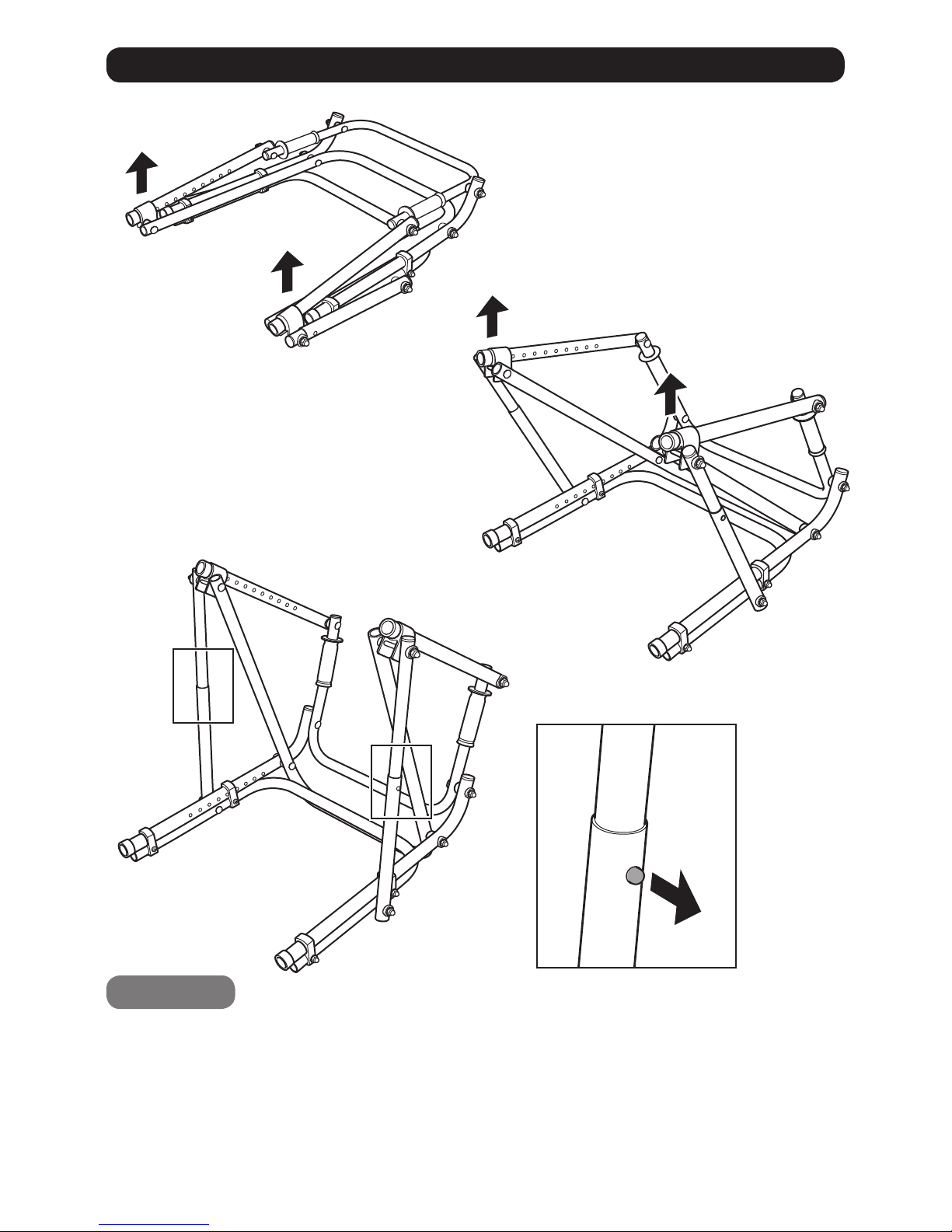

The Nimbo has a foldable aluminium tubular frame which is height adjustable with each
leg numbered 1-4.
To open up the Nimbo: lay the frame on the ground with the front legs (1 & 2) on top (a).
While holding the back legs (3 & 4) pull up on the front legs 1 & 2 (b). When both legs are
fully extended (c)you should hear a ‘click’ as both buttons pop into position see detail (d).
Warning: Make sure that both buttons are in position before proceeding.
Step 1
1
a:
b:
c:
d:
2
1
2
4
3
‘Click’
‘Click’
5
Each wheel is marked with a number 1 - 4, to match the numbers on the frame.
To fit the wheels: t the rst wheel (1) by pushing into the frame at position 1.
Push in until the button pops out of one of the holes. Repeat for the other front wheel 2.
Tip: You might need to rotate the tube slightly until the button pops out.
Repeat the same procedure with the two back wheels 3 & 4, matching the numbers on
the frame. Push in until the button pops out of one of the holes.
Tip: You might need to rotate the tube slightly until the button pops out.
Step 3
Step 2
Assembly
1
1
2
4
3
4
6

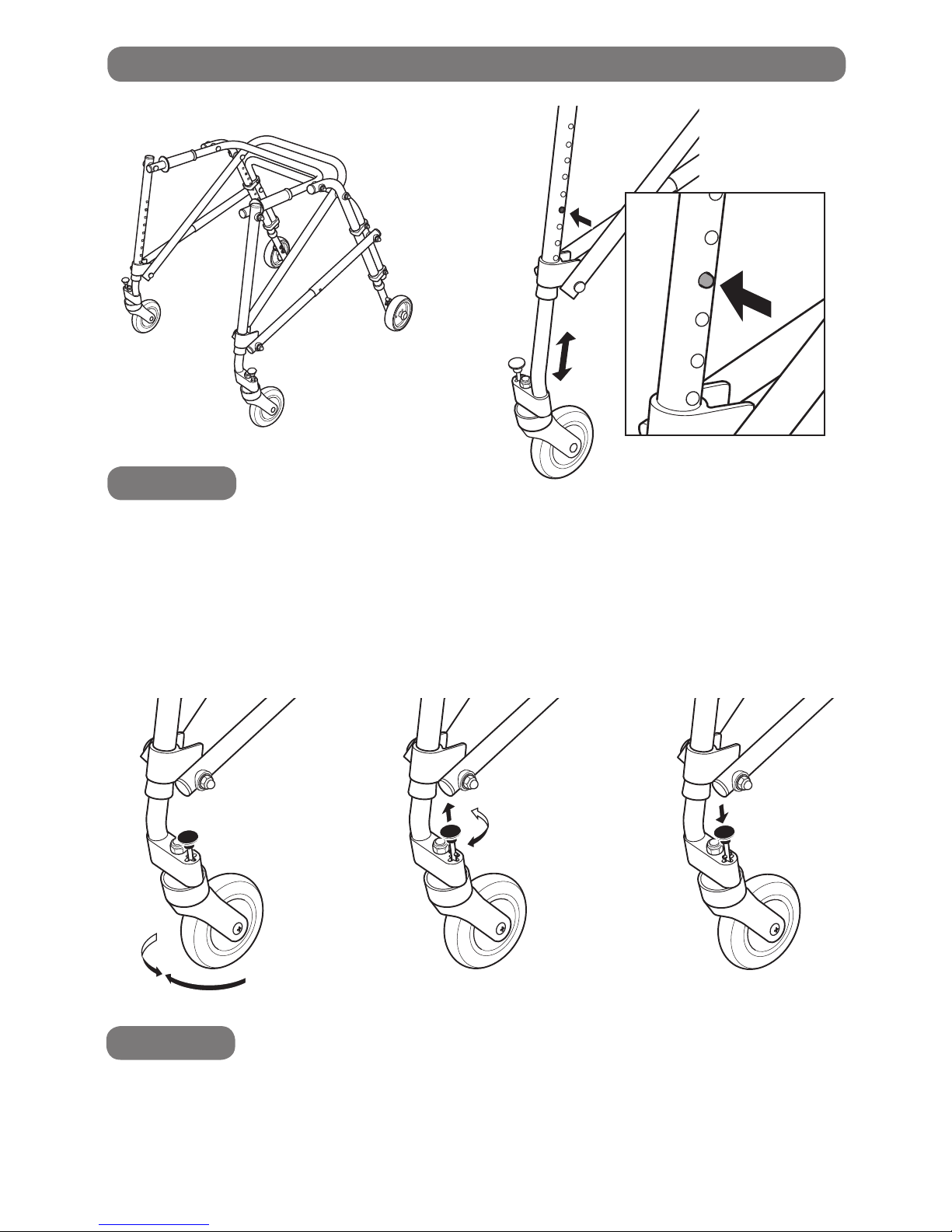

Lift up the frame and position onto its wheels. The front and the back wheels have 9
height positions.
To adjust the height: press in the button (arrow) and move the wheel to the required
hole position. Make sure that the button pops into position in the frame, you should hear
a ‘click’. Repeat for the other 3 wheels making sure they go into the same height holes
and the button pops into position.
The front wheels can be locked in a forward position.
To lock the front wheels: adjust them to point forwards (a), pull up the Locking pin and
turn 90° in either direction (b), release the pin to lock the wheels (c). To unlock the wheels
repeat the operation.
Step 5
Step 4
Assembly
b: c:a:
OPTIONAL
Retaining clip
Pin
7
The back wheels can be locked to stop the chair from rolling backwards.
To lock the back wheels: release the metal pins from the plastic retaining clips. Let the
pins fall into position onto the teeth on the wheels. To unlock the wheels, move the pins
back into the plastic clips.
Warning: The brakes will only stop the chair from rolling backwards, the chair is
still able to move forwards.
Step 6
Step 7
Assembly
To fold the walker: push in the two button in the cross tube (arrowed) and push down
on the front wheels. You might need to turn the wheels slightly to close the walker fully.
OPTIONAL
Hand rail
8
Removing the hand grips: the hand grips are factory tted and are a tight t they will
need to be cut off using a sharp knife before the forearm platform can be tted.
Carefully using a sharp knife make a cut along the hand grip, peel back the grip and
remove from the hand rail. The hand grips cannot be reused and should be discarded.
Step 1
Step 2

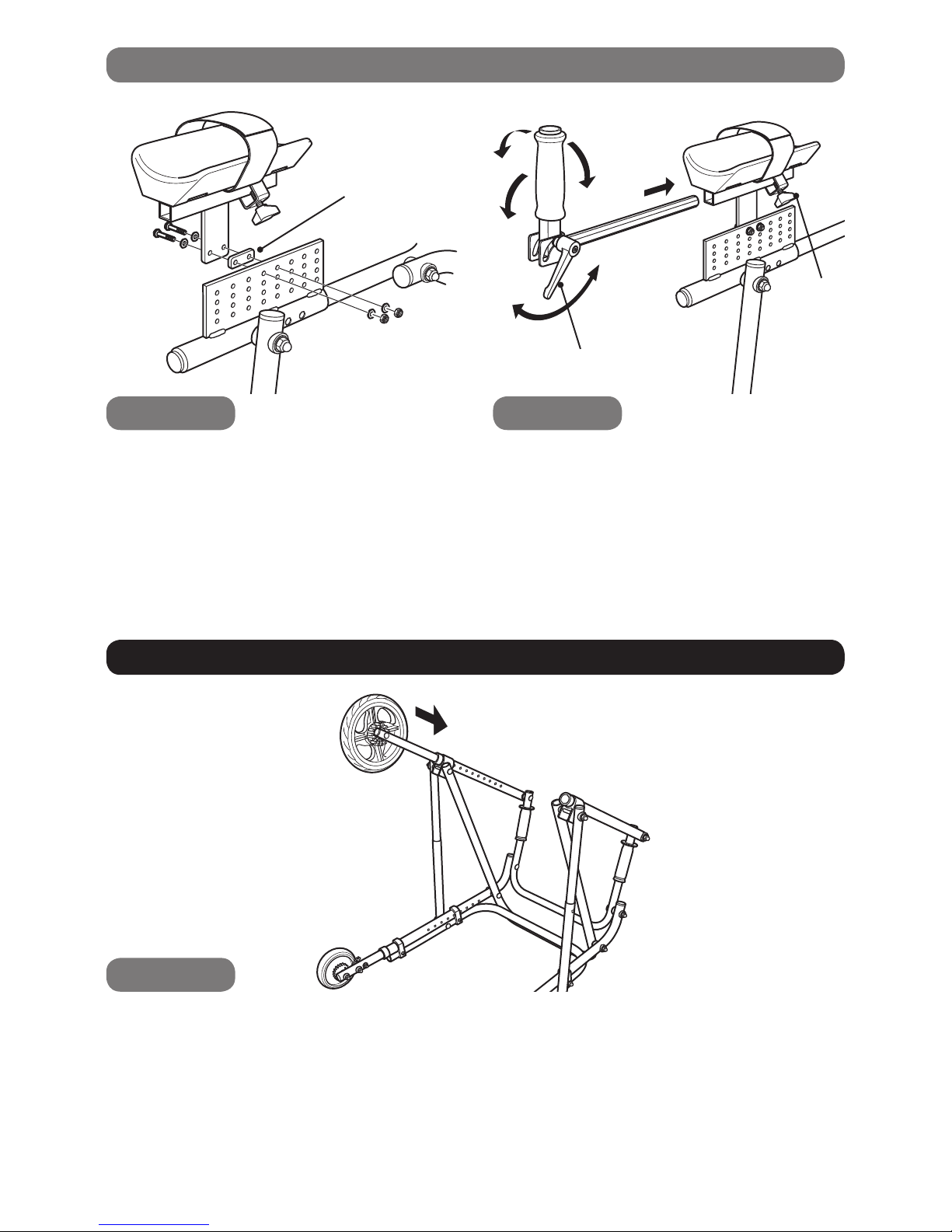

Fitting the Forearm Platform
To fit the armrest supports: remove the nut, washer, spacer, bolt and middle spacer
from the hand rail (a). Slide on the armrest support, there are four holes for adjustment (b).
Line up one of the holes in the armrest support, push the bolt through the armrest
support, slide the middle spacer and the upright onto the bolt and secure with the
spacer, washer and nut (c). Repeat for the other side making sure that you use the same
hole in the armrest support.
b: c:a:
Hand
rail
Upright
Spacer
9
Fitting the Forearm Platform - continued
Fitting the Outdoor Wheels
Outdoor wheels replace the existing front castor wheels. They are a larger diameter
(9”) and are locked in a forward facing position so are better at negotiating rougher
terrain and small obstacles.
Remove the existing front wheels and replace with the outdoor wheels following step
2 on page 5, ensure the buttons lock into position. Ensure that the outdoor wheels
are set at an equal and comfortable height. Adjust the height of the rear wheels if
required. The height should be set so that the hand grips are near horizontal.
Step 1
Bolt on the armrest. The armrest comes
with 2 spacers for lateral adjustment,
these should t between the armrest and
the armrest support as required. Secure
the arm to the armrest support using the
nuts, bolts and washers supplied.
Slide in the handgrips to the required
position and tighten using the knob on
the underside. The hand grips can also be
rotated by sliding out rotating and sliding
back in, tighten the knob. The hand grips
can be angled forwards as required by
releasing the lever, adjusting the hand grip
and retighten.
Step 3 Step 4
Knob
Lever
