Drieaz BD1000 Manuel utilisateur

07-01742C F435-DV (110–230V UK) 1 Legend Brands Holdings, Ltd.

Owner’s Manual

Dri-Eaz®Building Dryer BD1000

F435-DV (110–230V UK)

Legend Brands Holdings, Ltd.

22 Plover Close, Interchange Park, Newport Pagnell, MK16 9PS

Tel: +44 (0)1908-611-211 Fax: +44 (0)1908-611-363 www.dri-eaz.co.uk

WARNING: Read and understand these warnings and instructions.

DO NOT operate the unit with covers open or removed.

WARNING: Do not alter or modify your BD1000 in any way. Use only replacement

parts authorized by Dri-Eaz Products. Modifications or use of unapproved parts

could create a hazard and will void your warranty. Contact your authorized Dri-

Eaz distributor for assistance.

WARNING:

Unplug before servicing.

WARNING: ELECTRIC SHOCK HAZARD

Unplug before opening cover.

Use with a residual current device (RCD) where possible.

Ensure power cord is properly earthed.

Check that power cord is not damaged.

Unplug before opening cover.

WARNING:

Moving parts may injure hands. Unplug before servicing.

WARNING:

Surfaces may be hot. Allow unit to cool before servicing.

07-01742C F435-DV (110–230V UK) 2 Legend Brands Holdings, Ltd.

INITIAL INSTALLATIONS

HANDLE INSTALLATION

1. Remove 2 screws on top

of moulded cover (A).

2. Hinge open front cover (B).

3. Place handle in upright

position (C).

4. Secure handle with

supplied screws, Nyloc nuts

and washers (D) as shown

5. Close cover and replace 2

screws. Tighten fully with a

wrench.

DRAIN HOSE

INSTALLATION

1. After opening the housing,

place hose clamp (A) over

end of interior drain hose (B)

and thread drain hose

through hole in rear cabinet

wall.

2. Insert nipple (C) into end

of drain hose. Tighten hose

clamp (A).

3. Exterior drain hose may

now be attached to quick-

connect (D) for use.

07-01742C F435-DV (110–230V UK) 3 Legend Brands Holdings, Ltd.

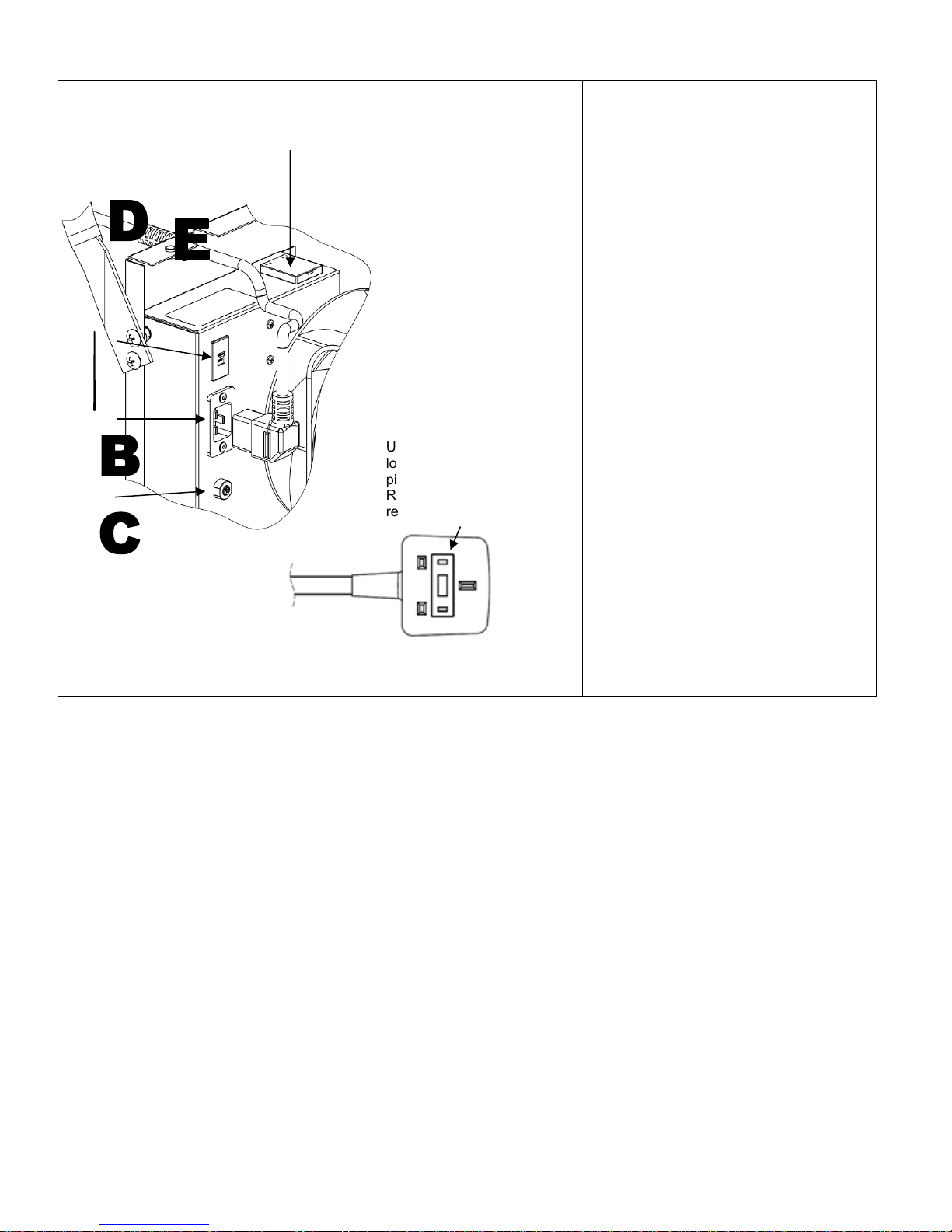

POWER SETUP

1. Remove 2 screws on top of moulded

cover and hinge open.

2. Voltage selection. Select 115V or 230V

on the VOLTAGE SELECTION switch (A).

3. Plug correctly rated power cord (D) into

power receptacle (B). (See p. 7 for available

cords.)

4. Slide cable strain relief fitting (E) into cord

grip slot in back panel.

5. Check that cable is correctly positioned

into outlet slot and close cover. Close cover

and replace 2 screws. Tighten fully with a

wrench.

Reset after incorrect voltage selection:

The electrical system is internally protected

against incorrect voltage selection. To reset

following incorrect connection, disconnect

the power cord and press the CIRCUIT

BREAKER button (C). Select correct voltage

(A) before connecting the power cord.

Replacement 13 amp Fuses for UK power

cord:

If the voltage selection switch is set to 115V

and 230V power is supplied to the unit, the

breaker may trip and/or the fuse in the UK

power cord (left) plug may blow. Replace

with spare fuse (stored in spare fuse box) if

necessary.

UK power cord fuse

location (13A / 230V 3

pin plug #BS1363 only).

Remove cover to

replace blown fuse.

UK power cord

replacement fuses.

07-01742C F435-DV (110–230V UK) 4 Legend Brands Holdings, Ltd.

USER CONTROLS, DRAIN, AND AIR OUTLETS

(A) Control panel (see Control Panel Detail below).

(B) Condensate drain hose connector. Attach hose with quick-connect,

then uncoil completely, ensuring there are no kinks or restrictions. Place

end in drain or receptacle before operation.

Control Panel Detail

Purge pump button. Press and hold to purge pump.

IMPORTANT

To help prevent drip tray overflow after using the

dehumidifier, always purge the unit before moving.

1. Turn the unit off and allow the plugged in dehumidifier to rest for

10 minutes.

2. Press the PURGE button. Hold until no more water is

pumped out of the hose.

3. Remove the dehumidifier promptly from the job site.

Humidity control dial. Set to desired dehumidification level.

O = Off

| = Maximum dehumidification

07-01742C F435-DV (110–230V UK) 5 Legend Brands Holdings, Ltd.

METER LOCATION, TOP VIEW, COVER OPEN

(A) Hour meter

(B) kW-hour meter

Storage & Transport

Store the building dryer vertically. If transported horizontally, position dryer in normal operating position and leave in place for 30

minutes to allow refrigerant to recirculate before use.

07-01742C F435-DV (110–230V UK) 6 Legend Brands Holdings, Ltd.

CLEANING

Safety Precautions

IMPORTANT. Unplug unit from electrical supply

before starting to clean.

Filter

1. Optional 4-PRO filters should be replaced

whenever the accumulation of dust or debris is

visible.

2. Standard fibreglass and paper filters cannot be

cleaned and should be replaced when full.

External Cleaning

1. Wipe surfaces with damp cloth.

Internal Cleaning

1. Remove 2 screws on top of moulded cover.

2. Hinge open moulded cover

3. Slide up and remove Fan Shroud (A) for cleaning.

4. Remove four plastic snap rivets from Coil Shroud

(B) and lift off shroud. To remove rivets, press up on

the center rivet pin underneath the shroud until

flanges are released. The rivets may then be lifted

out of the shroud and the shroud can be removed.

5. Vacuum coils (C).

6. Clean pumpout. See “Pumpout Cleaning” below.

7. When finished, replace Fan Shroud and Coil

Shroud and secure with fasteners. Ensure that the

power cable and strain relief is correctly positioned

into cable outlet slot on chassis. Hinge the cover

closed. Secure cover with 2 screws.

Pumpout cleaning

1. After opening the housing, remove screws (A) and

(B). Remove drain hose from basin cover. 2. Slide

pump assembly out and place on firm surface

(electrical cable will remain attached). 3. Lift pump

off catch tray. Wipe out tray with a clean cloth. 4.

Reassemble, slide tray in and reattach with screws.

Make sure electrical cable is tucked in neatly above

the pump before closing lid.

NOTICE: Pump and check valve should be

inspected and cleaned after each job or at least

once per month.

07-01742C F435-DV (110–230V UK) 7 Legend Brands Holdings, Ltd.

Power Cord Options

The following power cord options are available:

13A / 230V 3 pin plug BS1363 to 16A IEC socket. 5 m.

Part no. F457 (02-01644)

16A / 110V 3 pin plug IEC60309 to 16A IEC socket. 5 m.

Part no. F456 (02-01641)

Call +44 (0)1908 611211 to order power cords and filters.

Filter Options

Fibreglass filter (standard): Part no. F459A

4-PRO filter (optional): Part no. F581

Filter dimensions: 296 × 296 × 22 mm

SERVICE

Legend Brands Holdings, Ltd.

22 Plover Close

Interchange Park

Newport Pagnell

MK16 9PS

United Kingdom

Tel. +44 (0)1908 611211

Fax. +44 (0)1908 611363

SPECIFICATIONS

Name

Building Dryer BD1000

Model F435

Dimensions (W × H × D)

50 × 51 × 85 cm

Weight

39 kg

Water removal (AHAM)

25 L/day (27°C/60%RH)

Water removal (Max)

48 L/day (32°C/90%RH)

Water removal (EU standard)

21 L/day (20°C/60%RH)

Water removal (EU standard)

42.6 L/day (30°C/80%RH)

Amperage

6.5A / 110V

3.3A / 230V

Voltage

110V/230V

Frequency

50Hz

Power

0.68 kW / 110V

0.68 kW / 230V

Sound level

73.4 dB (avg.)

Air movement

350 m³/hr

Humidistat control

30–100%

Condensate pump

Internal (included)

Condensate pump lift capacity

6.1 m

Operating temperature range

1°– 38°C
