Dreadbox Telepathy Manuel utilisateur

WARRANTY

INSTALLATION

SIGNAL PATH

TELEPATHY OVERVIEW

PANEL CONTROLS

PATCH POINTS

VOICE SECTION

MENU SECTION

TUNING MODE

POLYPHONY / MULTITIMBRALITY

FIRMWARE UPDATE

installation

Always turn off your

Eurorack system before

installing the Telepathy

module. Telepathy has a

Power consumption of

107mA of +12V and

24mA of -12V. The

module’s ribbon power

cable is attached to the

module via a header for

extra protection when

mounting. The red line

should always be on the

bottom side of the module

as shown on the photo to

prevent any damage.

warranty

Dreadbox warrants this product to be free of

defects in materials or construction for one year

from the date of purchase.

Proof of purchase is necessary when the

warranty claim is made.

Malfunctions resulting from improper power

supply voltages, backward or faulty cable

connection, abuse of the product or any other

causes determined by Dreadbox to be the fault

of the user, are not covered by this warranty

(normal service rates will be applied).

All defective products will be replaced or

repaired at the discretion of Dreadbox.

Products must be returned directly to Dreadbox

with the customer paying the shipping costs.

Dreadbox implies and accepts no responsibility

for harm to a person or apparatus through the

operation of this product.

Please contact support@dreadbox-fx.com for

the return to manufacturer authorization, or for

any other technical questions or concerns.

PLEASE NOTE: The red stripe should

always be on the bottom side of the module

A 10 Pin to 16 Pin Ribbon cable

The Telepathy module

A 3,5 mm to DIN5 MIDI adapter

(type A).

This cable is used to transfer MIDI

data to the Telepathy module from

an external MIDI device. You can

also transfer data with a 3,5 mm

stereo jack if the MIDI device allows

it and supports it.

The jack converter is an Atype.

A 3,5 mm stereo jack.

This cable is used to chain multiple

Telepathy modules together. To

achieve this, send the MIDI OUT to

the MIDI IN of the next Telepathy.

IN the box you will nd:

4 x M3 X 6 screws.

Telepathy is a Full Voice Analog Synthesizer

module with deep modulation options due

to its multi-destination LFO and Envelope.

From bass to lead sounds, to drums and

drones, Telepathy has broad and versatile

sound design capabilities.

It has a full analog path (Classic Dreadbox

VCO, 4-pole low pass lter/2-pole high

pass lter, VCA) that is digitally controlled

for more precision over its parameters.

This results in the familiar warm, present

and distinct Dreadbox sound.

Telepathy has an intuitive parameter

navigation matrix, with multicoloured

LED indication.

It is also capable of saving and recalling

up to 16 presets and there is a Full MIDI

implementation for CCs and Program

Changes for all the parameters.

The possibilities expand even more, when

connecting two or more Telepathy modules

together. This results in a Polyphonic

Multitimbral synthesizer that opens up a

new sonic world.

With lots of useful and musical features

integrated into a compact size (10hp), and

also its skiff friendly design, Telepathy is a

great addition to a smaller or a larger

eurorack system.

overview

910

telepathy

panel controls

11 12

Telepathy consists of two main sections to navigate its menu.

Telepathy uses a simple yet very effective control matrix to navigate

through its multiple parameters and affect the sound. It always

follows a top down approach.

SECTIONS

The two buttons on the panel indicate and control the two main

sections of the module.

These are the Voice Section on the left and the Menu Section on the

right. Each section has its own functions called Pages. Pressing the

left or the right button enters the corresponding Pages.

PAGES

Each Section consists of 4 Pages. On the Voice Section you will nd

the LFO, VCO, VCF, ENV and on the Menu Section the SAVE, LOAD, CV

IN, CCs.

MATRIX

Each of the four Pages corresponds to one of the four rows of the

matrix on the panel. Each Page is assigned to a different LED color for

easier distinction (Red,Green,Blue,White).

13 14

CV IN: Accepts any external CV signal rated at ±5 Volts. Through

the CV IN Menu Page, you can assign all the main parameters by

setting each independent modulation amount.

EXT IN: Accepts any audio signal. This signal gets mixed with the

Oscillator at the input of the LP Filter. In this way the LP Filter,HP Filter

VCA and their modulations can be used to alter the behavior of the

external audio.

AUDIO OUT: Mono Audio OUT with level control.

PITCH: 1V/oct analog input that affects the pitch of the internal Oscillator.

GATE: It accepts Gate signals.

MIDI IN: TRS MIDI Type A input.

MIDI OUT: TRS MIDI Type A output that acts both as Through and Output.

Pressing the button that corresponds to one of the sections you can

cycle through the different Pages (Matrix rows).

When a Page is chosen, the sliders are used to affect the different

parameters according to their current position (Matrix columns).

SHIFT FUNCTION

To control additional functions of the Pages hold down the Voice

Button. These are called shifted functions that affect additional

sonic parameters.

Slider 1 Slider 2 Slider 3 Slider 4

LFO LFO Rate LFO Wave LFO Pitch Amount LFO Cutoff Amount

Shifted Fade IN Free/Key/Track/BPM/

BPM Key LFO PW Amount LFO Noise Amount

VCO Tune Waveshape PW Noise Level

Shifted ±12 Semi

Quantized/Full Range

Unquantized LFO Wave Amount EG PW Amount VCO Level

VCF Cutoff HPF Resonance EG Cutoff Amount

Shifted Tracking FFM Amount NFM Amount EG Pitch Amount

ENV VCF EG Shape VCF EG Time VCA EG Shape VCA EG Time

Shifted VCF Sustain VCF EG Loop VCA Sustain Drone State

PAGE 1 - LFO (RED LED)

LFO RATE: It controls the rate of the Low Frequency Oscillator. It

ranges from 40 seconds when the slider is all the way down, to 110Hz

for subtle audio rate modulation.

LFO WAVE: Depending on the position of the slider, the LFO can

have the following shapes: Triangle SAW Ramp Square

Stepped Random. (

Schema 1

)

Schema 1

15 16

By pressing the Voice Button we enter the Voice Pages and adjust the

parameters of the matrix with the four sliders.

The Voice Section consists of four Pages. The LFO, VCO, VCF, ENV.

Each Page corresponds to a line on the matrix and is indicated by a

specic LED colour.

Pressing the Voice Button cycles between the four Pages.

VOICE PAGES

SHIFT= press and hold down the Voice button

Slider1

Slider2

Slider3

Slider1

Slider4

Slider2

Slider1

Slider2

Slider3

Slider4

LFO PITCH AMT: It adjusts the LFO modulation amount of the VCO pitch.

LFO CUTOFF AMT: It adjusts the LFO modulation amount of the LP

Filter Cutoff Frequency.

LFO SHIFT PAGE: (Can be accessed by holding the Voice Page Button

while adjusting the sliders values).

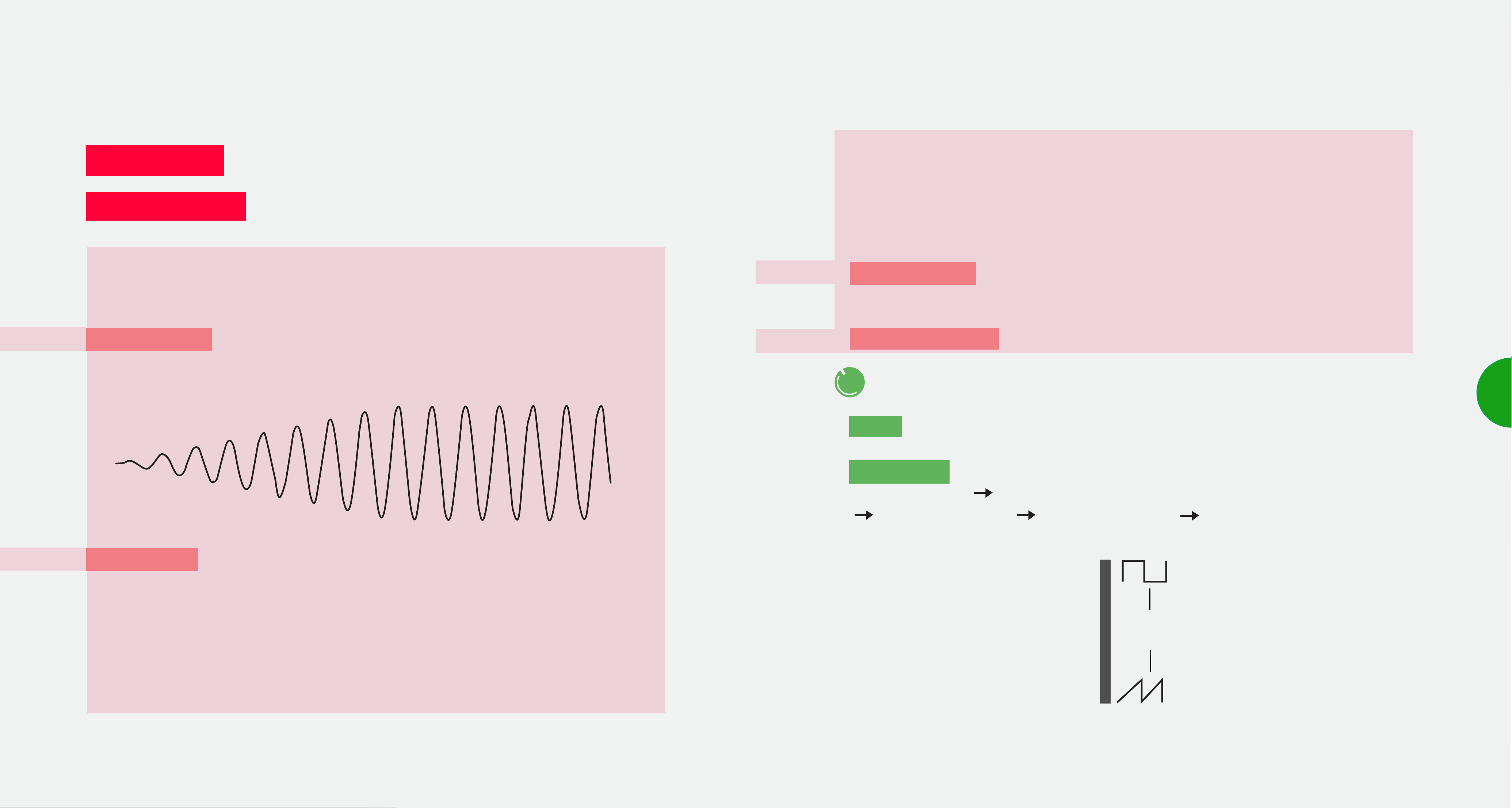

LFO FADE IN: This refers to the time it takes for the LFO to start

modulating, after the played note. Ranges from 1ms to 5 sec.

(Schema 2)

LFO MODES

Free: Running freely without being affected by the played note.

Key sync: The LFO waveform always resets to its beginning when a

new note is played.

Key track: LFO cycle speeds up according to the Pitch of the

played note.

Schema 3

17 18

BPM sync: The LFO rate tracks the MIDI clock, independent of the played

note. The LFO rate works in divisions of 1, 2, 3, 4, 6, 8, 12, 16, 24, 32.

BPM key sync: The LFO rate tracks the MIDI clock and its waveform is

reset to its beginning whenever a new note is played.

LFO PW AMT: It adjusts the LFO modulation amount of the VCO

square wave pulsewidth.

LFO Noise Amount: Adjusts the LFO modulation amount of the Noise level.

PAGE 2 - VCO (GREEN LED)

Tune: It adjusts the pitch of the oscillator. Default range -12st to +12st.

Can be further adjusted with the shift function.

Waveshape: It adjusts the shape of the oscillator wave.

(Schema 3)

From Sawtooth Sawtooth+Sub blend

Sub OSC (square) Square/Sub blend Square

sub

Schema 2
