Draper 50094 Manuel utilisateur

These instructions accompanying the product are the original instructions. This document is part of the product,

keep it for the life of the product passing it on to any subsequent holder of the product. Read all these

instructions before assembling, operating or maintaining this product.

This manual has been compiled by Draper Tools describing the purpose for which the product has been

designed, and contains all the necessary information to ensure its correct and safe use. By following all the

general safety instructions contained in this manual, it will ensure both product and operator safety, together

with longer life of the product itself.

AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the

product.

Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper

Tools policy of continuous improvement determines the right to make modifications without prior warning.



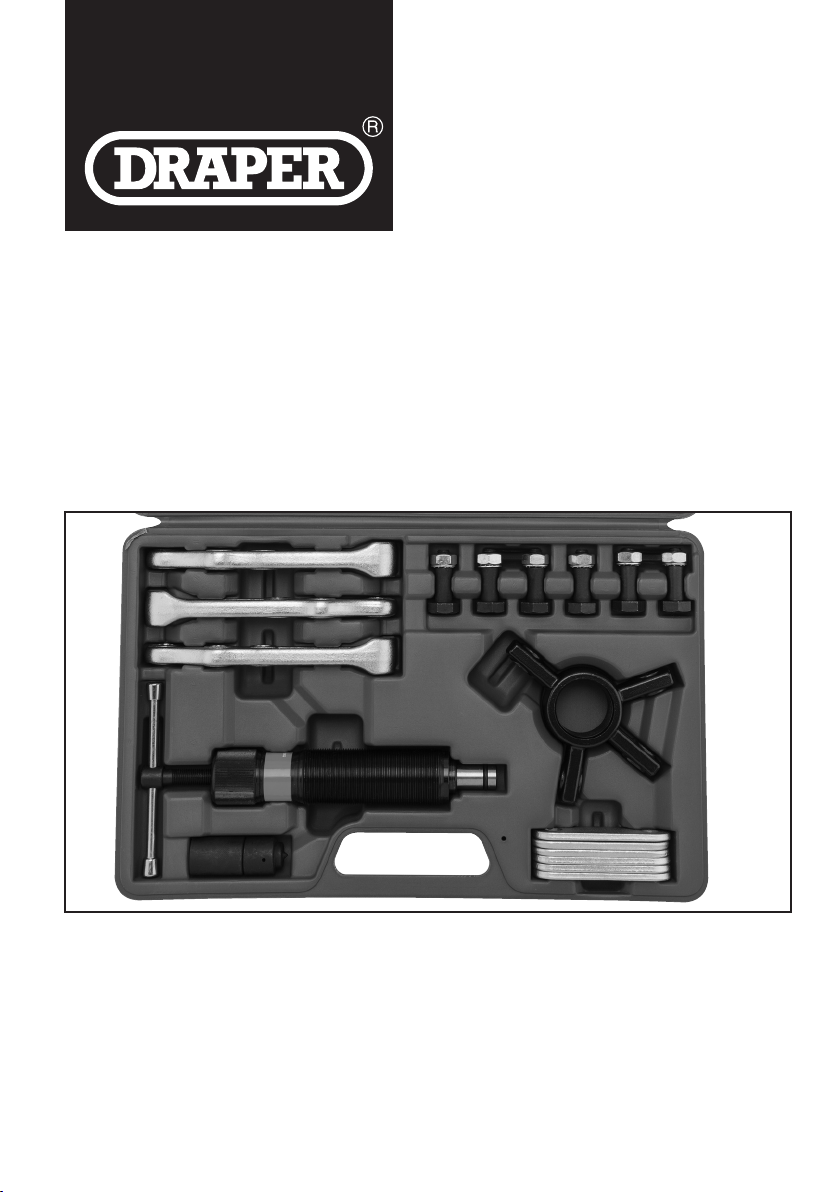

50094

PULLER KIT

HYDRAULIC

10 TONNE

1. OPERATION AND USE

The Draper hydraulic puller can be used in either 2 leg or

3 leg modes with 3 different depth settings on the legs.

First set up your puller yoke and legs in the configuration

to suit the workpiece.

- Unscrew the centre screw $ from the ram until a

total length of 80mm is withdrawn from the ram. Now

screw the hydraulic ram body into the puller yoke and

screw down until firm contact is made with the spindle

and the legs are locked into the item to be pulled.

- 2 -

$

25mm 80mm

RAM

- Now turn the ram pressure screw $ slowly into the

ram until about 25mm remains or item to be pulled is

released. Then unscrew to 80mm and re-tighten puller

by screwing ram body into yoke and repeat the

previous operation until the item being removed is

free.

Important: Do not strike the hydraulic ram with a hammer

or anything else, as this will cause the ram to fail and

invalidate warranty.

- 3 -

2. ASSEMBLY OPTIONS

Diameter range....100-150mm

Reach range..............0-90mm

Diameter range....100-150mm

Reach range............ 0-110mm

Diameter range....160-240mm

Reach range............0-150mm

Diameter range....160-240mm

Reach range............0-150mm

Diameter range....100-150mm

Reach range..............0-90mm

Diameter range....100-150mm

Reach range............ 0-110mm

Diameter range....160-240mm

Reach range............0-150mm

Diameter range....160-240mm

Reach range............0-150mm

Draper Tools Limited, Hursley Road,

Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.

Helpline: (023) 8049 4344

Sales Desk: (023) 8049 4333

Internet: drapertools.com

E-mail: [email protected]

General Enquiries: (023) 8026 6355

Service/Warranty Repair Agent:

For aftersales servicing or warranty repairs, please contact the

Draper Tools Helpline for details of an agent in your local area.

©Published by Draper Tools Limited.

No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,

electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.

CONTACTS

YOUR DRAPER STOCKIST

PJKC0118
