DPA d:screet SC4098 Manuel utilisateur
Supercardioid Tabletop and
Ceiling Microphone Solutions
User’s Manual
Microphone Base
dpamicrophones.com/mic-base
A d:screet™ SC4098 Supercardioid Podium Microphone
mounted in a DM6000 Microphone Base fits equally well on
a table, lectern or hung from the ceiling. This microphone
solution delivers clean intelligible pick-up of speech / vocals and
rejects background noise with its supercardioid directionality.
Low noise and a design with internal shockmount that highly
dampens unwanted sounds from tables and lecterns, secure a
trouble-free installation. The cable can be looped to either the
side or rear of the Microphone Base unit.
The solution consists of a d:screet™ SC4098 Supercardioid
Podium Microphone with a MicroDot male connector at the end
of the gooseneck and a DM6000 Microphone Base unit with a
MicroDot female connector as its input.
The solution is available in three dierent cable versions for
easy integration.
DPA Microphone Base Exploded view
XLR
Balanced output directly to industry
standard connector XLR-3M.
MicroDot
This unbalanced version allows the
use of an external adapter to XLR
(DAD6001) or a wireless transmitter
via the wide range of DPA adapters.
Unterminated
Balanced output with free leads for
easy adaption to Phoenix connectors
widely used in the installation
processors or input nodes.
Available in black and white with gooseneck lengths of 16 cm
(6 in), 28 cm (11 in), 43 cm (17 in); it is possible to accommodate
any need for sleek Scandinavian design and superior audio
quality.
A locking ring secures the gooseneck to the base mount for
protection and hidden mounting holes in the base make it
possible to attach the microphone to either a table, lectern or
ceiling. It will cover most electrical backboxes as well.
Installation
The Microphone Base is unpacked and the cover released
(Fig. 1) to adjust it to the desired position (three possible) and
for access to the mounting holes for permanently axing to
either a table, lectern or ceiling. The cover is released by gently
inserting a flathead screwdriver or similar tool into one of the
three access points on the side of the unit (Fig. 2).
Fig. 1
Fig. 2

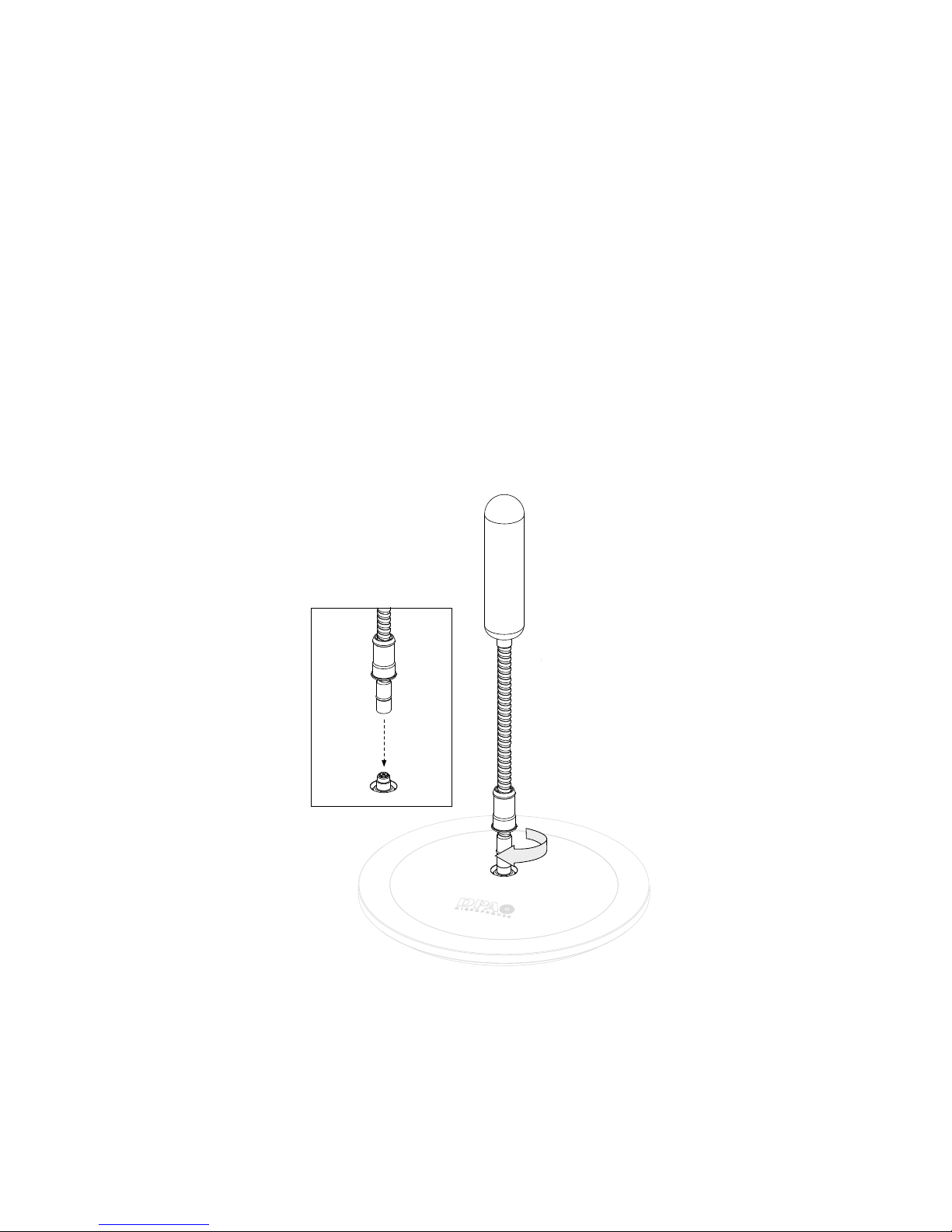

Remount the cover, attach the gooseneck microphone and
screw it onto the Microphone Base (Fig. 3). Then slide down
the locking ring and screw it on. (Fig. 4).
Fig. 3
2. Connect MicroDot
1.
Fig. 4
Lock
Specifications
Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB, 20 cm (7.9 in)
80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 71 dB(A)
Total harmonic distortion (THD)
< 1% up to 125 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, peak before clipping
135 dB
Output impedance
From MicroDot: 30 - 40 Ω
From DAD6001 XLR Adapter: 100 Ω
From XLR connector or Unterminated leads: 100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
Up to 300 m (984 ft) with XLR / Unterminated leads or DAD6001 XLR Adapter
Output balance principle
Signal balanced with XLR / Unterminated leads or DAD6001 XLR Adapter
Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz on XLR / Unterminated leads or DAD6001 XLR Adapter
Power supply (for full performance)
From MicroDot: 5 V
From DAD6001 XLR Adapter: 48 V ±4 V (will work from 12V)
From XLR connector or Unterminated leads: 48 V ±4 V
(will work from 12 V)
Current consumption
Typ. 3.5 mA on XLR/Unterminated leads or DAD6001 XLR Adapter
Connector
MicroDot, Unterminated leads or XLR-3M
Cable length
1.8 m (71 in)
Color
Black or white
Weight (incl. Base)
16 cm (6 in): 355 g (12.5 oz)
28 cm (11 in): 360 g (12.7 oz)
43 cm (17 in): 368 g (13.0 oz)
Base diameter
110 mm (4.3 in)
Microphone diameter
10 mm (0.4 in)
Capsule diameter
5.4 mm (0.21 in)
Microphone length
16 cm (6 in), 28 cm (11 in), 43 cm (17 in)
Polarity for positive sound pressure
+V at MicroDot pin
Pin 2 on XLR connector
Red lead on Unterminated versions
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
16 kHz
8 kHz
4 kHz
2 kHz
1 kHz
500 Hz
250 Hz
0º
5dB
20 Hz 50 100 200
500
1 kHz 2510 20 40
dB
10
-10
-20
-30
0
0°
30°
60°
90°
180°
Typical on- and o-axis response of a d:screet™ SC4098 Supercardioid Podium Microphone measured at 20 cm (8 in)
Typical directional characteristics of a d:screet™ SC4098 Supercardioid Podium Microphone
