DoubleSight DS-307W Manuel utilisateur

For the latest updates and more information, visit our website at

www.doublesight.com

Part No. 90-X-DS307W-EUEX0

Made in Korea

DoubleSight DS-307W

LCD MONITOR

USER'S MANUAL

(877) TWO - LCDS

Correct posture for effective use of the LCD monitor.Specifications

PlacementTrademarks

Disclamer

DoubleSight Displays, LLC

Tel: 1-877-TWO-LCDS (1-877-896-5237) U.S.A. only

E-mail: [email protected]

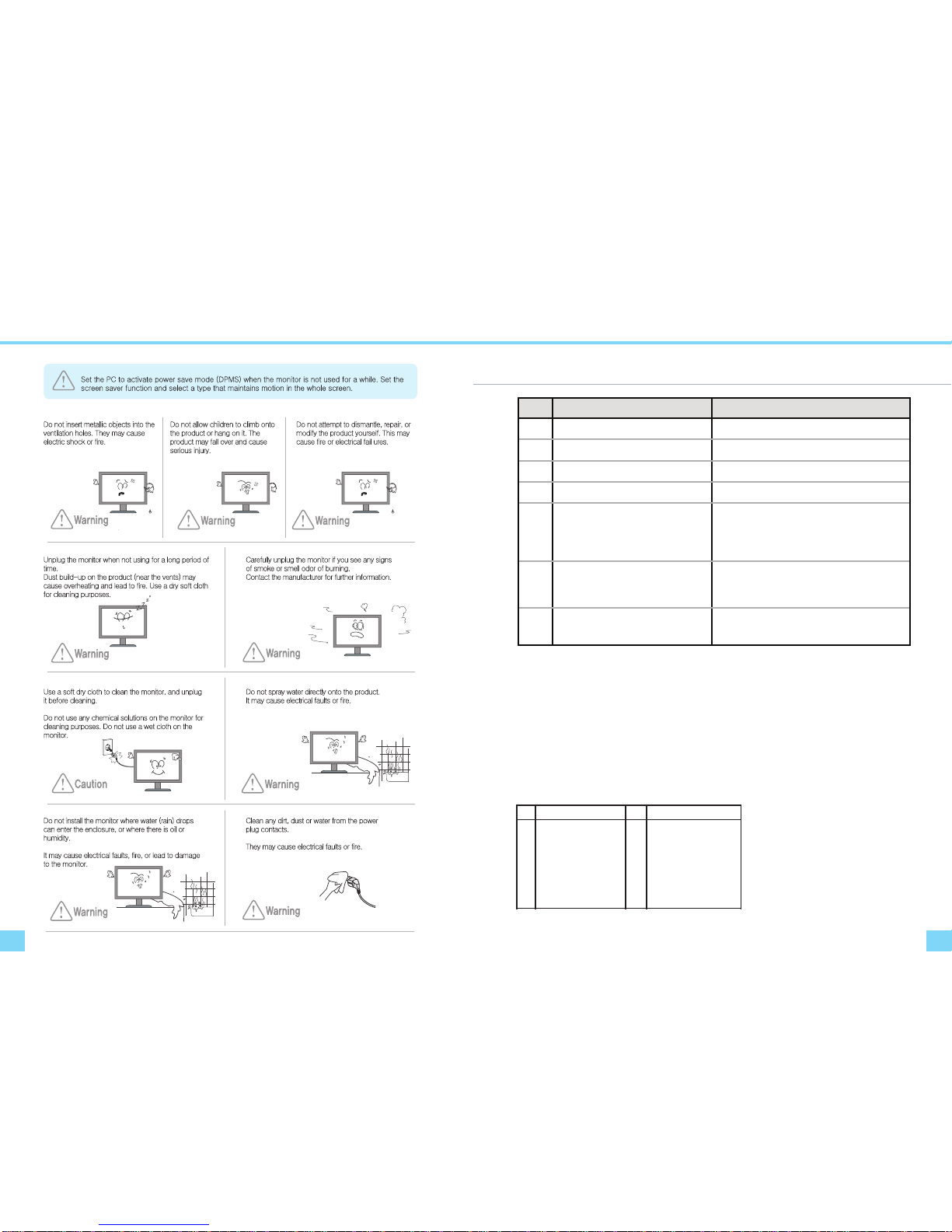

Safety Precautions

27”Type - 2560 x 1440 @60Hz

Safety InstructionsSafety Precautions

Available Temperature & Humidity

For dot defect [dead pixel] of LCD

TFT-LCD produced by using high-end semiconductor technology with precision of 99.9% above is used for

this monitor.

However the pixels of R.G.B. & White color seem to be right sometimes or some of black pixels could be seen

on the LCD. This is not from bad quality or functional problem and you can use it without any problem.

Supported resolution mode table

Resolution

2560 X 1600 @ 60Hz

1920 X 1200 @ 60Hz

1920 X 1080 @ 60Hz

1600 X 1200 @ 60Hz

1280 X 1024 @ 60Hz

Resolution

1280 X 800 @ 60Hz

1280 X 768 @ 60Hz

1024 X 768 @ 60Hz

800 X 600 @ 60Hz

640 X 480 @ 60Hz

No Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

5Vibration test

(non-operating)

Wave form : random

Vibration level : 1.0G RMS

Bandwidth : 10-300Hz

Duration : X,Y,Z, 10 min

One time each direction

6Shock test

(non-operating)

Shock level : 100Grms

Waveform : half sine wave, 2ms

Direction : ±X, ±Y, ±Z

One time each direction

7Altitude Operating

Storage / Shipment 0 - 10,000 feet(3,048m)

0 - 40,000 feet(12,192m)

⑥ ⑦

Component name & IntroductionPacking Contents

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

LCD Monitor

④③②①

①: Power On / O

②: Volume Up & Down / OSD Menu Left & Right

③: OSD Menu Up & Down / Channel Up & Down

④: Input Source Select / OSD Sub Menu Select

⑤: OSD Menu On / O

Front

Rear

Dual Link DVI CablePower Cord

AC Adaptor

Bottom

Side

⑤

▲▼SM

⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

⑥: Power Input (DC24V)

⑦: DVI Signal Input (Dual link DVI-D port)

⑧: VGA Input 1 & 2

⑨: HDMI Input

⑩: Video connector (Y, Pb, Pr)

⑪: Sound connector (Left & Right)

⑫: PC Audio (In & Out)

⑬: SPDIF(For Digital Audio)

⑭: USB (Firmware Update use only)

Switch Panel

Connecting to PC

1110

Computer Connection

Adjusting the Monitor Screen

Pivot Function

VGA

↗

• If only one connections is required a DVI connection is recommended if available

SpecificationsDimensions

1312

Specications

Product Weight: approximately 30 lbs

Dimensions, apparent design and specications are subject to change without any prior notice

for the performance improvement.

Product Name 30” Wide TFT-LCD Monitor

LCD Panel

Panel Type

Visible Screen Area

Outline Dimension

Resolution

Pixel Pitch

Color Depth

Contrast Ratio

Brightness

Viewing Angle

Response Time

In-Operation

DPMS /OFF

TFT

30” (756.23mm) Diagonal

677.30mm(H) x 436.80mm(V) x 42.30mm(D)

2,560(H) X 1,600(V)

0.2505mm x 0.2505mm

1.07 Billion Colors, 10 bit with A-FRC

1000 : 1

370 cd /㎡

Horizontal 178˚, Vertical 178˚

6ms (GTG)

< 170W

< 2W

VESA DPMS

AC 100V~240V, 50~60Hz

DC 24V / 7.5A

Dual Link DVI, VGA x 2, Component, HDMI

Dual link DVI cable, VGA Cable,

AC Adapter, Power Cord

Power Consumption

Energy Saving Mode

Power

Video Interface

Accessories

Adaptor Input

Adaptor Output

703

273.05

655.32

391.5

461

527

31.7531.75

222.25

152.4

279.4

Dimensions (mm)

Connecting to PC

1514

Connecting to PC

OSD Control

To connect the monitor to the PC, please follow these instructions:

1. Connect DVI cable to the PC. Tighten all the screws.

2. Connect DVI cable to the DVI connector on the back of the monitor. Tighten all the screws.

3. Connect one end of the power cord to the AC adaptor and the other end to the AC power outlet.

4. Connect DC adaptor cable to the power input connector on the back of the monitor.

5. Turn On the monitor and PC.

6. Adjusting display resolution of PC

This monitor does support OSD Menu control function.

- Resolution : 2,560 X 1,600

- Refresh Rate : 60 Hz

④③②①

①: Power On / O

②: Volume Up & Down / OSD Menu Left & Right

③: OSD Menu Up & Down / Channel Up & Down

④: Input Source Select / OSD Sub Menu Select

⑤: OSD Menu On / O

⑤

▲▼SM

Adjusting the Monitor Screen

How to adjust monitors

Source Settings

Signal Source - select screen input

(VGA1, VGA2, DVI, HDMI, Comp)

OSD Menu M

OSD Menus - select menus from

(PICTURE, MISC, PC, SYSTEM)

(Detailed description in next page)

1716

How to adjust monitors

Adjusting the Monitor Screen

How to adjust monitors

OSD Functions Description

Color Temp.

- Choose different color temperature.

Brightness

- Adjust the brightness.

Contrast

- Adjust the image contrast.

Sharpness

- Adjust the image sharpness

OSD Functions Description

Adjusting the Monitor Screen


MISCELLANEOUS

OSD Language

- Select a language for OSD menu.

OSD V. Pos.

- Controls vertical position of OSD window.

OSD Halftone

- Controls display time on OSD window.

Memory Recall

- Reset all user settings to factory preset.

Aspect

- Select screen ratio.

Sleep Timer

- Set sleep timer.

OSD H. Pos.

- Controls horizontal position of OSD window.

OSD Duration

- Controls display time on OSD window.

D C R

- Set Dynamic Contrast Ratio.

ECO M

- Eco Mode adjustment.

Clock

- Adjust clock.

Phase

- Controls phase.

H - Position

- Controls horizontal position of screen.

V - Position

- Controls vertical position of screen.

Auto Color

- Automatically adjust color.

Auto

- Automatic adjust optimal settings of monitor.

Volume

- Controls volume.

Multi Window

- Select between single view & multi view.

Sub Source

- Select sources from other Sub displays.

Sound Effect

- Turn sound effect on/off.

Phase Control(VGA mode only)

SYSTEM(Sound)

Sound Source

- Select sound source.

Troubleshooting

1918

Troubleshooting

If you encounter a problem with your monitor please review these troubleshooting tips.

If the problem persists please contact your monitor dealer or DoubleSight customer service for additional

assistance.

No image on the monitor

- Check whether the DVI cable is rmly connected to the PC and the monitor.

- Check whether a graphic card is correctly inserted into the slot.

- Check whether the power of the PC and the monitor is on.

- Check whether a graphic card or mode is set appropriately on the PC.

- Check whether DVI cable pins are not inserted or bent.

No Power

- Check whether the power cord is correctly inserted and reconnect if necessary.

- Pull out the power cord from wall outlet and reconnect in 1 ~ 2 minutes.

LED lamp is on and o. It shows no image.

- Check whether DVI cable is connected to the monitor and the PC.

- Check whether the PC is in power saving made and attempt to operate keyboard and mouse.

Unstable or unfocused image or trembling

- Check whether DVI cable is connected to the monitor and the PC.

- If the PC’s display mode is changed, the screen needs readjusting. So check the display mode.

How to adjust monitors(Multi Window)

Adjusting the Monitor Screen

SYSTEM - Multi Window

→

From the system menu under ‘Multi Window’ choose ‘off’ to enter dual screen mode

NOTE: One of the window’s video port source must be connected through

either HDMI or Component.

VGA1,2 or DVI HDMI or Component

→
