Dosatron D9 Green Line Manuel utilisateur

D9 - ANIMAL HEALTH

NTD9AL-05-19

User Manual

................................................................

.................................................................

................................................................

NOTES

You have just acquired a DOSATRON water-powered dosing pump.

Congratulations on your choice. This model was produced using over

40 years of experience.

Our engineers have placed the DOSATRON series at the forefront

of technical development in the field of DOSATRON water-powered

metering pumps.

Over time this DOSATRON will prove itself to be a most faithful ally.

A few regular maintenance operations will guarantee operation in which

the word “breakdown” will no longer be heard.

THEREFORE, PLEASE, READ THIS MANUAL CAREFULLY

BEFORE PUTTING THE APPLIANCE INTO SERVICE.

Important!

The complete reference and serial number of your DOSATRON is

shown on the pump body.

Please record these numbers in the space below and refer to

them when contacting your retailer or asking for information.

Ref.: ...................................................................................................

Serial No.: ..........................................................................................

Purchase Date: .................................................................................

This document does not form a contractual obligation

and is for information only. DOSATRON INTERNATIONAL

reserves the right to alter its appliances at any time.

English

................................................................

.................................................................

................................................................

NOTES

MARKING/IDENTIFICATION/CHARACTERISTICS

Codification of the reference .................................................... 7

Characteristics ......................................................................... 8

Dimensions ............................................................................... 8

INSTALLATION

Precautions ..............................................................................11

Installation of the Dosatron..................................................... 14

Changing the dosing scale ..................................................... 16

Connecting the suction hose .................................................. 18

Installation tips ........................................................................ 19

Automatic device to prevent siphoning of the product ........... 21

PUTTING INTO SERVICE

Using for the first time............................................................. 22

Use.......................................................................................... 23

Adjusting the dosing rate ........................................................ 23

Dosing principle ...................................................................... 24

Feet options ............................................................................ 25

MAINTENANCE

Recommendations .................................................................. 26

Draining the Dosatron............................................................. 27

Removing the suction hose .................................................... 28

Removing/Refitting the dosing part ........................................ 29

Changing seals in the dosing part .......................................... 30

Removing/Refitting the dosing piston ..................................... 31

Cleaning and refitting the suction valve.................................. 32

Changing the motor piston ..................................................... 33

TROUBLESHOOTING.............................................................. 34

LIMITED WARRANTY .............................................................. 36

Contents

Marking/Identification

Characteristics

Your dosing pump has 2 main marking zones enabling it to be identified in

detail:

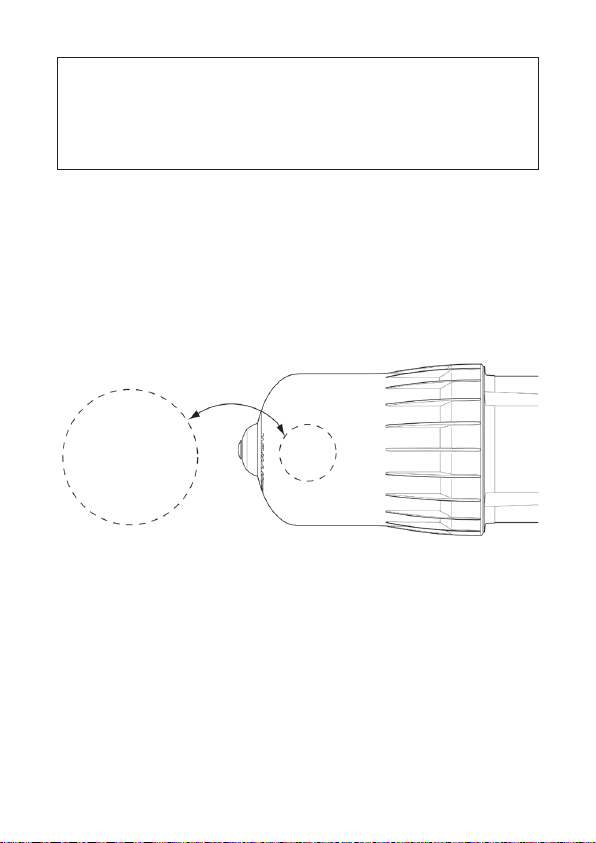

A 2-line engraving on the section of the top (see picture below), containing the

exact reference for the appliance and the serial number.

A technical label on each side of the dosing pump body indicating the techni-

cal performances of the appliance.

REF.

D9AL2VF

18124321

D9AL2VF

18124321

Serial No.

REF. : ............................................... Serial No.: .....................................

Example

D9 AL 2 VF

Dosatron Range

Product line

AL: Animal Health Line

Dosing

Dosing Seals

VF: Acidic liquids (pH 0-9)

CODIFICATION OF THE REFERENCE

CHARACTERISTICS

D9AL2

Operating flow: 500 l/h min. 9 m3/h max. [

2.2 - 40 US gpm]

.

Max. operating temperature: ....................................................40 °C [104 °F]

Operating pressure:

bars

psi

0.3 - 8

4.3 - 116

Dosing adjustable from the exterior:

%

Ratio

0.2 - 2

1:500 - 1:50

Concentrated product injection flow:

Min. l/h - Max. l/h

US Fl. oz/min - MIN

US Fl. oz/min - MAX

1 - 180

0.56

101.45

Connections(NPT/BSPmale gasfittings):.......................Ø40x49mm[1 1/2”].

Hydraulic motor capacity (every two clicks of the piston):

approx. 1.7 l [0.449 US gallons]

IMPORTANT! The DOSATRON is not pre-set,

please refer to the paragraph ADJUSTING THE DOSING

DIMENSIONS

Diameter: cm ["] 17.55 [6 9/10]

Total height: cm ["] 67.82 [26 11/16]

Overall width: cm ["] 21.8 [8 1/2]

Weight: ± kg [lbs] 3.3 [7.3]

PARCEL COMPOSITION: 1 DOSATRON/1 mounting bracket for

DOSATRON/1 suction hose for concentrate/1 strainer/

1 quick start guide

PACKAGING DIMENSIONS:

67 x 22.5 x 20.5 cm [26 3/8”x 8 7/8”x 8 1/16”]

PARCEL WEIGHT: Approx. 5.5 kg [~ 12.1 US lbs]

DOSATRON Technology

A unique technology associating all dosing functions

Installed on the water supply line, the Dosatron uses water pressure

as the only power source. Thus activated, it takes up the required

percentage dose of concentrate and then mixes it with the moving

water. The solution produced is then propelled downstream. The dose

of injected product is always proportional to the volume of water

passing through the Dosatron, regardless of variations in flow or

pressure in the water supply line.

Motor piston

Clear water Water solution

+ % product

Dosing piston

Dosing adjustment

(%) ratio

Concentrate

to be dosed



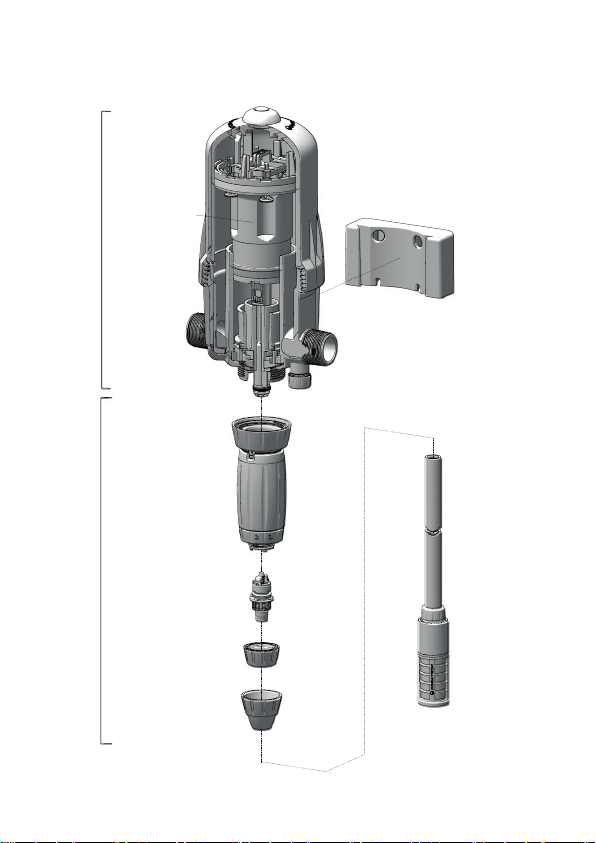

MOTOR SECTION

DOSING PART

Bleed

Top

Mounting bracket

Pump body

Dosing piston

Dosing

sub-assembly

Suction

valve

Suction

valve

nut Suction hose

+ strainer

+ ballast

Hose

nut

Motor piston
